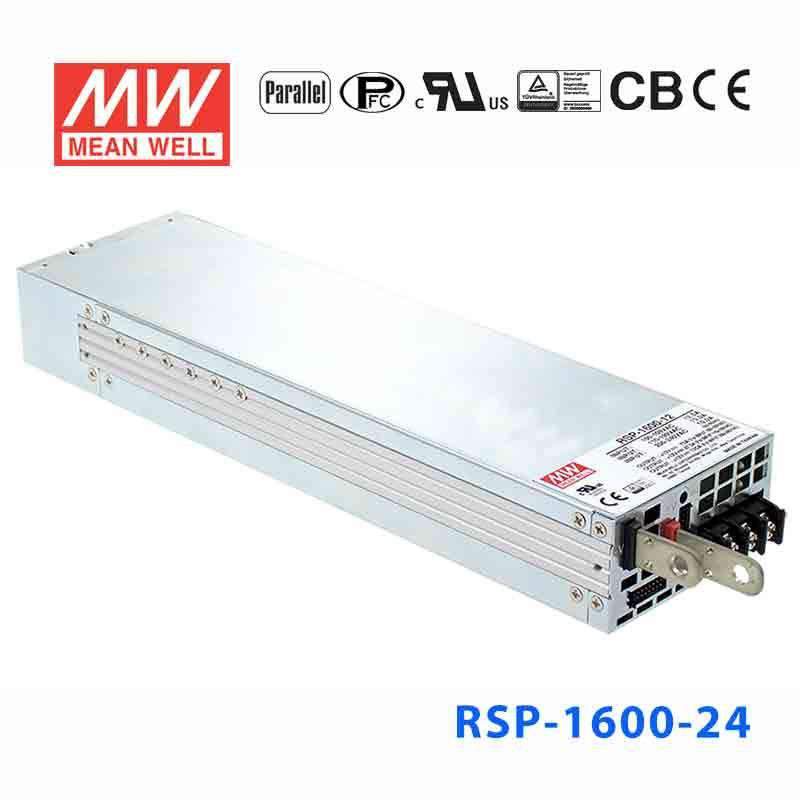

Mean Well RSP-1600-24 Power Supply 1608W 24V | Auckland Distributor, Best Stock Availability

EN55022(CISPR22) Class B,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,EN55024, EN61204-3, EN61000-6-2

Key Features

✓Universal AC input / Full range(Withstand 300VAC surge input for 5 seconds)
✓Built-in active PFC function
✓High efficiency up to 93%
✓Forced air cooling by built-in DC fan
✓Output voltage and constant current level programmable
✓Active current sharing up to 9600W (5+1)
✓Built-in remote ON-OFF control / remote sense / auxiliary power /DC OK signal /OTP alarm signal
✓Protections:Short circuit/ Overload / Over voltage / Over temperature
✓Optional PMBus or CANBus protocol
✓5 years warranty

Frequently Asked Questions

What high-power 24V applications suit the RSP-1600-24?

The RSP-1600-24 delivers 24V at 67A (1608W) and is designed for large 24V DC bus systems such as industrial robot power centers, high-capacity PLC installations, building automation central power, and large-scale actuator networks. The 90–264VAC input covers all standard single-phase supply voltages.

How does the RSP-1600-24 compare to the RSP-1500-24 at 24V?

The RSP-1500-24 delivers 24V/63A/1512W in a 278 × 127 × 83.5 mm chassis with 91% efficiency and (3+1) current sharing. The RSP-1600-24 delivers 24V/67A/1608W in a 300 × 85 × 41 mm chassis with 93% efficiency and (5+1) current sharing. The RSP-1600-24 provides more wattage, higher efficiency, and greater parallel scalability in a slimmer chassis.

What does (5+1) current sharing enable for the RSP-1600-24?

The (5+1) active current sharing allows up to five RSP-1600-24 units in parallel delivering 335A at 24V combined, with a sixth unit as N+1 hot standby. This enables very large, fault-tolerant 24V bus designs for mission-critical applications.

What is the operating temperature range of the RSP-1600-24?

The RSP-1600-24 operates from -30°C to +70°C ambient. The -30°C lower limit is broader than the RSP-1500 and RSP-1000 series (-20°C), making it more capable in cold environments. No IP ingress rating is specified.

What are all RSP-1600 series voltage options?

The RSP-1600 series is available in: RSP-1600-12 (1500W/12V/125A), RSP-1600-24 (1608W/24V/67A), RSP-1600-27 (1593W/27V/59A), RSP-1600-36 (1602W/36V/44.5A), RSP-1600-48 (1608W/48V/33.5A). All share the 300.0 × 85.0 × 41.0 mm chassis, 90–264VAC input, -30°C to +70°C range, and 5-year warranty.
