What 27V industrial applications benefit from the RSP-1600-27's 1593W output?

The RSP-1600-27 delivers 27V at 59A (1593W) and is suited for high-current 27V bus applications including large-scale battery charging for 24V lead-acid systems, industrial process heaters with 27V drivers, and high-power telecommunications front-end power. The 90–264VAC input provides worldwide single-phase compatibility.

How does the RSP-1600-27 compare to the RSP-1600-24 and RSP-1600-36?

RSP-1600 series voltage options: RSP-1600-12 (1500W/12V/125A), RSP-1600-24 (1608W/24V/67A), RSP-1600-27 (1593W/27V/59A), RSP-1600-36 (1602W/36V/44.5A), RSP-1600-48 (1608W/48V/33.5A). The RSP-1600-27 provides 27V/59A/1593W and sits between the 24V (67A/1608W) and 36V (44.5A/1602W) variants. All share the 300.0 × 85.0 × 41.0 mm chassis.

Does the RSP-1600-27 support parallel operation for high-availability systems?

Yes. The RSP-1600-27 supports active current sharing (5+1), allowing up to five units in parallel delivering 295A at 27V combined, with a sixth unit as N+1 hot standby. Load sharing is automatic across paralleled units.

What is the operating temperature range of the RSP-1600-27?

The RSP-1600-27 operates from -30°C to +70°C ambient — the same range as other RSP-1600 models and wider than the RSP-1000/1500 series on the cold side. No IP rating is specified; the unit requires an appropriate enclosure.

What certifications does the RSP-1600-27 hold?

The RSP-1600-27 carries BSMI, CB, CE, EAC, TÜV, and UL certifications. CCC (China) certification is not included in the RSP-1600 series.

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

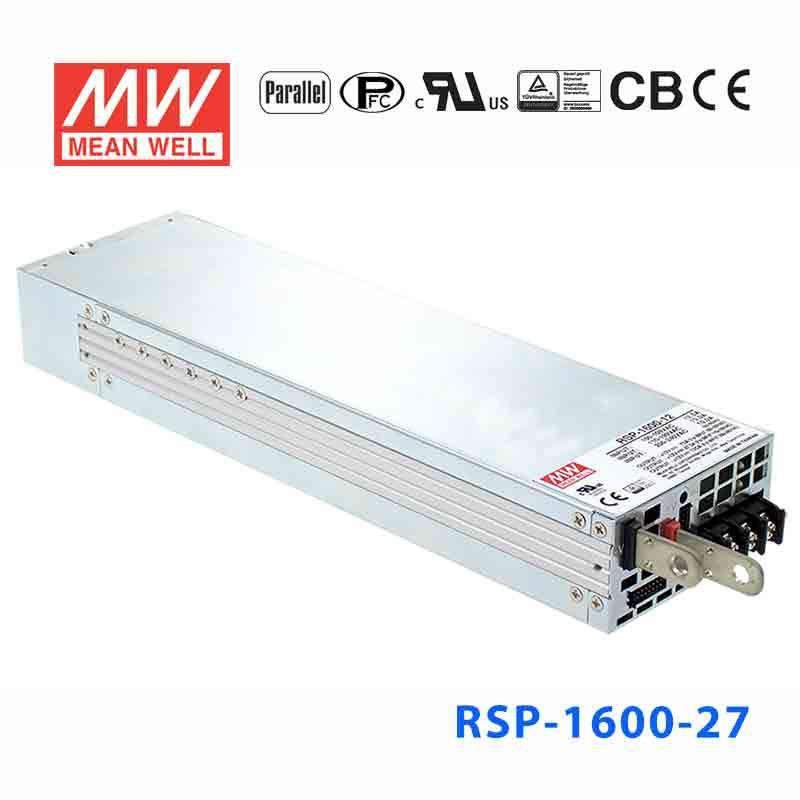

Mean Well RSP-1600-27 Power Supply 1593W 27V 59A

built-in active PFChigh efficiency up to 93%active current sharing(5+1)

SKU:

RSP-1600-27

Log in to see price Trade pricing & online ordering for account holders

Select model — 9 in this family

RSP-1600-27

RSP-75-27 75W 27V Backorder

RSP-100-27 100W 27V Backorder

RSP-1000-27 1000W 27V Backorder

RSP-150-27 150W 27V Backorder

RSP-1500-27 1500W 27V Backorder

RSP-1600-27 1600W 27V Backorder

RSP-320-27 320W 27V Backorder

RSP-500-27 500W 27V Backorder

RSP-750-27 750W 27V Low stock

Product variants

Notify me when it's back in stock

EN55022(CISPR22) Class B,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,EN55024, EN61204-3, EN61000-6-2

Key Features

✓Universal AC input / Full range(Withstand 300VAC surge input for 5 seconds)
✓Built-in active PFC function
✓High efficiency up to 93%
✓Forced air cooling by built-in DC fan
✓Output voltage and constant current level programmable
✓Active current sharing up to 9600W (5+1)
✓Built-in remote ON-OFF control / remote sense / auxiliary power /DC OK signal /OTP alarm signal
✓Protections:Short circuit/ Overload / Over voltage / Over temperature
✓Optional PMBus or CANBus protocol
✓5 years warranty
