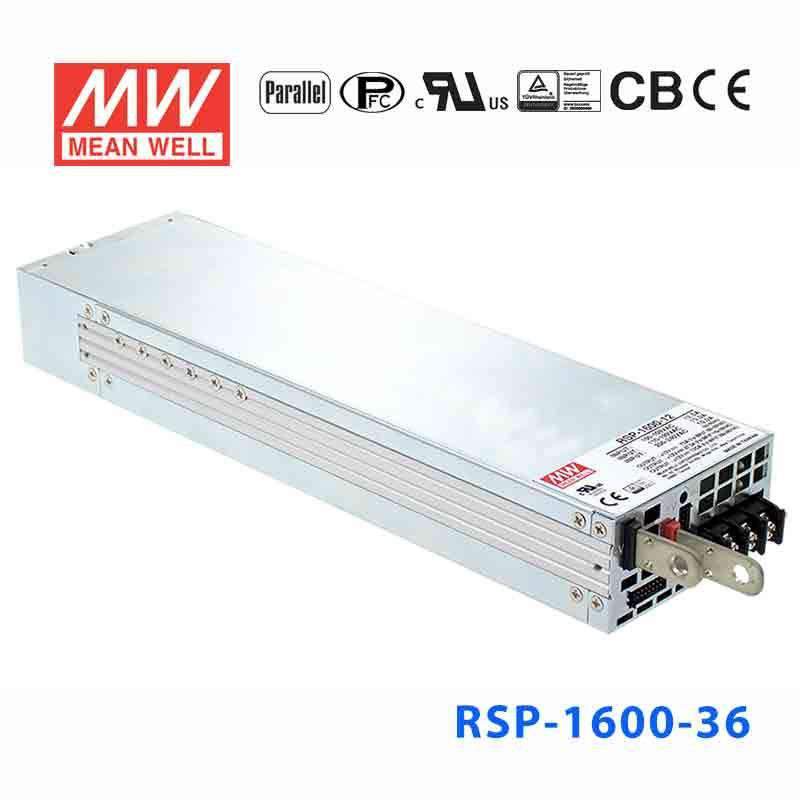

Mean Well RSP-1600-36 Power Supply 1602W 36V


|

Description

Features

Universal AC input / Full range(Withstand 300VAC surge input for 5 seconds)
Built-in active PFC function
High efficiency up to 93%
Forced air cooling by built-in DC fan
Output voltage and constant current level programmable
Active current sharing up to 9600W (5+1)
Built-in remote ON-OFF control / remote sense / auxiliary power /DC OK signal /OTP alarm signal
Protections:Short circuit/ Overload / Over voltage / Over temperature
Optional PMBus or CANBus protocol
5 years warranty

General Specification

AC input voltage range 90~264VAC ; 127~370VDC
AC inrush current (max.) Cold start, 35A at 230VAC
Overload protection 105%~115% Constant current limiting, unit will shut down o/p voltage after 5 sec. re-power on to recover
Over temperature protection Shut down o/p voltage, recovers automatically after temperature goes down
Setup, rise, hold up time 1500ms,60ms,16ms at full load
Withstand voltage I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC
Working temperature -30~+70ºC(refer to output derating curve)
Safety standards UL60950-1,TUV EN60950-1 approved
EMC standards

EN55022(CISPR22) Class B,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,EN55024, EN61204-3, EN61000-6-2

Connection input 3P/10mm pitch terminal block with cover
Dimension (LxWxH) (mm) 300x85x 41mm
Packing 6pcs / 13.6kg

Specifications

  • Brand
    Mean Well
  • Series
    RSP Series
  • Power Rating
    1602 Watt
  • Output Voltage
    36 Volt
  • Rated Current
    44.5 Ampere
  • Input Voltage
    90V~264V
  • Standards Met
    BSMI,CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    5 Year
  • Length
    30 cm
  • Width
    8.5 cm
  • Height
    4.1 cm
  • Weight
    2.1 kg

File Downloads
