Description
Description
Features
Universal AC input / Full range |
Built-in active PFC function |
Protections: Short circuit / Overload / Over voltage / Over temperature |

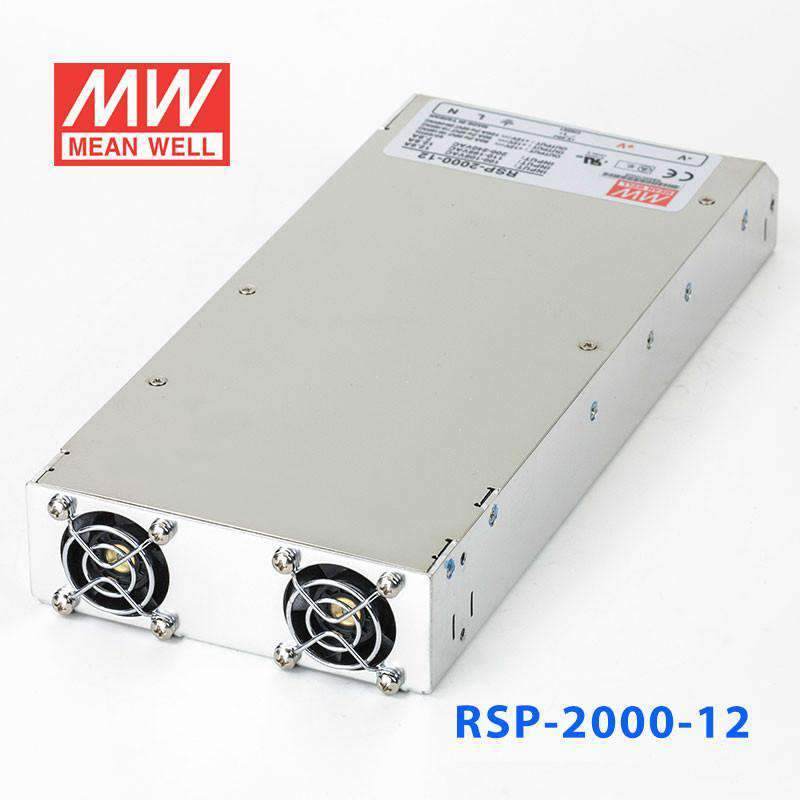

Forced air cooling by built-in DC fan |
Vo can be trimmed by external resistor or external control signal |
Built-in current sharing |
Built-in remote sense and ON/OFF control |
High power density up to 21.4W/in³ |
DC OK signal |
Built-in auxiliary power |
Alarm signal output |
5 years warranty |
General Specification
AC input voltage range | 90~264VAC; 127~370VDC |
AC inrush current (max.) | Cold start, 50A at 230VAC |
DC adjustment range | ±10% rated output voltage |
Overload protection Range | 105%~125% |
Overload protection Type | Constant current limiting, shut off after 5 sec., re-power on to recover |
Over voltage protection Range | 120%~145% |
Over voltage protection Type | Shut down O/P voltage, re-power on to recover |
Withstand voltage | I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
Working temperature | -35~+70°C |
Safety standards | UL60950-1, TUV EN60950-1 approved |
EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 |
Connection Input | 3P/10mm pitch terminal block with cover |
Connection Output | Copper pillars |
Dimension (LxWxH) | 295x127x41 |
Case No. | 952D |
Packing | 1.95kg; 6pcs / 12.7kg / 1.15CUFT |
Specifications
Specifications
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating1200 Watt
-
Output Voltage12 Volt
-
Rated Current100 Ampere
-
Input Voltage90V~264V
-
Standards MetBSMI,CB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-35°C~70°C
-
Warranty5 Year
-
Length29.5 cm
-
Width12.7 cm
-
Height4.1 cm
-
Weight1.95 kg
