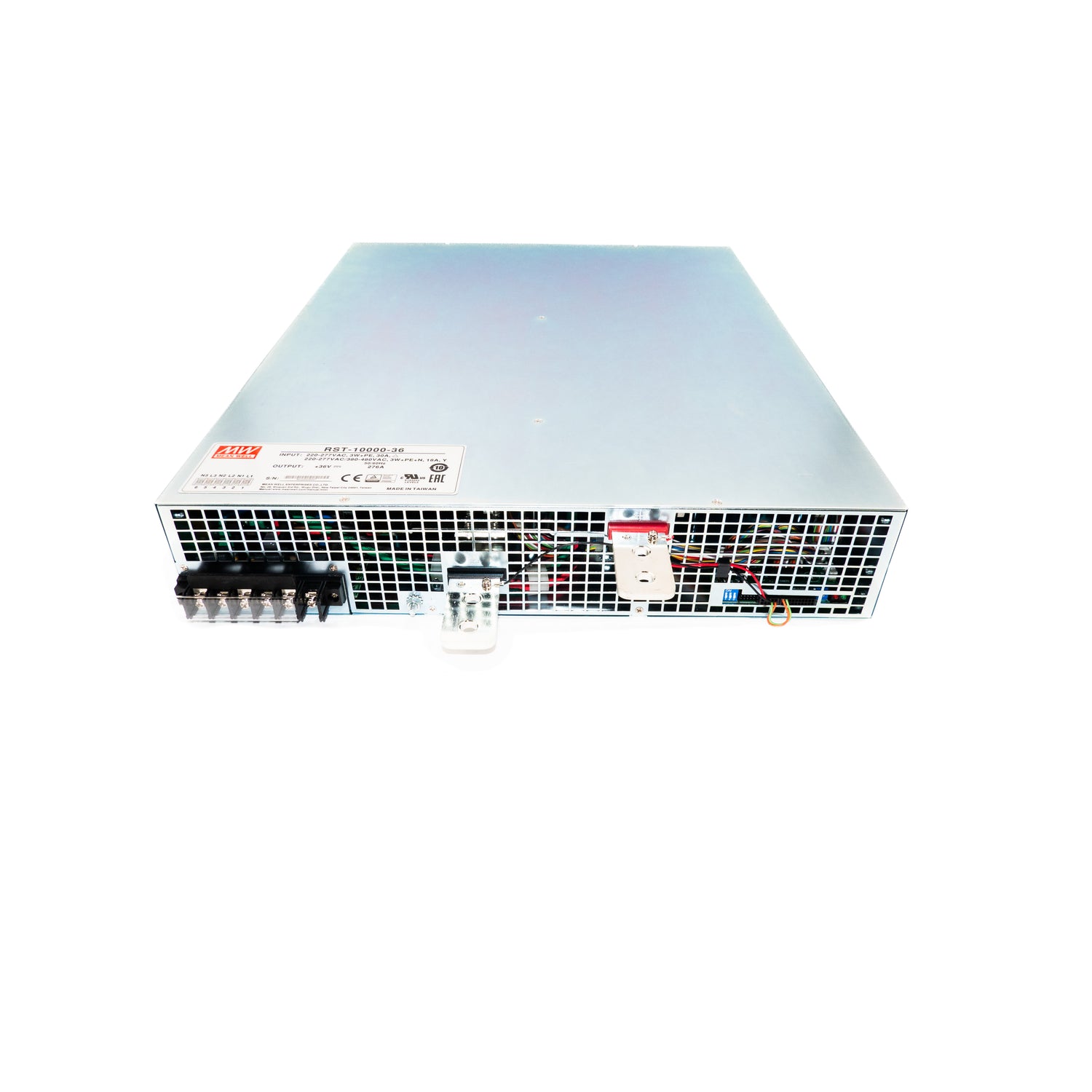

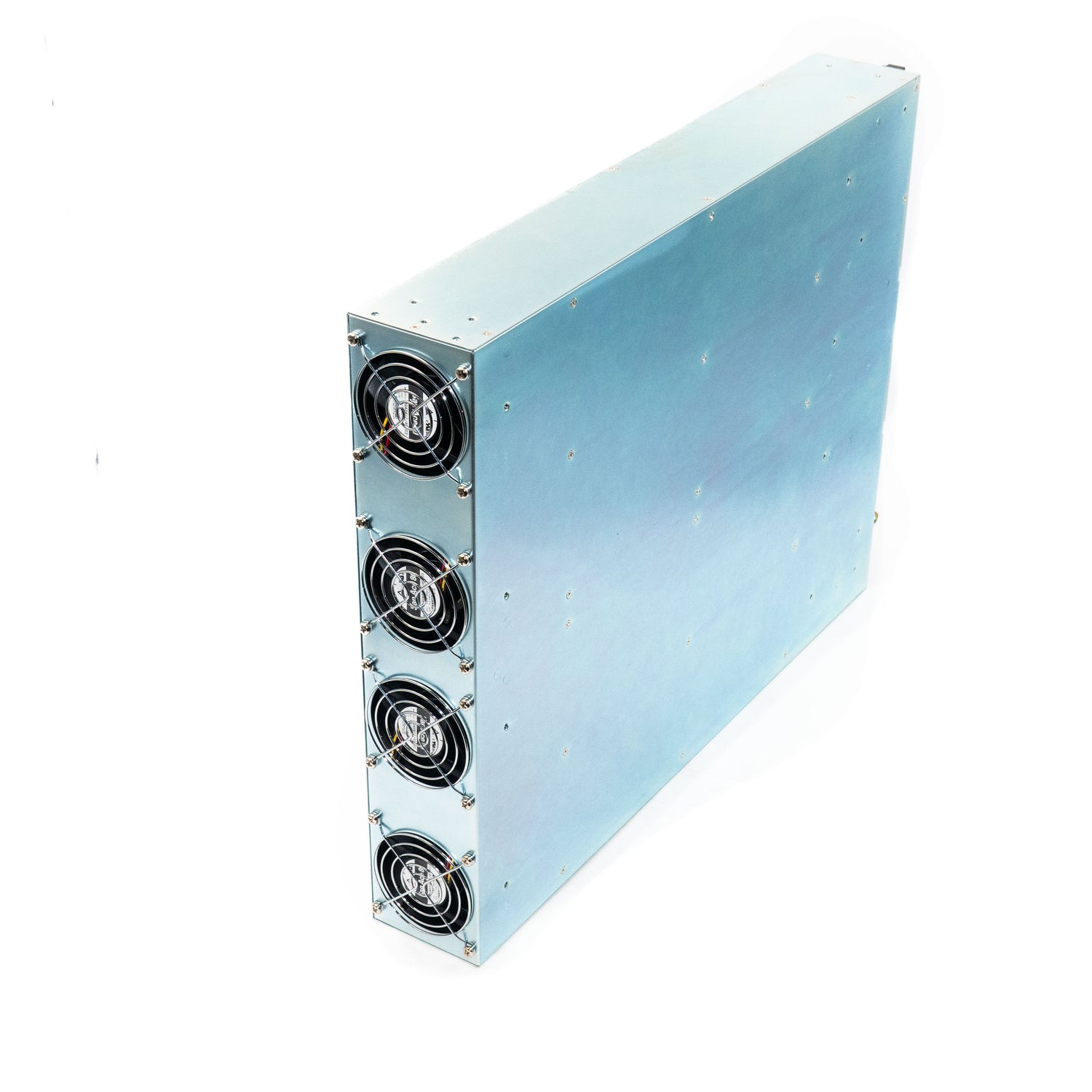

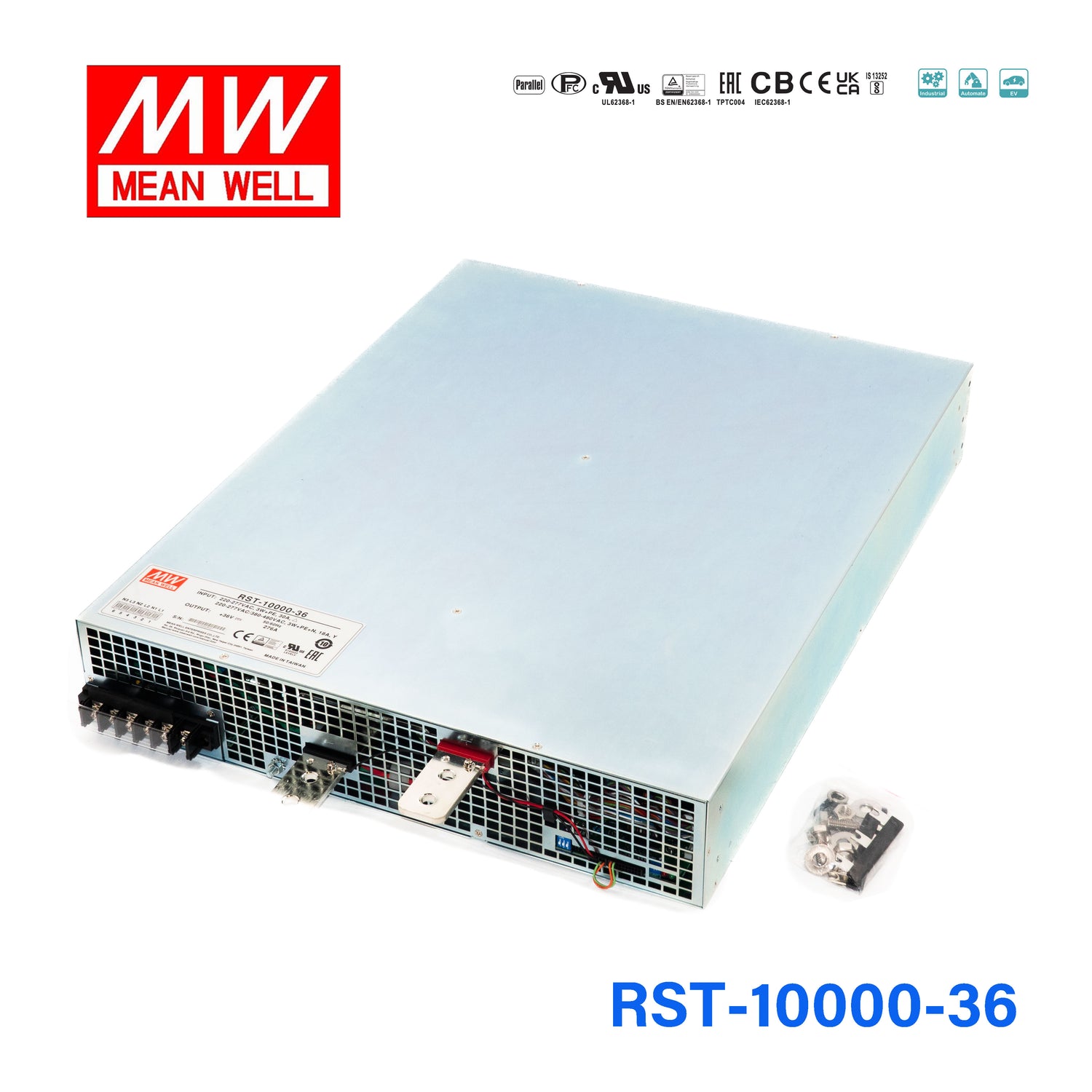

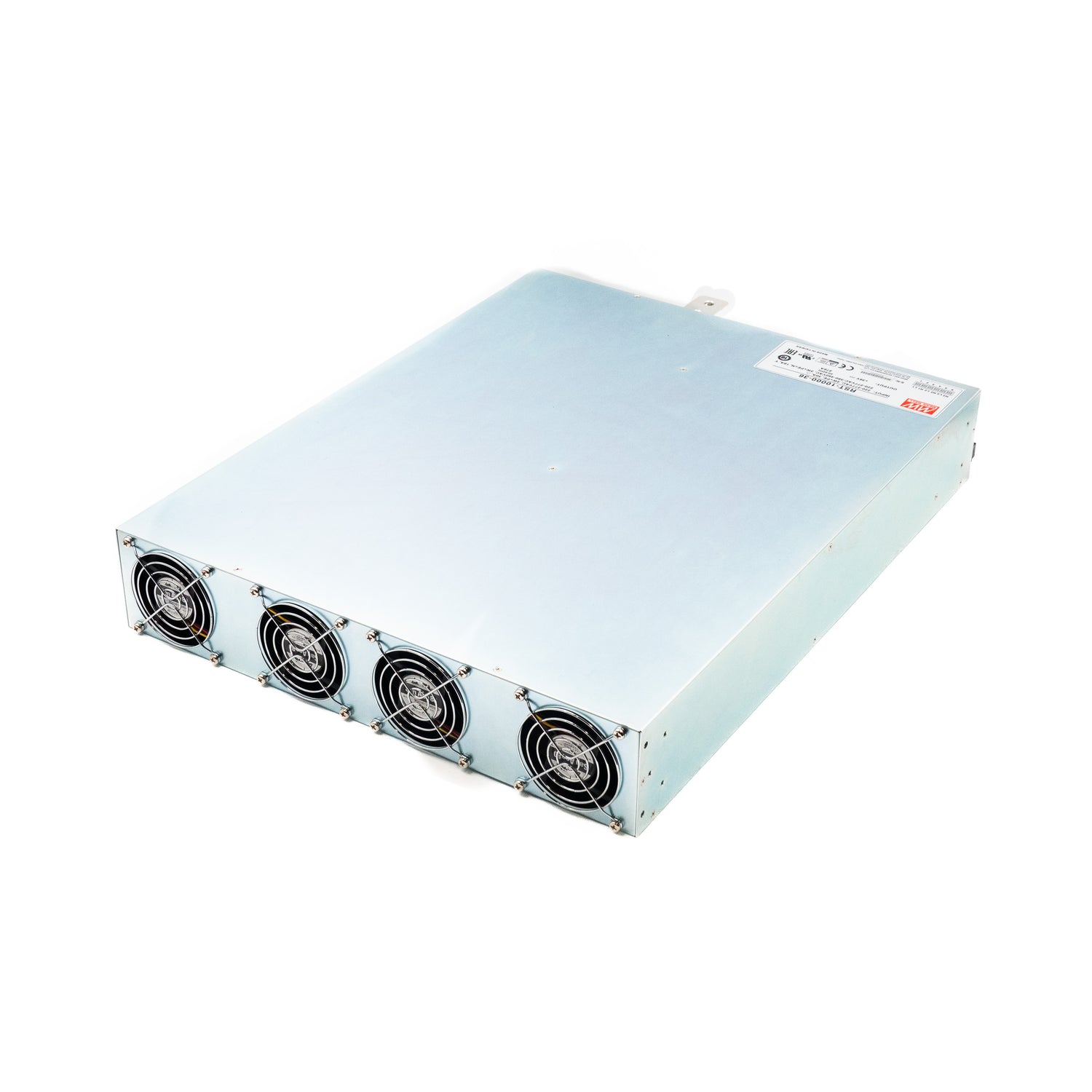

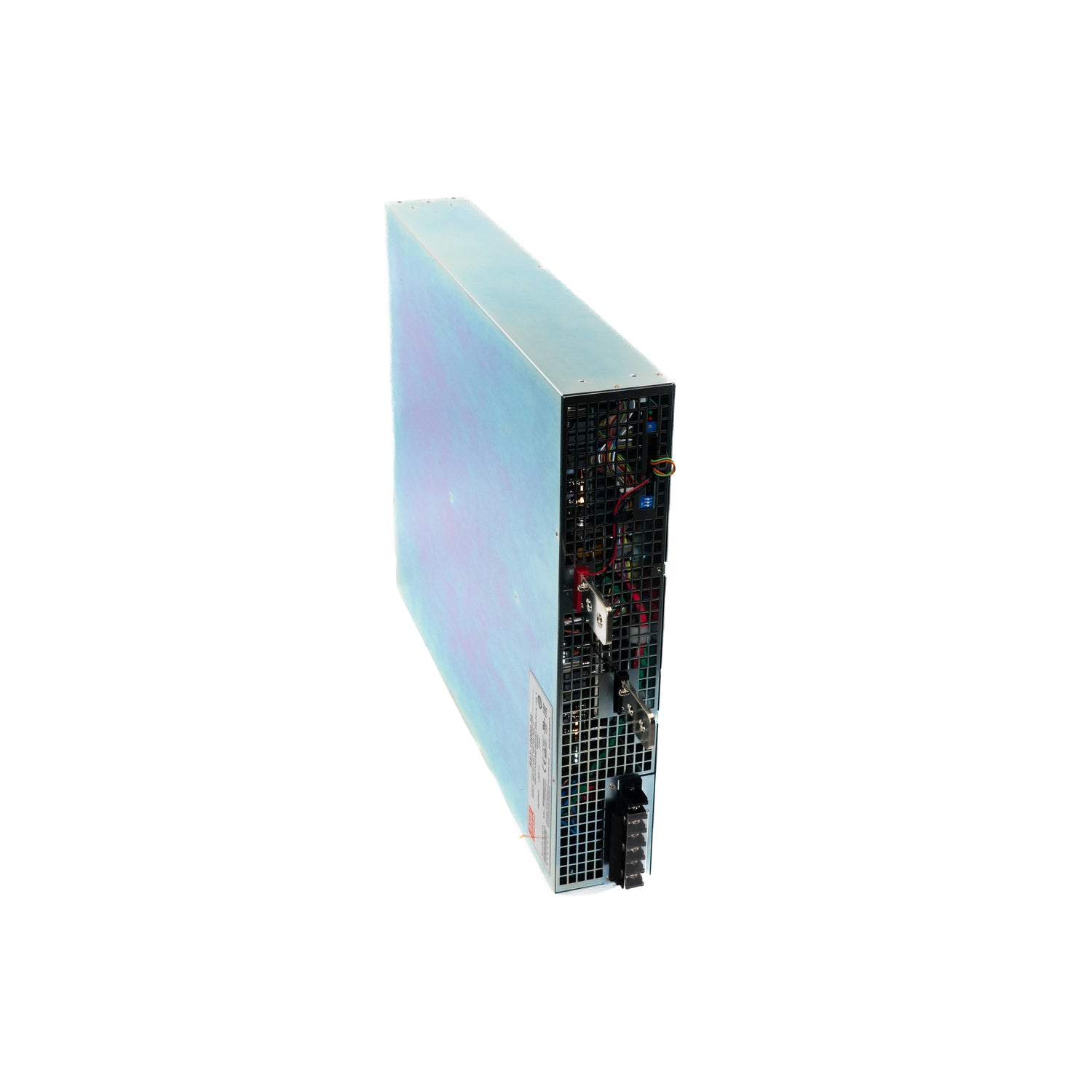

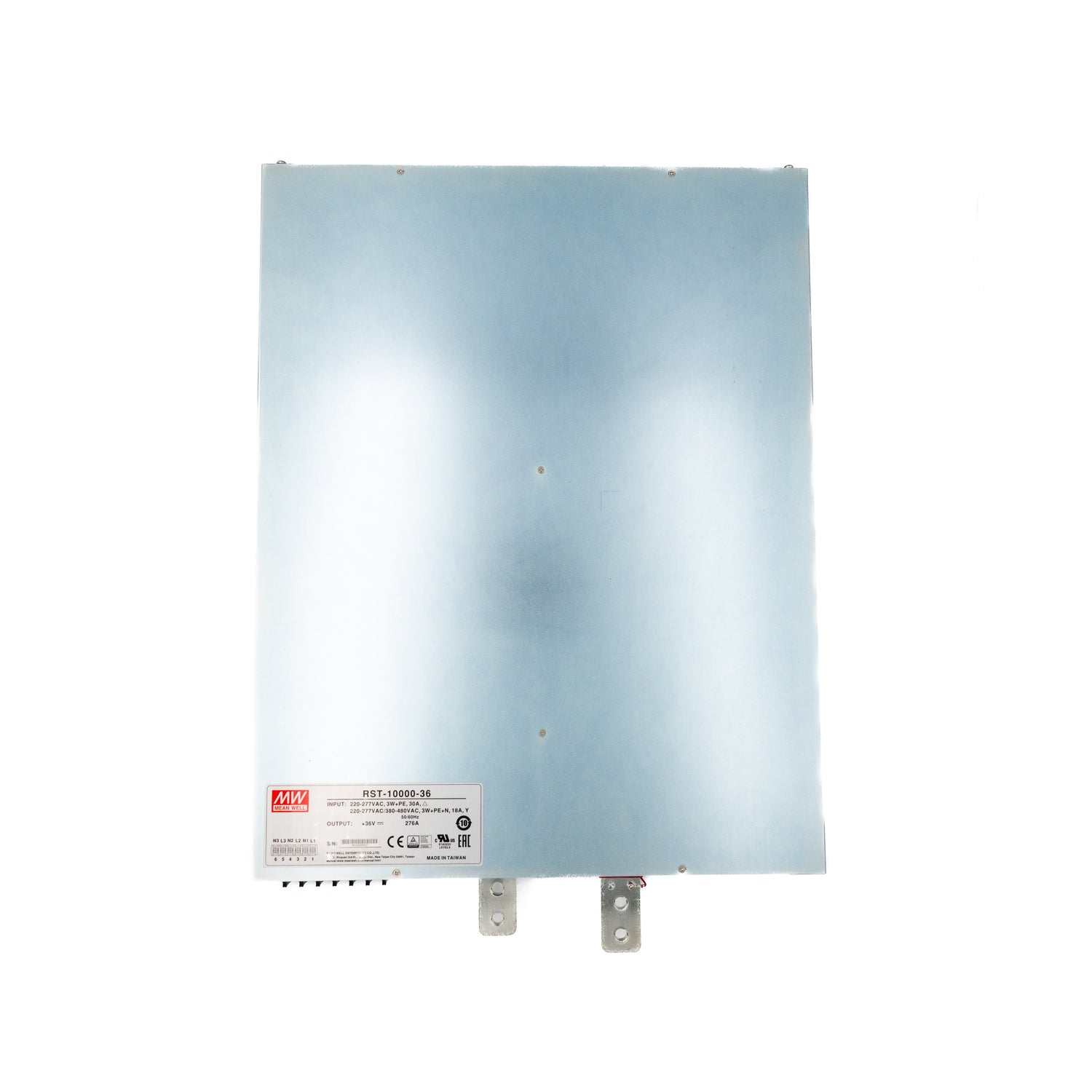

Mean Well RST-10000-36 Power Supply 9936W 36V

high efficiency up to 90.5%, output voltage and constant current level programmable, active current sharing up to 20000W(1+1)
SKU:
RST-10000-36

|

Description

Features

wide input range
Built-in active PFC function
Protections: Short circuit / Overload / Over voltage / Over temperature / Fan alarm
High efficiency up to 91%
Built-in fan speed control
High efficiency up to 91%
Built-in remote sense and ON/OFF control
Built-in 12V/0.1A auxiliary power
5 years warranty

General Specification

AC input voltage range

3 3-wire/ 196~305VAC or 3 4-wire/ Y 340~530VAC

AC inrush current (max.) Cold start, 50A (RST-5000); 100A(RST-10000) at 400VAC(3 4-wire/Y) 75A(RST-5000); 150A(RST-10000) at 230VAC (3 3-wire/ )
DC adjustment range -2%~+20% rated output voltage
Overload protection Range 100%~112% constant current limiting,
Overload protection Type auto-recovery (can adjust to delay shut off)
Over voltage protection Range 125%~140%
Over voltage protection Type Shut down O/P voltage, re-power on to recover
Withstand voltage I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature -30~+70°C (refer to output derating curve)
Safety standards UL60950-1, TUV EN60950-1, CCC GB4943 approved
EMC standards EN55022 class A, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2

Specifications

  • Brand
    Mean Well
  • Series
    RST Series
  • Power Rating
    9936 Watt
  • Output Voltage
    36 Volt
  • Rated Current
    276 Ampere
  • Input Voltage
    196V~530V
  • Standards Met
    CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    5 Year
  • Length
    54 cm
  • Width
    42.4 cm
  • Height
    8.35 cm
  • Weight
    23.5 kg
