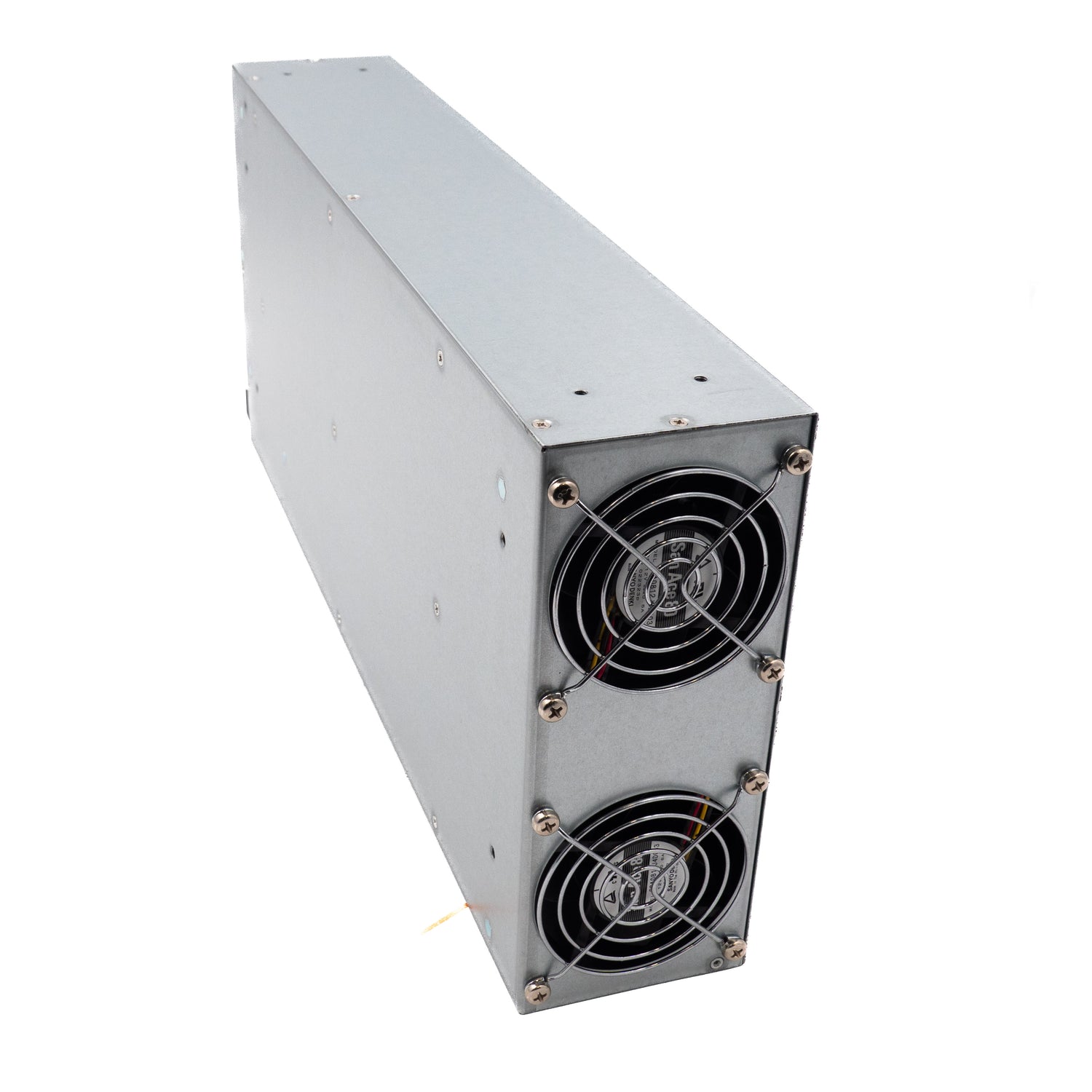

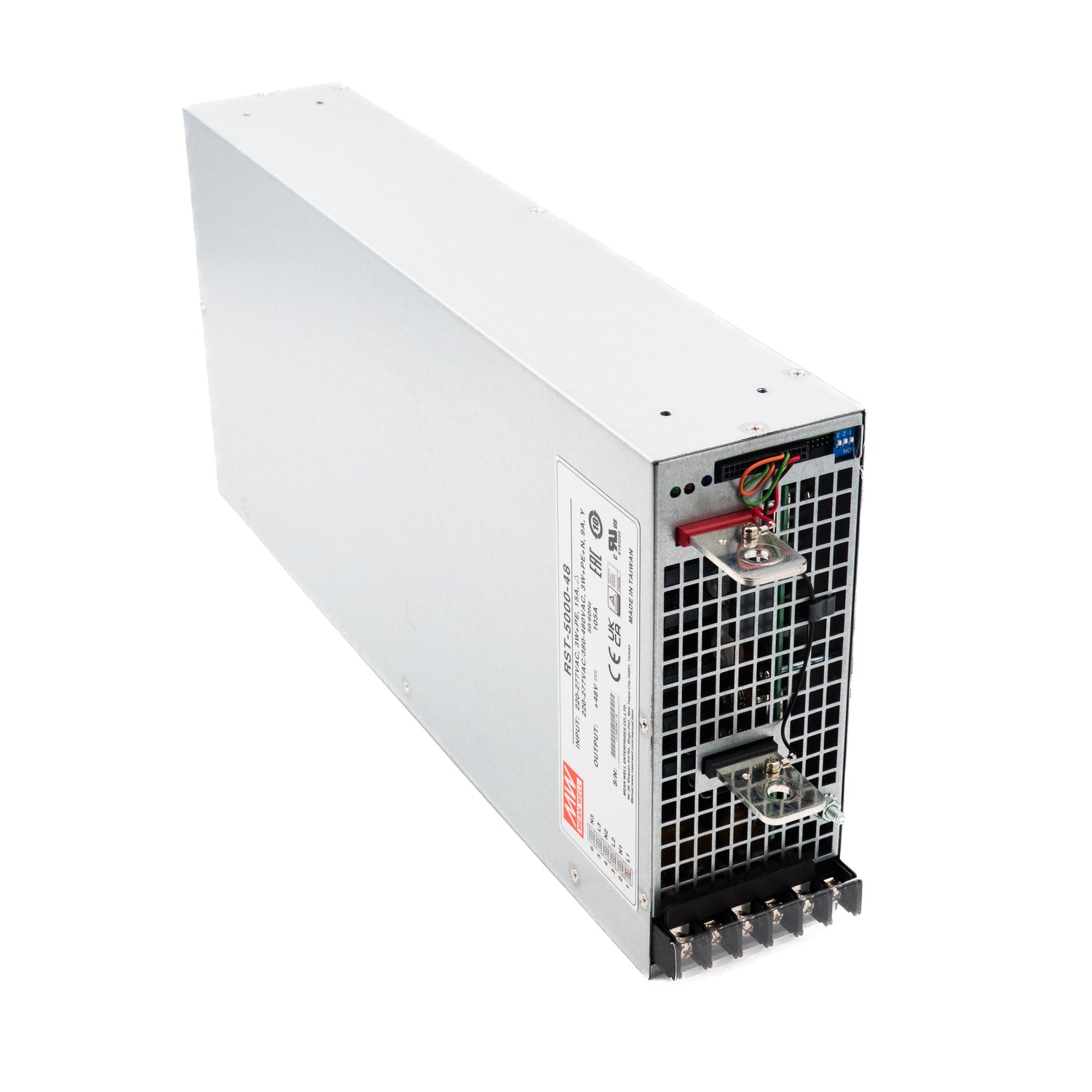

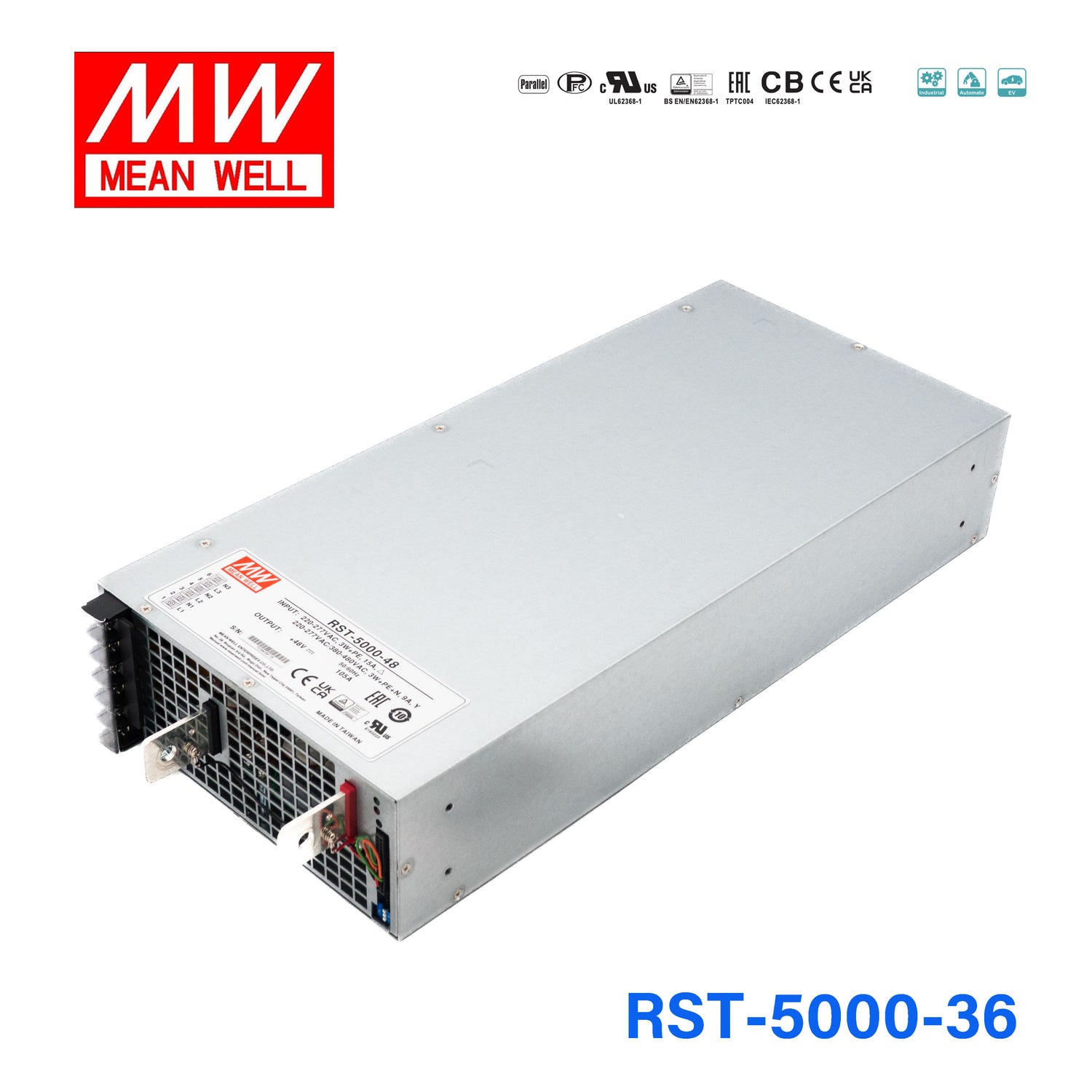

Mean Well RST-5000-36 Power Supply 4968W 36V 138A

high efficiency up to 90.5%output voltage and constant current level programmableactive current sharing up to 20000W(3+1)

SKU RST-5000-36

Log in to see price Trade pricing & online ordering for account holders

Select model — 2 in this family

RST-5000-36

RST-5000-36 5000W 36V Backorder

RST-10000-36 10000W 36V Backorder

Product variants

Available to order

Overview

RST-5000-36 is the 36V output model of this series: rated current 138A, rated power 4968W, typical efficiency 90.5%.

RST-5000 is a 5KW single output enclosed type AC/DC power supply. This series operates for the wide range three phase AC input (3 phase 3 wire / △196~305VAC or 3 phase 4 wire / Y 340~530VAC) and offers the models with the DC output mostly demanded from the industry. Each model is cooled by the built-in fan with fan speed control, working for the temperature up to 70℃. Moreover, RST-5000 provides vast design flexiblity by equipping various built-in functions such as the output programming, active current sharing, remote ON-OFF control, auxiliary power, etc.

Features

3ψ 3-wire / △ 196~305VAC or 3ψ 4-wire / Y 340~530VAC wide input range
Built-in active PFC function
High efficiency up to 91.5%
Forced air cooling by built-in DC fan
Output voltage and constant current level programmable
Active current sharing up to 20000W (3+1)
Built-in remote ON-OFF control / Remote sense / Auxiliary power / Alarm signal
Protections: Short circuit / Overload / Over voltage / Over temperature / Fan fail
5 years warranty

Specifications

RST-5000-36Specifications from the official datasheet (2026-01-12 edition)

OUTPUT

DC VOLTAGE: 36V
RATED CURRENT: 138A
CURRENT RANGE: 0 ~ 138A
RATED POWER: 4968W
RIPPLE & NOISE (max.)^Note.2: 200mVp-p
VOLTAGE ADJ. RANGE: 35 ~ 43.2V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 2200ms, 80ms at full load
HOLD UP TIME (Typ.): 20ms / 230VAC at 75% load 14ms / 230VAC at full load

INPUT

VOLTAGE RANGE: 3ψ 3-wire / △ 196 ~ 305VAC or 3ψ 4-wire / Y 340 ~ 530VAC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): 0.95/230VAC(400VAC) at full load
EFFICIENCY (Typ.): 90.5%
AC CURRENT (Typ.): 15A/230VAC(3ψ 3-wire / △) 9A/400VAC(3ψ 4-wire / Y)
INRUSH CURRENT (Typ.): 75A/230VAC(3ψ 3-wire / △) 50A/400VAC(3ψ 4-wire / Y)
LEAKAGE CURRENT: <3.5mA /△305VAC(Y 530VAC)

PROTECTION

OVERLOAD: 100 ~ 112% rated output power User adjustable continuous constant current limiting or constant current limiting with delay shutdown after 5 seconds, re-power on to recover
OVER VOLTAGE: 45 ~ 50.4V
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

REMOTE SENSE: Compensate voltage drop on the load wiring up to 0.3V. Please refer to the Function Manual.
CURRENT SHARING: Up to 20000W or (3+1) units. Please refer to the Function Manual.
OUTPUT VOLTAGE PROGRAMMABLE: Adjustment of output voltage is allowable to between 20 ~ 120% of nominal output voltage. Please refer to the Function Manual.
CONSTANT CURRENT LEVEL PROGRAMMABLE: Adjustment of constant current level is allowable to between 20 ~ 100% of rated current. Please refer to the Function Manual.
AUXILIARY POWER(AUX): 12V@0.1A(Only for Remote ON-OFF control)
REMOTE ON-OFF CONTROL: Please refer to the Function Manual.
ALARM SIGNAL OUTPUT: AC fail, DC OK, fan fail, OTP. Please refer to the Function Manual.

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 6)

SAFETY STANDARDS: UL62368-1, CAN/CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE^Note.4: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE^Note.4: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/ EN55032 (CISPR32) Class A
Radiated BS EN/ EN55032 (CISPR32) Class A
Harmonic Current BS EN/ EN61000-3-2 -----
Voltage Flicker BS EN/ EN61000-3-3 -----
EMC IMMUNITY: BS EN/ EN55035, BS EN/ EN61000-6-2

Parameter Standard Test Level

ESD BS EN/ EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/ EN61000-4-3 Level 3
EFT / Burst BS EN/ EN61000-4-4 Level 3
Surge BS EN/ EN61000-4-5 Level 4, 4KV/Line-Earth; Level 3, 2KV/Line-Line
Conducted BS EN/ EN61000-4-6 Level 3
Magnetic Field BS EN/ EN61000-4-8 Level 4
Voltage Dips and Interruptions BS EN/ EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/ EN55032 (CISPR32)	Class A
Radiated	BS EN/ EN55032 (CISPR32)	Class A
Harmonic Current	BS EN/ EN61000-3-2	-----
Voltage Flicker	BS EN/ EN61000-3-3	-----

Parameter	Standard	Test Level
ESD	BS EN/ EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/ EN61000-4-3	Level 3
EFT / Burst	BS EN/ EN61000-4-4	Level 3
Surge	BS EN/ EN61000-4-5	Level 4, 4KV/Line-Earth; Level 3, 2KV/Line-Line
Conducted	BS EN/ EN61000-4-6	Level 3
Magnetic Field	BS EN/ EN61000-4-8	Level 4
Voltage Dips and Interruptions	BS EN/ EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF: 293.3K hrs min. Telcordia SR-332 (Bellcore) ; 34.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 460*211*83.5mm (L*W*H)
PACKING: 10Kg; 1pcs/10.1Kg/0.85CUFT

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at △230VAC(Y 400VAC) input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. During withstand voltage and isolation resistance testing, the screw "A" shall be temporarily removed, and shall be installed back after the testing.
5. There is high possibility to trigger the floating over voltage protection when PV voltage is trimmed from a high voltage level to a lower voltage level at light load or no load condition. It is suggested that turn off the power supply and set PV voltage to the lowest level, then adjust output voltage to a desired value.
6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 720mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

RST-5000-36 Block Diagram — Block Diagram

RST-5000-36 Derating Curve — Derating Curve

RST-5000-36 Static Characteristics — Static Characteristics

RST-5000-36 Function Manual — Function Manual

RST-5000-36 5000W Power Supply with Single Output — 5000W Power Supply with Single Output

RST-5000-36 5000W Power Supply with Single Output (2) — 5000W Power Supply with Single Output (2)

RST-5000-36 (%)OUTPUTVOLTAGE — (%)OUTPUTVOLTAGE

RST-5000-36 LEVEL(%)CURRENTCONSTANT — LEVEL(%)CURRENTCONSTANT

RST-5000-36 Mechanical Specification — Mechanical Specification

Typical applications

Factory control or automation apparatus
Test and measurement instrument
Laser related machine
Burn-in facility
RF application
Electric scooter or vehicle charge station
Constant current source

Downloads

Certificates4

CB Certificate(RST-5000)(EN) PDF Download

TUV Certificate(RST-5000)(EN) PDF Download

EMC Certificate(RST-5000)(EN) PDF Download

UL Certificate(RST-5000)(EN) PDF Download

Test reports1

Test Report(RST-5000-36)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can the RST-5000-36 power a mid-size 36V industrial control or automation system?

Yes, this model provides a 36V constant-voltage output rated for 4968W and 138A. It is suited to mid-size 36VDC industrial systems where the required load stays within those published limits.

Is the RST-5000-36 suitable for 36V production equipment or test racks that need less power than a 10000W unit?

It can be a better fit when the application needs 36VDC but does not require the higher 9936W output of the larger 10000 series model. This version provides 4968W at 138A while still offering programmable output voltage and programmable constant current level.

Can I use the RST-5000-36 in a parallel power architecture for higher 36V capacity?

Yes, the listed features include active current sharing up to 20000W (3+1). That supports higher-capacity 36V system designs using multiple units while staying within the family's specified sharing capability.

Will the RST-5000-36 handle demanding industrial temperature conditions?

The operating temperature range is specified as -30C to +70C, which supports a wide range of indoor industrial environments. The specs do not provide an IP rating, so it should be used in a protected enclosure rather than in exposed outdoor or washdown areas.

How does the RST-5000-36 compare with the other RST output models?

The sibling list includes RST-10000-24 at 9600W, 24V, 400A; RST-10000-36 at 9936W, 36V, 276A; RST-10000-48 at 10080W, 48V, 210A; RST-15K-115 at 14950W, 115V, 130A; RST-15K-230 at 14901W, 230V, 64.8A; RST-15K-380 at 15030W, 380V, 39.55A; RST-5000-24 at 4800W, 24V, 200A; RST-5000-48 at 5040W, 48V, 105A; RST-7K5-115 at 7475W, 115V, 65A; RST-7K5-115L at 7475W, 115V, 65A; RST-7K5-230 at 7452W, 230V, 32.4A; RST-7K5-230L at 7452W, 230V, 32.4A; RST-7K5-380 at 7515W, 380V, 19.77A; and RST-7K5-380L at 7515W, 380V, 19.77A. The RST-5000-36 is the 36V, 4968W, 138A option in the 5000 series.
