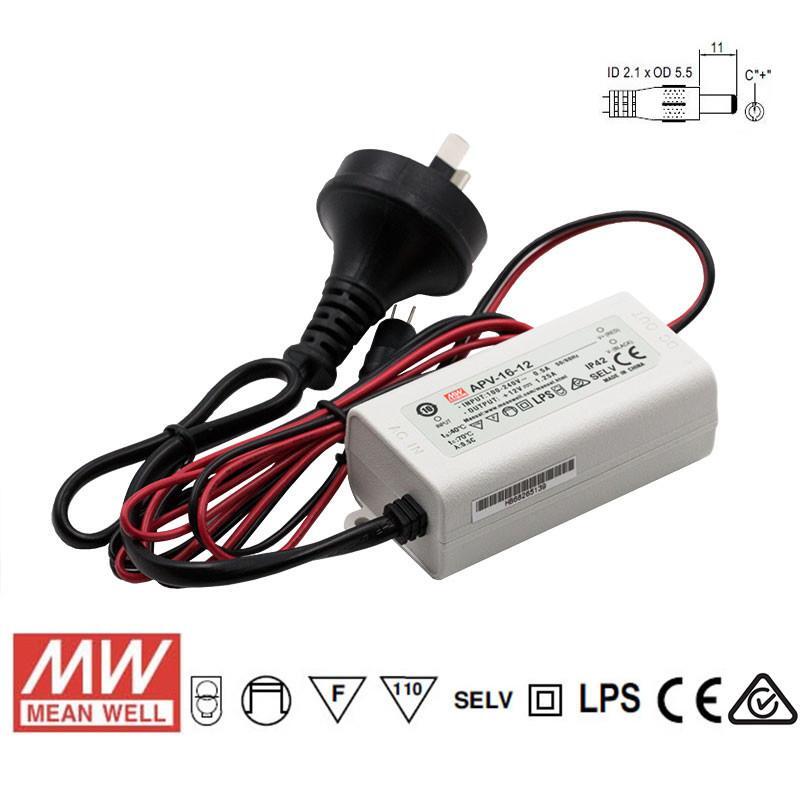

Mean Well S-APV-16-12 Power Supply 16W 12V with AU/NZ plug
Please Login for Pricing
Description
Description
Features
| Universal AC input / Full range |
| Fully isolated plastic case |
| Protections: Short circuit / Overload / Over voltage |
| Constant voltage design (C.V. mode) |
| IP30 design |
| Class 2 power unit / Pass LPS |
| Isolation class II, no F.G. |
| Cooling by free air convection |
| 100% full load burn-in test |
| Low cost, high reliability |
| Suitable for LED lighting and moving sign applications |
| 2 years warranty |
General Specification
| AC input voltage range | 90~264VAC ; 127~370VDC |
| AC inrush current | Cold start, 70A at 230VAC |
| Overload Range | >105% rated output current |
| Protection Type | Hiccup up mode, auto-recovery |
| Over voltage protection | 110%~145% rated output voltage |
| Withstand voltage | I/P-O/P: 3kVAC |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Vibration | 10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes |
| Safety standards | UL8750 approved; Design refer to IEC61347-1, IEC61347-2-13 |
| EMC standards | EN55015, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 |
| Connection Input | UL rated, 18AWGx2C (15cm) |
| Connection Output | UL rated, 20AWGx2C (15cm) |
| Dimension (LxWxH)(mm) | 77x 40x 29 |
Specifications
Specifications
-
BrandMean Well
-
SeriesAPV Series
-
Power Rating16.08 Watt
-
Output Voltage12 Volt
-
Rated Current1.33 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length7.7 cm
-
Width4 cm
-
Height2.9 cm
-
Weight0.26 kg
