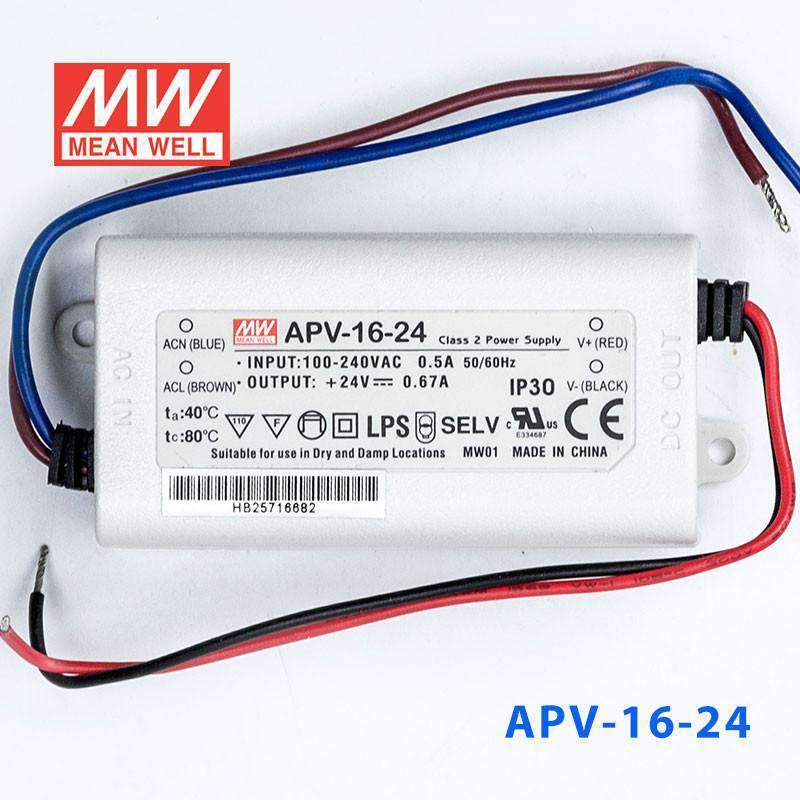

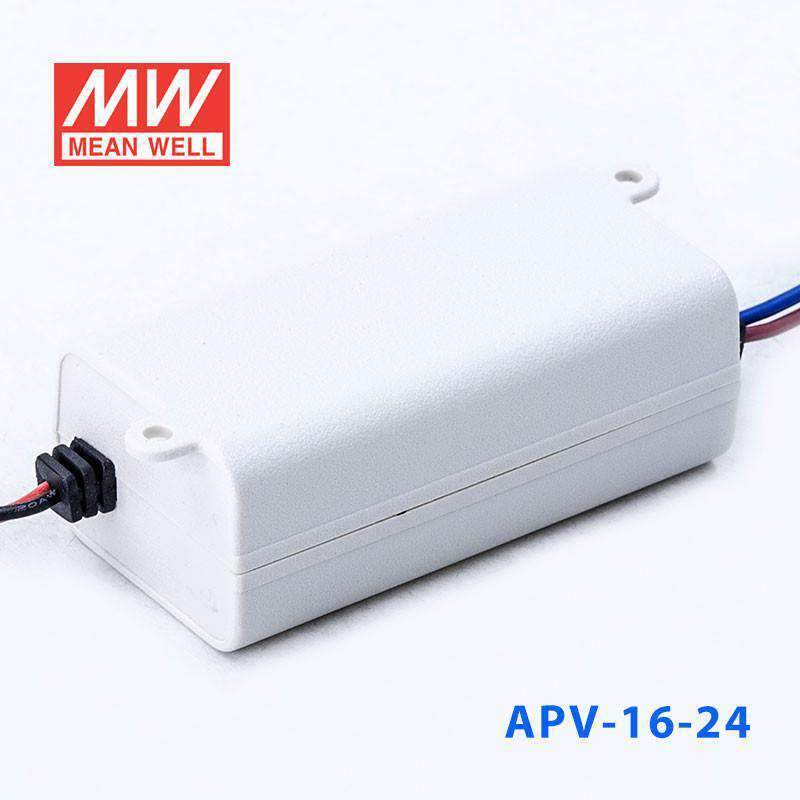

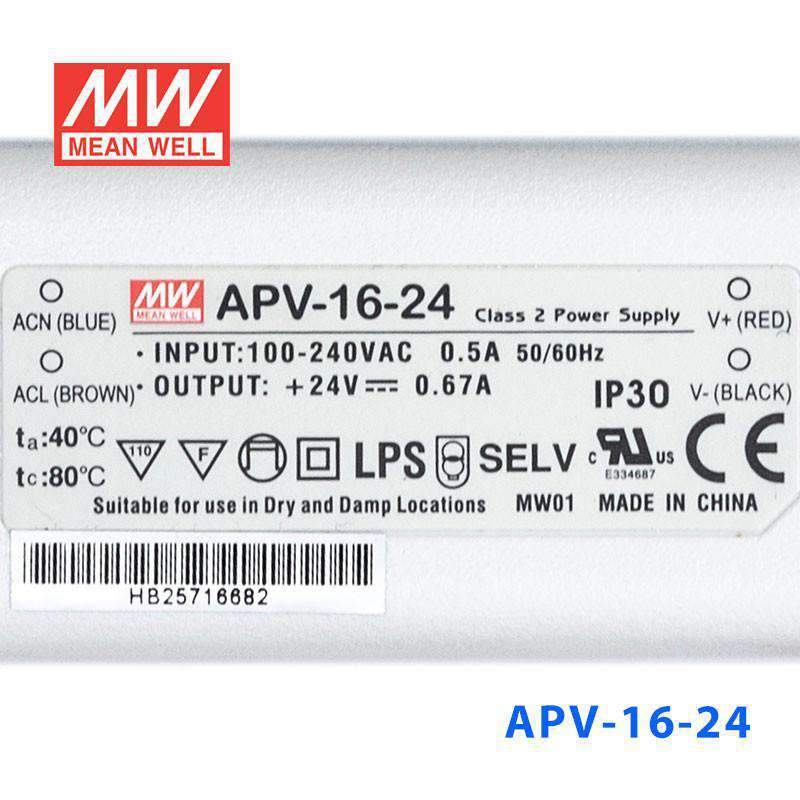

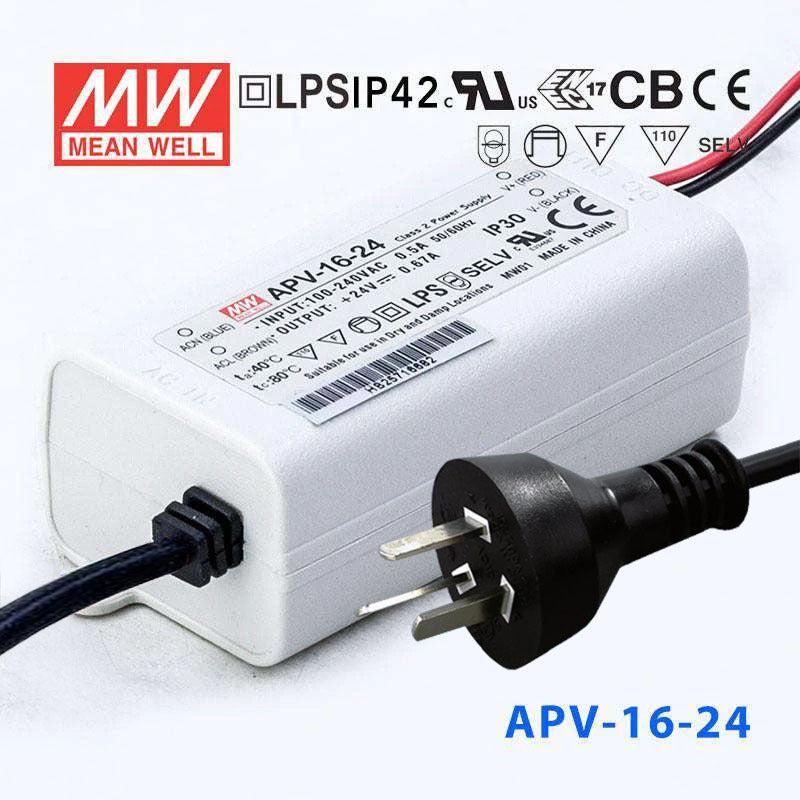

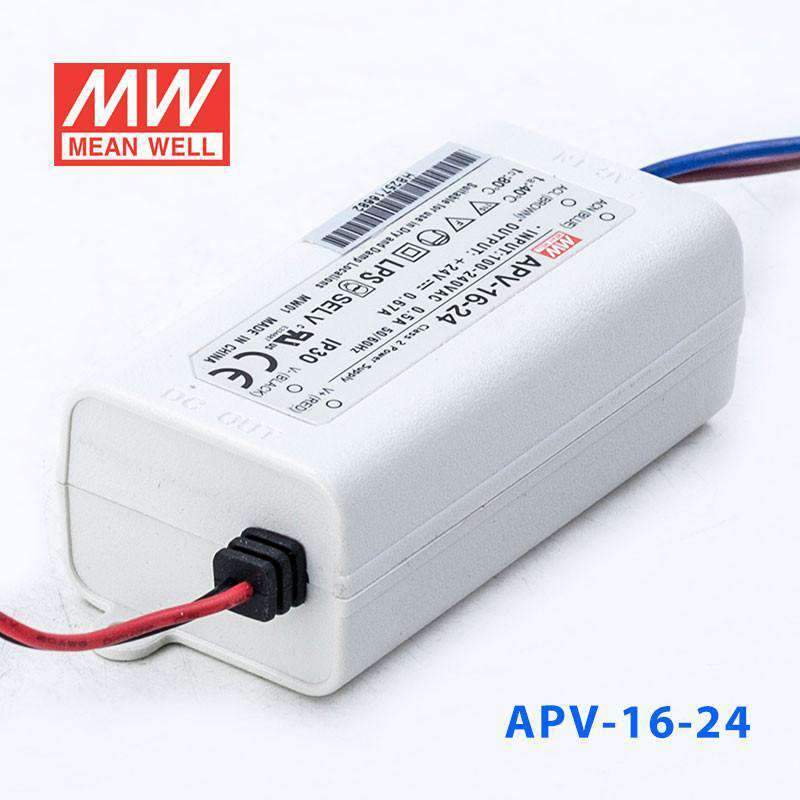

Mean Well S-APV-16-24 Power Supply 16W 24V with AU/NZ plug 670mA
4.6 (11 reviews)
Mean Well S-APV-16-24 Power Supply 16W 24V with AU/NZ plug 670mA
Log in to see priceOverview
S-APV-16-24 is the 24V output model of this series: rated current 0.67A, rated power 16.08W, typical efficiency 83%.
Features
- Constant voltage design
- Universal AC input / Full range
- Protections: Short circuit / Over load / Over voltage
- Fully isolated plastic case
- Cooling by free air convection
- Small and compact size
- Class β ‘ power unit, no FG
- Class 2 power unit
- Pass LPS
- IP42 design
- Display devices for decorative & advertising accessories (Note.7)
- General-purpose electronics operated in dusty or damp environments
- 100% full load burn-in test
- Low cost, high reliability
- 2 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 24V
- RATED CURRENT
- 0.67A
- CURRENT RANGE
- 0 ~ 0.67A
- RATED POWER
- 16.08W
- RIPPLE & NOISE (max.)Note.2
- 150mVp-p
- VOLTAGE TOLERANCENote.3
- Β±5.0%
- LINE REGULATION
- Β±1.0%
- LOAD REGULATION
- Β±2.0%
- SETUP, RISE TIMENote.6
- 1500ms, 30ms / 230VAC 1500ms,30ms / 115VAC at full load
- HOLD UP TIME (Typ.)
- 20ms/230VAC 12ms/115VAC at full load
INPUT
- VOLTAGE RANGENote.4
- 90 ~ 264VAC 127 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY (Typ.)
- 83%
- AC CURRENT
- 0.3A/230VAC 0.5A/115VAC
- INRUSH CURRENT(Typ.)
- COLD START 50A(twidth=250ΞΌs measured at 50% Ipeak) at 230VAC
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 13 units (circuit breaker of type B) / 22 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- 0.25mA / 240VAC
PROTECTION
- OVER LOAD
- Above 105% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 27.6 ~ 32.4V Protection type : Shut off o/p voltage, clamping by zener diode
ENVIRONMENT
- WORKING TEMP.
- -30 ~ +70β(Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80β, 10 ~ 95% RH
- TEMP. COEFFICIENT
- Β±0.03%/β (0 ~ 50β)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDSNote.8
- UL8750,CSA C22.2 No.250.0-08, BIS IS15885(except for 15V),EAC TP TC 004,IP42 , BS EN/EN 62368-1 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC
- ISOLATION RESISTANCE
- I/P-O/P:>100M Ohms / 500VDC / 25β/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032,BS EN/EN61000-3-2,BS EN/EN61000-3-3, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN55035,BS EN/EN61000-4-2,3,4,5,6,8,11; light industry level(surge 2KV), EAC TP TC 020
OTHERS
- MTBF
- 7265.5K hrs min. Telcordia SR-332 (Bellcore) ; 1128.9K hrs min. MIL-HDBK-217F (25β)
- DIMENSION
- 77*40*29mm (L*W*H)
- PACKING
- 0.1Kg; 120pcs/14Kg/1.06CUFT
Test conditions and notes10
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25β of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. Derating may be needed under low input voltage. Please check the static characteristics for more details. Please connect L line to the positive pole and N line to the negative pole under DC input.
- 5. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
- 7. This product is not intended for LED lighting luminaire applications in the EU and China.(In the EU and China the LPF/NPF/XLG/XLC/XLN series are recommended.)
- 8. The ambient temperature derating of 3.5β/1000m with fanless models and of 5β/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 9. Products sourced from the Americas regions may not have the ENEC/BIS logo. Please contact your MEAN WELL sales for more information.
- 10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

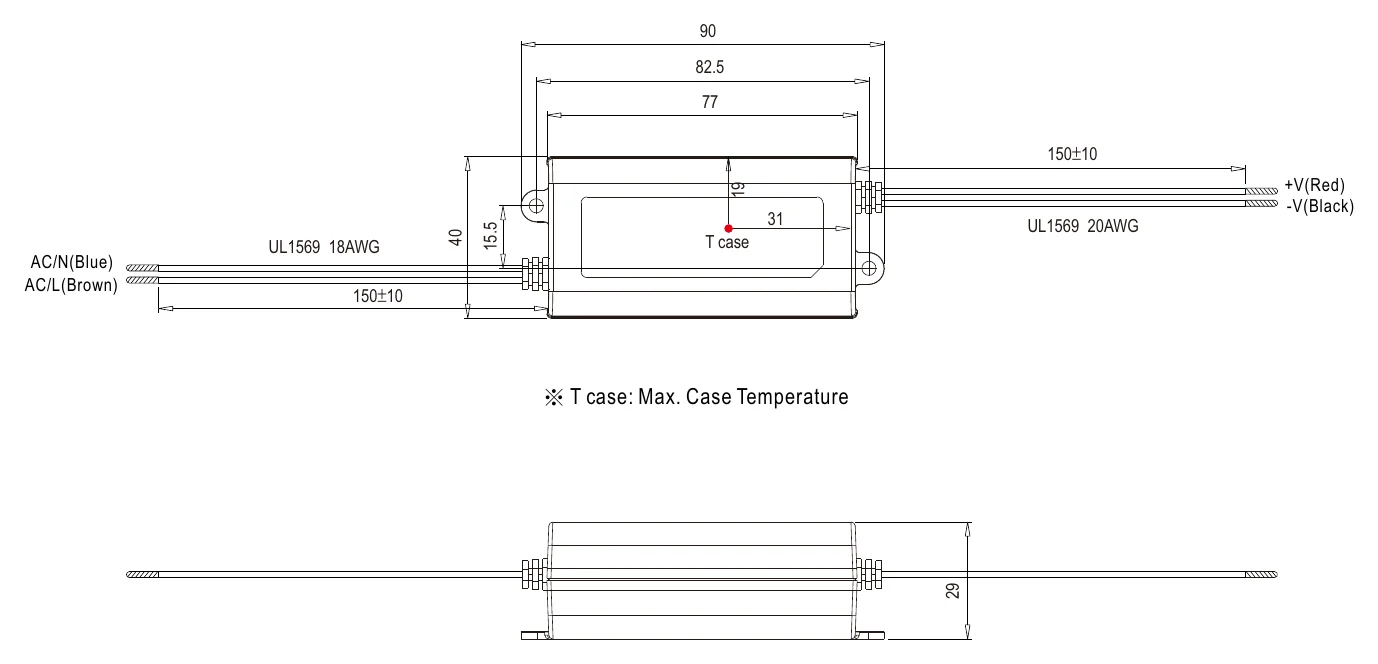

Technical drawings
Downloads
Test reports1
Catalogues1
FAQ
What are the main electrical specs of the Mean Well S-APV-16-24?
This model is a constant voltage power supply rated at 24V DC output, 0.67A rated current, and 16.08W power. It supports a universal AC input range of 90 to 264VAC and is designed for low-power 24V applications.
What kinds of applications is the S-APV-16-24 suited for?
This model suits LED lighting and moving sign applications. Its constant voltage 24V output makes it a practical choice where a compact, low-wattage 24V supply is needed and the load stays within the 16.08W rating.
Is the S-APV-16-24 suitable for use in warmer or colder environments?
This unit has an operating temperature range of -30Β°C to 70Β°C, which gives it a broad working envelope for indoor equipment environments. Output must be derated at higher ambient temperatures, so check the derating curve on the datasheet for your installation.
Does this model include dimming or output adjustment control?
No, this model does not include dimming control. It is a fixed 24V constant voltage power supply intended to provide stable output rather than lighting control functions.
What are the key construction and protection features of the S-APV-16-24?
The S-APV-16-24 includes overload protection (above 105% rated output power, hiccup mode with automatic recovery) and over voltage protection (27.6β32.4V, shut off with zener clamping). It is IP42 rated, marked LPS, and has 3.75KVAC input-output withstand voltage.
Why would a buyer choose the S-APV-16-24 instead of a higher-power 24V supply?
This model is aimed at lighter-load 24V applications where only about 16W of output is required. Choosing a supply in this size can make sense when you want a compact, lower-cost option matched to a modest 24V load rather than oversizing the power supply.
