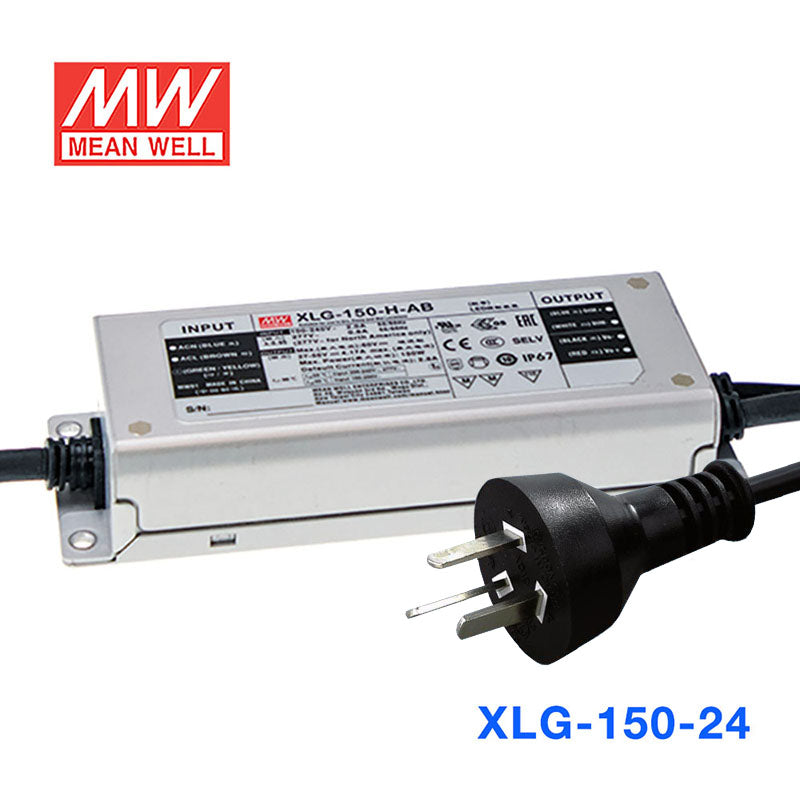

Mean Well S-XLG-150-24-A Power Supply 150W 24V with AU/NZ plug
Log in to see priceOverview
S-XLG-150-24-A is the 24V output model of this series: rated power 150W, typical efficiency 93%. Type A: Io adjustable via built-in potentiometer.
XLG-150 series is a 150W LED AC/DC driver featuring the constant power mode.XLG-150 operates from 100~305VAC and offers models with different rated current ranging between 700mA and 12500mA. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40℃~+90℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover the innovative environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires in the world. XLG-150 series comply with the latest version of IEC61347/GB/T19510.1 and UL8750 international safety regulations. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the safety of both user and luminaire system during installation.
Features
- Wide input range 100~305V AC( Class I)
- Full power output at 70~100% Constant power mode operation
- Metal case with IP67, suitable for outdoor application
- Surge protection with 6KV/4KV (10KV/6KV optional)
- India (EESL) version with Input Over Voltage Protection can survive input voltage stress of 440Vac for 48 hours
- Protection functions: OVP/SCP/OCP/OTP
- Compliance to EN60335-1 household application
- Life time >50,000 hrs. and 5 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 24V
- CONSTANT CURRENT REGIONNote.2
- 16.8~ 24V
- RATED CURRENT (Default)
- 6.25A
- RATED POWER
- 150W
- RIPPLE & NOISE (max.)Note.3
- 240mVp-p
- CURRENT ADJ. RANGE
- Adjustable for A-Type only (via the built-in potentiometer)
- CURRENT ADJ. RANGE
- 3.2~ 6.25A
- VOLTAGE TOLERANCENote.4
- ±2.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±1%
- SETUP, RISE TIMENote.6
- 500ms, 100ms/230VAC, 1200ms, 100ms/115VAC
- HOLD UP TIME (Typ.)
- 10ms/ 230VAC 10ms/ 115VAC
INPUT
- VOLTAGE RANGENote.5
- 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR
- PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load
- TOTAL HARMONIC DISTORTION
- THD< 10%(@load≧50%/115VC,230VAC; @load≧75%/277VAC)
- EFFICIENCY (Typ.)
- 93%
- AC CURRENT
- 1.8A / 115VAC 1.0A / 230VAC 0.8A/277VAC
- INRUSH CURRENT(Typ.)
- COLD START 50A(twidth=500μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
- MAX. NO. of PSUs on 16A CIRCUIT BREAKER
- 4 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 277VAC
- NO LOAD POWER CONSUMPTION
- No load power consumption <0.5W(for standard version)
PROTECTION
- OVER CURRENT
- 95~108% for other type; Other type: Hiccup or constant current limiting; Recovers automatically after fault condition is removed
- SHORT CIRCUIT
- Other type: Hiccup or constant current limiting; Recovers automatically after fault condition is removed
- OVER VOLTAGE
- 27 ~ 34V; Shut down output voltage, re-power on to recover
- INPUT OVER VOLTAGE
- 320 ~ 390VAC (Shut down output voltage when the input voltage exceeds protection voltage,recovers automatically after fault condition is removed) Can survive input voltage stress of 440Vac for 48 hours(Input over voltage only for XLG-150I series)
- OVER TEMPERATURE
- Shut down output voltage, re-power on to recover
ENVIRONMENT
- WORKING TEMP.
- Tcase=-40 ~ +90℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
- MAX. CASE TEMP.
- Tcase=+90℃
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.06%/℃ (0 ~ 60℃)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDSNote.7
- UL8750(type”HL”), UL879,CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, EN 60335-1 compliant to EN 60335-2-89 Annex BB, EN 60335-2-24 Annex CC;GB/T19510.1,GB/T19510.213;EAC TP TC 004; J61347-1(H29), J61347-2-13 (H29),KC61347-1,KC61347-2-13,IS15885(Part2/Sec13)(for XLG-150I type only);NOM-058-SCFI-2017(except for Blank type);IP67 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
-
Parameter Standard Test Level Conducted BS EN/EN55015(CISPR15) ,GB/T 17743 Radiated BS EN/EN55015(CISPR15) ,GB/T 17743 Harmonic Current BS EN/EN61000-3-2 ,GB17625.1 Class C @load≥50% Voltage Flicker BS EN/EN61000-3-3 - EMC IMMUNITY
-
BS EN/EN61547
Parameter Standard Test Level ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact Radiated BS EN/EN61000-4-3 Level 2 EFT/Burst BS EN/EN61000-4-4 Level 3 Surge BS EN/EN61000-4-5 4KV/Line-Line 6KV/Line-Earth(6K/10K option) Conducted BS EN/EN61000-4-6 Level 2 Magnetic Field BS EN/EN61000-4-8 Level 4 Voltage Dips and Interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods
OTHERS
- MTBF
- 2269.5K hrs min. Telcordia SR-332 (Bellcore) ; 213.3Khrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 180*63*35.5mm (L*W*H)
- PACKING
- 0.8Kg;16pcs/13.4Kg/0.69CUFT
MODEL ENCODING
- Blank
- Io and Vo fixed.(For harsh environment)
- A (this model)
- Io adjustable via built-in potentiometer
- AB
- Io adjustable via built-in potentiometer + 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance)
- CV
- CV-type only with constant voltage function and only for 12V and 24V models,Io and Vo are fixed
Test conditions and notes16
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
- 2. Please refer to "DRIVING METHODS OF LED MODULE". (Except for CV-type)
- 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 4. Tolerance : includes set up tolerance, line regulation and load regulation.
- 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
- 7. Only CE/ENEC/CB is available for CV-type. XLG-150I series without UL/CSA certificate.
- 8. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
- 11. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
- 12. Products sourced from the Americas regions may not have the CCC/PSE/BIS/KC logo. Please contact your MEAN WELL sales for more information.
- 13. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
- 14. To fulfill requirements of the latest ErP regulation for lighting fixture, this LED driver can only be used behind a switch without permanently connected to the mains.
- 15. If you need the NOM (Mexico) certificate, Please contact MEAN WELL sales representative for details.
- 16. For A/AB type need to consider build in using to comply with Type HL application.
Technical drawings
Typical applications
- Skyscraper lighting
- Street lighting
- Floodlight Lighting
- Stagelight
- Horticulture lighting
- Bay lighting
- DMX power supply
- Type HL for use in class I, Division 2
- Household devices
- Retail and refrigerated display
Downloads
FAQ
What output does the Mean Well S-XLG-150-24 provide?
This model is rated for 24V output with a maximum current of 6.25A. Its total power rating is 150W, which makes it suitable for 24V equipment that needs higher output capacity from a single power supply.
Is the S-XLG-150-24 suitable for outdoor or exposed environments?
Yes. The S-XLG-150-24 has a metal case and an IP67 rating, so it is built for outdoor applications and environments where protection against dust and water ingress matters. Buyers commonly look for this level of enclosure protection when selecting power supplies for demanding locations.
Does this power supply support dimming?
Yes. The S-XLG-150-24-A includes a 3-in-1 dimming function (0~10VDC, 10V PWM signal and resistance) and an adjustable output current via a built-in potentiometer. This makes it a suitable option when dimming capability and current adjustment are required as part of the power supply selection.
What input range does this model support?
The S-XLG-150-24 is specified for a wide 100 to 305VAC input range. That wide range is useful for commercial and project buyers who need a model that can handle varying mains conditions across different sites.
What protection features are included on the S-XLG-150-24?
This model includes OVP, SCP, OCP, and OTP protection functions. The description also lists surge protection of 6KV/4KV, helping it stand out for applications where electrical protection and long-term reliability are important.
What temperature range can this power supply handle?
The listed temperature range for this model is from -40°C to 90°C. That makes it relevant for buyers comparing products for use in both low-temperature and high-temperature operating environments.
What warranty is offered with the Mean Well S-XLG-150-24?
This power supply includes a 5-year warranty. The product description also notes a lifetime of more than 50,000 hours, which supports its positioning as a long-service commercial-grade model.
Is this the AU/NZ plug version of the S-XLG-150-24?
Yes. The product name identifies this as the AU/NZ plug version of the Mean Well S-XLG-150-24. That makes it especially relevant for buyers sourcing products for Australia and New Zealand projects.
