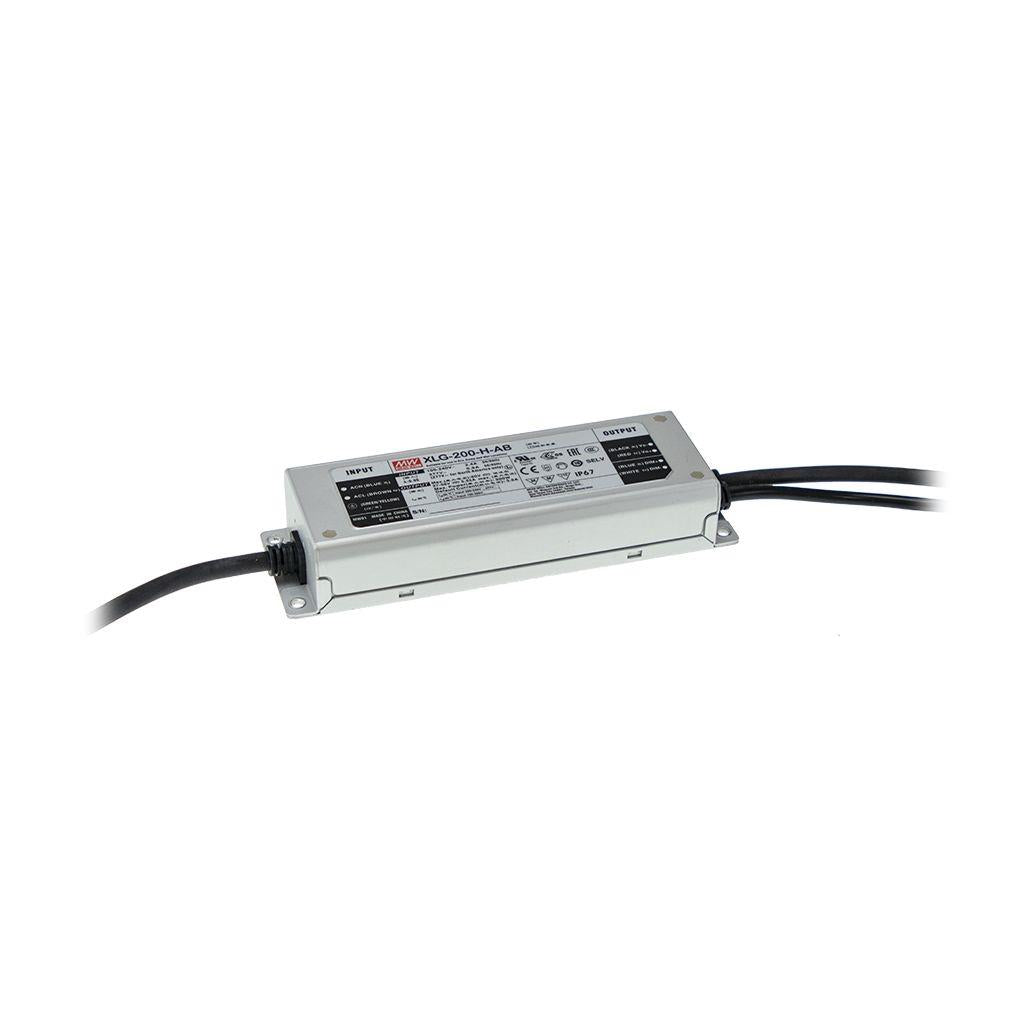

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well XLG-200I-H-AB AC-DC India version Single output LED driver Constant Power Mode 5.55A

metal caseeconomical100~305VAC wide range inputefficiency up to 90%

SKU XLG-200I-H-AB

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

XLG-200I-H-AB is the model of this series: rated power 200W, typical efficiency 93%.

XLG-200 series is a 200W LED AC/DC driver featuring the constant power mode. XLG-200 operates from 100~305VAC and offers models with different rated current ranging between 700mA and 16A. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~+90℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover the innovative environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaire in the world. XLG-200 series comply with the latest version of IEC61347/GB/T19510.1 and UL8750 intermational safety regulations. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the safety of both user and luminaire system during installation.

Features

Wide input range 100~305V AC( Class I)
Full power output at 70~100% Constant power mode operation
Metal case with IP67, suitable for outdoor application
Surge protection with 6KV/4KV (10KV/6KV optional)
3 in 1 dimming function (Dim to off and Isolation design)
India (EESL) version with Input Over Voltage Protection can survive input voltage stress of 440Vac for 48 hours
Protection functions: OVP/SCP/OCP/OTP
Life time >50,000 hrs. and 5 years warranty

Specifications

XLG-200I-H-ABSpecifications from the official datasheet (2026-02-04 edition)

OUTPUT

RATED CURRENT (Default): 3500mA
RATED POWER: 200W
CONSTANT CURRENT REGION^Note.2: 27 ~ 56V
FULL POWER CURRENT RANGE: 3500~5550mA
OPEN CIRCUIT VOLTAGE (max.): 60V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via the built-in potentiometer)
CURRENT ADJ. RANGE: 1750~5550mA
CURRENT RIPPLE: 3.0%(@ Load≥50% rated voltage)
CURRENT TOLERANCE: ±5%
SET UP TIME^{Note.4 (L/H table)}: 500ms/230VAC, 1200ms/115VAC

INPUT

VOLTAGE RANGE^{Note.5 (12/24 table), Note.3 (L/H table)}: 100 ~ 305VAC 142VDC ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" ang “ DRIVING METHODS OF LED MODULE"section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.97 / 115VAC, PF≧0.95 / 230VAC, PF≧0.92 / 277VAC at full load (Please refer to "Power Factor Characteristic" section)
TOTAL HARMONIC DISTORTION: THD< 10% (@ load≧50% at 115VAC/230VAC ,@load≧75% at 277VAC) Please refer to “TOTAL HARMONIC DISTORTION (THD)” section
EFFICIENCY (Typ.): 93%
AC CURRENT (Typ.): 2.2A / 115VAC 1.1A / 230VAC 0.9A / 277VAC
INRUSH CURRENT(Typ.): COLD START 65A(twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 3 unit(circuit breaker of type B) / 6 units(circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
STANDBY POWER CONSUMPTION: Standby power consumption <0.5W for AB-Type(Dimming OFF)(for standard version)

PROTECTION

SHORT CIRCUIT: Hiccup mode or Constant current limiting,recovers automatically after fault condition is removed
OVER VOLTAGE: 61 ~ 85V Shut down output voltage, re-power on to recovery
INPUT OVER VOLTAGE: 320 ~ 390VAC (Shut down output voltage when the input voltage exceeds protection voltage,recovers automatically after fault condition is removed) Can survive input voltage stress of 440Vac for 48 hours(Input over voltage only for XLG-200I series)
OVER TEMPERATURE: Shut down output voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

EMC

SAFETY STANDARDS^{Note.7 (12/24 table), Note.5 (L/H table)}: UL8750(type”HL”), CSA C22.2 No. 250.13-12; BS EN/ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB/T19510.1, GB/T19510.213;EAC TP TC 004; J61347-1(H29), J61347-2-13(H29),KC61347-1,KC61347-2-13,IS15885(Part2/Sec13) (for XLG-200I type only ); NOM-058-SCFI-2017(except for Blank type);IP67 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%); BS EN/EN61000-3-3
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55015(CISPR15) ,GB/T 17743
Radiated BS EN/EN55015(CISPR15) ,GB/T 17743
Harmonic Current BS EN/EN61000-3-2 ,GB17625.1 Class C @load≥50%
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN61547

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 3
EFT/Burst BS EN/EN61000-4-4 Level 3
Surge BS EN/EN61000-4-5 4KV/Line-Line 6KV/Line-Earth(6K/10K option)
Conducted BS EN/EN61000-4-6 Level 3
Magnetic Field BS EN/EN61000-4-8 Level 4
Voltage Dips and Interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55015(CISPR15) ,GB/T 17743
Radiated	BS EN/EN55015(CISPR15) ,GB/T 17743
Harmonic Current	BS EN/EN61000-3-2 ,GB17625.1	Class C @load≥50%
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/EN61000-4-3	Level 3
EFT/Burst	BS EN/EN61000-4-4	Level 3
Surge	BS EN/EN61000-4-5	4KV/Line-Line 6KV/Line-Earth(6K/10K option)
Conducted	BS EN/EN61000-4-6	Level 3
Magnetic Field	BS EN/EN61000-4-8	Level 4
Voltage Dips and Interruptions	BS EN/EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF: 2300.1K hrs min. Telcordia SR-332 (Bellcore) ; 200.7Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 199*63*35.5mm (L*W*H)
PACKING: 0.85Kg;16pcs /14.2Kg /0.75CUFT

Test conditions and notes16

Technical drawings

XLG-200I-H-AB BLOCK DIAGRAM — BLOCK DIAGRAM

XLG-200I-H-AB DRIVING METHODS OF LED MODULE — DRIVING METHODS OF LED MODULE

XLG-200I-H-AB DIMMING OPERATION — DIMMING OPERATION

XLG-200I-H-AB OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

XLG-200I-H-AB STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

XLG-200I-H-AB TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

XLG-200I-H-AB Dimensions (mm) — Dimensions (mm)

XLG-200I-H-AB MECHANICAL SPECIFICATION ※ Blank/CV-Type — MECHANICAL SPECIFICATION ※ Blank/CV-Type

XLG-200I-H-AB MECHANICAL SPECIFICATION ※ A-Type — MECHANICAL SPECIFICATION ※ A-Type

XLG-200I-H-AB Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

Downloads

Datasheet1

XLG-200I-H-AB datasheetXLG-200-SPEC.PDF · 2026-02-04 edition PDF Download

Certificates2

Mean Well IDLC Series UL Certificate PDF Download

Mean Well IDLC Series EAC Certificate PDF Download

FAQ

What makes the XLG-200I-H-AB different from standard XLG-200 models?

The XLG-200I-H-AB is the India-version variant of the XLG-200 series, designed for the Indian electrical grid with an input range of 100–305VAC (142–431VDC) and Input Over Voltage protection. It outputs 200W at 3500mA with a CC voltage range of 27–56V and carries IS15885 certification in addition to the standard CB, CE, EAC, and KC marks.

Can the XLG-200I-H-AB be installed in outdoor luminaires in India's climate?

Yes. The IP67 waterproof rating seals the unit against dust and temporary water immersion, making it suitable for outdoor luminaire enclosures exposed to monsoon rain, humidity, and dust. The -40°C to +90°C operating temperature also covers the temperature extremes found across Indian climates.

Is the XLG-200I-H-AB appropriate for powering LED streetlight or area light modules in India?

Yes. Its 200W constant-current output at 3500mA and the 27–56V CC voltage range match the electrical requirements of mid-power LED streetlight modules designed for the Indian market. The wide input range of 100–305VAC accommodates the voltage fluctuations common on Indian distribution networks.

Can the XLG-200I-H-AB be used for high-bay LED fixture drivers in Indian industrial buildings?

Yes. The 200W output at 3500mA suits LED high-bay modules used in Indian industrial facilities. The wide input voltage tolerance of 100–305VAC handles the supply instability found in many industrial parks without requiring additional voltage conditioning equipment.

Is the XLG-200I-H-AB suitable for large outdoor advertising sign installations in high-humidity coastal regions of India?

Yes. IP67 protection makes this driver resistant to heavy humidity and rain splash, while the -40°C to +90°C range covers high ambient temperatures in coastal and tropical environments. The 200W capacity supports substantial LED arrays used in illuminated outdoor advertising structures.

Does the XLG-200I-H-AB include dimming capability for lighting control systems?

Yes. The AB suffix indicates this model supports adjustable output and dimming. This allows integration with compatible dimming controllers for smart lighting or building management systems where centralized brightness control of the LED load is required.
