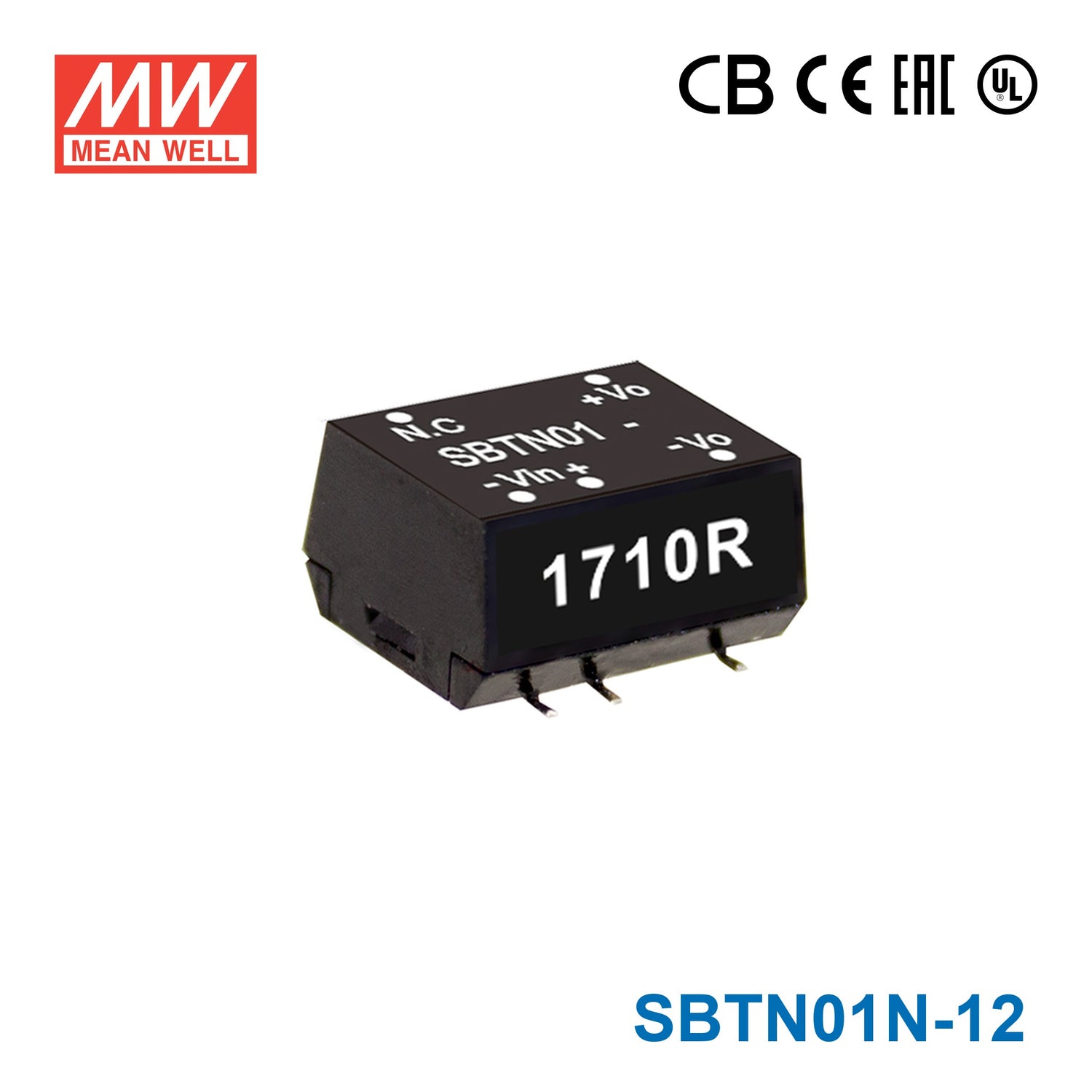

Mean Well SBTN01N-12 DC-DC Converter - 1W 24V DC in 12V out 84mA

SKU SBTN01N-12

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

SBTN01N-12 is the 12V output model of this series: rated power 1W, typical efficiency 79%.

SBTN01 series is 1W isolated and unregulated module type DC-DC converter with SMD package. It features international standard pins, a high efficiency up to 84%, wide working temperature range -40~+90℃, 1.5KVDC I/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated Class B without additional components, short circuit protection, etc. The models account for different input voltage 3.3V/5V/12V/24V±10%, and various output voltage, 3.3V/5V/9V/12V/15V for single output which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.

Features

SMD package with industry standard pinout
Operating temperature range -40 ~ +90℃
Comply to BS EN/EN55032 radiated Class B without additional components
High efficiency up to 84%
Protection: Short circuit
1.5KVDC I/O isolation (3KVDC I/O isolation optional)
Low cost
Optional reel packing
3 years warranty

Specifications

SBTN01N-12Specifications from the official datasheet (2026-09-15 edition)

INPUT

INPUT VOLTAGE (RANGE): 24V (21.6 ~ 26.4V)
INPUT CURRENT (NO LOAD): 11mA
INPUT CURRENT (FULL LOAD): 54mA
VOLTAGE RANGE: 21.6 ~ 26.4Vdc
SURGE VOLTAGE (100ms max.): 3.3, 5Vin models : 9Vdc ; 12Vin models : 16Vdc ; 24Vin models : 30Vdc
FILTER: Internal capacitor
PROTECTION: Fuse recommended. 3.3Vin models: 1000mA Slow-Blow Type, 5Vin models: 750mA Slow-Blow Type, 12Vin models: 300mA Slow-Blow Type, 24Vin models: 150mA Slow-Blow Type
INTERNAL POWER DISSIPATION: 500mW

OUTPUT

OUTPUT VOLTAGE: 12V
OUTPUT CURRENT: 8.4 ~ 84mA
VOLTAGE ACCURACY: ±2% (Vo 3.3V for±3%)
RATED POWER: 1W
RIPPLE & NOISE^Note.2: 75mVp-p
LINE REGULATION^Note.3: 1.2% for 1% input variation (1.5% for 1% input variation only for Vo 3.3V)
LOAD REGULATION^Note.4: ±8%
SWITCHING FREQUENCY (Typ.): 100KHz
EFFICIENCY (TYP.): 79%
CAPACITOR LOAD (MAX.): 220μF

PROTECTION

SHORT CIRCUIT: Standard model: 0.5 second max. Optional models (SC-suffix): Continuous

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.: Standard model: -40 ~ +90℃ (Refer to "Derating Curve") ; Optional models (SC-suffix): -40 ~ +105℃
CASE TEMPERATURE: +100℃ max.
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -55 ~ +125℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: 0.03% / ℃ (0 ~ 85℃)
SOLDERING TEMPERATURE: 1.5mm from case of 1 ~ 10sec./240℃ max.
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL62368-1(Except for 9V output models), EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE: I/P-O/P:1.5KVDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION CAPACITANCE (Typ.): 80pF
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32) N/A
Radiated BS EN/EN55032(CISPR32) Class B
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, ±8KV air; Level 2, ±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Bursts BS EN/EN61000-4-4 Level 1, 0.5KV at power
Surge BS EN/EN61000-4-5 Level 2, 0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 1, 1A/m

Parameter	Standard	Test Level
Conducted	BS EN/EN55032(CISPR32)	N/A
Radiated	BS EN/EN55032(CISPR32)	Class B

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, ±8KV air; Level 2, ±4KV contact
Radiated Susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT/Bursts	BS EN/EN61000-4-4	Level 1, 0.5KV at power
Surge	BS EN/EN61000-4-5	Level 2, 0.5KV Line-Line
Conducted	BS EN/EN61000-4-6	Level 2, 3V(e.m.f.)
Magnetic Field	BS EN/EN61000-4-8	Level 1, 1A/m

OTHERS

MTBF: 880Khrs min. MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): 12.9*10.9*7.1mm (0.50*0.43*0.28 inch)
CASE MATERIAL: Non-Conductive black plastic (UL 94V-0 rated)
PACKING: Standard : 1.1g ; 38 pcs/per tube, 4560 pcs/ 120 tube/per carton Optional : 1.1g ; 500 pcs/per reel , 2500 pcs/ 5 reel /per carton

Test conditions and notes6

1.All parameters are specified at normal input(K:3.3Vdc, L:5Vdc, M:12Vdc, N:24Vdc), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 10% to 100% rated load.
5.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)
6.An external input filter capacitor is required if the module has to meet BS EN/EN61000-4-4, BS EN/EN61000-4-5. The filter capacitor Power Mate suggest: 220uF/100V.

Technical drawings

SBTN01N-12 Mechanical Specification — Mechanical Specification

SBTN01N-12 Pin Assignment — Pin Assignment

SBTN01N-12 Reflow Soldering Curve — Reflow Soldering Curve

Typical applications

Downloads

Certificates3

CE Certificate(SBTN01)(EN) PDF Download

UL Certificate(SBTN01)(EN) PDF Download

EMC Certificate(SBTN)(EN) PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the SBTN01N-12 for a low-power 12V automation accessory or control circuit?

Yes, if the 12V load stays within the converter's 1W and 84mA limits. It is an unregulated fixed-output model (load regulation ±8%), so it is intended for electronics that tolerate some 12V variation with load.

Is this converter appropriate for a compact 12V embedded board inside industrial equipment?

It is suited to very small 12V embedded or auxiliary boards that draw no more than 84mA. The housing measures 12.9 x 10.9 x 7.1 mm and weighs 0.0011 kg, which helps in space-constrained designs.

Can the SBTN01N-12 be used for a 12V sensing or low-current instrumentation stage?

It can be used for a 12V sensing, measurement, or instrumentation stage as long as the total demand does not exceed 1W. The specified input range is 21.6-26.4VDC, so it should be matched to that source window.

What are the output differences between the SBTN01N-12 and the other SBTN01N versions?

The SBTN01N range keeps the same 1W power level while changing output voltage and current. The options are 3.3V at 300mA, 5V at 200mA, 9V at 111mA, 12V at 84mA, and 15V at 67mA.

How well does the SBTN01N-12 handle temperature extremes, and is it outdoor rated?

Its operating temperature range is specified as -40C to +90C, with load derating at high ambient temperature per the derating curve, which supports demanding temperature conditions. There is no IP rating in the provided product specs, so the data does not confirm outdoor use.
