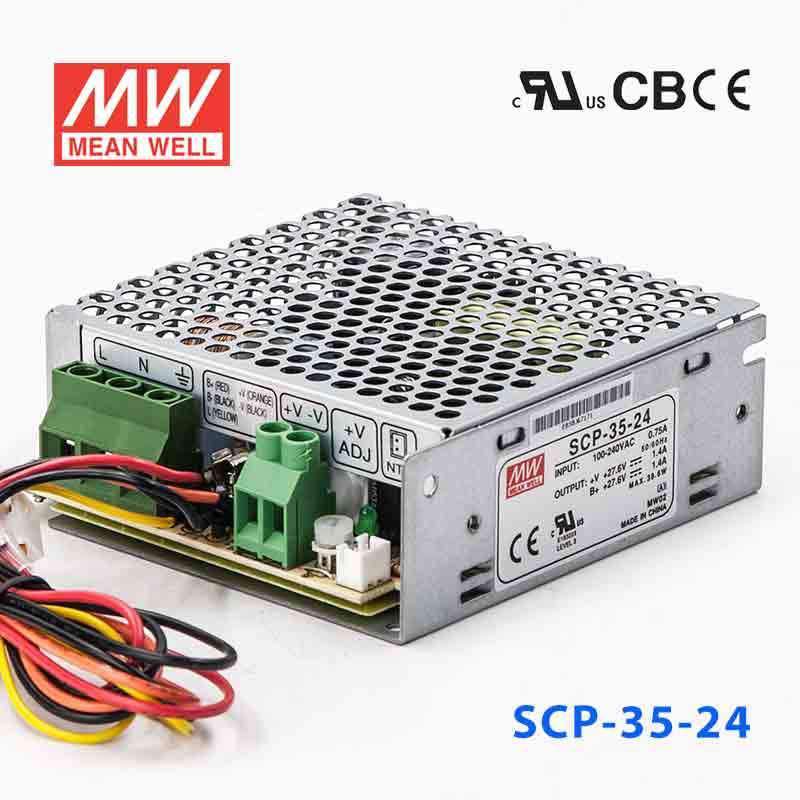

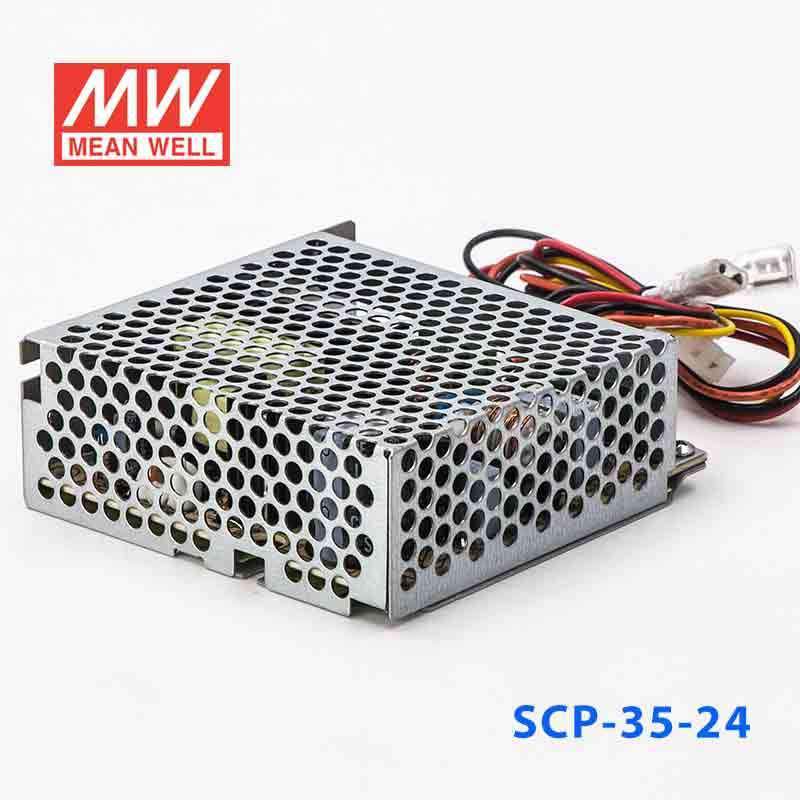

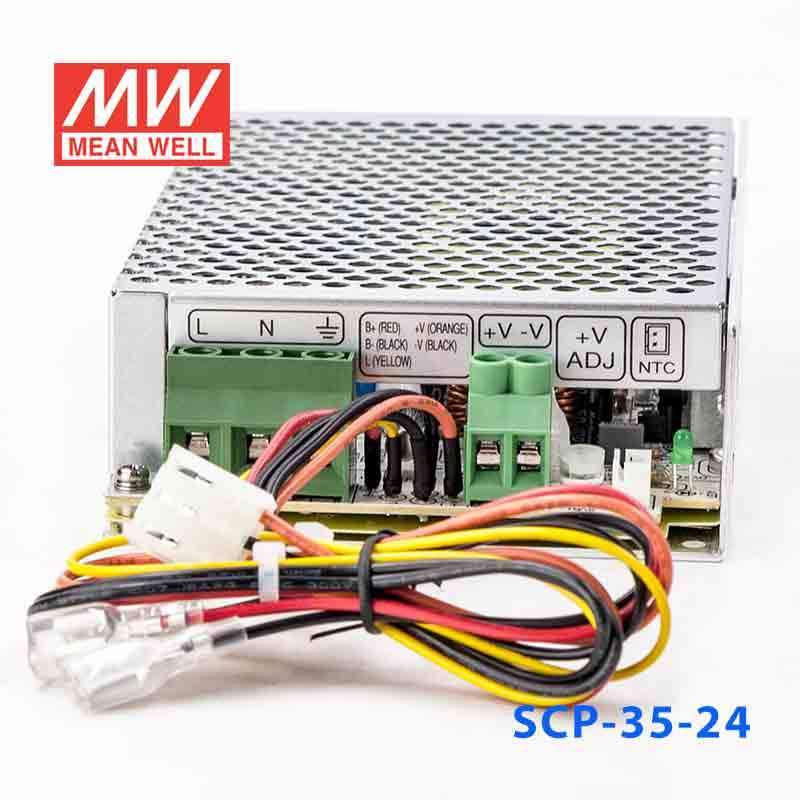

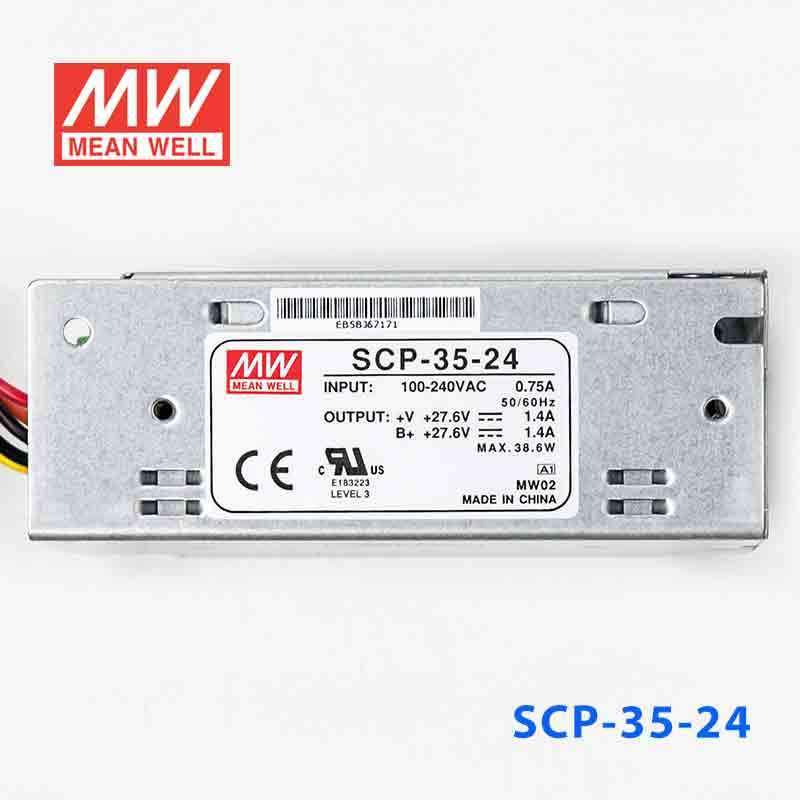

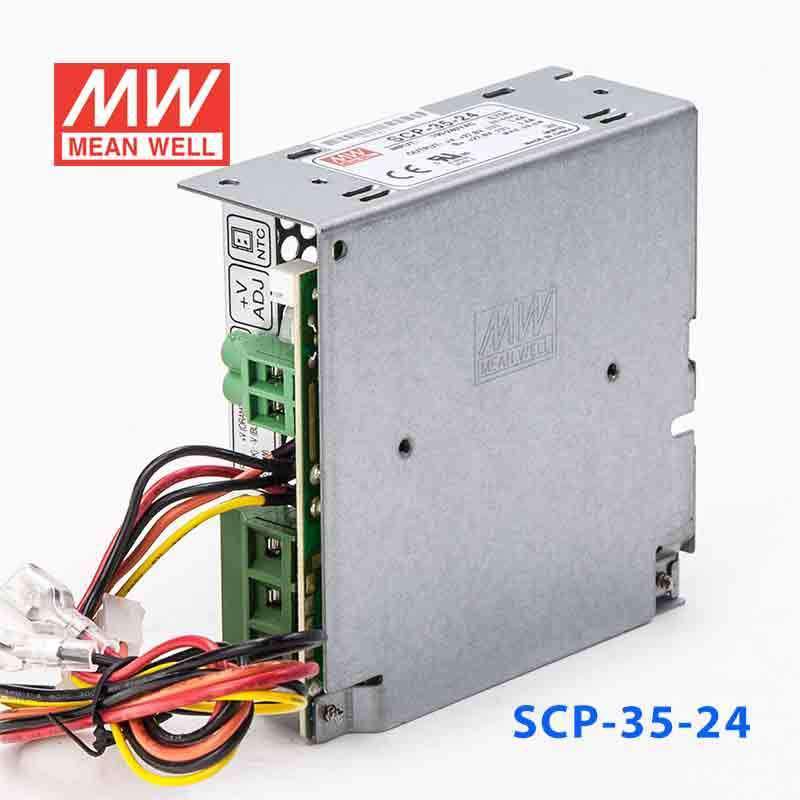

Mean Well SCP-35-24 Power supply 38.6W 27.6V 1.4A
Please Login for Pricing
Description
Description
Features
| Universal AC input / Full range |
| LED indicator for power on |
| No load power consumption <0.75W |
| Protections: Short circuit / Over current / Over voltage / Battery polarity (by fuse) |
| Temperature compensation function (by external thermistor) |
| Cooling by free air convection |
| 100% full load burn-in test |
| 2 years warranty |
General Specification
| AC input voltage range | 85~264VAC/ 120~370VDC |
| AC inrush current | Cold start, 45A |
| DC adjustment range | 95%~115% rated output voltage |
| Overload protection | 120%~165%, hiccup mode, auto-recovery |
| Over voltage protection | 120%~140%, rated output voltage |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG:1.5kVAC, 1minute |
| Working temperature | -20~+60°C (refer to output derating curve) |
| Safety standards | UL60950-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-1 |
| Connection | I/P: 3 poles, O/P: 2 poles screw terminal |
| Packing | 0.37kg ; 45pcs / 17.7kg / 1CUFT |
| Dimension (LxWxH) (mm) | 99x 97x 36 mm |
| Setup, rise, hold up time | 500ms, 30ms, 50ms at full load and 230VAC |
Specifications
Specifications
-
BrandMean Well
-
SeriesSCP Series
-
Power Rating38.6 Watt
-
Output Voltage27.6 Volt
-
Rated Current1.4 Ampere
-
Input Voltage85V~264V
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~60°C
-
Warranty2 Year
-
Length9.9 cm
-
Width9.7 cm
-
Height3.6 cm
-
Weight0.37 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SCP-35-24 for a 24V nominal control cabinet that needs a 27.6V DC supply?
Yes, if the system is designed for a 27.6V constant-voltage source and the load stays within 1.4A and 38.6W. This model is better aligned with compact industrial or automation hardware that runs on a higher DC bus than 13.8V units.
Is the SCP-35-24 suitable for compact security, alarm, or monitoring systems using a 27.6V DC bus?
It can be appropriate where the equipment expects 27.6V DC and total current demand does not exceed 1.4A. The built-in temperature compensation function and output voltage detection signal may also matter in monitored low-power systems.
Would this model work for low-current PLC accessories or embedded devices that need around 24V DC?
It is a candidate for low-current 24V nominal applications when the actual required supply is 27.6V constant voltage. The available output is limited to 1.4A and 38.6W, so it fits smaller automation loads rather than heavier field devices.
Can the SCP-35-24 be used in unconditioned indoor spaces?
The specified operating range is -20°C to +60°C, which supports many indoor industrial and utility environments. No IP rating is provided, so the specs do not confirm suitability for direct outdoor exposure or wet locations.
What are the main differences between the SCP-35-24 and the other SCP versions?
The SCP-35-24 is rated at 38.6W with 27.6V output and 1.4A current. Related models are SCP-35-12 at 35.9W, 13.8V, 2.6A; SCP-50-12 at 49.7W, 13.8V, 3.6A; SCP-50-24 at 49.7W, 27.6V, 1.8A; SCP-75-12 at 74.5W, 13.8V, 5.4A; and SCP-75-24 at 74.5W, 27.6V, 2.7A.
