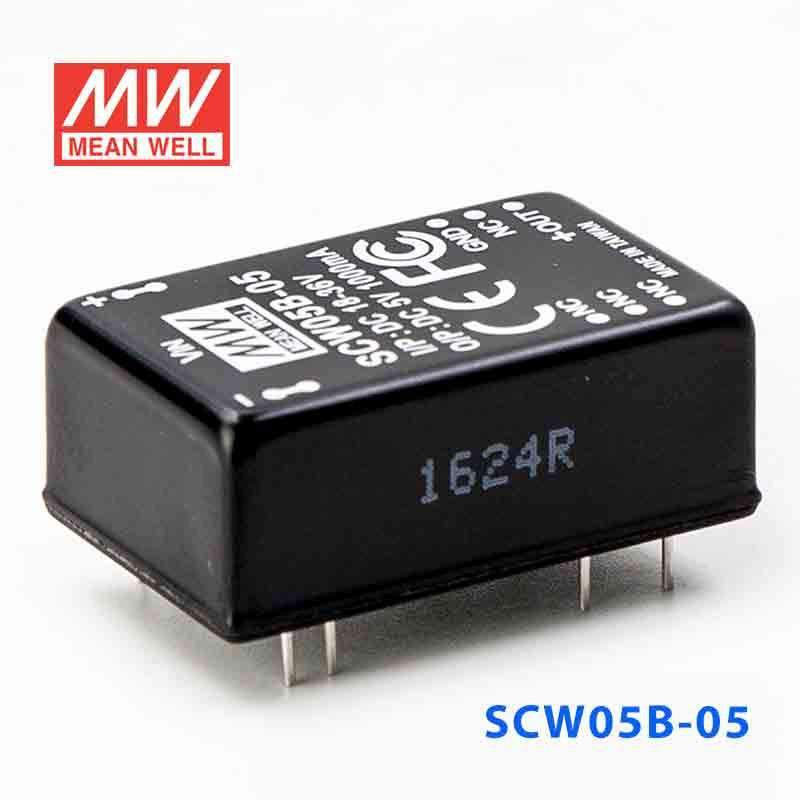

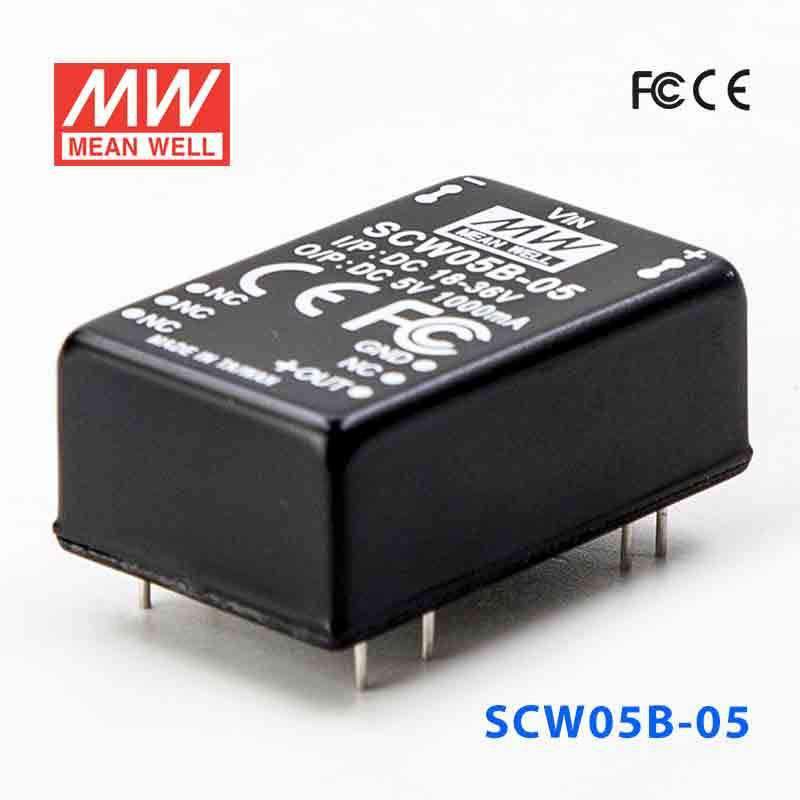

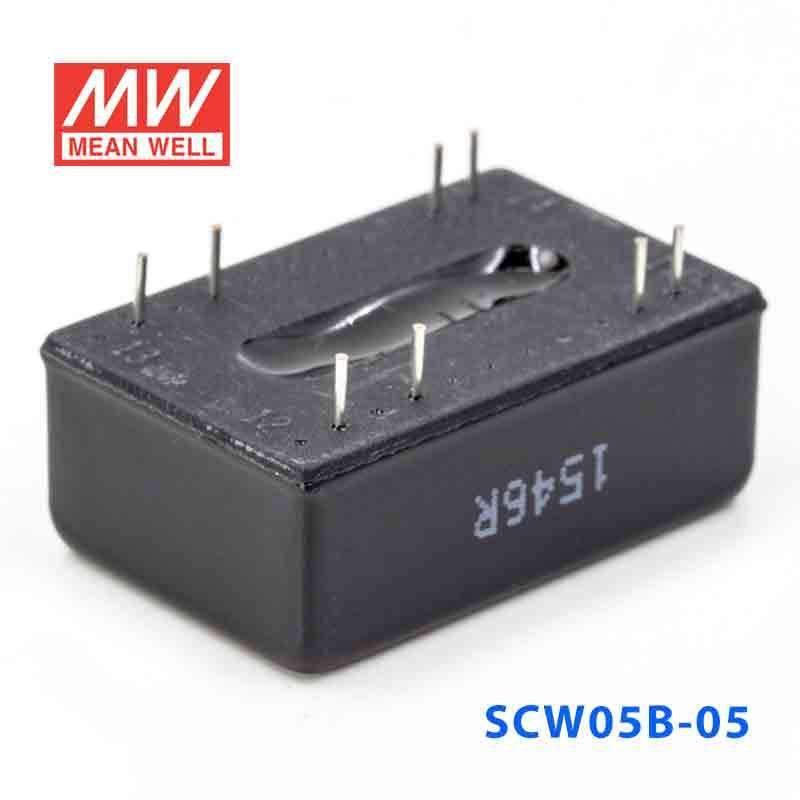

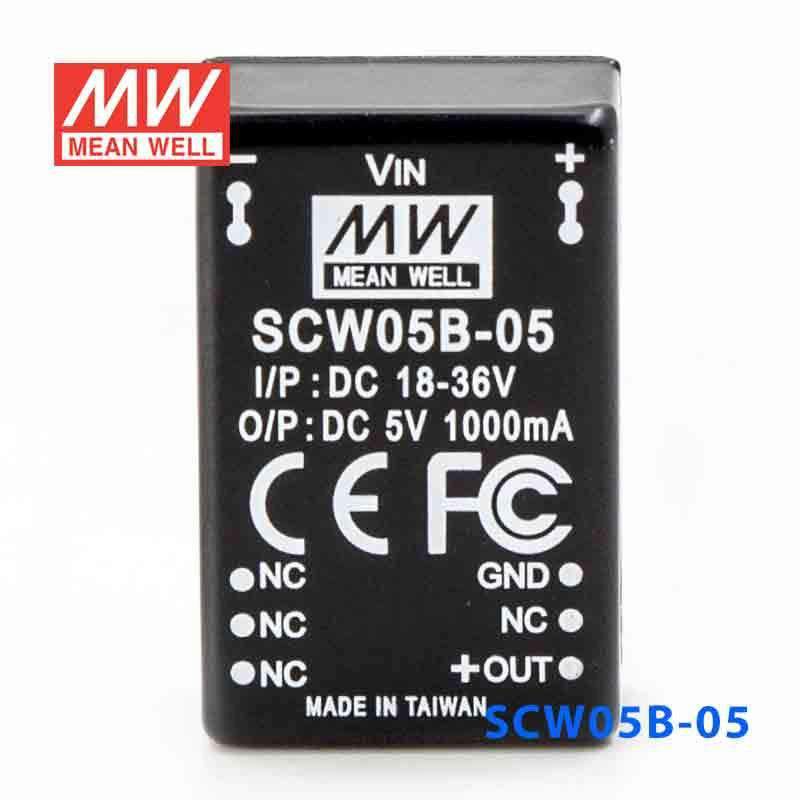

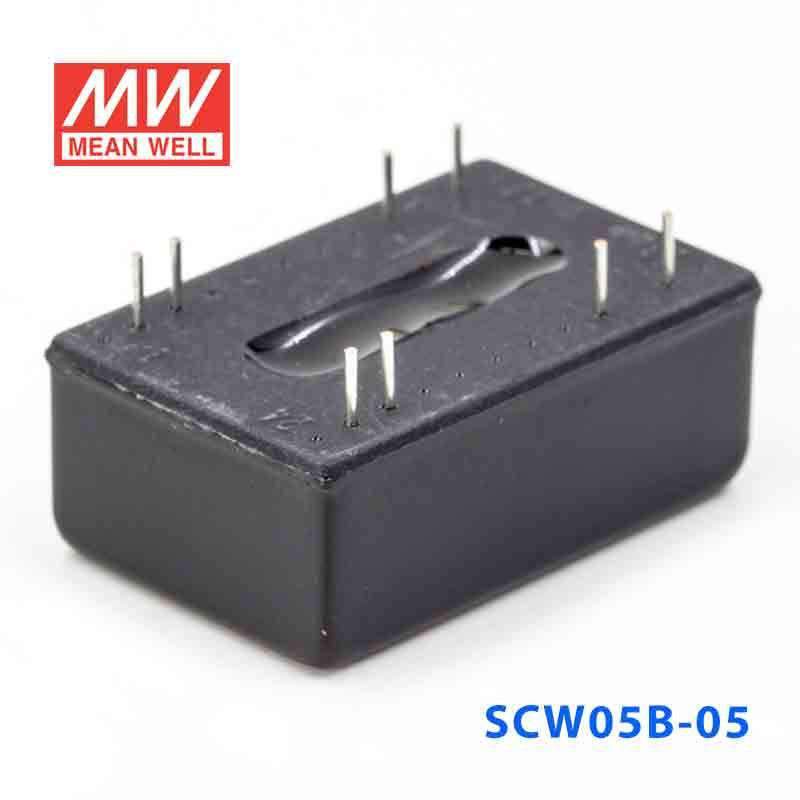

Mean Well SCW05B-05 DC-DC Converter - 5W 18~36V DC in 5V out 1A

SKU SCW05B-05
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
End of Life, Succeeded by SCWN06B-05
In stock
|

Overview

SCW05B-05 is the 5V output model of this series: rated power 5W, typical efficiency 77%.

Features

  • 2:1 wide input range
  • 4:1 wide input range(option)
  • 1000VDC I/O isolation
  • 3000VDC I/O isolation(option)
  • Built-in EMI filter
  • Protections: Short circuit / Overload
  • Cooling by free air convection
  • Five-sided shield metal case
  • 100% burn-in test
  • Low cost / High reliability
  • Approvals: FCC / CE
  • 2 years warranty

Specifications

SCW05B-05Specifications from the official datasheet (2018-03-23 edition)Download datasheet PDF

OUTPUT

DC VOLTAGE
5V
CURRENT RANGE
200 ~ 1000mA
RATED POWER
5W
RIPPLE & NOISE (max.)Note.2
50mVp-p
LINE REGULATIONNote.3
±0.5%
LOAD REGULATIONNote.4
±0.5%
VOLTAGE ACCURACY
±2.0%
SWITCHING FREQUENCY
50KHz min.

INPUT

VOLTAGE RANGE
18 ~ 36VDC
EFFICIENCY (Typ.)
77%
DC CURRENT Full load
301mA
DC CURRENT No load
22mA
FILTER
Pi network
PROTECTION
Fuse recommended

PROTECTION (Note. 5)

OVERLOAD
150 ~ 250% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
SHORT CIRCUIT
All output equipped with short circuit Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.
-40 ~ +71℃ (Refer to output load derating curve)
WORKING HUMIDITY
20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +105℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03% / ℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:1KVDC
ISOLATION RESISTANCE
I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION CAPACITANCE
80pF max.
EMC EMISSION
Compliance to EN55032 Class B, FCC part 15 Class B , EAC TP TC 020
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,5,6,8, light industry level, criteria A , EAC TP TC 020

OTHERS

MTBF
900khrs min. MIL-HDBK-217F(25℃)
DIMENSION
31.8*20.3*12.2mm or 1.25"*0.80"*0.48" inch (L*W*H)
WEIGHT
15g
Test conditions and notes5
  1. 1.All parameters are specified at normal input, rated load, 25℃ 70% RH ambient.
  2. 2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
  3. 3.Line regulation is measured from low line to high line at rated load.
  4. 4.Load regulation is measured from 20% to 100% rated load.
  5. 5.Please prevent the converter from operating in overload or short circuit condition for more than 30 seconds.

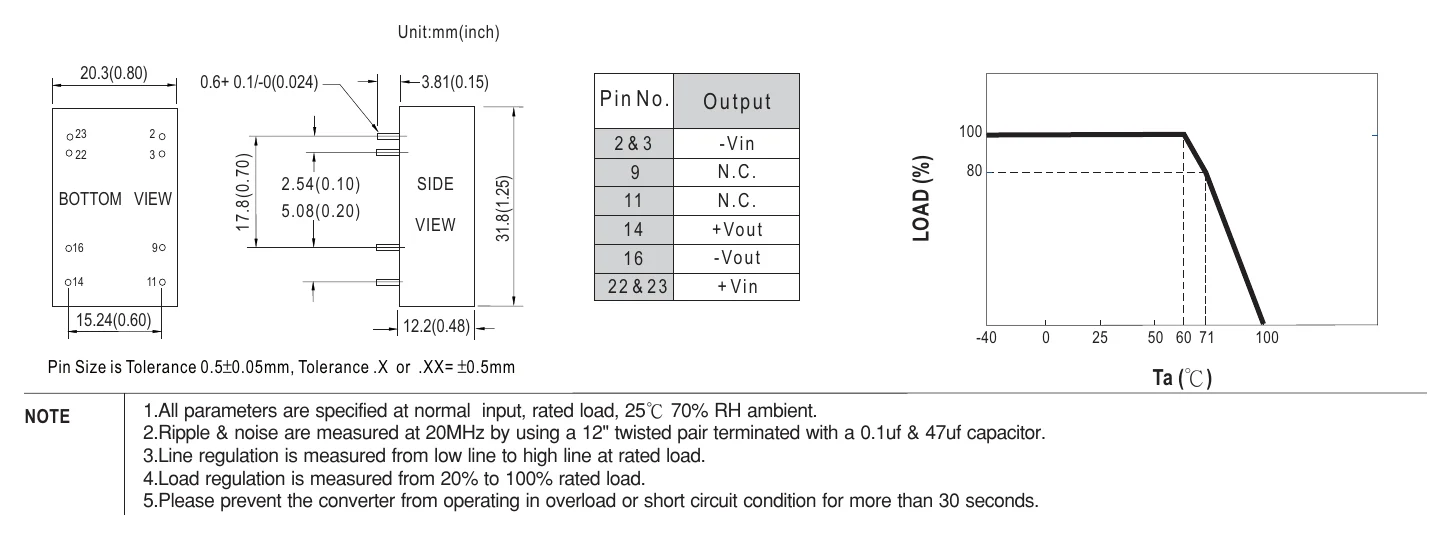

Technical drawings

SCW05B-05 Mechanical Specification
Mechanical Specification

Downloads

FAQ

What is the main use case for the Mean Well SCW05B-05 DC-DC converter?

The SCW05B-05 is a 5W DC-DC converter designed for applications that need a regulated 5V DC output from an 18 to 36V DC input source. It is suited to embedded, industrial, and OEM equipment where compact size, isolation, and reliable DC voltage conversion are important.

What input and output ratings does the SCW05B-05 provide?

This model accepts 18 to 36V DC input and provides a 5V DC output. Its power rating is 5W, and the rated output current is 1.0A.

Is the SCW05B-05 an isolated DC-DC converter?

Yes. The product description lists 1000VDC input-to-output isolation for this series, with a 3000VDC isolation option also noted. That makes it a practical choice where electrical isolation between input and output is required.

What protection and reliability features are included in the SCW05B-05?

The SCW05B-05 includes short circuit and overload protection with auto-recovery behavior noted in the description. It also features a built-in EMI filter, a five-sided shield metal case, and 100% burn-in testing to support dependable operation.

What operating temperature range is supported by the SCW05B-05?

This model is specified for operation from -40°C to 71°C, with output load derating at higher temperatures per the datasheet derating curve. That range makes it suitable for use in demanding environments where electronics may be exposed to both low and elevated ambient temperatures.

How accurate is the output regulation on the SCW05B-05?

The listed voltage accuracy is ±2%. Line regulation is specified at ±0.5%, and load regulation is ±0.5% measured from 20% to 100% rated load.

What warranty comes with the Mean Well SCW05B-05?

The SCW05B-05 includes a 2-year warranty. This aligns with the product's positioning as a low-cost, high-reliability modular DC-DC converter.
