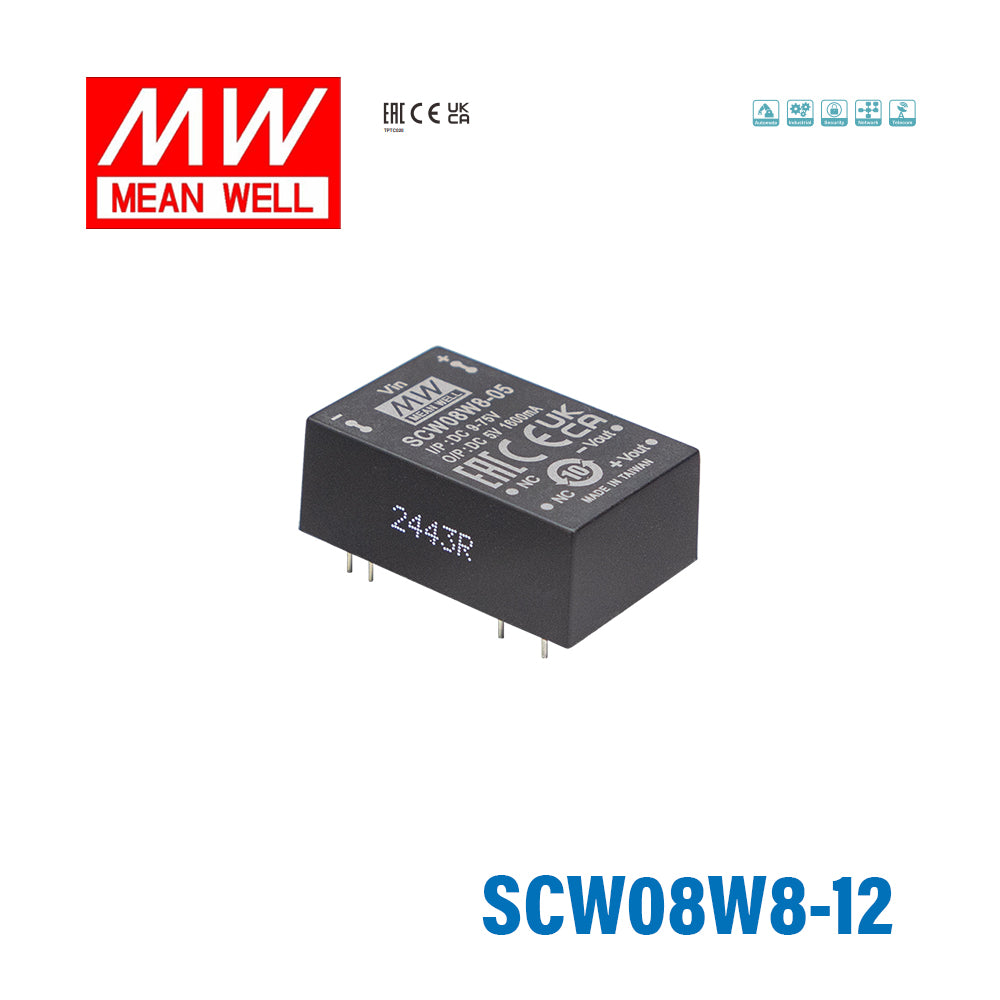

Mean Well SCW08W8-12 DC-DC Converter - 8W 9~75V DC in 12V out 10mA
Please Login for Pricing
Description
Description
Key Features
- ✓DIP24 package with industry standard pinout
- ✓8:1(9-75Vdc) ultra-wide input range
- ✓Operating temperature range -40 - +90℃
- ✓No minimum load required
- ✓Comply to BS EN/EN55032 radiated Class A without additional components
- ✓High efficiency up to 86%
- ✓Protections: Short circuit (Continuous) / Overload / Over voltage / UVLO
- ✓Remote ON/OFF control (Optional)
- ✓3KVdc I/O isolation
- ✓3 years warrantyGeneral Specification:
Specifications
Specifications
-
BrandMean Well
-
SeriesSCWN Series
-
Power Rating8 Watt
-
Output Voltage12 Volt
-
Rated Current0.01 Ampere
-
Input Voltage9V~75V
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length3.18 cm
-
Width2.03 cm
-
Height1.22 cm
-
Weight0.02 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well SCW08W8-12 used for?
The SCW08W8-12 is an 8W DC-DC converter module designed for regulated 12V DC output from a very wide 9 to 75V DC input range. It is suited to industrial and OEM applications where input voltage can vary significantly but a stable 12V output is required.
What input voltage range does the SCW08W8-12 support?
This model supports an ultra-wide 8:1 input range of 9 to 75V DC. That makes it suitable for systems based around nominal 12V, 24V, 36V, 48V, or 72V DC sources within that range.
What are the main electrical and protection features of the SCW08W8-12?
The SCW08W8-12 provides 12V DC output with an 8W power rating and efficiency up to 86%. It also includes short circuit, overload, over voltage, and UVLO protection, plus 3KV DC input-to-output isolation.
Is the SCW08W8-12 suitable for demanding temperature environments?
Yes, this converter is specified for operation from -40°C to +90°C. That wide operating range makes it appropriate for equipment exposed to cold starts, elevated internal temperatures, or harsh industrial conditions.
How does the SCW08W8-12 differ from narrower-input DC-DC converters?
A key differentiator is its 9 to 75V DC ultra-wide input range, which gives it more flexibility than converters designed for only one nominal input bus. It also uses an industry-standard DIP24 package and does not require a minimum load, which can simplify product selection for embedded designs.
What compliance and control features does the SCW08W8-12 offer?
This model complies with BS EN/EN55032 radiated Class A without additional components, which is useful in regulated equipment environments. It also supports optional remote ON/OFF control and is backed by a 3-year warranty.
