Can I use the SCW12B-15 to power a 15V industrial sensor or transmitter?

It can fit low-power 15V industrial sensors or transmitters that need constant voltage and stay within 15V, 0.8A, and 12W. Its specified input range is 18-36VAC, so the source side also needs to match that range.

Is the SCW12B-15 suitable for embedded or automation boards that require 15V DC?

This converter is intended for constant-voltage 15V output and can be used where the load stays at or below 0.8A and 12W. That makes it a fit for compact embedded or automation subcircuits that need a regulated 15V rail rather than a higher-power supply.

Can this model be used in a compact industrial control assembly with limited space?

Yes, its body is 31.75 × 20.32 × 12.19 mm and weighs 0.015 kg, so it suits space-constrained control assemblies. The electrical fit still depends on the load requiring 15V constant voltage within 0.8A and 12W.

Which SCW12B model should I choose: 5V, 12V, or 15V?

In the SCW12B series, the SCW12B-05 is 12W with 5V output at 2.4A, the SCW12B-12 is 12W with 12V output at 1A, and the SCW12B-15 is 12W with 15V output at 0.8A. All three are constant-voltage models, so selection depends on the output voltage and current your load requires.

Can the SCW12B-15 be used in harsh temperature conditions or outdoor equipment?

Its specified operating range is -40°C to +71°C, so it is designed for wide-temperature use. No IP rating is listed in the provided specs, so those specs do not confirm outdoor or weather-exposed use.

1 5

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

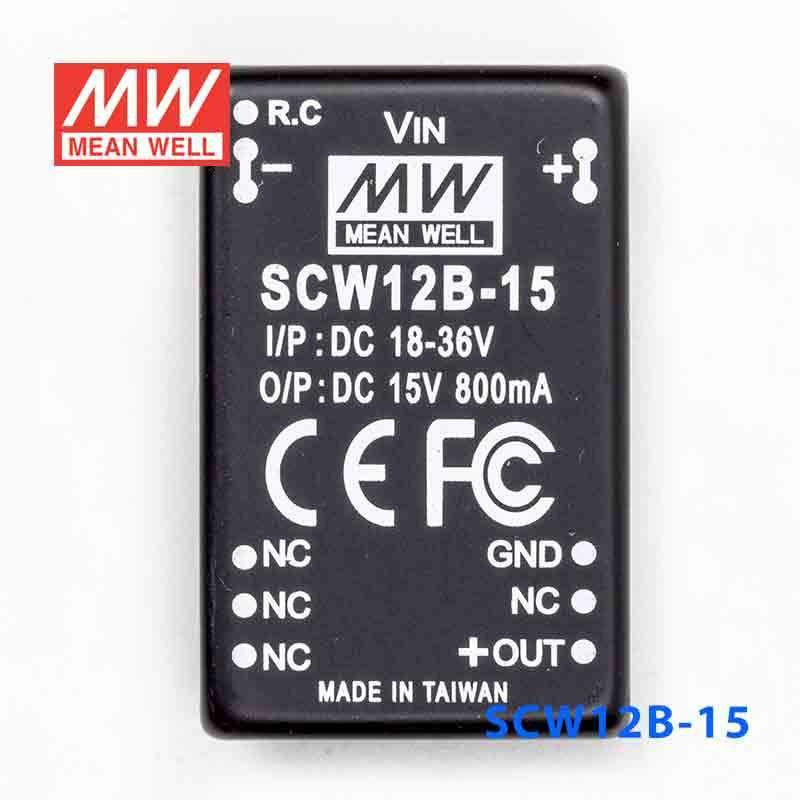

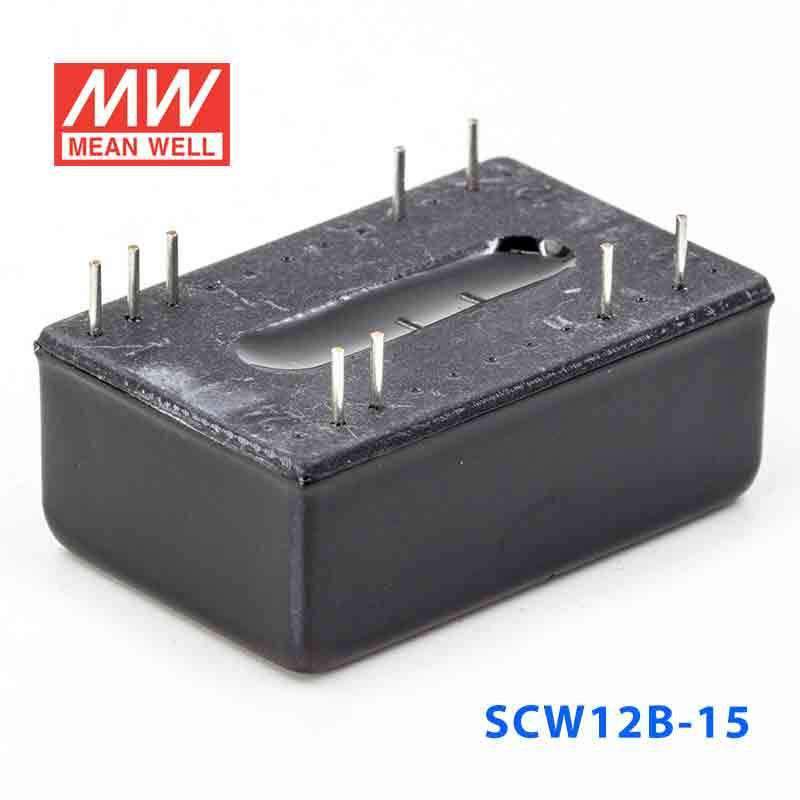

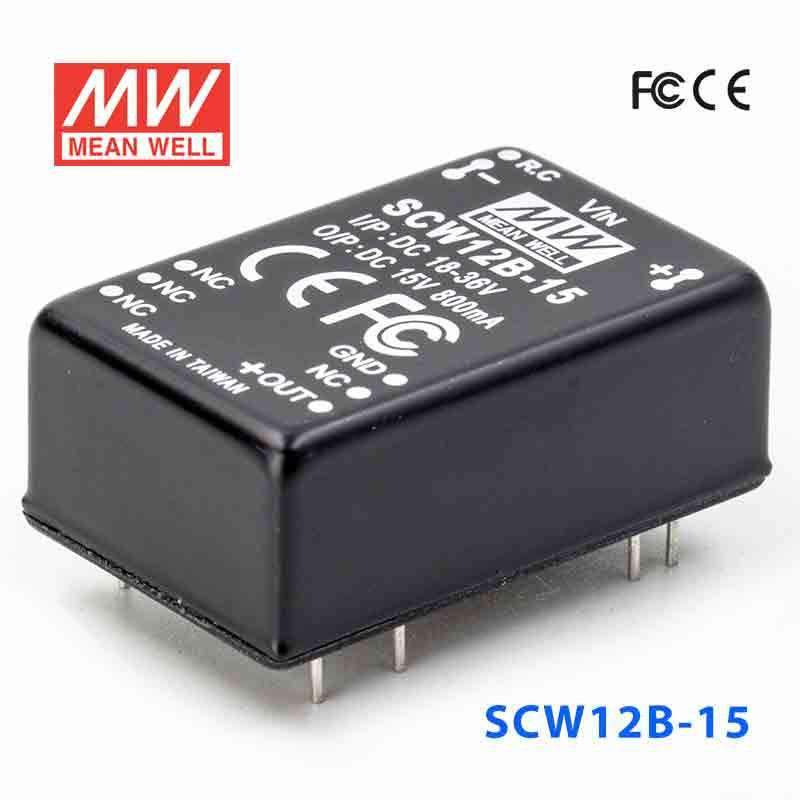

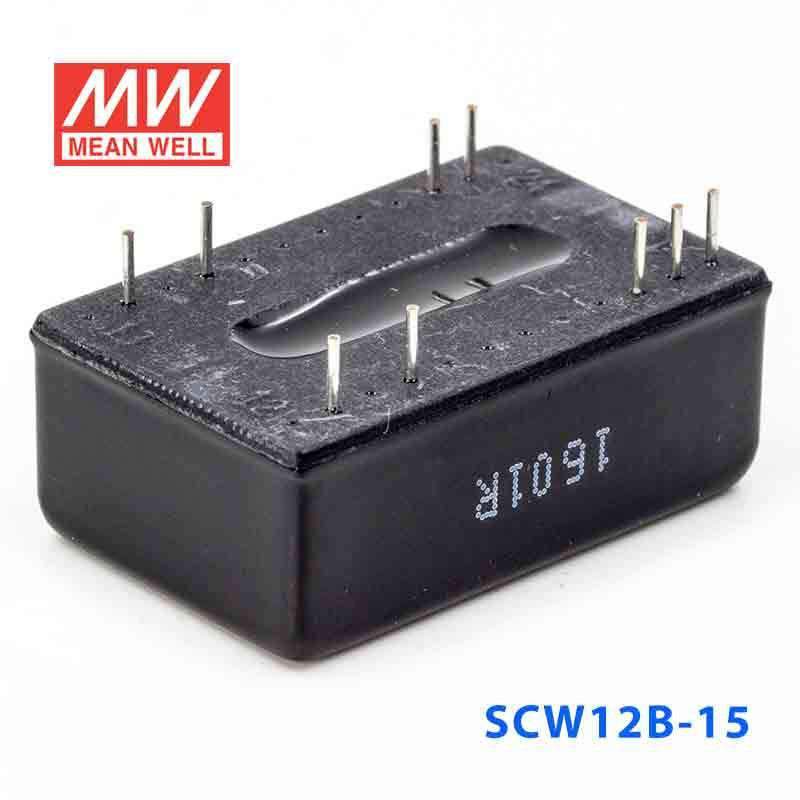

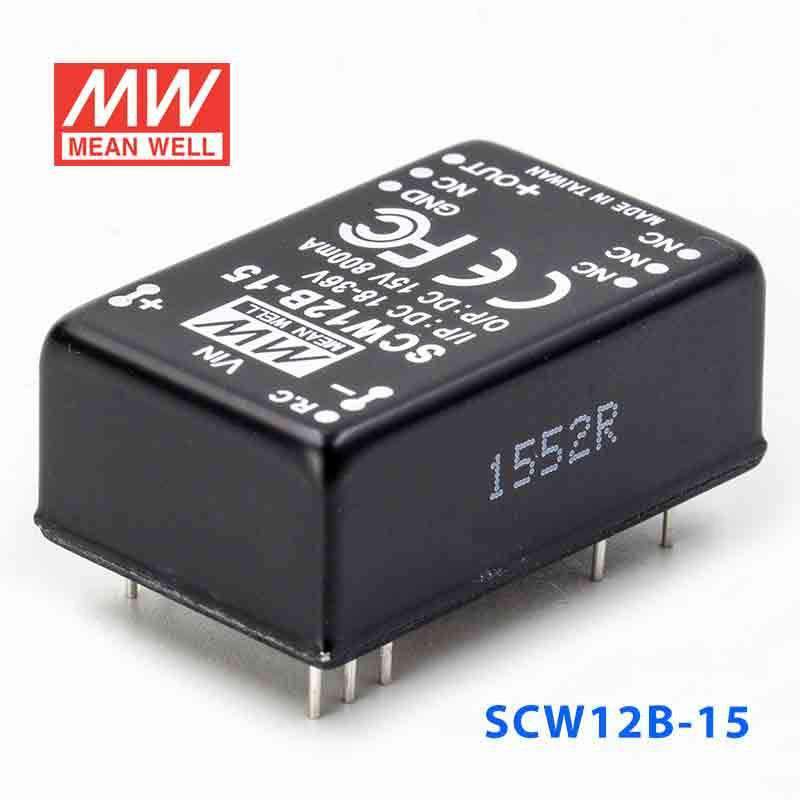

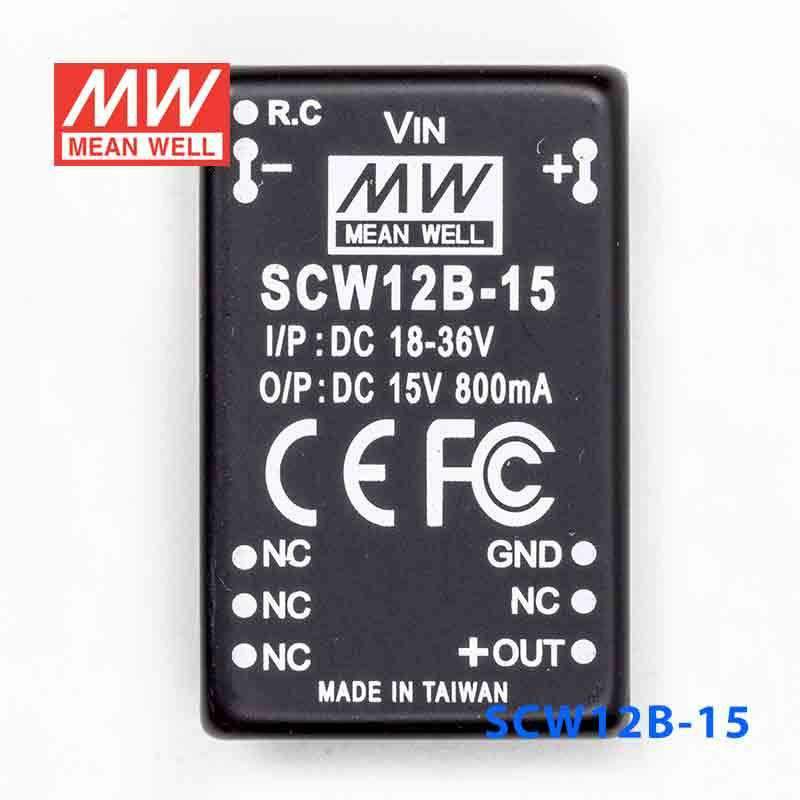

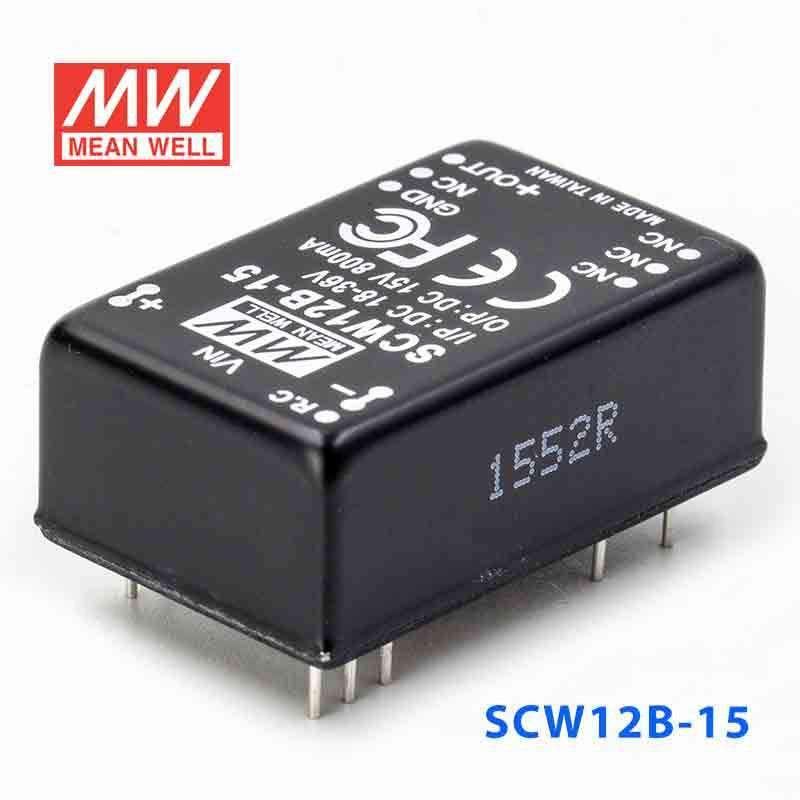

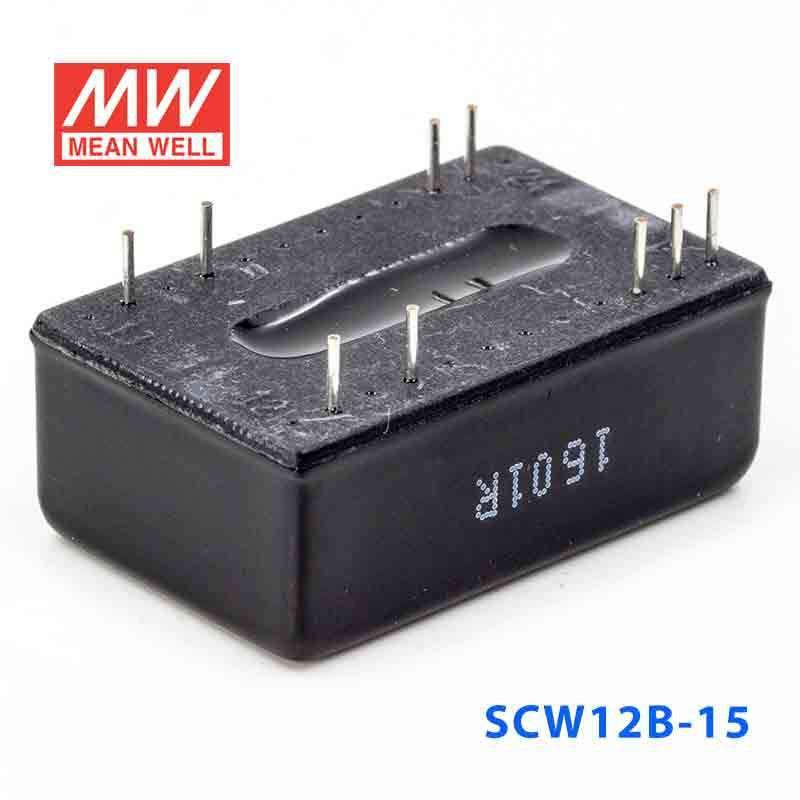

Mean Well SCW12B-15 DC-DC Converter - 12W 18~36V DC in 15V out 800mA

SKU:

SCW12B-15

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The SCW12B is a 12W Mean Well power converter.

Key Features

✓ 1.5KVDC reinforced I/O isolation
✓ Protections: Short circuit / Overload
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well SCW12C-15 DC-DC Converter - 12W 36~72V DC in 15V out 2.4A	12W	15V	2.4A	Indoor	View
Mean Well SCW12C-12 DC-DC Converter - 12W 36~72V DC in 12V out 800mA	12W	12V	0.8A	Indoor	View
Mean Well SCW12C-05 DC-DC Converter - 12W 36~72V DC in 5V out 1A	12W	5V	1A	Indoor	View
Mean Well SCW12B-12 DC-DC Converter - 12W 18~36V DC in 12V out 1A	12W	12V	1A	Indoor	View
Mean Well SCW12B-05 DC-DC Converter - 12W 18~36V DC in 5V out 2.4A	12W	5V	2.4A	Indoor	View
Mean Well SCW12A-15 DC-DC Converter - 12W 9~18V DC in 15V out 800mA	12W	15V	0.8A	Indoor	View
Mean Well SCW12A-12 DC-DC Converter - 12W 9~18V DC in 12V out 1A	12W	12V	1A	Indoor	View
Mean Well SCW12A-05 DC-DC Converter - 12W 9~18V DC in 5V out 2.4A	12W	5V	2.4A	Indoor	View
