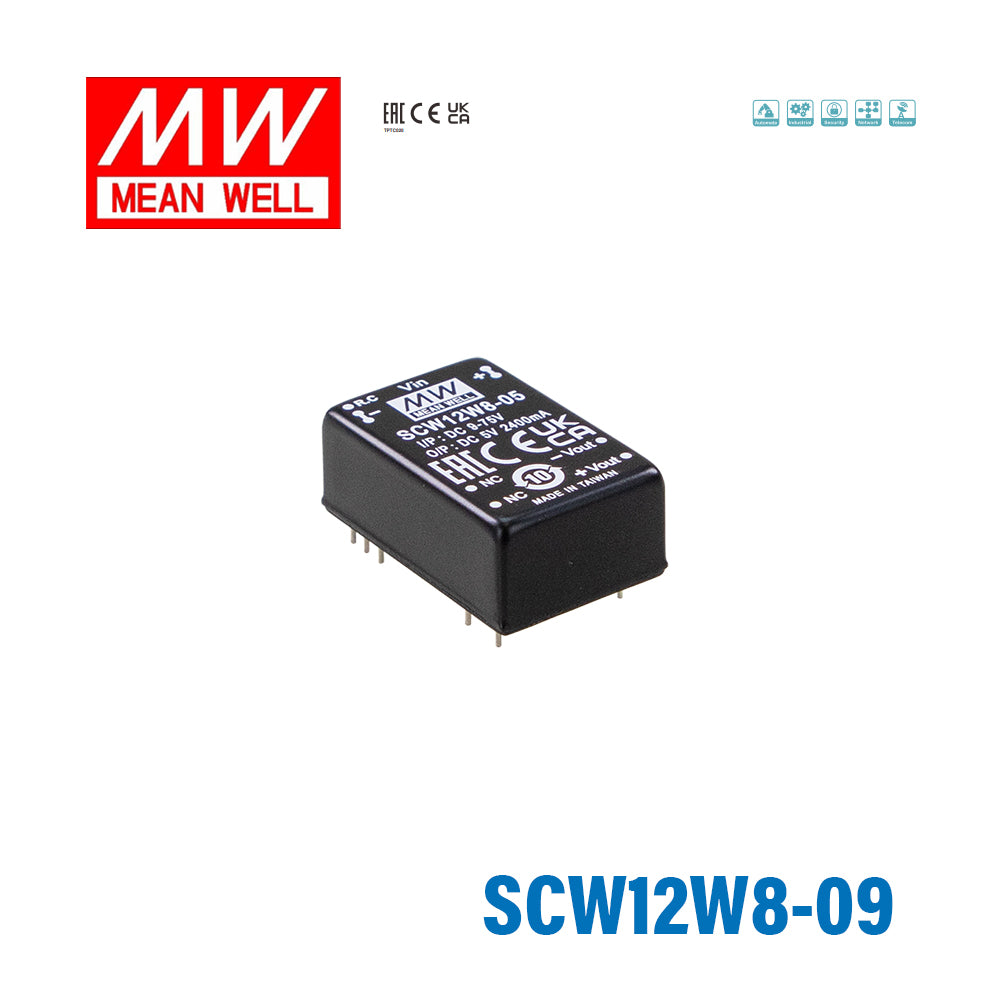

Mean Well SCW12W8-09 DC-DC Converter - 12W 9~75V DC in 9V out 10mA
Please Login for Pricing
Description
Description
Key Features
- ✓DIP24 package with industry standard pinout
- ✓8:1(9-75Vdc) ultra-wide input range
- ✓Operating temperature range -40 - +85℃
- ✓No minimum load required
- ✓Comply to BS EN/EN55032 radiated Class A without additional components
- ✓High efficiency up to 87%
- ✓Protections: Short circuit (Continuous) / Overload / Over voltage / UVLO
- ✓Remote ON/OFF control (Optional)
- ✓3KVdc I/O isolation
- ✓3 years warrantyGeneral Specification:
Specifications
Specifications
-
BrandMean Well
-
SeriesSCWN Series
-
Power Rating12 Watt
-
Output Voltage9 Volt
-
Rated Current0.01 Ampere
-
Input Voltage9V~75V
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length3.18 cm
-
Width2.03 cm
-
Height1.22 cm
-
Weight0.02 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the input and output range of the Mean Well SCW12W8-09?
The SCW12W8-09 is a 12W DC-DC converter with an ultra-wide 8:1 input range of 9 to 75V DC. It provides a regulated 9V DC output. This wide input range helps support applications where the available DC source can vary substantially.
What types of applications is the SCW12W8-09 suited for?
This model is suited for industrial and embedded DC power applications that need a compact modular converter with a wide DC input range. Its DIP24 package, 3KVdc input/output isolation, and no-minimum-load operation make it relevant for OEM and B2B equipment designs. It is generally a fit where stable 9V output is needed from variable DC bus voltages.
How wide is the input range compared with standard DC-DC converters?
A key differentiator of the SCW12W8-09 is its 8:1 input range, covering 9 to 75V DC in one model. That is broader than many standard-input converters that are designed around a much narrower nominal input window. For buyers trying to reduce part variation across different DC systems, this can be a useful advantage.
Can the SCW12W8-09 operate in demanding temperature conditions?
Yes. Mean Well specifies an operating temperature range of -40°C to +85°C for this model. That makes it suitable for environments where electronics may face both low-temperature starts and elevated operating temperatures.
What protection and reliability features are included in this converter?
The SCW12W8-09 includes short circuit protection with continuous behavior, as well as overload, over-voltage, and UVLO protection. It also offers 3KVdc input/output isolation and is backed by a 3-year warranty. These features are relevant for buyers prioritizing durability and power integrity in equipment designs.
Does this model require a minimum load to regulate properly?
No. Mean Well specifies that the SCW12W8-09 requires no minimum load. That can make it easier to use in systems where load demand varies or may occasionally be very light.
