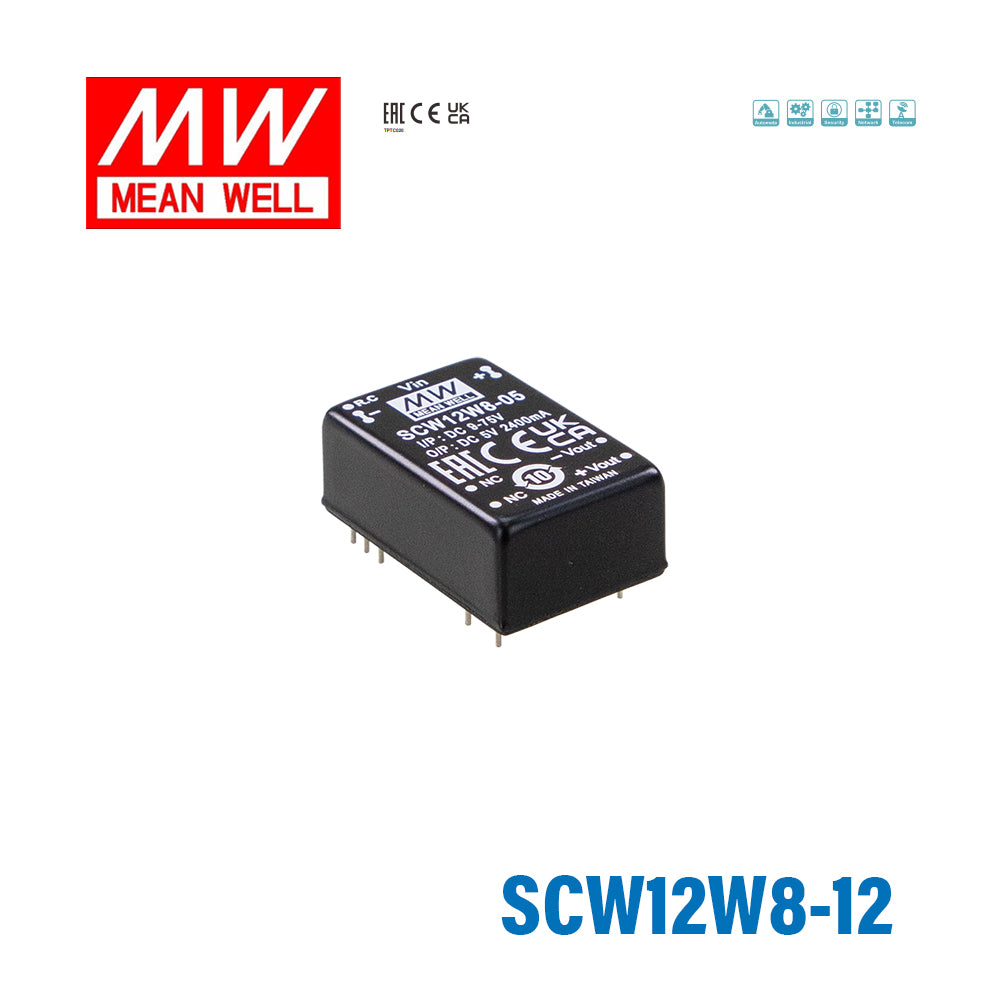

Mean Well SCW12W8-12 DC-DC Converter - 12W 9~75V DC in 12V out
Please Login for Pricing
Description
Description
Key Features
- ✓DIP24 package with industry standard pinout
- ✓8:1(9-75Vdc) ultra-wide input range
- ✓Operating temperature range -40 - +85℃
- ✓No minimum load required
- ✓Comply to BS EN/EN55032 radiated Class A without additional components
- ✓High efficiency up to 87%
- ✓Protections: Short circuit (Continuous) / Overload / Over voltage / UVLO
- ✓Remote ON/OFF control (Optional)
- ✓3KVdc I/O isolation
- ✓3 years warrantyGeneral Specification:
Specifications
Specifications
-
BrandMean Well
-
SeriesSCWN Series
-
Power Rating12 Watt
-
Output Voltage12 Volt
-
Rated Current0.01 Ampere
-
Input Voltage9V~75V
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length3.18 cm
-
Width2.03 cm
-
Height1.22 cm
-
Weight0.02 kg
