Can I use the SD-1000L-12 to power a 12V automation system from a lower or wider DC bus?

Yes, this model provides constant-voltage 12V output from a 19-72V input range. Its 720W rating and 60A output current make it suitable for higher-current 12V automation and industrial electronics where the source bus is below the H-version range.

Is the SD-1000L-12 appropriate for embedded or mobile equipment that has a 19-72V source and needs 12V?

It is intended for that type of DC-DC conversion when the input stays within 19-72V. The available output is 12V at up to 60A, so it supports much larger 12V loads than compact low-wattage converters.

Can this model be used in a 1U industrial or IT enclosure for 12V bulk power?

Yes, the unit uses a 1U low-profile design and delivers up to 720W at 12V. It also includes remote ON/OFF control, remote sense, and a 12V/0.25A auxiliary output, which are useful in managed cabinet or rack equipment.

What is the difference between the SD-1000L-12 and the related SD-1000H or other SD-1000L outputs?

Within the listed 1000-series group, the 12V versions are 720W at 60A, the 24V versions are 960W at 40A, and the 48V versions are 1008W at 21A. This SD-1000L-12 specifically combines the 12V, 60A, 720W output with a 19-72V input range, while the H versions are listed separately with a different input range.

Is the SD-1000L-12 suitable for outdoor installations or wide temperature swings?

The published operating temperature range is -20°C to +60°C. No IP rating is listed in the provided specs, so the page does not claim outdoor enclosure protection even though the temperature range is specified.

1 5

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

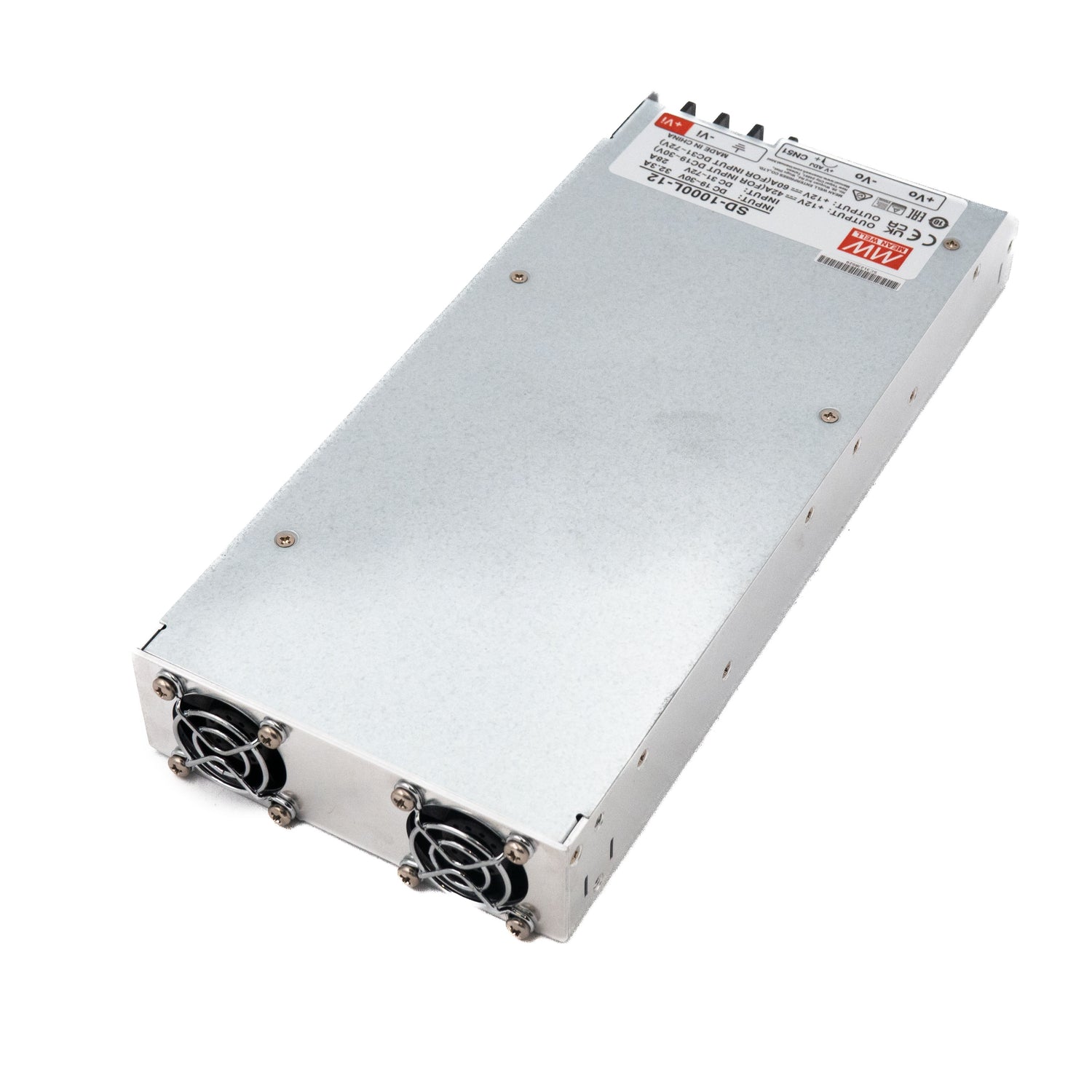

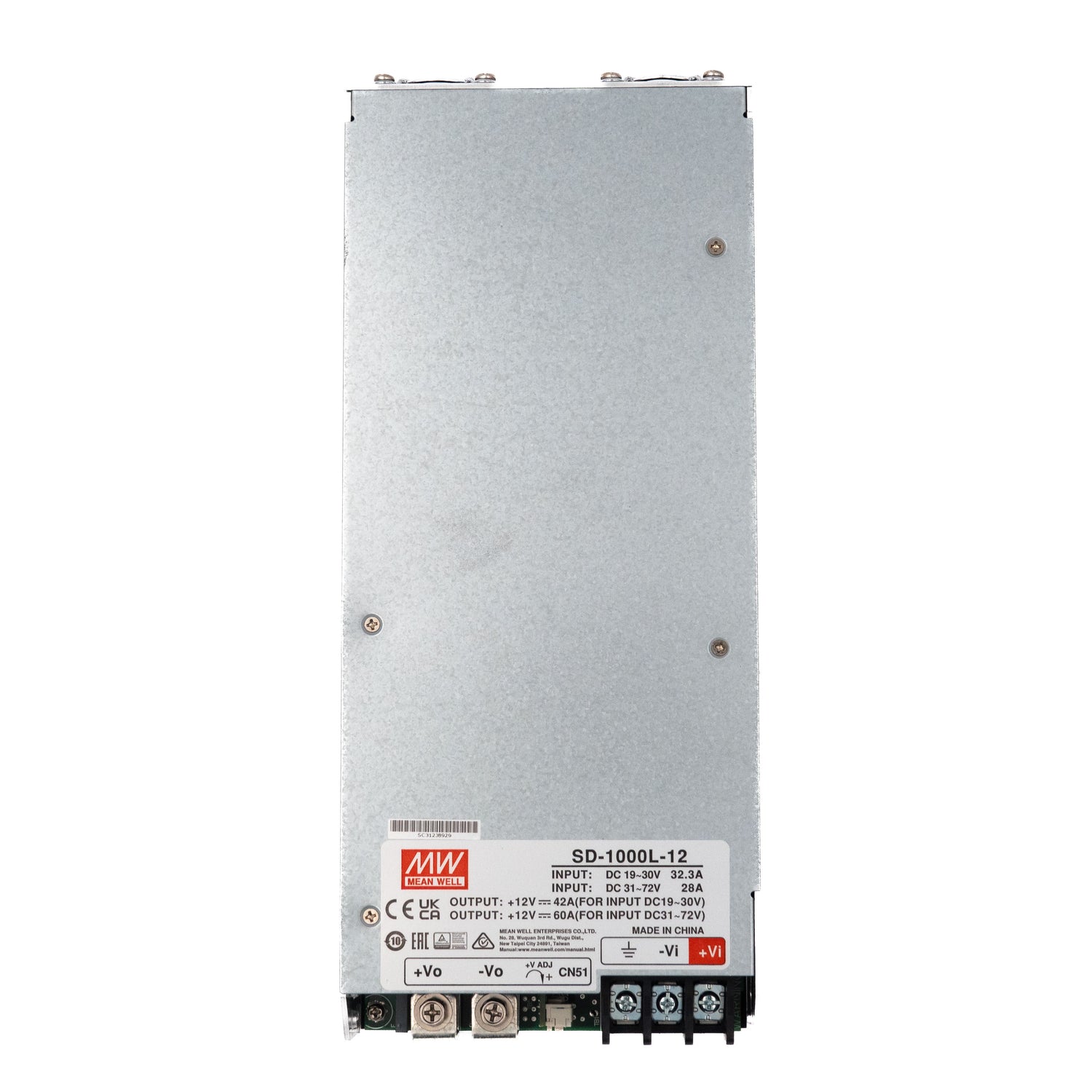

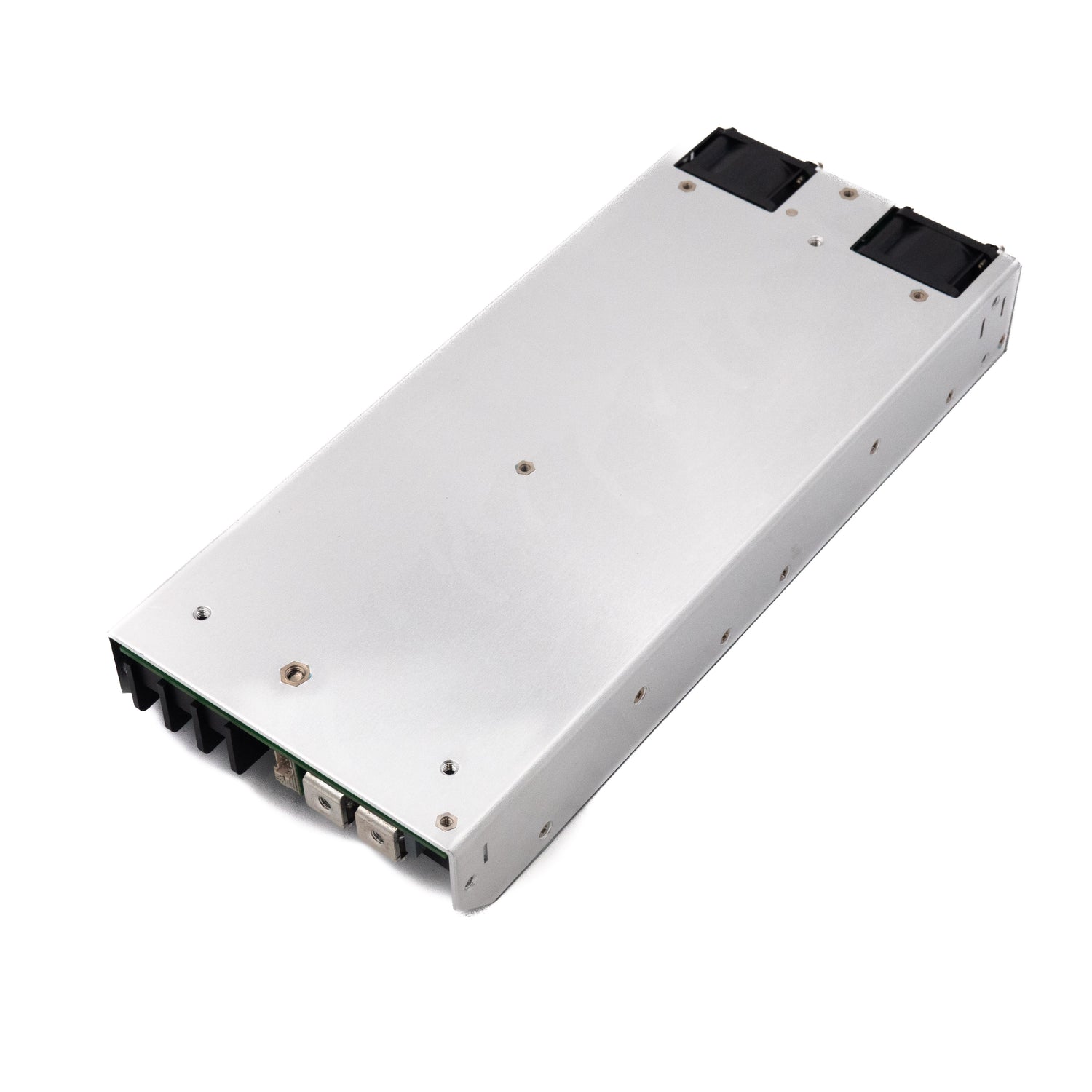

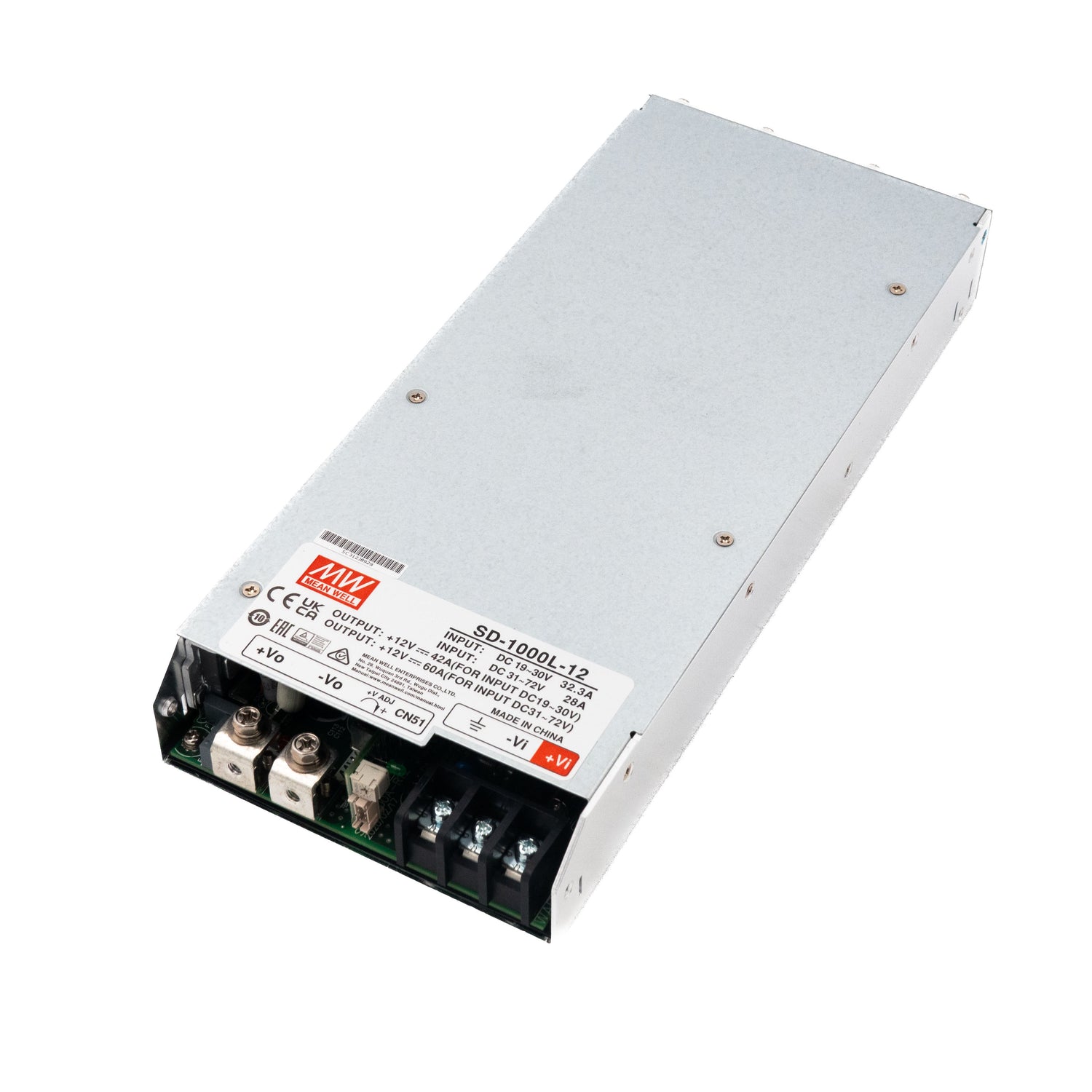

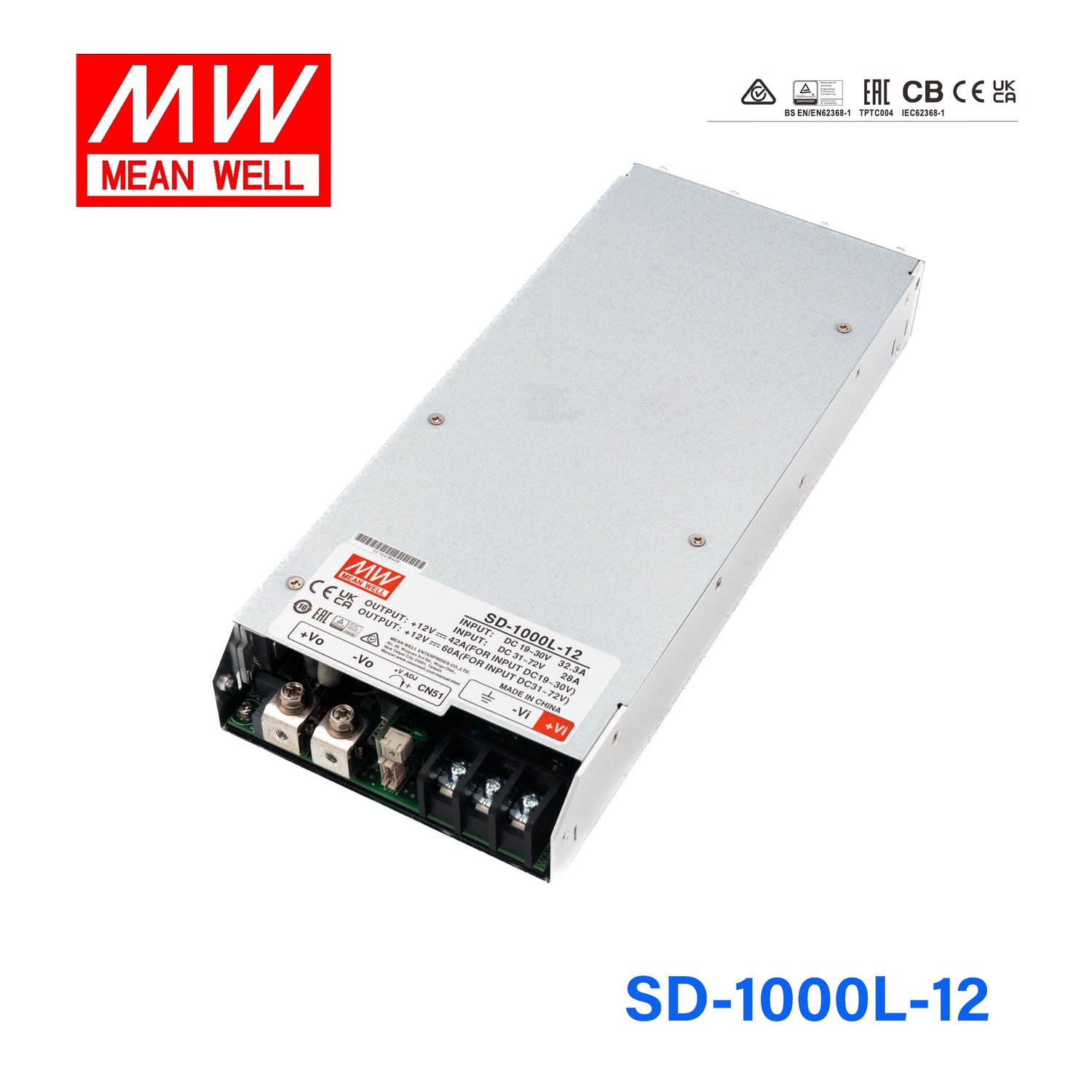

Mean Well SD-1000L-12 DC-DC Converter - 720W - 19~72V in 12V out 60A

4:1 wide input range1.5~2KVAC isolation by models12V/0.25A auxiliary outputbuilt-in remote ON/OFF control and remote sense1U low profile

SKU:

SD-1000L-12

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The SD-1000L is a 1000W Mean Well power converter (input range: 19~72VDC).

Key Features

✓ Input voltage range: 19~72VDC
✓ DC output voltage adjustable ±10%
✓ 2KVAC reinforced I/O isolation
✓ Protections: Overload / Over voltage / Over temperature
✓ Remote ON/OFF control
✓ Safety approvals: IEC62368-1 CB EAC TP TC 004
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Please log in to write a review.

{ "id":8442702856491, "variants" :[{ "context":"default", "variant_id": 45712224715051, "sku":"SD-1000L-12", "inventory_qty" : 0, "customer" :false, "custom_html" :"\u003ca class=\"text-current logged-out-price logged-out\" href=\"https:\/\/wellforces.co.nz\/customer_authentication\/redirect?locale=en\u0026region_country=NZ\"\u003e\n \u003cspan \u003ePlease \u003c\/span\u003e \u003cspan class=\"login-text\"\u003eLogin\u003c\/span\u003e \u003cspan\u003e for Pricing\u003c\/span\u003e\n \u003c\/a\u003e", "volume_html" :"\u003cvolume-pricing class=\"parent-display inside_product_form\" id=\"volume-pricing-main\" \u003e\u003c\/volume-pricing\u003e" } ] }

Key Features

✓ Input voltage range: 19~72VDC

✓ DC output voltage adjustable ±10%

✓ 2KVAC reinforced I/O isolation

✓ Protections: Overload / Over voltage / Over temperature

✓ Remote ON/OFF control

✓ Safety approvals: IEC62368-1 CB EAC TP TC 004

✓ 3 years warranty
