Can I use the SD-100C-12 to derive 12V control power from a 36-72V DC bus?

Yes, this converter is designed for a 36-72V input range and provides regulated 12V constant voltage output. With 8.5A output current and 102W power, it fits moderate 12V control and automation loads on higher-voltage DC systems.

Is the SD-100C-12 suitable for 12V industrial HMIs, monitoring devices, or communications equipment on 48V-class systems?

It can be a fit where the source falls inside the 36-72V input range and the load needs 12V constant voltage. Its 102W and 8.5A output rating suits moderate-power 12V electronics rather than large 12V current draws.

Can the SD-100C-12 power 12V embedded subsystems in automation or transport equipment with a higher-voltage DC source?

This model is intended for 12V loads that need regulated output from a 36-72V input source. The 2:1 wide input range supports higher-voltage DC platforms, while the 8.5A and 102W rating define the usable load size.

Is the SD-100C-12 rated for exposed outdoor service?

The available specs list an operating temperature range of -15°C to +60°C, but no IP rating is provided. That means the stated data supports temperature evaluation, but not outdoor ingress protection claims.

How does the SD-100C-12 compare with other SD-100 family outputs?

In the SD-100 range, the 12V versions SD-100A-12, SD-100B-12, SD-100C-12, and SD-100D-12 are each rated at 102W and 8.5A. The 24V versions SD-100A-24, SD-100B-24, SD-100C-24, and SD-100D-24 are 100.8W and 4.2A, and the 5V versions SD-100A-5, SD-100B-5, SD-100C-5, and SD-100D-5 are 100W and 18A.

1 5

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

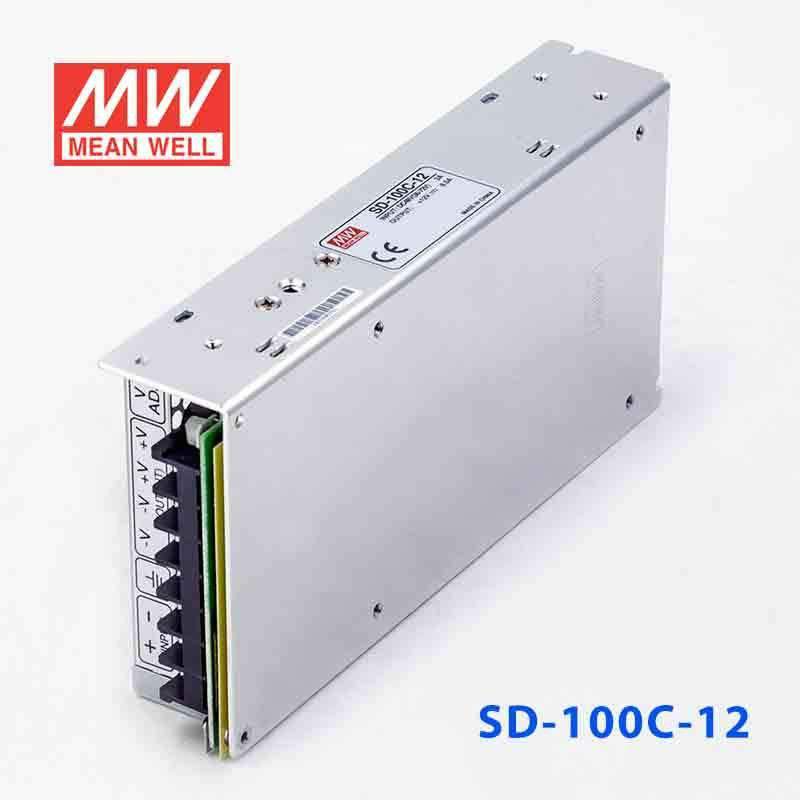

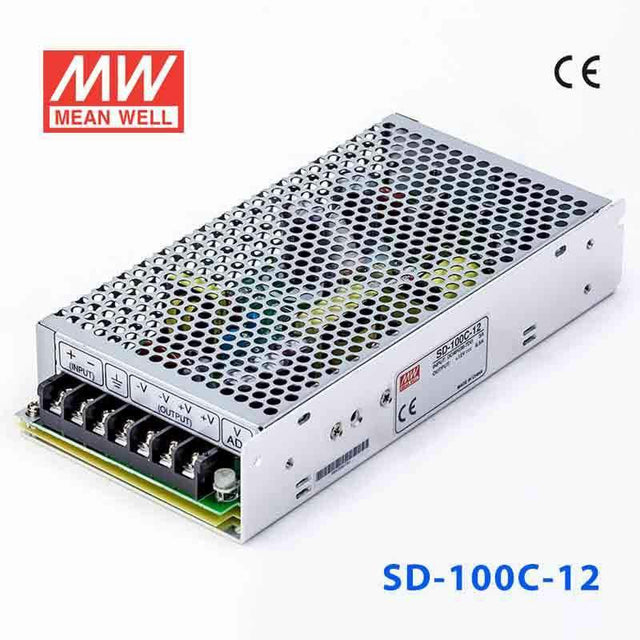

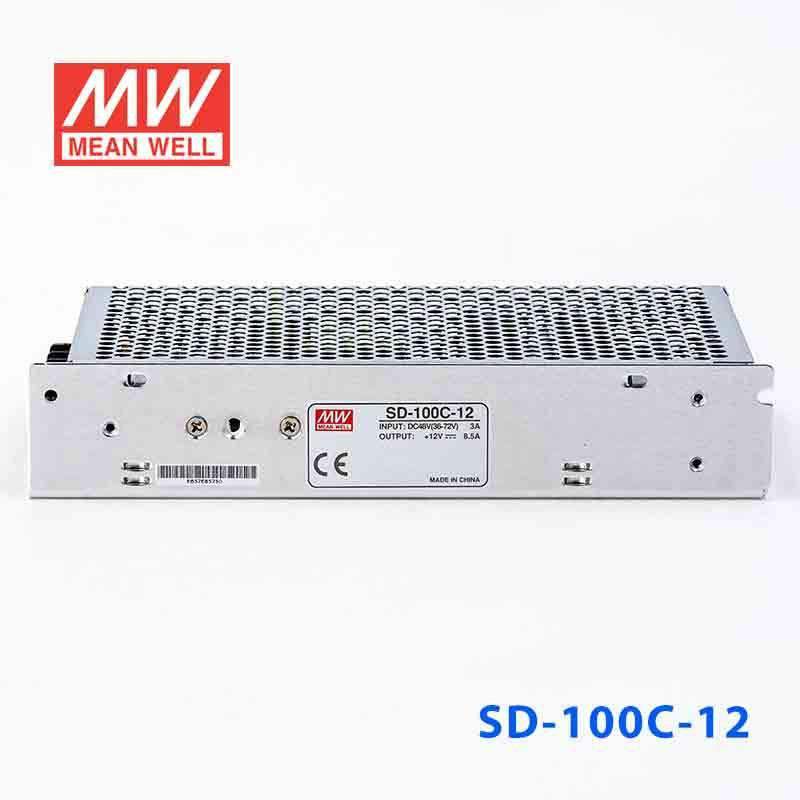

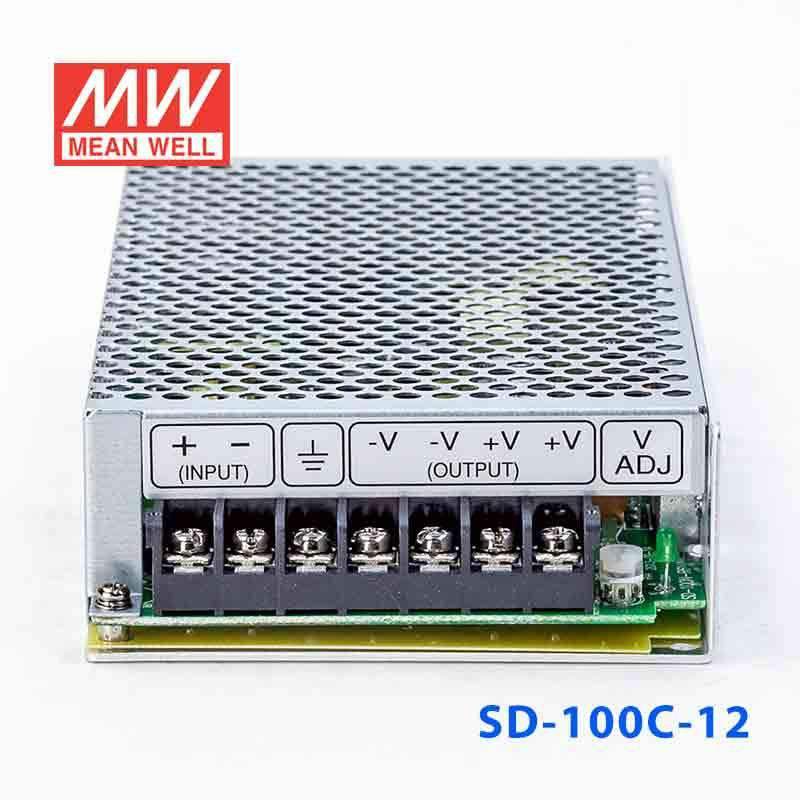

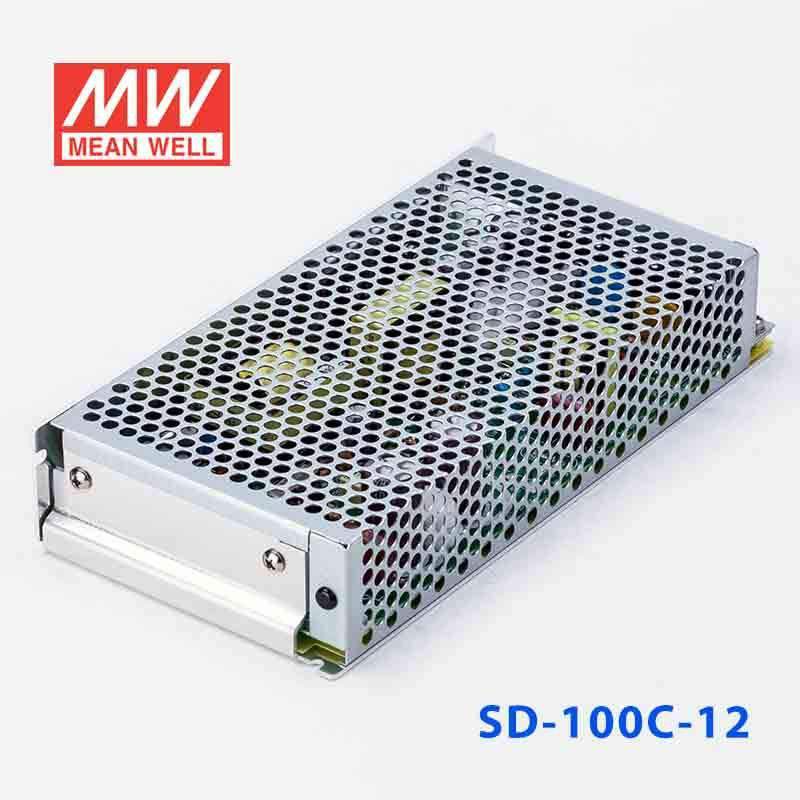

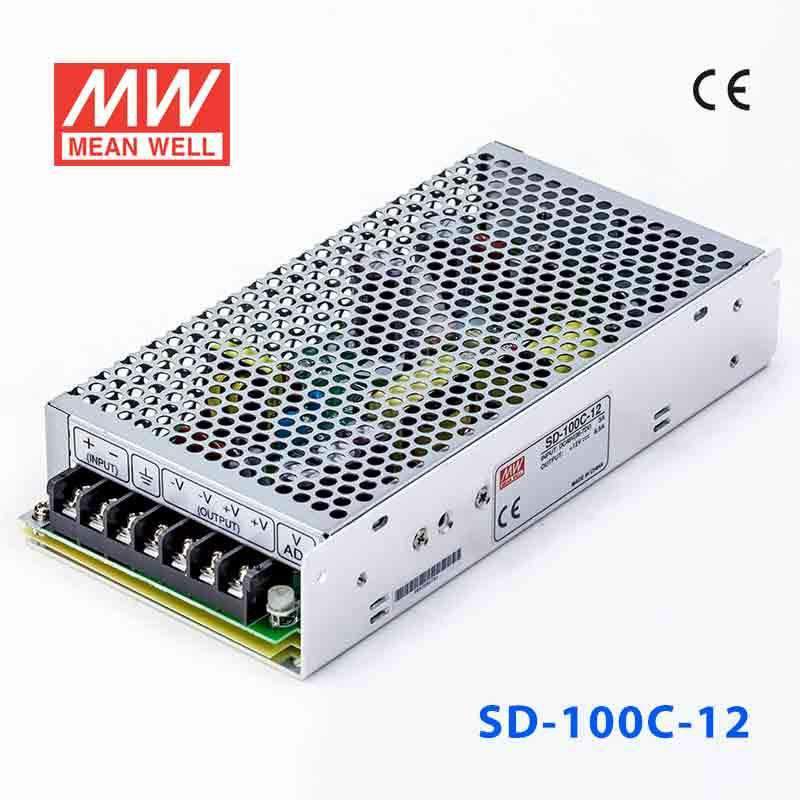

Mean Well SD-100C-12 DC-DC Converter - 100W - 36~72V in 12V out 8.5A

2:1 wide input range1.5~2KVAC isolation by models

SKU:

SD-100C-12

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The SD-100C is a 100W Mean Well power converter (input range: 9.5~18VDC).

Key Features

✓ Input voltage range: 9.5~18VDC
✓ DC output voltage adjustable ±10%
✓ 1.5KVAC reinforced I/O isolation
✓ Protections: Overload / Over voltage
✓ Safety approvals: IEC62368-1 CB
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well SD-100C-24 DC-DC Converter - 100W - 36~72V in 24V out 4.2A	100.8W	24V	4.2A	Indoor	View
