Can I use the SD-150C-12 to step down a 36-72V DC source for a 12V industrial controller?

Yes, this converter is intended for 36-72V input and provides a constant 12V output. It is rated for up to 12.5A and 150W, so it fits 12V control equipment that remains inside those limits.

Is the SD-150C-12 appropriate for 12V embedded or telecom equipment on a 48V-class DC bus?

It is a practical match when the source falls within the 36-72V input range and the load needs regulated 12V DC. The unit can supply up to 12.5A, with a total output rating of 150W.

Can this model power 12V monitoring, signaling, or automation accessories from a higher-voltage DC supply?

Yes, it converts 36-72V input to a constant 12V output for loads that need stable low-voltage DC. Its 150W and 12.5A ratings make it suitable for 12V monitoring and accessory loads within that envelope.

Will the SD-150C-12 work in hot or cold equipment cabinets?

The specified operating temperature range is -10°C to +60°C. No IP rating is listed, so it should be used in a protected indoor enclosure rather than an exposed outdoor location.

What are the key differences between the SD-150C-12 and the other SD-150 versions?

The SD-150C-12 is one of three 12V SD-150 models, alongside SD-150B-12 and SD-150D-12, and all three are rated at 150W and 12.5A. The 24V counterparts are SD-150B-24, SD-150C-24, and SD-150D-24, each rated at 151.2W and 6.5A. The B, C, and D versions differ by input range: 19-36V, 36-72V, and 72-144V respectively.

1 5

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

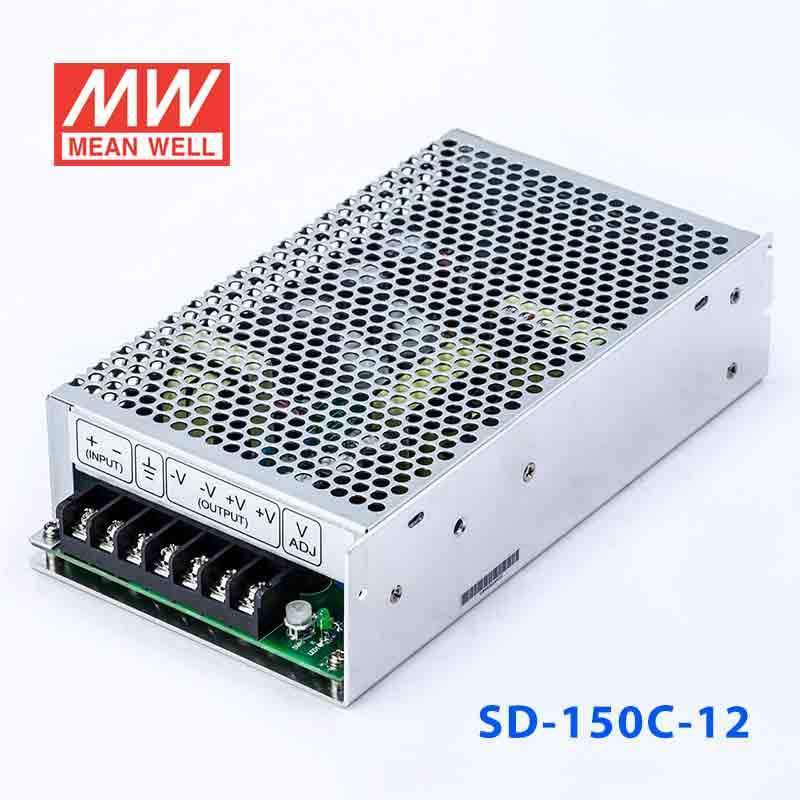

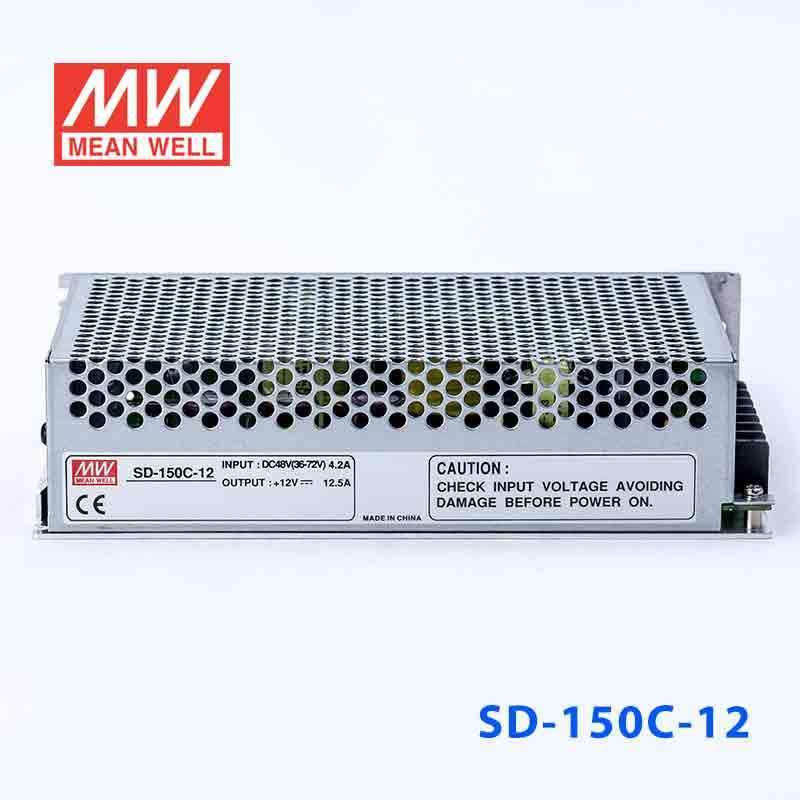

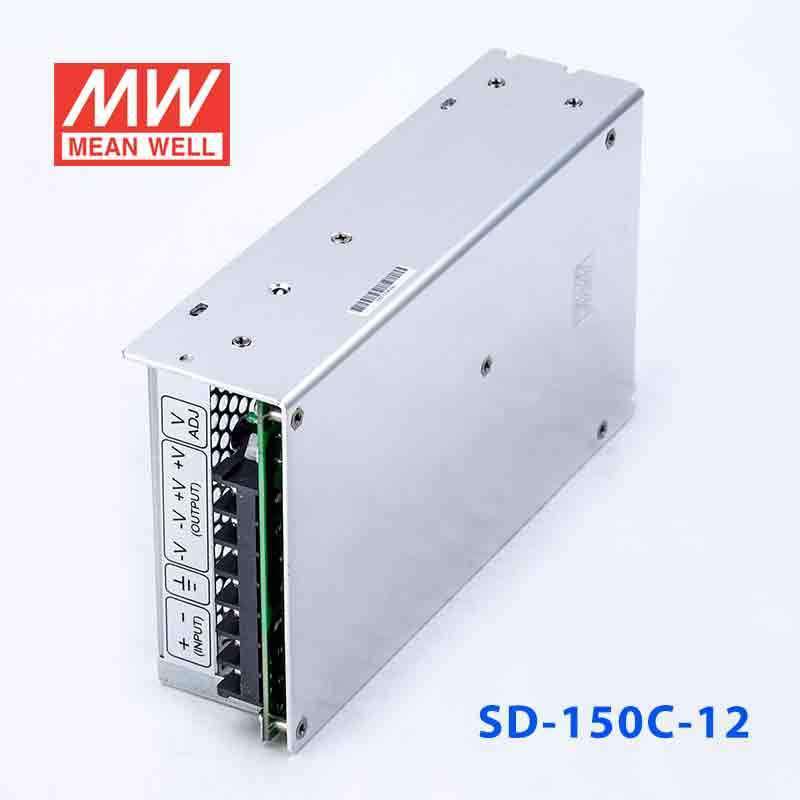

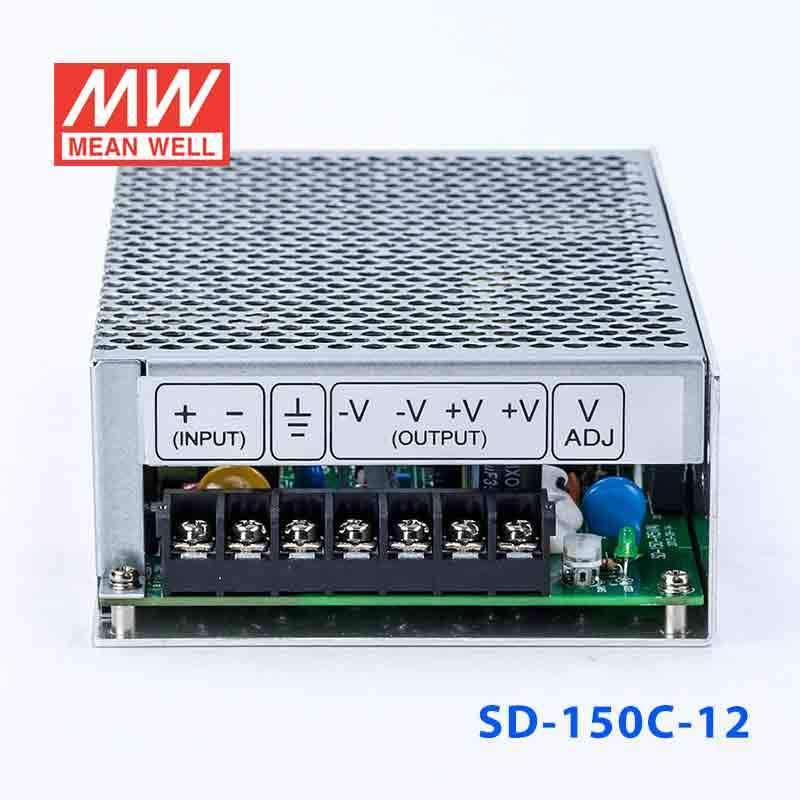

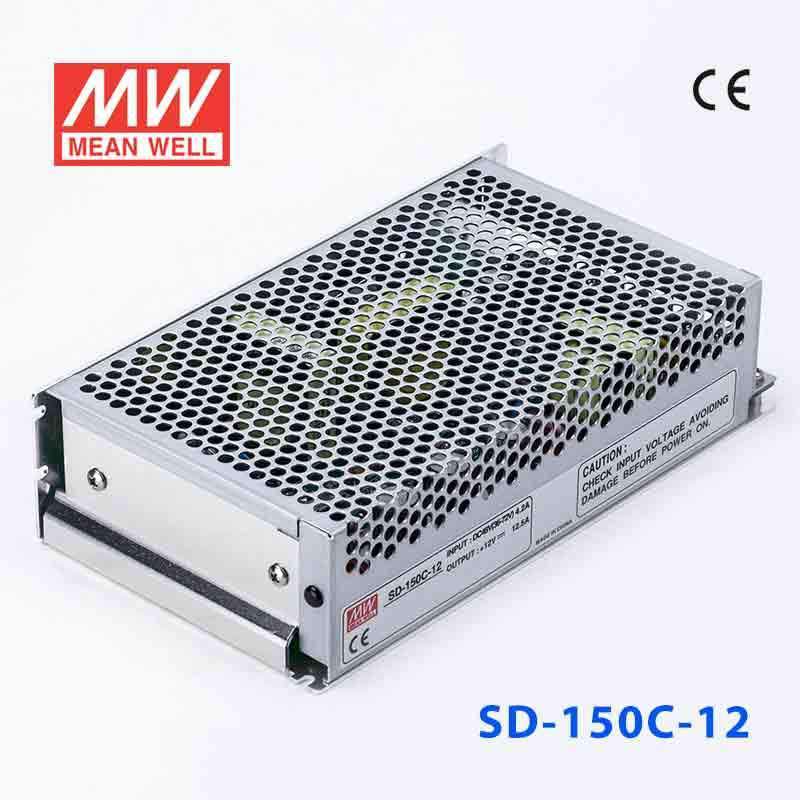

Mean Well SD-150C-12 DC-DC Converter - 150W - 36~72V in 12V out 12.5A

2:1 wide input range1.5~2KVAC isolation by models

SKU:

SD-150C-12

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

·2:1wide inputrange

·Protections: Short circuit/Overload/Overvoltage

·1500VACI/Oisolation

·Built-inEMIfilter,lowripplenoise

·100% full load burn-intest

·24V and 48Vinput voltage design refertoLVD

·Lowcost

·Highreliability

·2yearswarranty
