Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

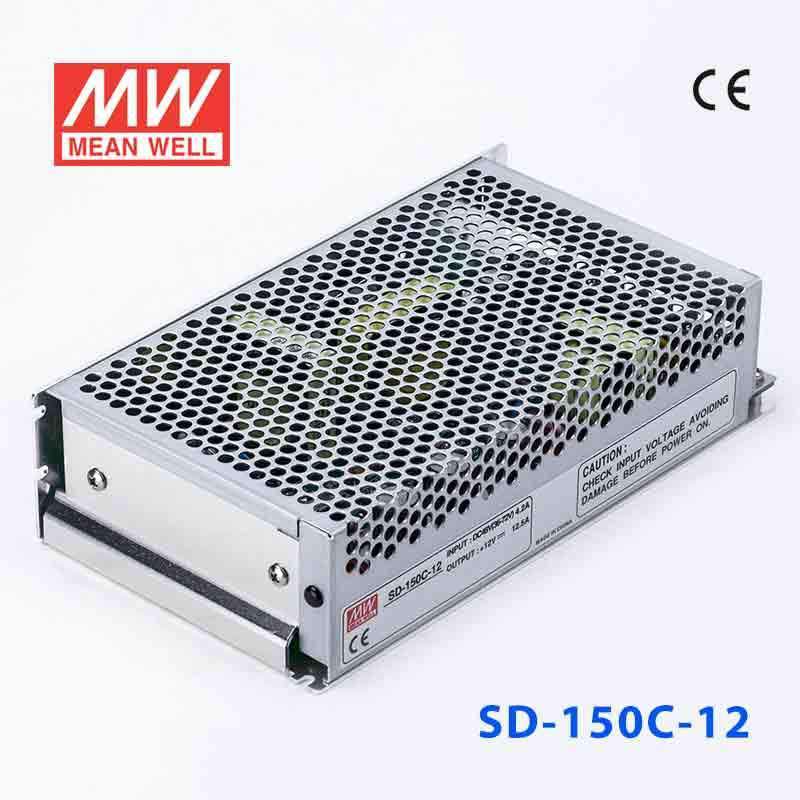

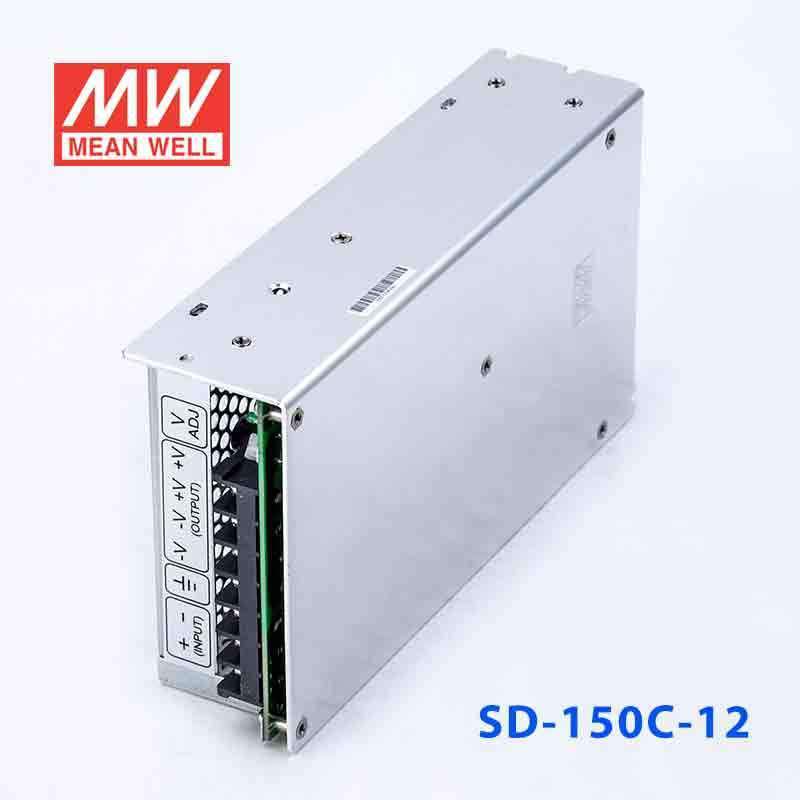

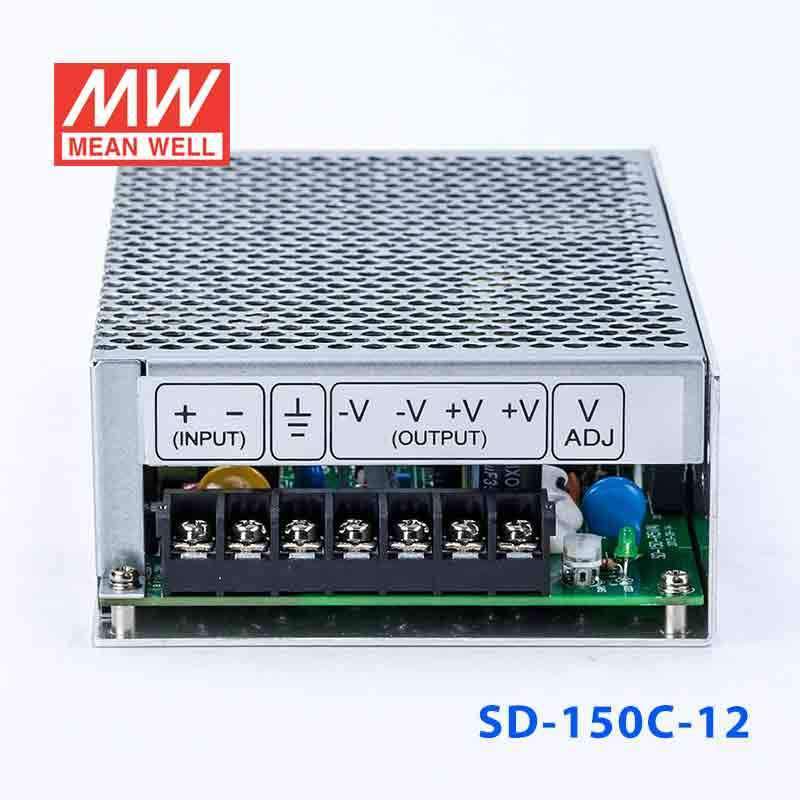

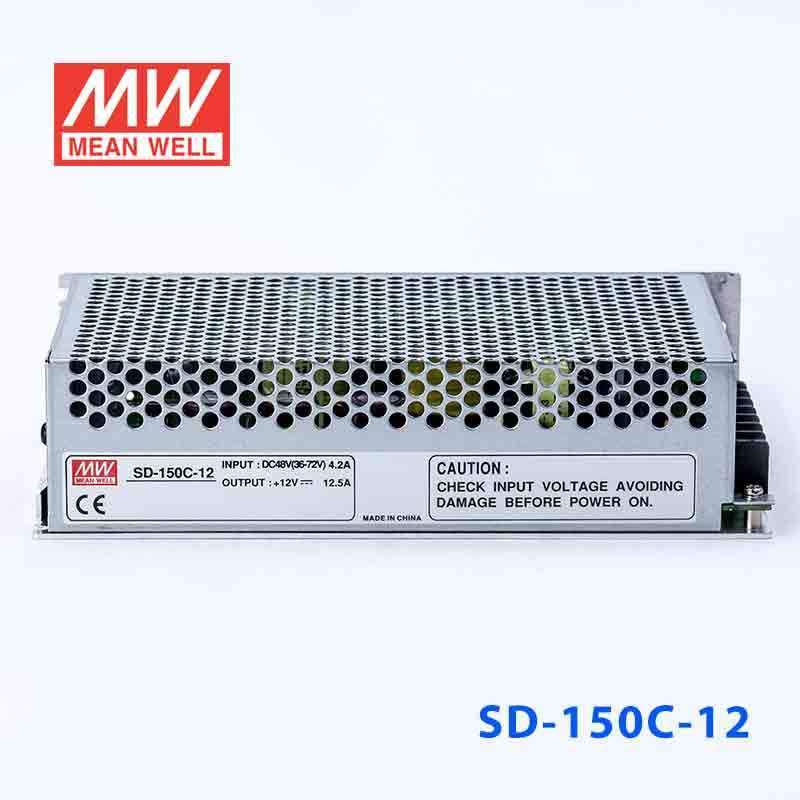

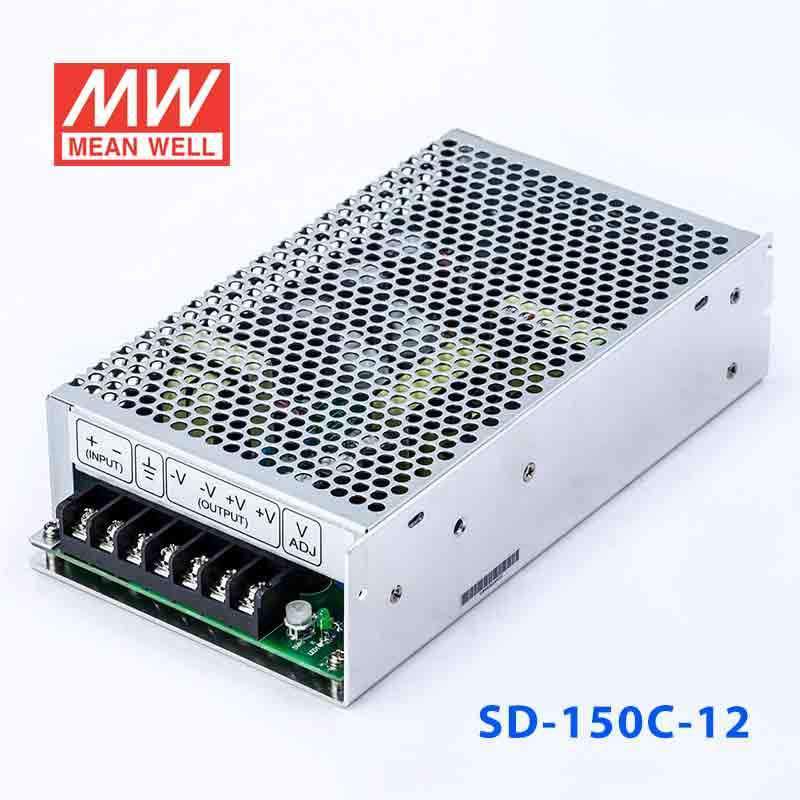

Mean Well SD-150C-12 DC-DC Converter - 150W - 36~72V in 12V out

2:1 wide input range, 1.5~2KVAC isolation by models

SKU:

SD-150C-12

Please for Pricing

Notify me when it's back in stock

Description

· 2:1 wide input range

· Protections: Short circuit / Overload / Over voltage

· 1500VAC I/O isolation

· Built-in EMI filter, low ripple noise

· 100% full load burn-in test

· 24V and 48V input voltage design refer to LVD

· Low cost

· High reliability

· 2 years warranty

Specifications

Brand

Mean Well
Series

SD Series
Power Rating

150 Watt
Output Voltage

12 Volt
Rated Current

12.5 Ampere
Input Voltage

36V~72V
Standards Met

EAC
Operation Mode

Constant Voltage
Operating Temperature

-10°C~60°C
Warranty

3 Year
Length

19.9 cm
Width

11 cm
Height

5 cm
Weight

0.86 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SD-150C-12 to step down a 36-72V DC source for a 12V industrial controller?

Yes, this converter is intended for 36-72V input and provides a constant 12V output. It is rated for up to 12.5A and 150W, so it fits 12V control equipment that remains inside those limits.

Is the SD-150C-12 appropriate for 12V embedded or telecom equipment on a 48V-class DC bus?

It is a practical match when the source falls within the 36-72V input range and the load needs regulated 12V DC. The unit can supply up to 12.5A, with a total output rating of 150W.

Can this model power 12V monitoring, signaling, or automation accessories from a higher-voltage DC supply?

Yes, it converts 36-72V input to a constant 12V output for loads that need stable low-voltage DC. Its 150W and 12.5A ratings make it suitable for 12V monitoring and accessory loads within that envelope.

Will the SD-150C-12 work in hot or cold equipment cabinets?

The specified operating temperature range is -10°C to +60°C. No IP rating is listed, so it should be used in a protected indoor enclosure rather than an exposed outdoor location.

What are the key differences between the SD-150C-12 and the other SD-150 versions?

The SD-150C-12 is one of three 12V SD-150 models, alongside SD-150B-12 and SD-150D-12, and all three are rated at 150W and 12.5A. The 24V counterparts are SD-150B-24, SD-150C-24, and SD-150D-24, each rated at 151.2W and 6.5A. The B, C, and D versions differ by input range: 19-36V, 36-72V, and 72-144V respectively.
