Can the SD-150D-24 power a 24V automation or control load from a 72-144V DC source?

Yes, this converter is designed for 72-144V input and delivers constant 24V output. It is rated for up to 6.5A and 151.2W, which fits 24V automation loads within those limits.

Is this a good fit for 24V embedded or industrial communications equipment on a higher-voltage DC bus?

It is suitable when the source is within the 72-144V input range and the load requires regulated 24V DC. The available output is 6.5A at 24V, with a total rating of 151.2W.

Can I use the SD-150D-24 for 24V signaling or control hardware in equipment that runs from high-voltage DC?

Yes, it is intended for stepping down 72-144V input to a constant 24V output. That makes it appropriate for 24V signaling and control hardware that does not exceed 6.5A or 151.2W.

Will the SD-150D-24 handle indoor industrial environments with temperature variation?

The published operating temperature range is -10°C to +60°C. Since no IP rating is listed, it is best used in protected indoor cabinets or enclosures rather than exposed outdoor areas.

How does the SD-150D-24 compare with the other 24V SD-150 models?

The 24V SD-150 models are SD-150B-24, SD-150C-24, and SD-150D-24, and all three are rated at 151.2W and 6.5A. Their distinction is the input range: 19-36V for B, 36-72V for C, and 72-144V for D. The matching 12V versions are SD-150B-12, SD-150C-12, and SD-150D-12, each rated at 150W and 12.5A.

1 5

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

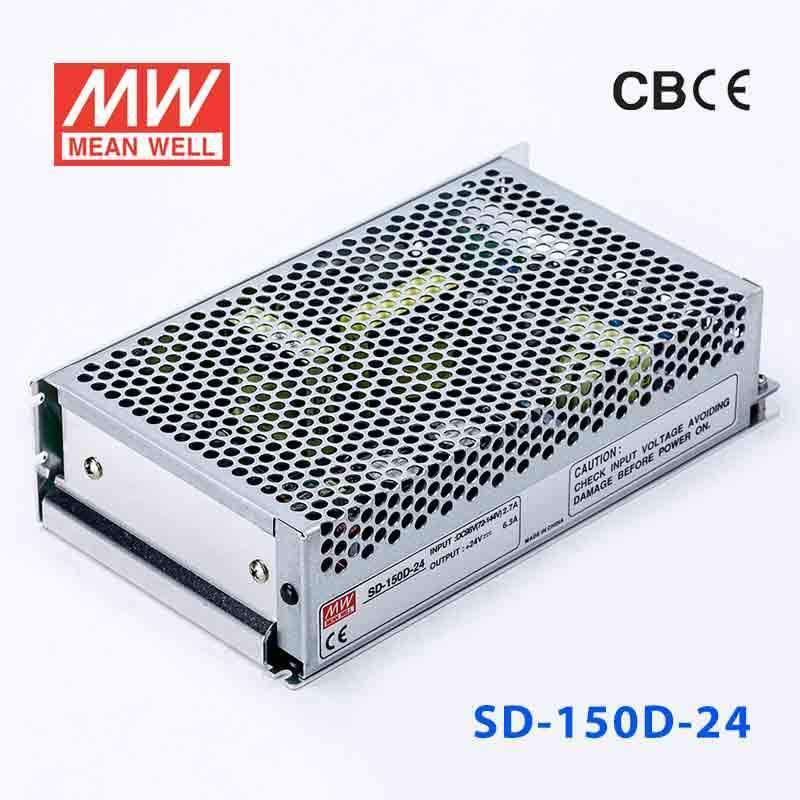

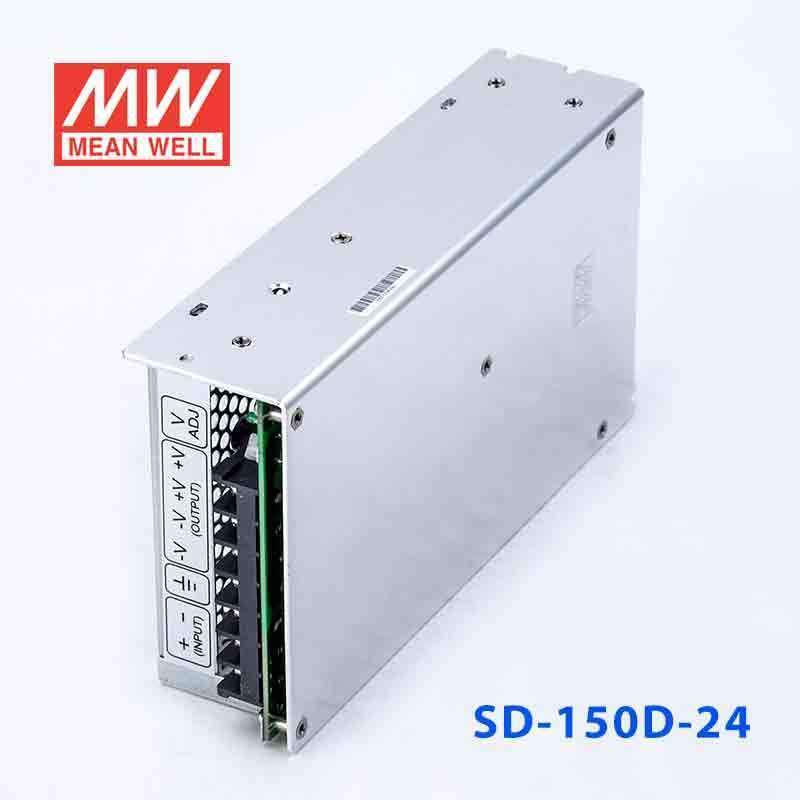

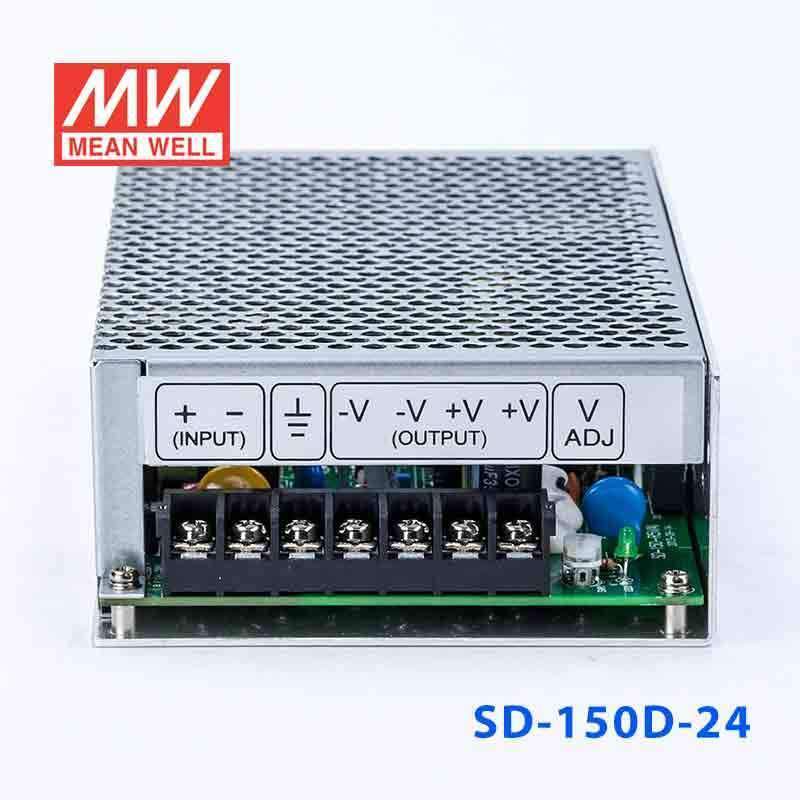

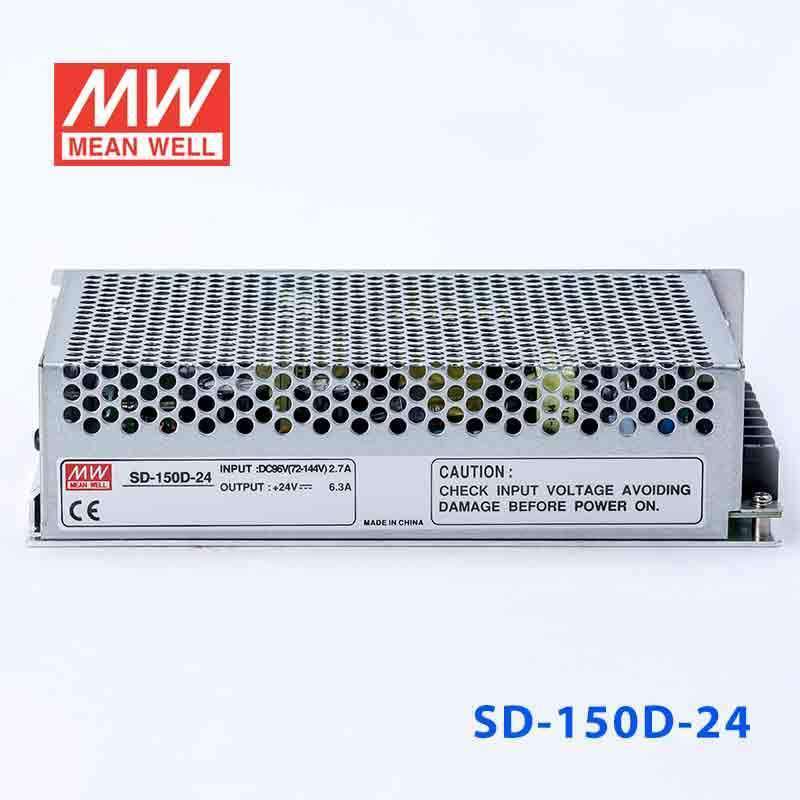

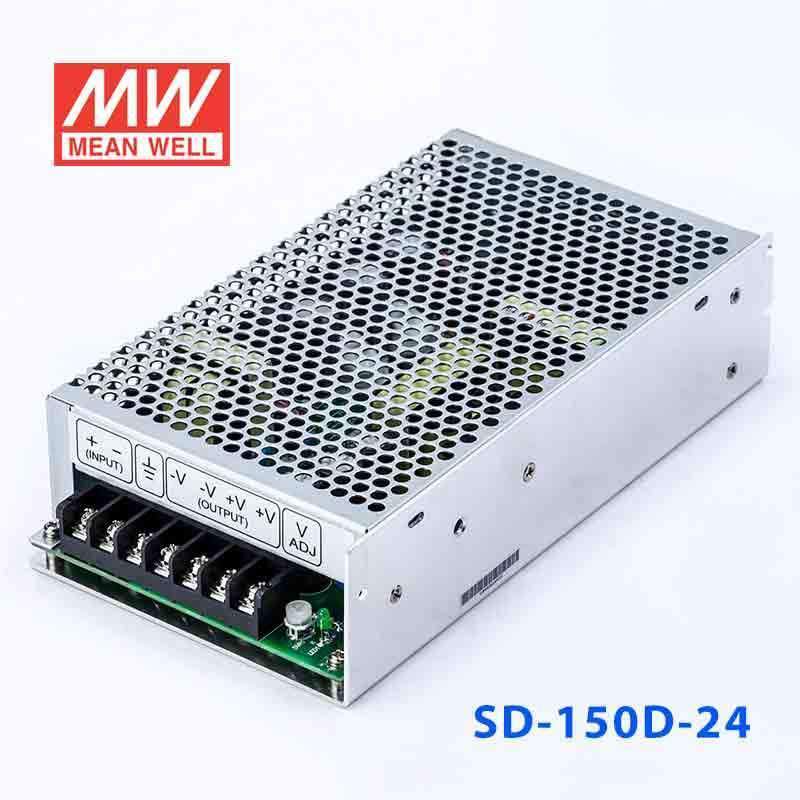

Mean Well SD-150D-24 DC-DC Converter - 150W - 72~144V in 24V out 6.5A

2:1 wide input range1.5~2KVAC isolation by models

SKU:

SD-150D-24

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

·2:1wide inputrange

·Protections: Short circuit/Overload/Overvoltage

·1500VACI/Oisolation

·Built-inEMIfilter,lowripplenoise

·100% full load burn-intest

·24V and 48Vinput voltage design refertoLVD

·Lowcost

·Highreliability

·2yearswarranty
