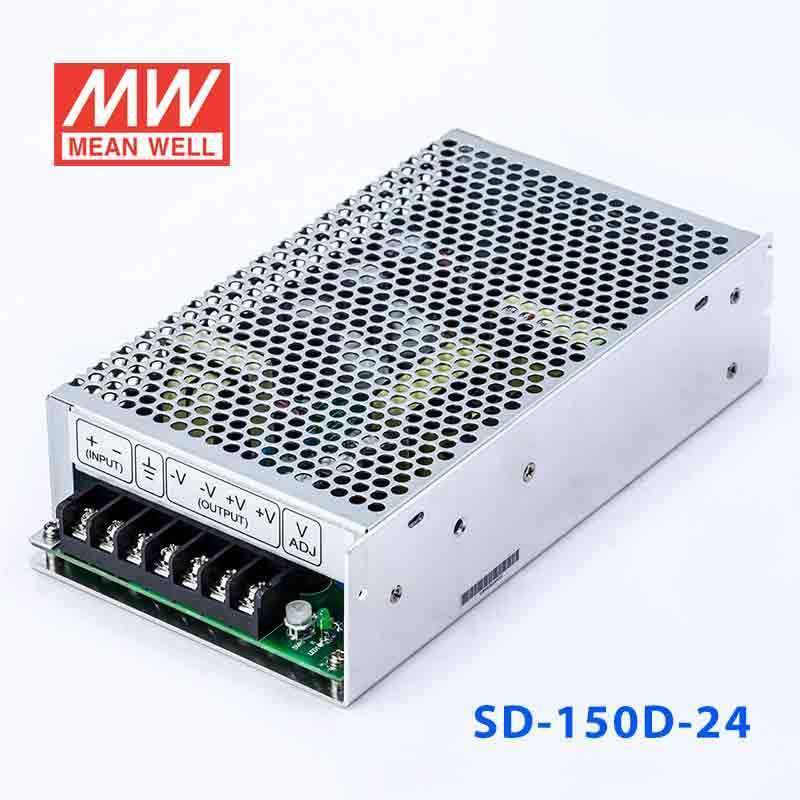

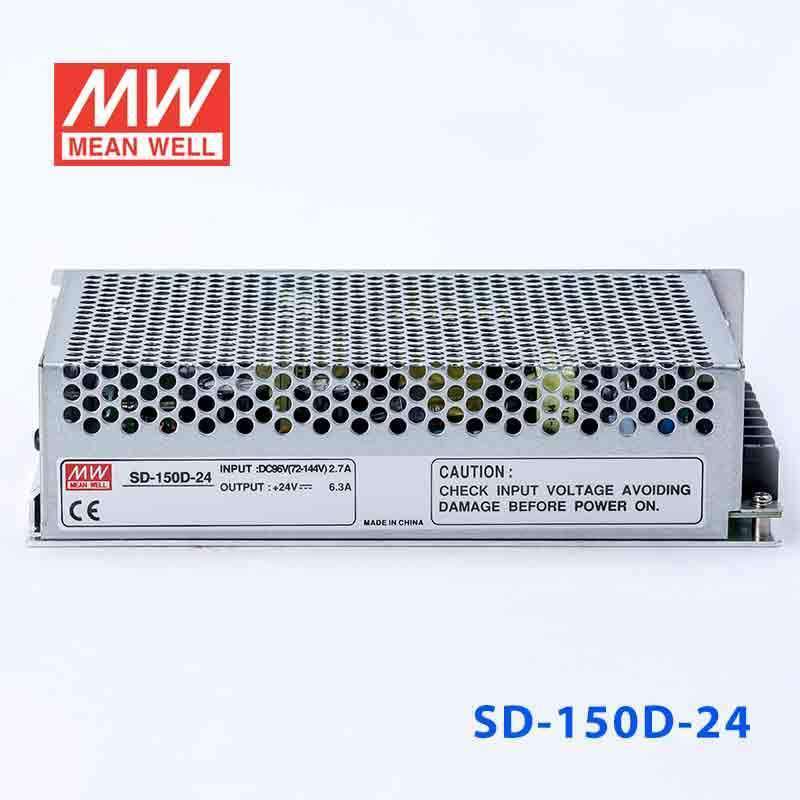

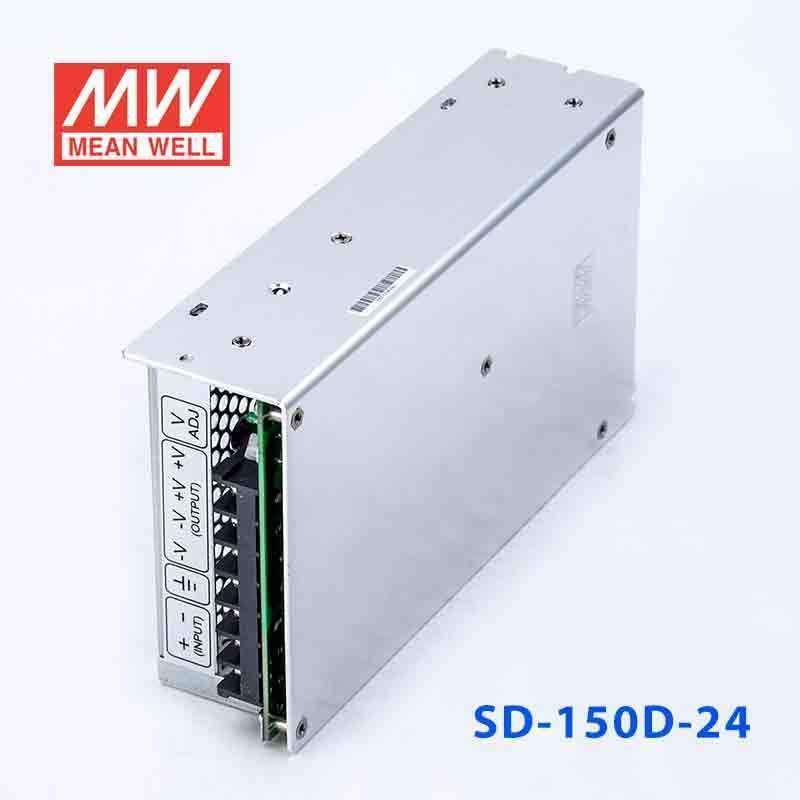

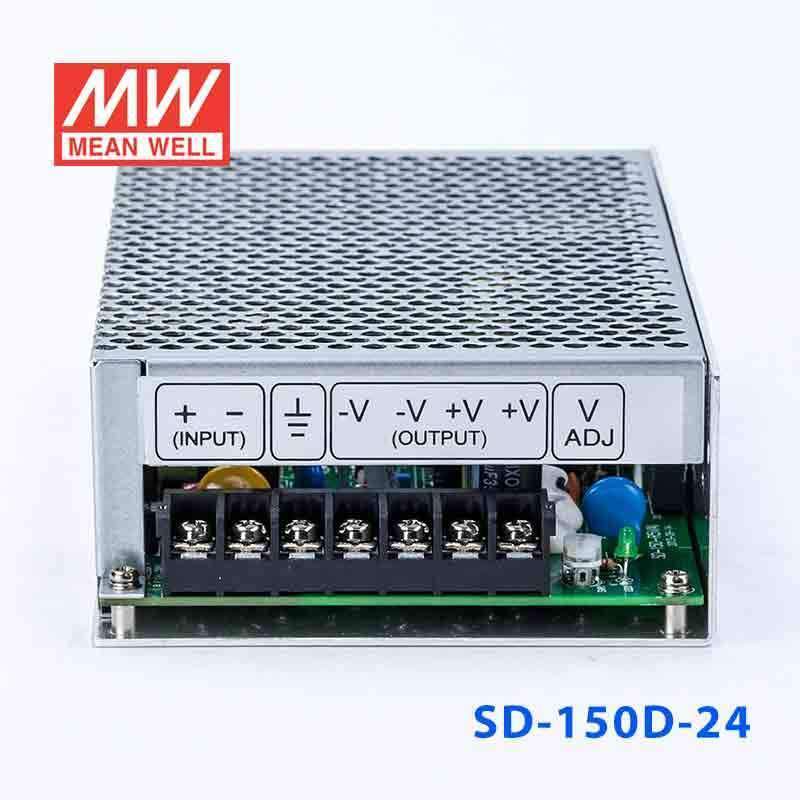

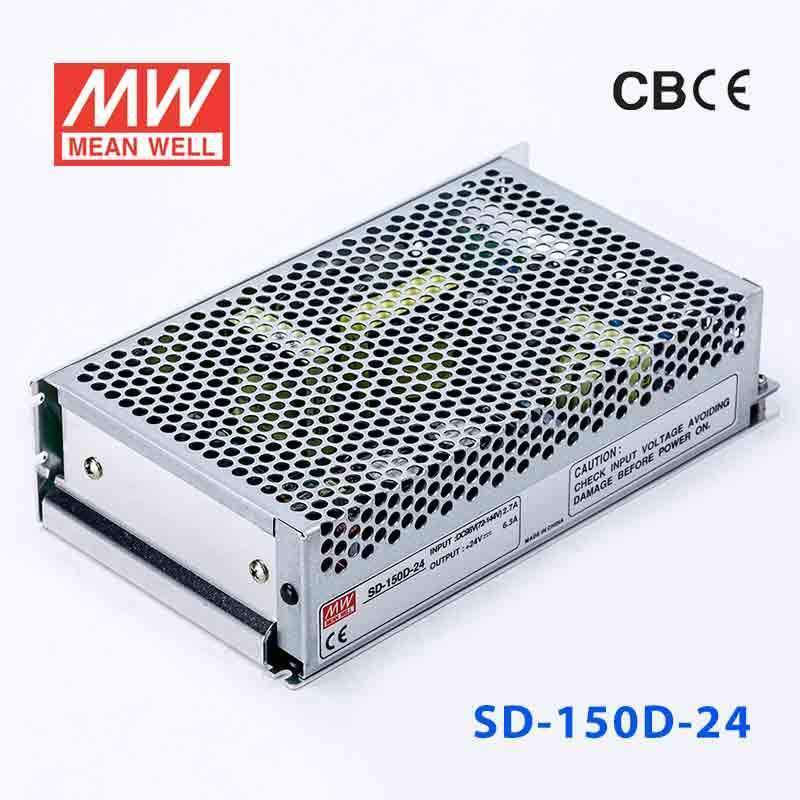

Mean Well SD-150D-24 DC-DC Converter - 150W - 72~144V in 24V out

2:1 wide input range, 1.5~2KVAC isolation by models

SKU:

SD-150D-24

Please for Pricing

Notify me when it's back in stock

Description

· 2:1 wide input range

· Protections: Short circuit / Overload / Over voltage

· 1500VAC I/O isolation

· Built-in EMI filter, low ripple noise

· 100% full load burn-in test

· 24V and 48V input voltage design refer to LVD

· Low cost

· High reliability

· 2 years warranty

Specifications

Brand

Mean Well
Series

SD Series
Power Rating

151.2 Watt
Output Voltage

24 Volt
Rated Current

6.5 Ampere
Input Voltage

72V~144V
Standards Met

EAC
Operation Mode

Constant Voltage
Operating Temperature

-10°C~60°C
Warranty

3 Year
Length

19.9 cm
Width

11 cm
Height

5 cm
Weight

0.86 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can the SD-150D-24 power a 24V automation or control load from a 72-144V DC source?

Yes, this converter is designed for 72-144V input and delivers constant 24V output. It is rated for up to 6.5A and 151.2W, which fits 24V automation loads within those limits.

Is this a good fit for 24V embedded or industrial communications equipment on a higher-voltage DC bus?

It is suitable when the source is within the 72-144V input range and the load requires regulated 24V DC. The available output is 6.5A at 24V, with a total rating of 151.2W.

Can I use the SD-150D-24 for 24V signaling or control hardware in equipment that runs from high-voltage DC?

Yes, it is intended for stepping down 72-144V input to a constant 24V output. That makes it appropriate for 24V signaling and control hardware that does not exceed 6.5A or 151.2W.

Will the SD-150D-24 handle indoor industrial environments with temperature variation?

The published operating temperature range is -10°C to +60°C. Since no IP rating is listed, it is best used in protected indoor cabinets or enclosures rather than exposed outdoor areas.

How does the SD-150D-24 compare with the other 24V SD-150 models?

The 24V SD-150 models are SD-150B-24, SD-150C-24, and SD-150D-24, and all three are rated at 151.2W and 6.5A. Their distinction is the input range: 19-36V for B, 36-72V for C, and 72-144V for D. The matching 12V versions are SD-150B-12, SD-150C-12, and SD-150D-12, each rated at 150W and 12.5A.
