Can I use the SD-15A-5 to power a 5V embedded controller or industrial interface board from a 9-18 input source?

Yes, this converter provides constant 5V output at up to 3A with a total 15W rating. That makes it suitable for low-power 5V embedded controllers, interface boards, or similar electronics within those output limits.

Is the SD-15A-5 suitable for a 5V logic or communications module in an automation cabinet?

It is intended for regulated 5V loads that need no more than 3A. With a 9-18 input range and compact 78.0 × 51.0 × 28.0 mm size, it fits small automation or control electronics rather than larger 5V systems.

Can this converter run a small 5V industrial computing or monitoring device?

It can support a low-power 5V device as long as the total load stays within 15W and 3A. The constant voltage output is better suited to stable 5V electronics than to loads that require a different output type.

Can the SD-15A-5 be used in hot or cold industrial conditions?

The rated operating temperature range is -20°C to +85°C, which covers a wide span for enclosed industrial use. No IP rating is shown in the provided specs, so the listing does not define outdoor or water-exposed suitability.

What are the differences between the SD-15A-5 and the other SD-15A versions?

In the SD-15A range, SD-15A-5 is 15W, 5V, 3A; SD-15A-12 is 15W, 12V, 1.25A; and SD-15A-24 is 15W, 24V, 0.62A. All three use the same 9-18 input range, constant voltage operation, -20°C to +85°C operating temperature, 78.0 × 51.0 × 28.0 mm dimensions, 0.18 kg weight, EAC certification, and 3-year warranty.

1 5

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

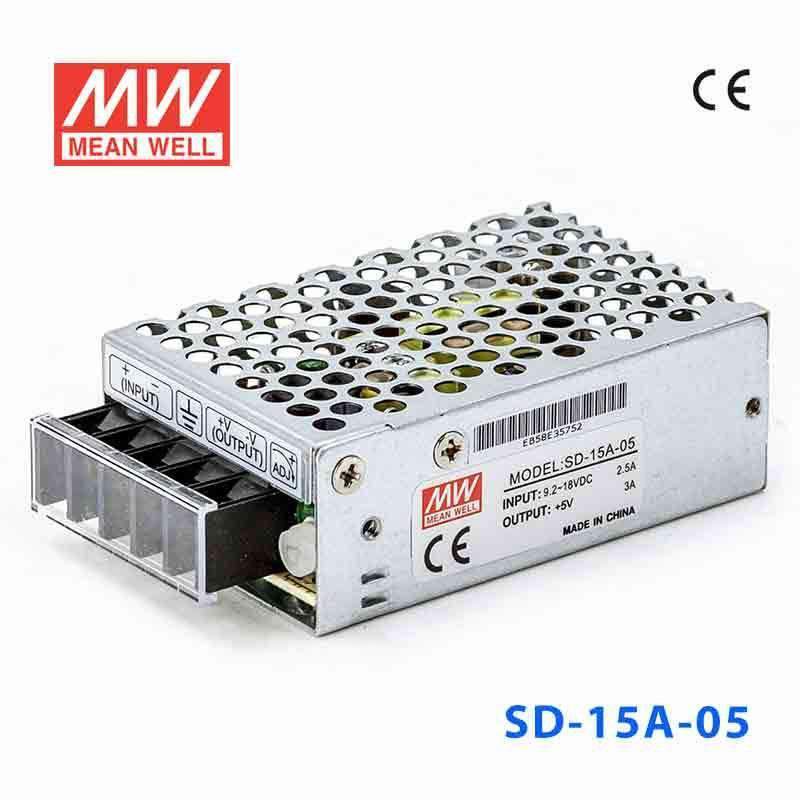

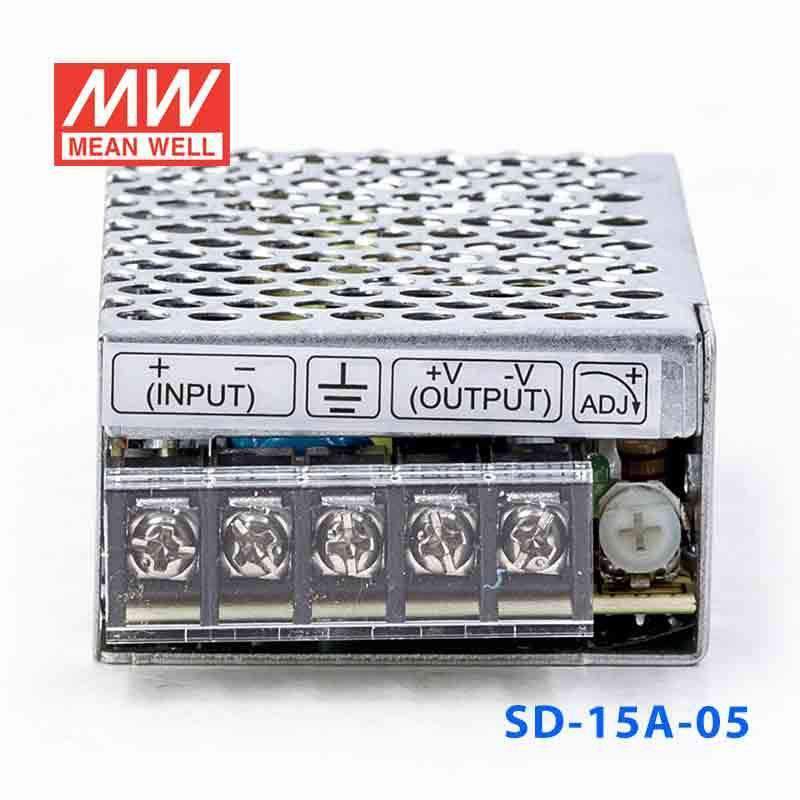

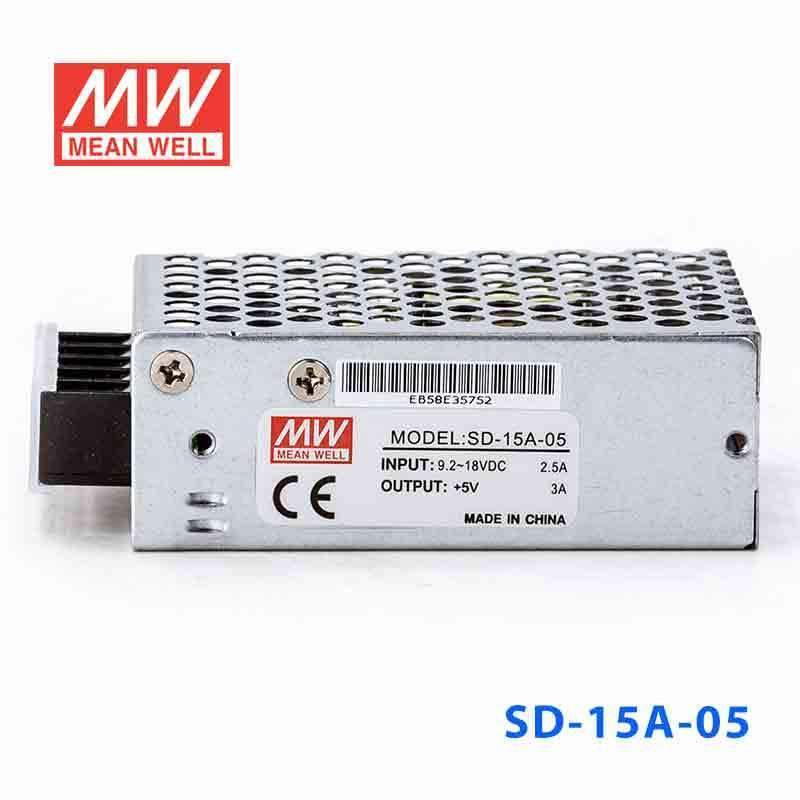

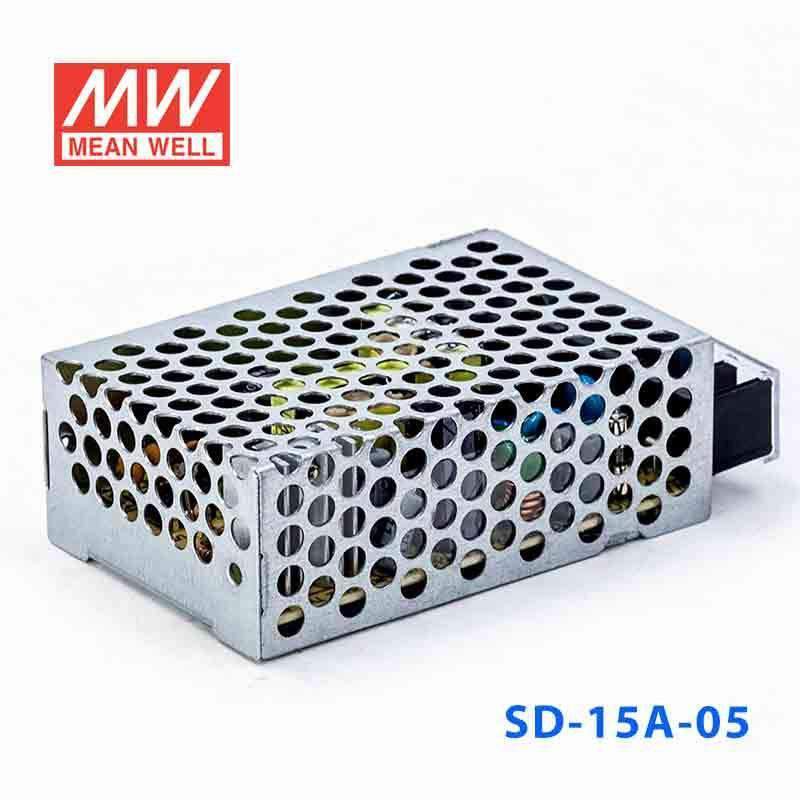

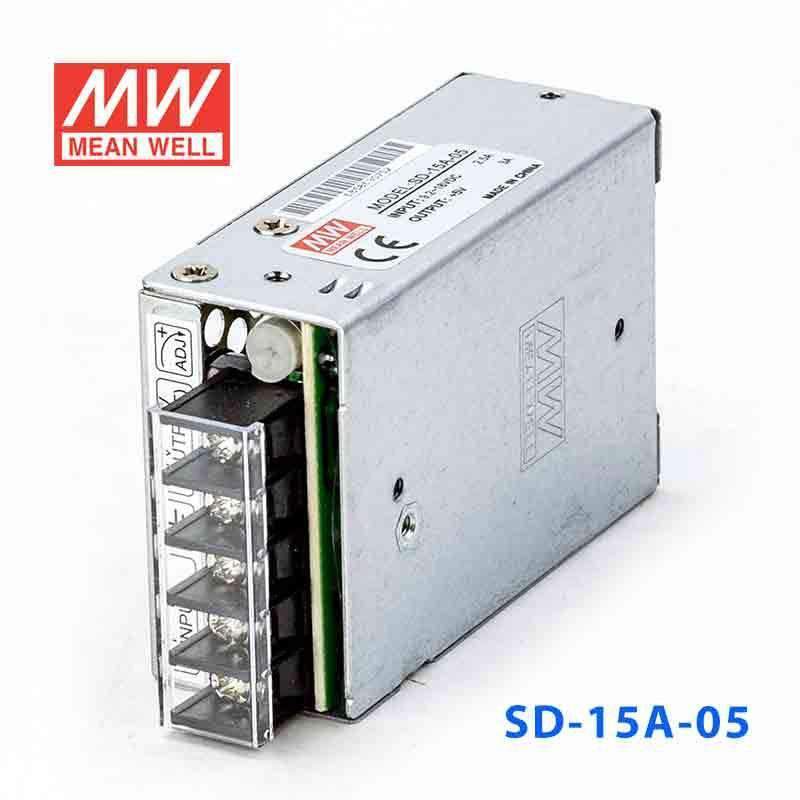

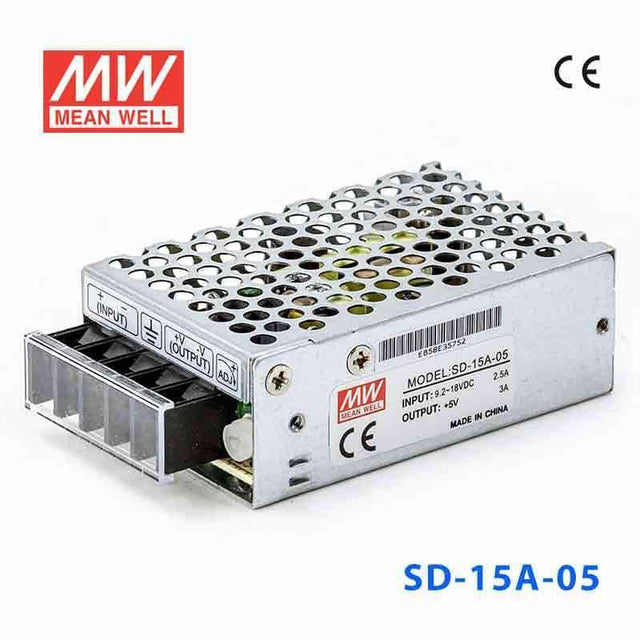

Mean Well SD-15A-5 DC-DC Converter - 15W - 9.2~18V in 5V out 3A

2:1 wide input range1.5~2KVAC isolation by models

SKU:

SD-15A-5

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

5.75 ~ 6.75V | 13.8~ 16.2V | 27.6 ~ 32.4V

Protection type: Shut off o/p voltage, clamping by Zener diode

Key Features

✓2:1 wide input range
✓Protections: Short circuit / Overload / Over voltage / Over temperature / Input reverse polarity
✓Built-in EMI filter, low ripple noise
✓100% full load burn-in test
✓Low cost
✓High reliability
✓2 years warranty
