Can I use the SD-15C-24 for a low-current 24V sensor or relay load from a 48V system?

Yes, this converter fits low-current 24V loads when the source is within the listed 36-72VAC input range. It provides constant-voltage 24V output at up to 0.62A with a 15W rating, so it is intended for lighter auxiliary loads.

Is the SD-15C-24 suitable for small 24V automation accessories in industrial equipment?

It can be suitable for small 24V accessories that remain within 0.62A and 15W. The 2:1 wide input range supports use on higher-voltage DC-DC conversion points where the available source sits between 36-72VAC.

Would this model work for compact 24V instrumentation modules?

Yes, if the instrumentation module needs constant-voltage 24V and does not exceed 0.62A. The listed 1.5~2KVAC isolation by models can also matter in industrial instrumentation where isolation is part of the design requirement.

How does SD-15C-24 compare with the other 15W SD-15C converters?

The SD-15C variants listed are SD-15C-5 at 15W, 5V, 3A; SD-15C-12 at 15W, 12V, 1.25A; and SD-15C-24 at 15W, 24V, 0.62A. The output current decreases as the output voltage changes, while the family stays in the 15W class.

Is the SD-15C-24 rated for exposed outdoor environments?

The operating temperature is specified as -20°C to +85°C, so the thermal range is broad. The provided specifications do not show an IP rating, which means dust and water protection are not defined in the product data.

1 5

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

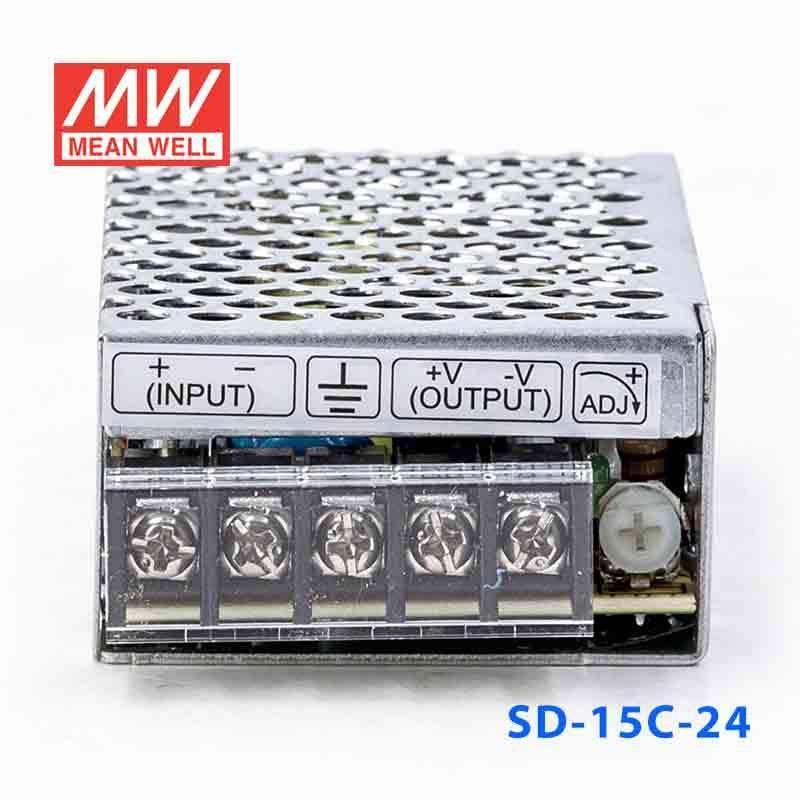

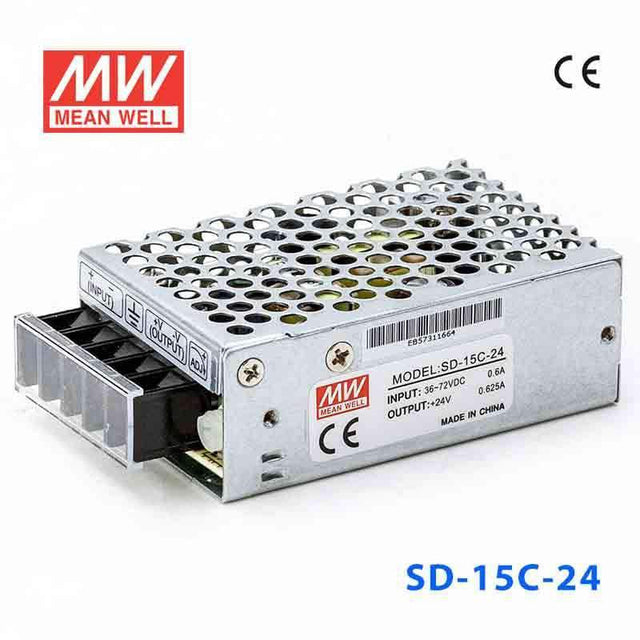

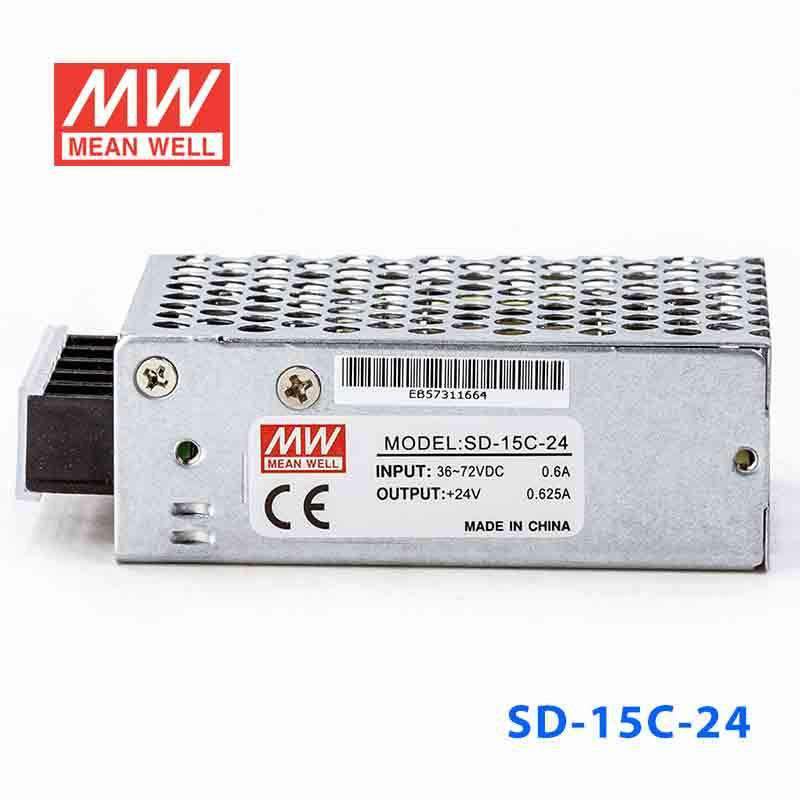

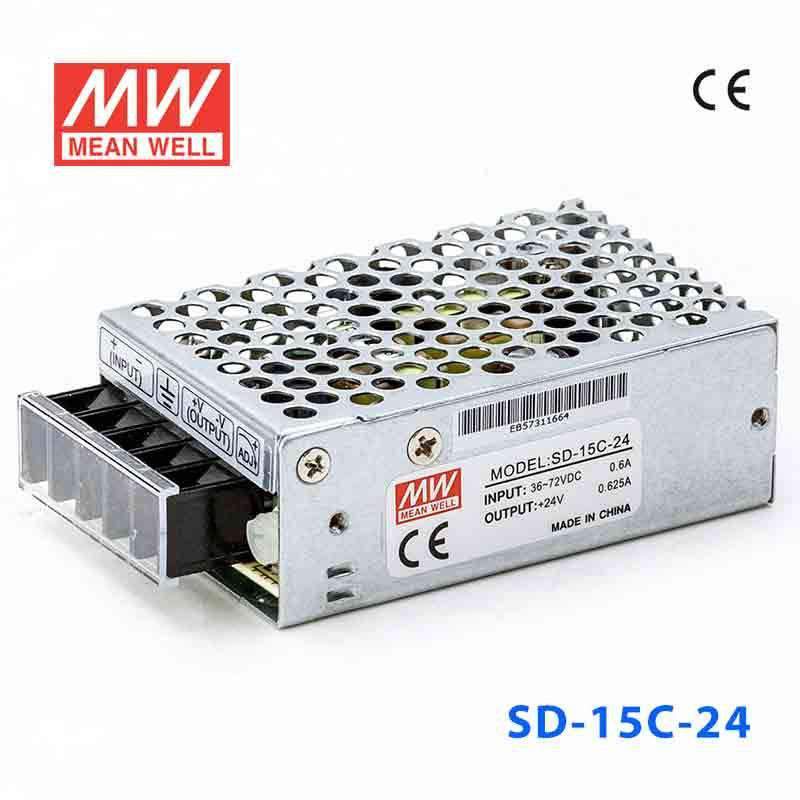

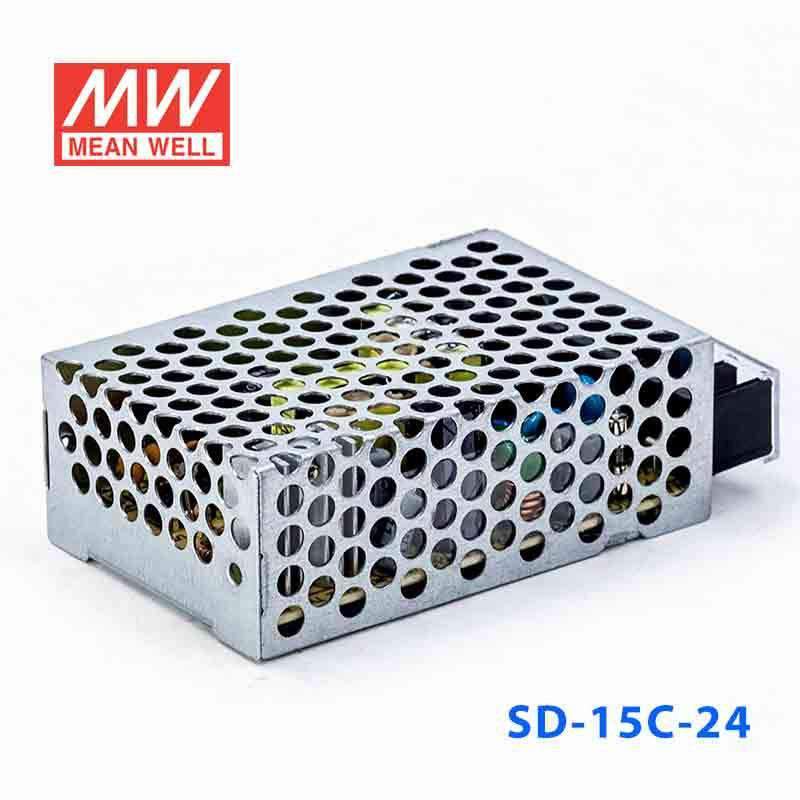

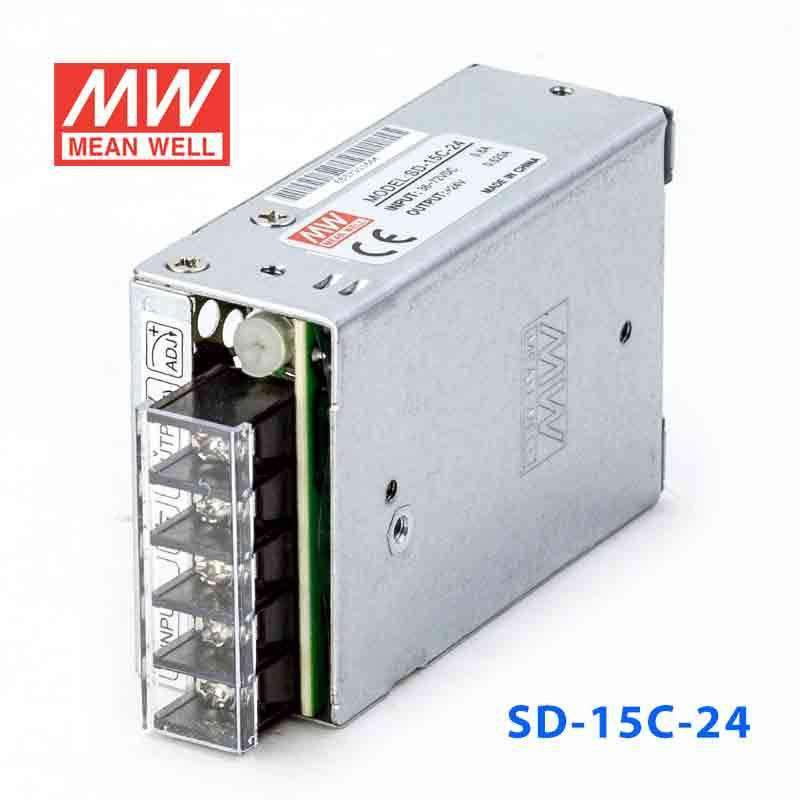

Mean Well SD-15C-24 DC-DC Converter - 15W - 36~72V in 24V out 625mA

2:1 wide input range1.5~2KVAC isolation by models

SKU:

SD-15C-24

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The SD-15C is a 15W Mean Well power converter.

Key Features

✓ 1.5KVAC reinforced I/O isolation
✓ Protections: Over voltage
✓ Safety approvals: EAC TP TC 004
✓ 3 years warranty
