Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

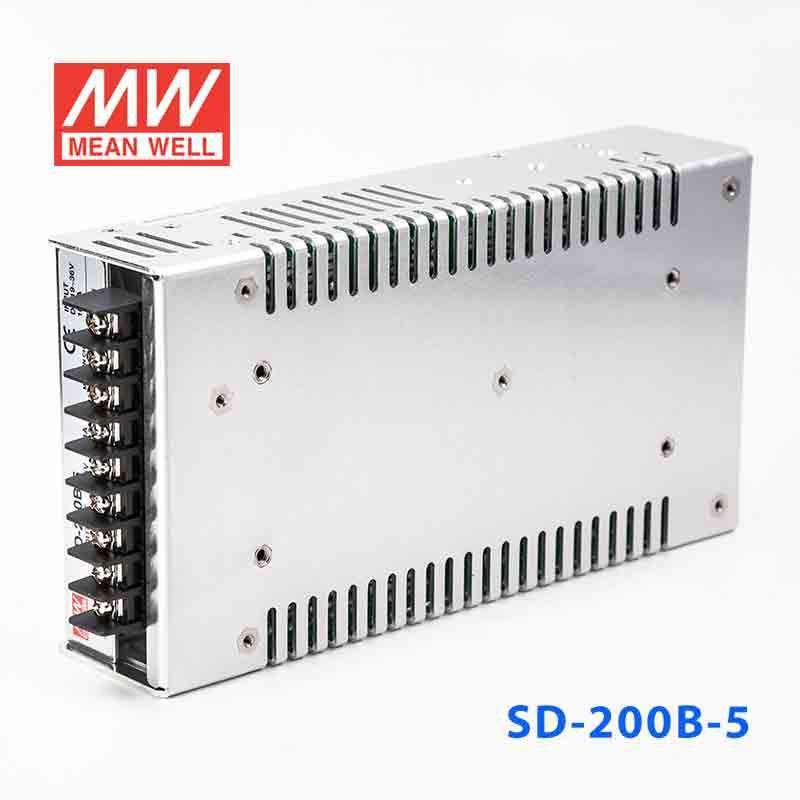

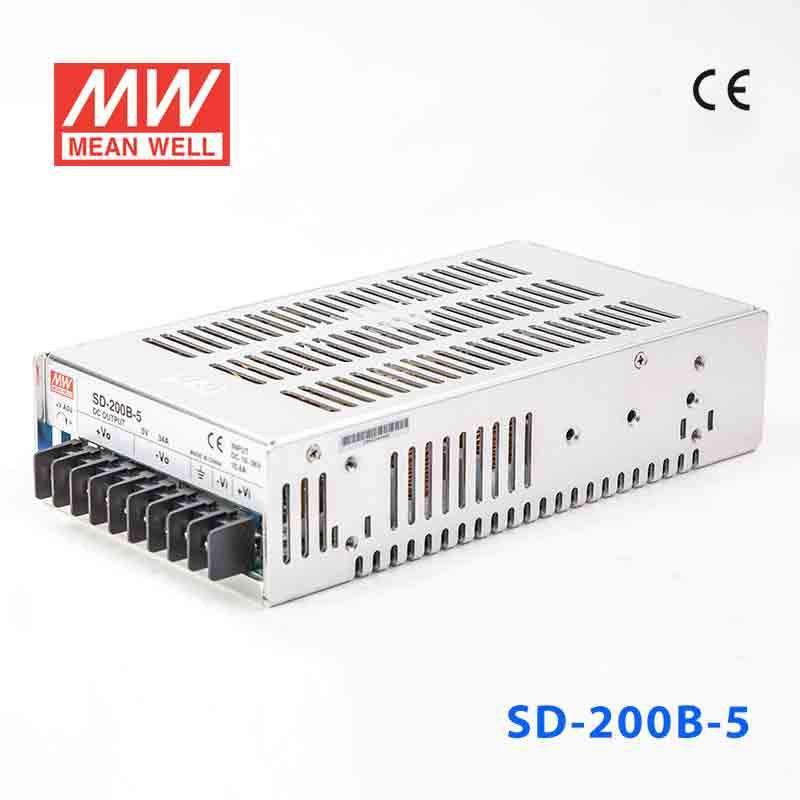

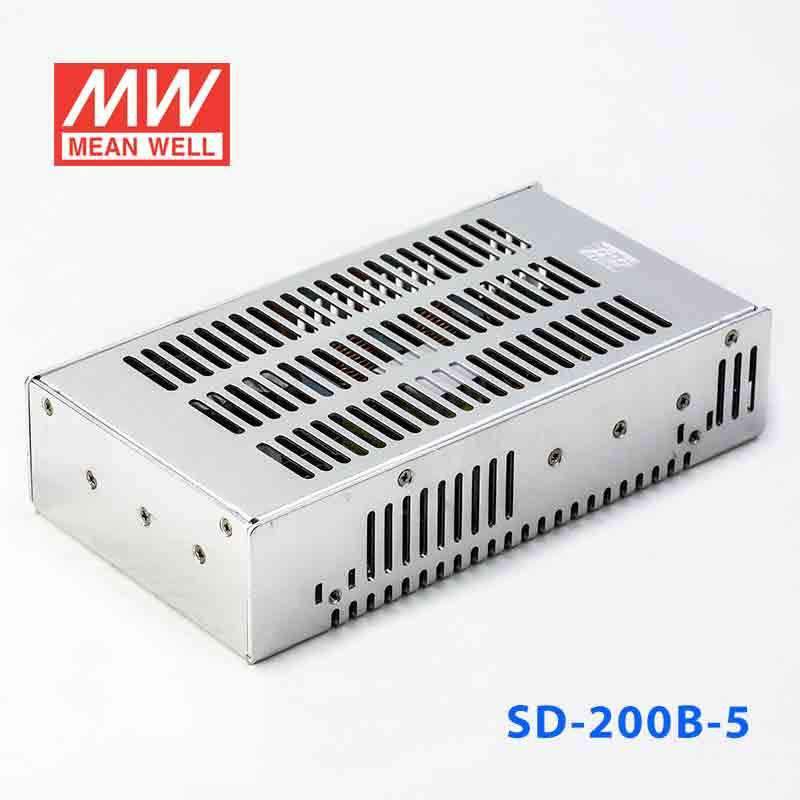

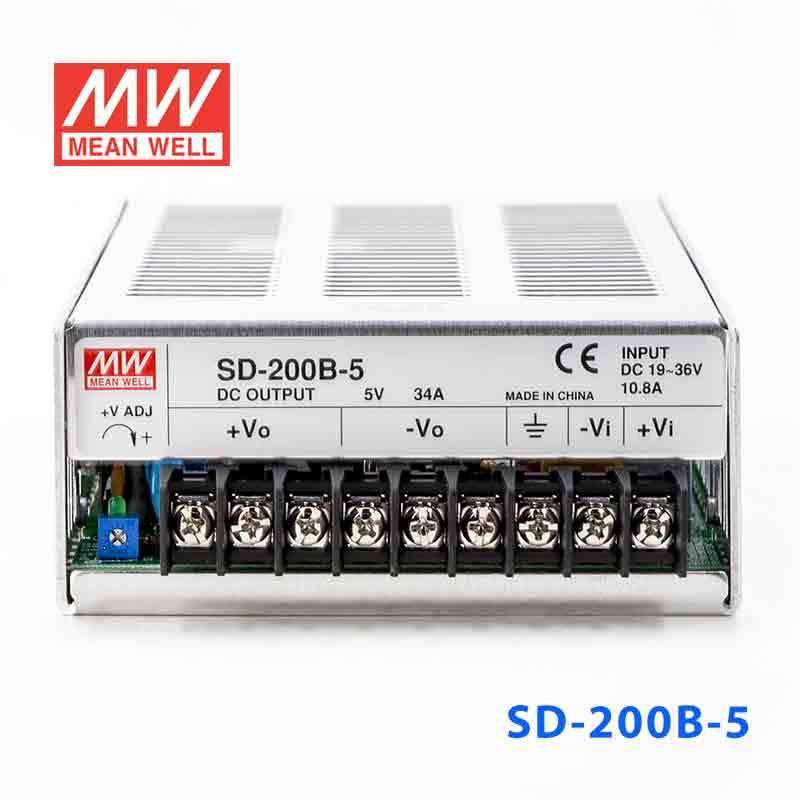

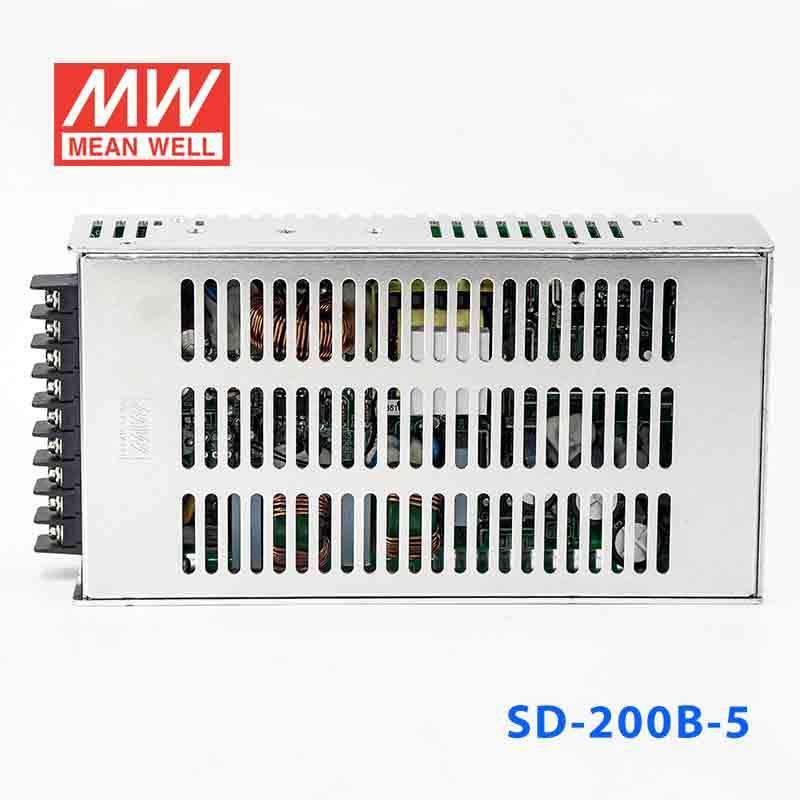

Mean Well SD-200B-5 DC-DC Converter - 170W - 19~36V in 5V out

2:1 wide input range, 1.5~2KVAC isolation by models

SKU:

SD-200B-5

Please for Pricing

Notify me when it's back in stock

Description

The SD-200B is a 200W Mean Well power converter (input range: 4.5~5.5VDC).

Key Features

✓ Input voltage range: 4.5~5.5VDC
✓ DC output voltage adjustable ±10%
✓ 1.5KVAC reinforced I/O isolation
✓ Protections: Overload / Over voltage / Over temperature
✓ Safety approvals: IEC62368-1 CB
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

SD Series
Power Rating

201.6 Watt
Output Voltage

48 Volt
Rated Current

4.2 Ampere
Input Voltage

19V~36V
Standards Met

UL
Operation Mode

Constant Voltage
Operating Temperature

-20°C~60°C
Warranty

2 Year
Length

21.5 cm
Width

11.5 cm
Height

5 cm
Weight

1.1 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use this converter for 48V telecom or network equipment?

It can fit 48V constant-voltage telecom or network hardware when the source is within 19-36VAC. The output is rated for up to 4.2A and 201.6W, so the connected equipment needs to stay within those limits.

Is this suitable for a 48V industrial communications controller?

Yes, if the controller is designed for a fixed 48V input and its total draw does not exceed 4.2A or 201.6W. This model is a constant-voltage converter, which matches equipment intended for a stable 48V supply.

Can this power a 48V embedded system or edge device with moderate load?

It can support a 48V embedded or edge device as long as the total demand stays at or below 4.2A and 201.6W. The 19-36VAC input range is the required source range for this model.

Is the SD-200B-5 appropriate for outdoor cabinets?

The operating temperature range is -20°C to +60°C, but no IP rating is listed in the provided specs. That points to use in protected indoor cabinets or sheltered enclosures rather than open outdoor conditions.

How does the SD-200B-5 compare with the rest of the SD-200B family?

The listed SD-200B options are SD-200B-12 at 170W, 5V, 34A; SD-200B-24 at 200.4W, 12V, 16.7A; SD-200B-48 at 201.6W, 24V, 8.4A; and SD-200B-5 at 201.6W, 48V, 4.2A. Across these models, the main differences are the output voltage and current, while the family stays in the same general 200W class with 19-36VAC input.
