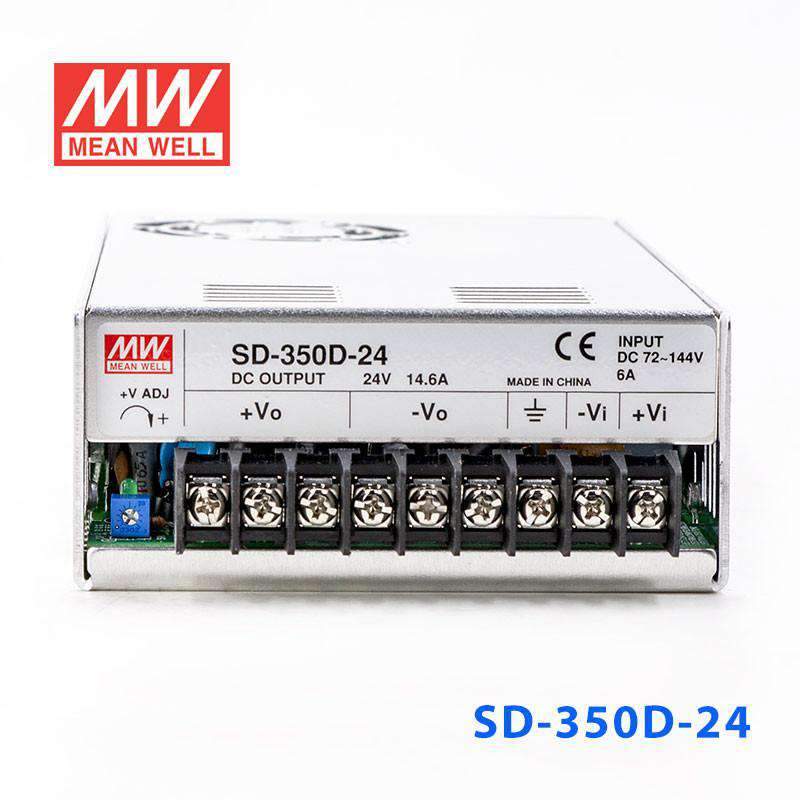

Mean Well SD-350D-24 DC-DC Converter - 350W - 72~144V in 24V out
Please Login for Pricing
Description
Description
Features
| 2:1 wide input range |
| Protections: Short circuit / Overload / Over voltage / Over Temperature |
| 1500VAC I/O isolation |
| Forced air cooling by Built-in DC Fan |
| 100% full load burn-in test |
| 24V and 48V input voltage design refer to LVD |
| 2 years warranty |
General Specification
| Over Load Protection |
105 ~ 135% rated output power Protection type : Shut down o/p voltage, re-power on to recover |
| Over Voltage Protection |
5.75 ~ 6.75V | 16.8 ~ 20V | 31.5 ~ 37.5V | 53 ~ 65V | 5.75 ~ 6.75V | 16.8 ~ 20V | 31.5 ~ 37.5V | 53 ~ 65V Protection type : Shut down o/p voltage, re-power on to recover |
| Withstand voltage | I/P-O/P:1.5KVAC | I/P-FG:2KVAC | O/P-FG:0.5KVAC |
| Working temperature | -20 ~ +60℃ (Refer to "Derating Curve") |
| Safety standards | EAC TP TC 004 approved, design refer to AS/NZS 62368.1 |
| EMC standards | With external components Compliance to EN55032 Class B;EN61000-3-,3，EN61000-4-2,3,4,5,6,8 |
| Dimension (LxWxH)(mm) | 215*115*50mm (L*W*H) |
Specifications
Specifications
-
BrandMean Well
-
SeriesSD Series
-
Power Rating350.4 Watt
-
Output Voltage24 Volt
-
Rated Current14.6 Ampere
-
Input Voltage72V~144V
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~60°C
-
Warranty3 Year
-
Length21.5 cm
-
Width11.5 cm
-
Height5 cm
-
Weight1.1 kg
