Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

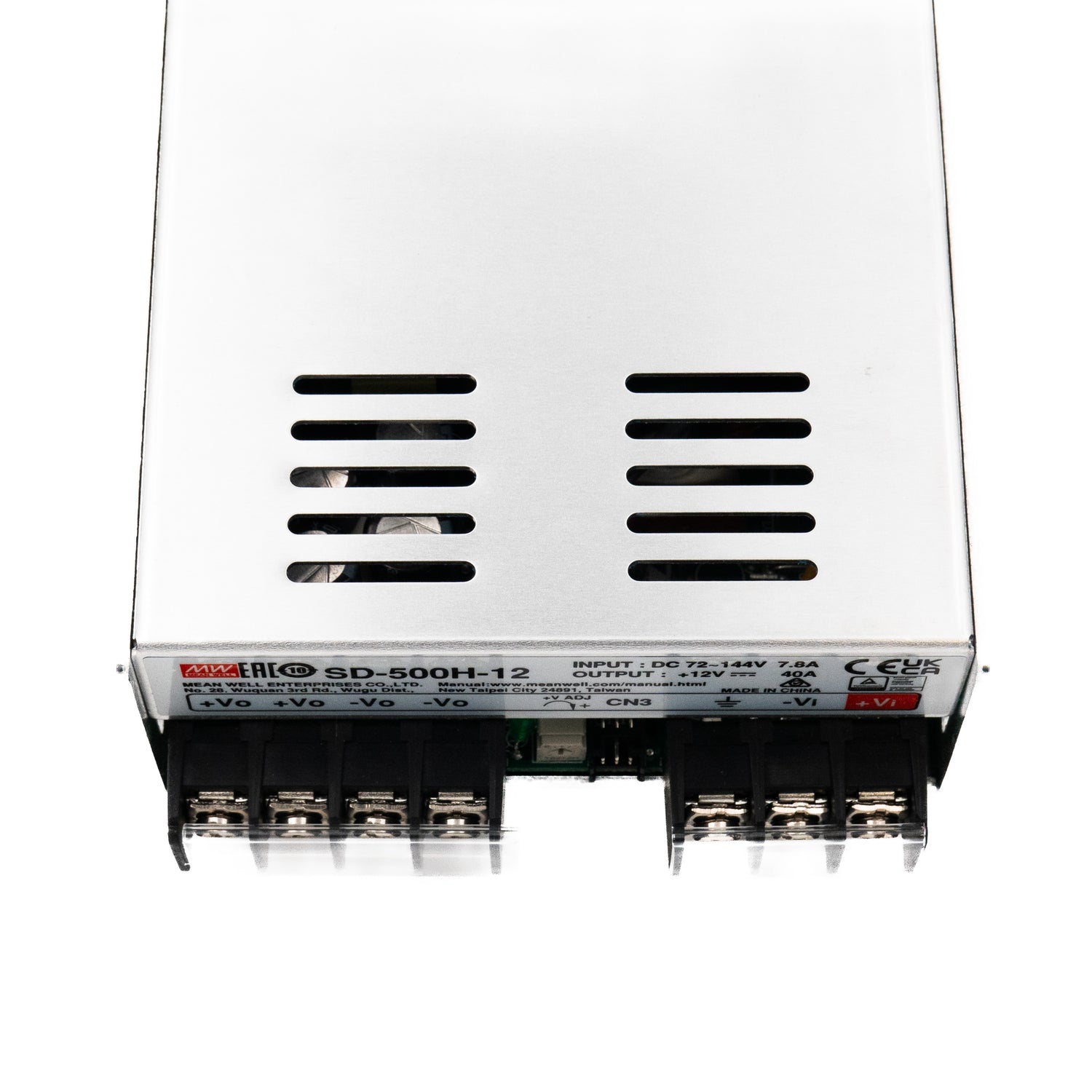

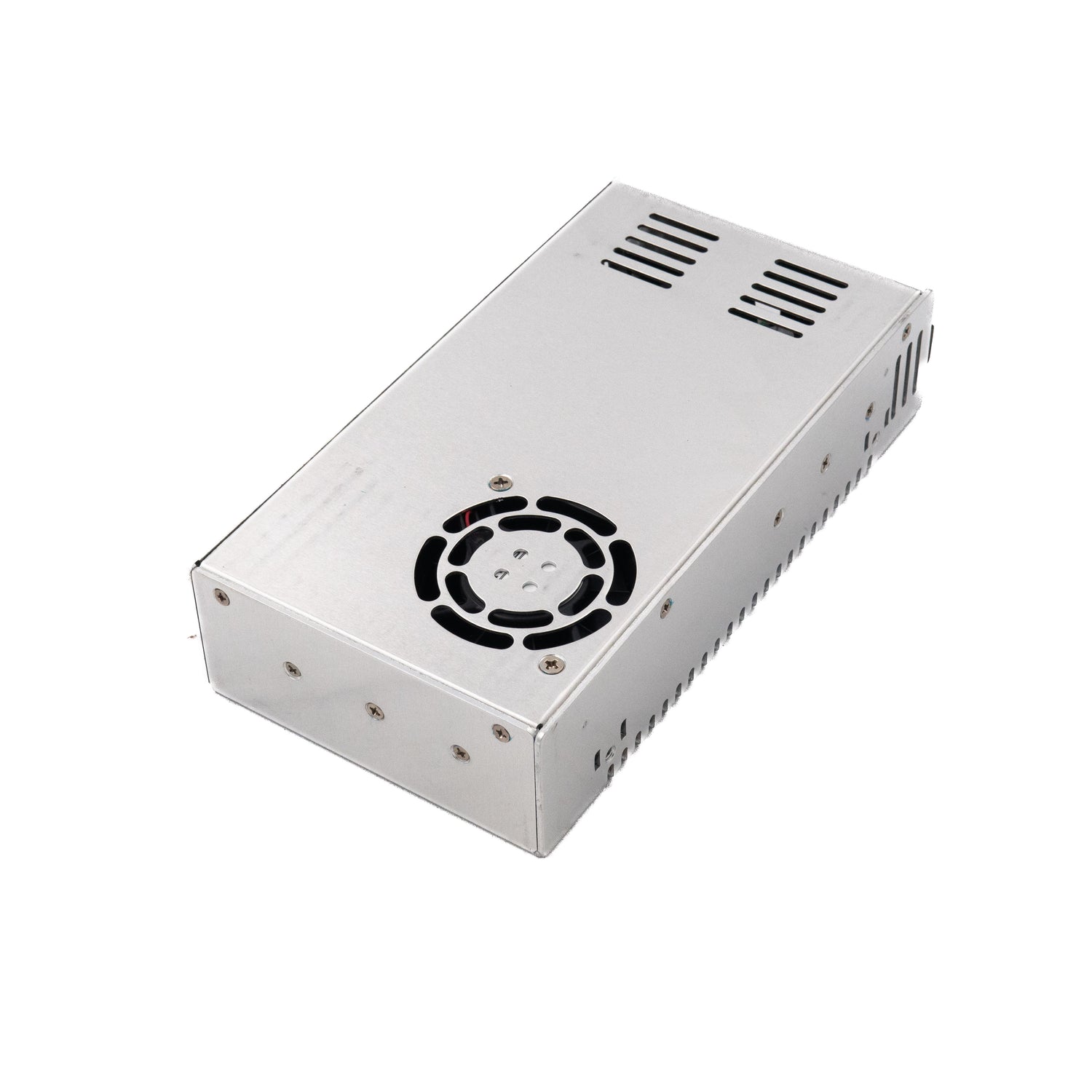

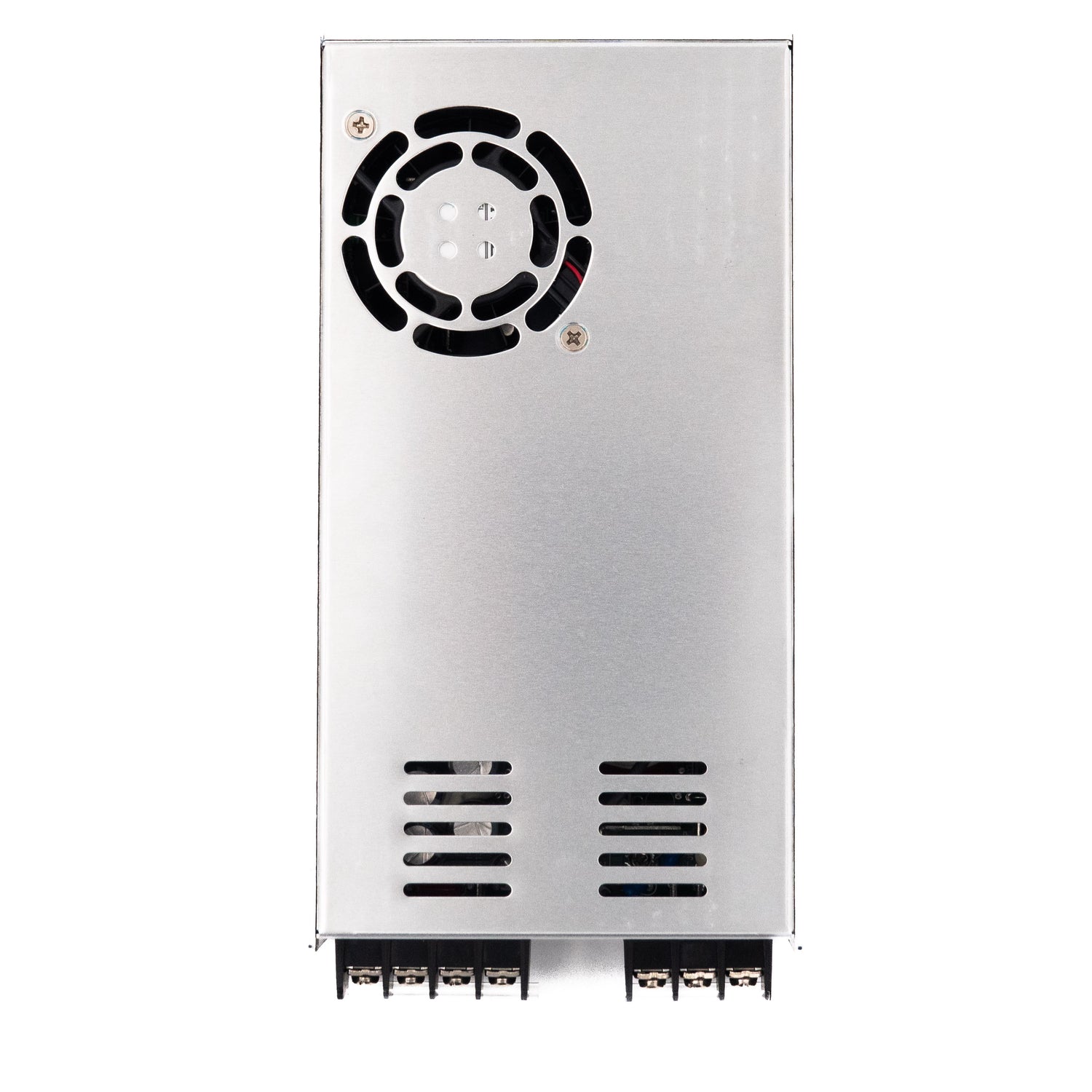

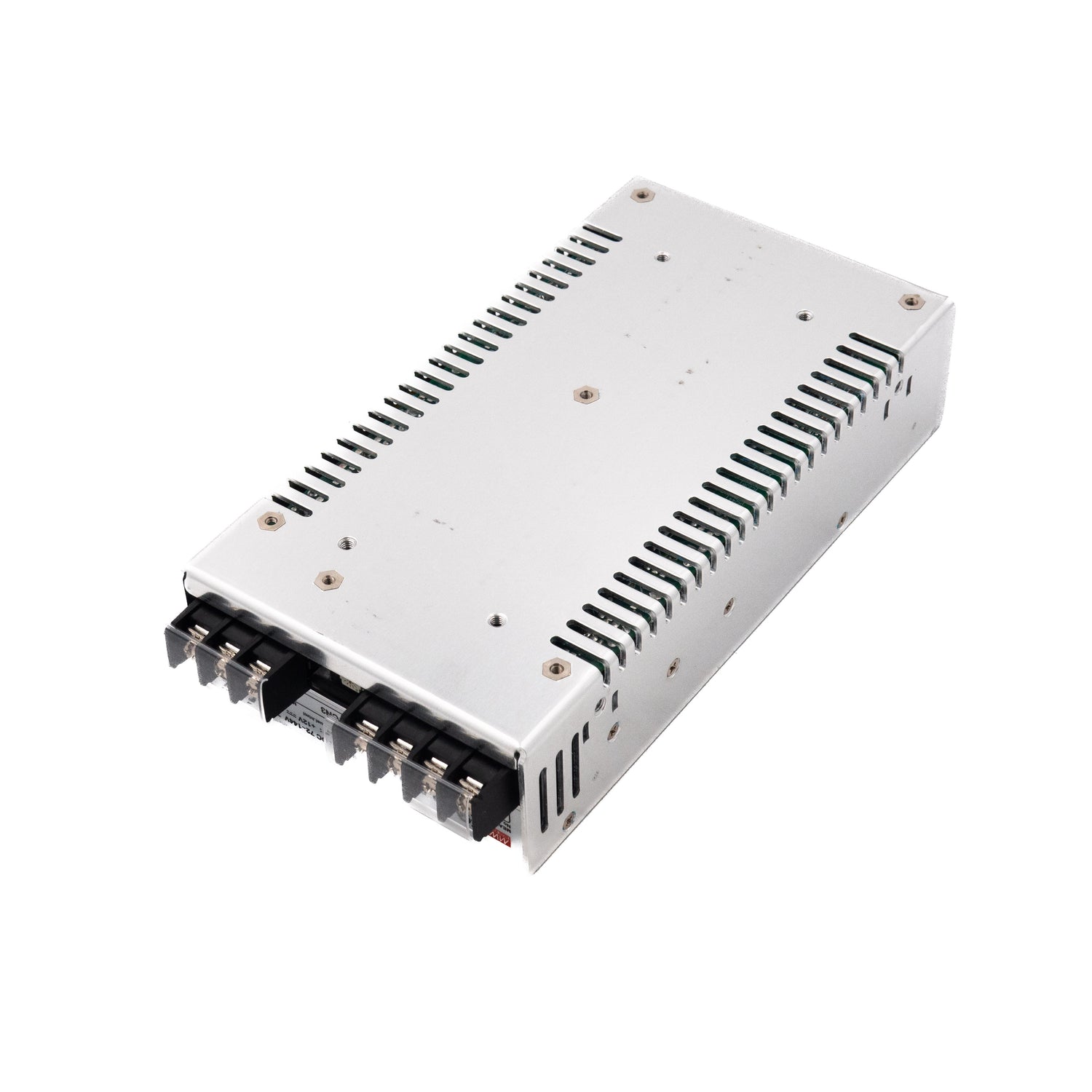

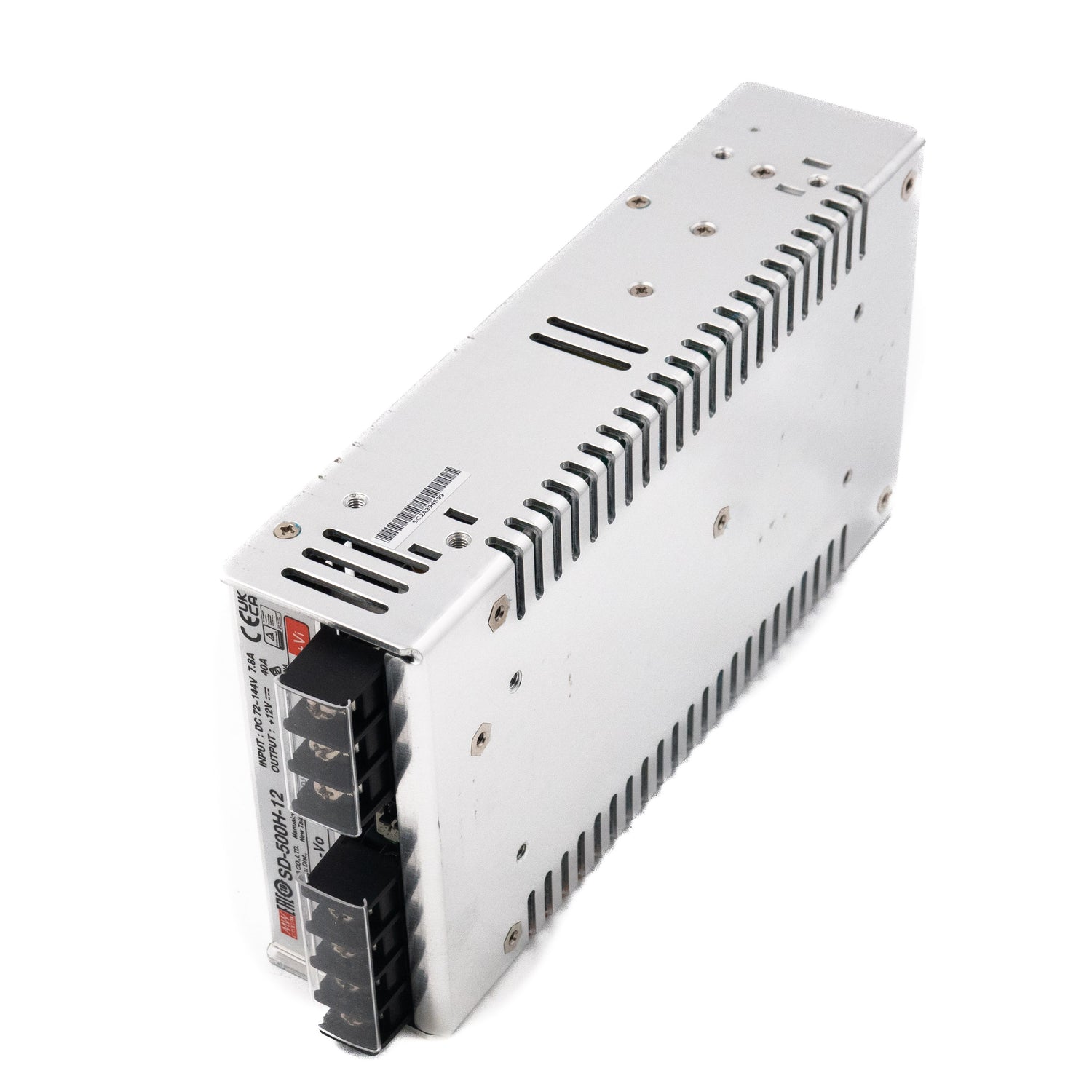

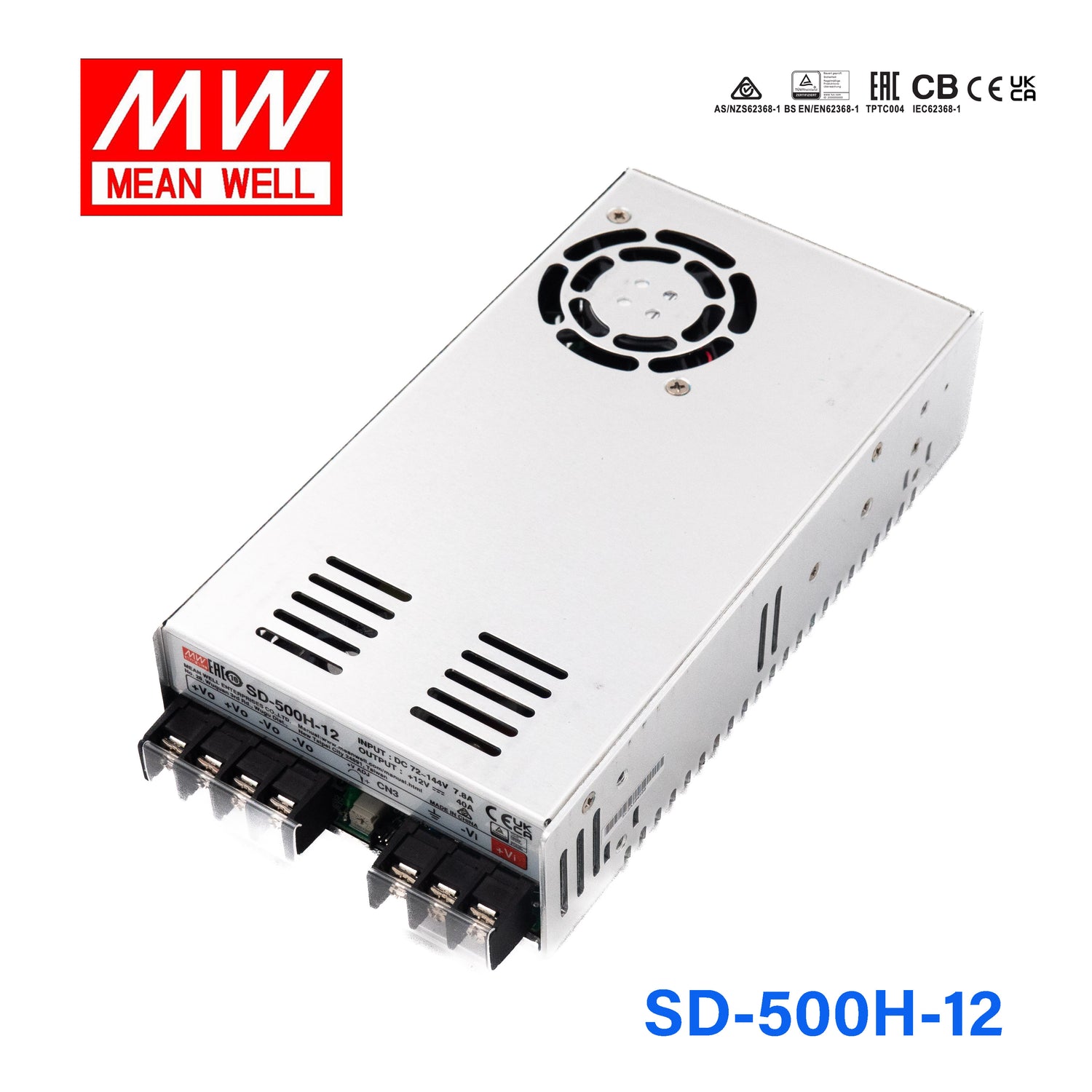

Mean Well SD-500H-12 DC-DC Converter - 480W - 72~144V in 12V out
Please Login for Pricing
Description
Description
Features :
· 2:1 wide input range
· Protections: Short circuit / Overload / Over voltage
· 1500VAC I/O isolation
· Built-in EMI filter, low ripple noise
· 100% full load burn-in test
· Fixed switching frequency at 83KHz
· Low cost
· High reliability
· 2 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSD Series
-
Power Rating480 Watt
-
Output Voltage12 Volt
-
Rated Current40 Ampere
-
Input Voltage72V~144V
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~60°C
-
Warranty3 Year
-
Length21.5 cm
-
Width11.5 cm
-
Height5 cm
-
Weight1.15 kg
