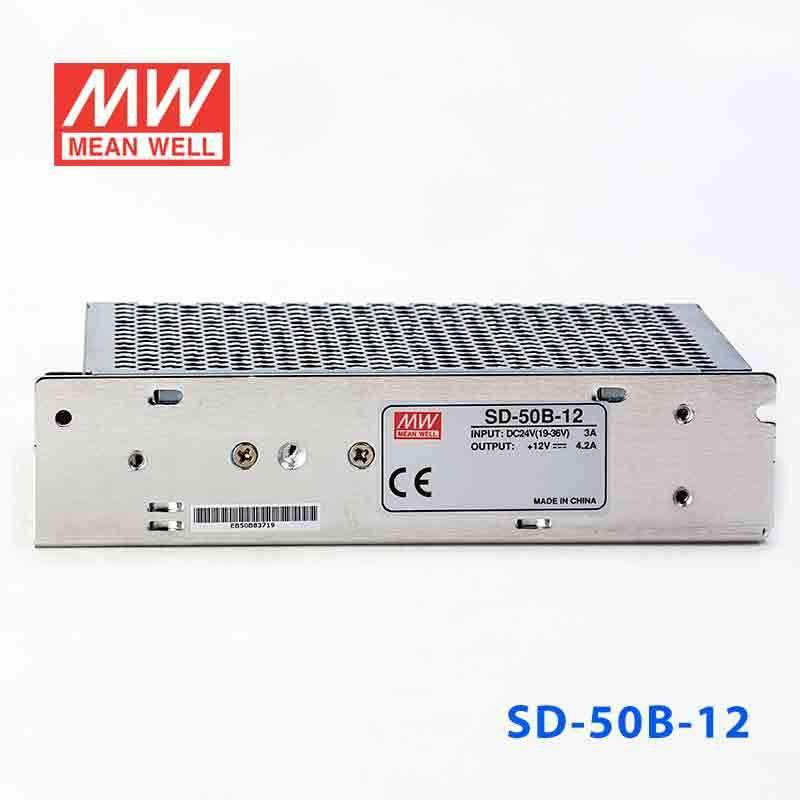

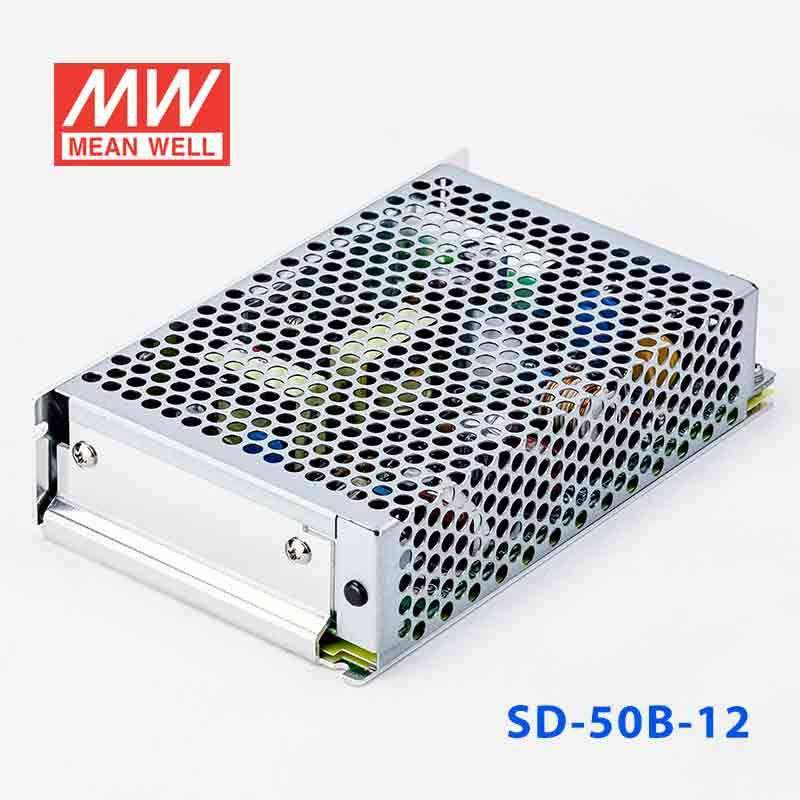

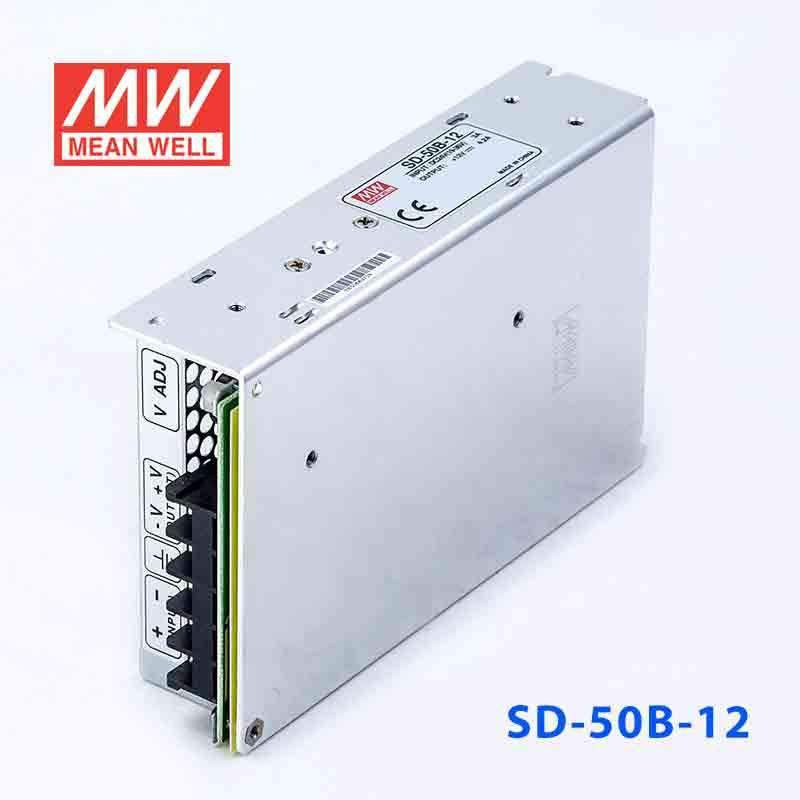

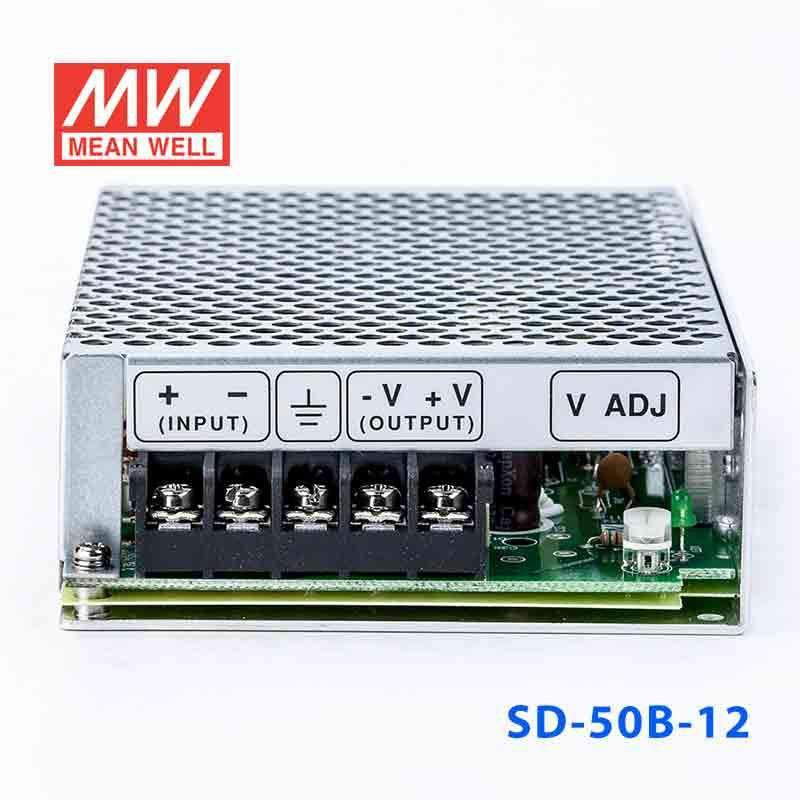

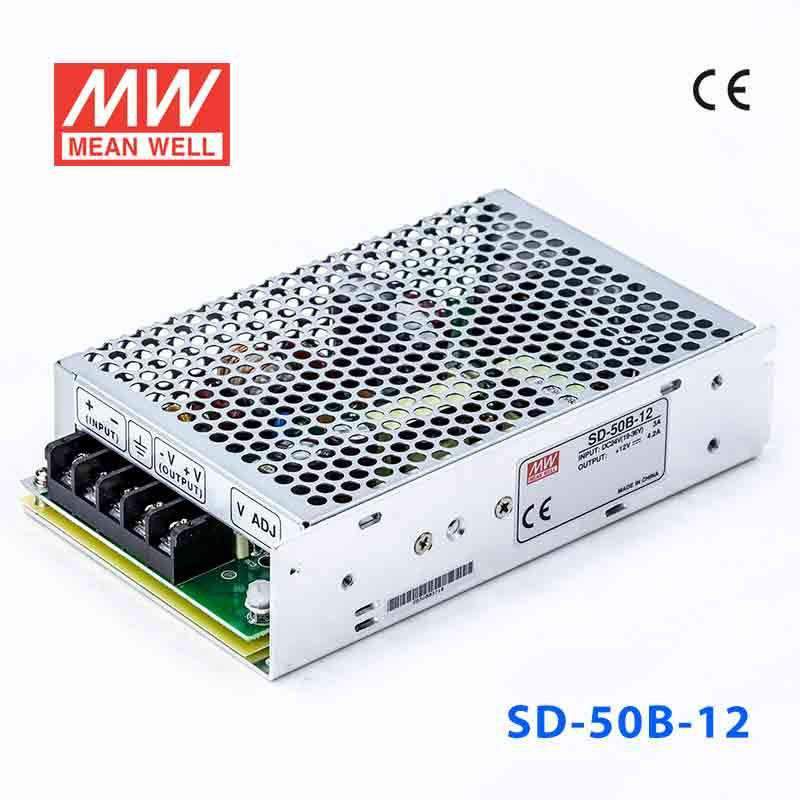

Mean Well SD-50B-12 DC-DC Converter - 50W - 19~36V in 12V out

2:1 wide input range, 1.5~2KVAC isolation by models
SKU:
SD-50B-12

|

Description

Features : · 2:1 wide input range · Protections: Short circuit / Overload / Over voltage · 1500VAC I/O isolation · Built-in EMI filter, low ripple noise · 100% full load burn-in test · Fixed switching frequency at 83KHz · Low cost · High reliability · 2 years warranty

Specifications

  • Brand
    Mean Well
  • Series
    SD Series
  • Power Rating
    504 Watt
  • Output Voltage
    12 Volt
  • Rated Current
    4.2 Ampere
  • Input Voltage
    19V~36V
  • Standards Met
    CE,EAC,RCM
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -10°C~60°C
  • Warranty
    2 Year
  • Length
    15.9 cm
  • Width
    9.7 cm
  • Height
    3.8 cm
  • Weight
    0.48 kg

File Downloads

::specification::
