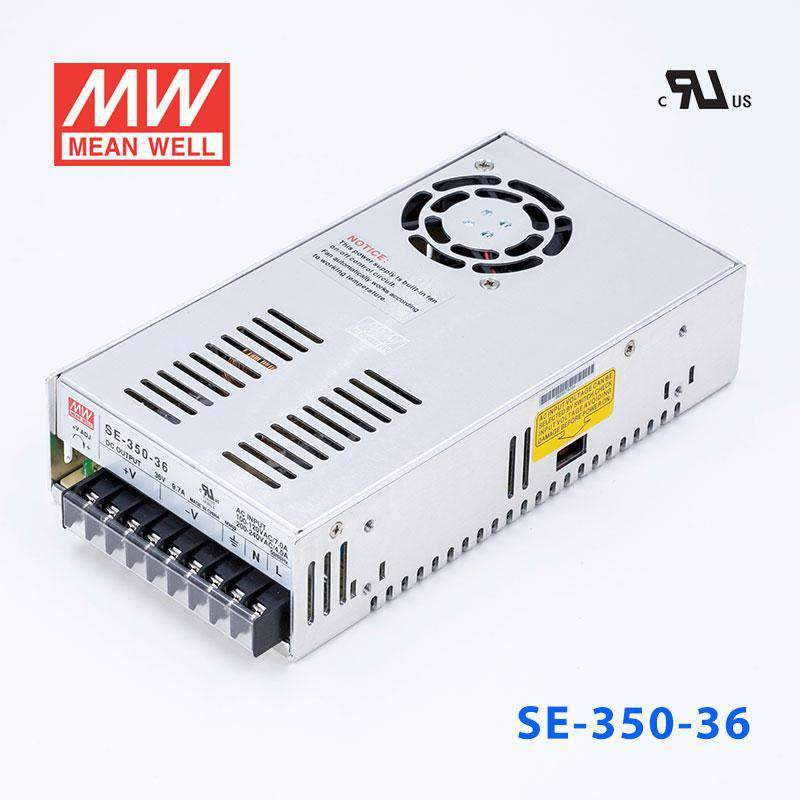

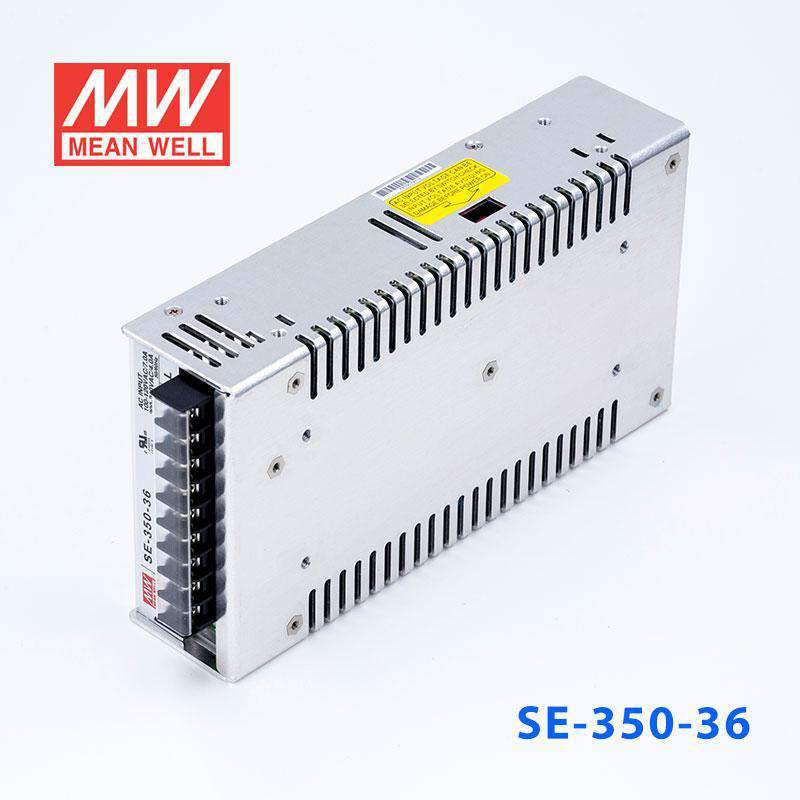

Mean Well SE-350-36 Power Supply 350W 36V
Please Login for Pricing
Description
Description
Features

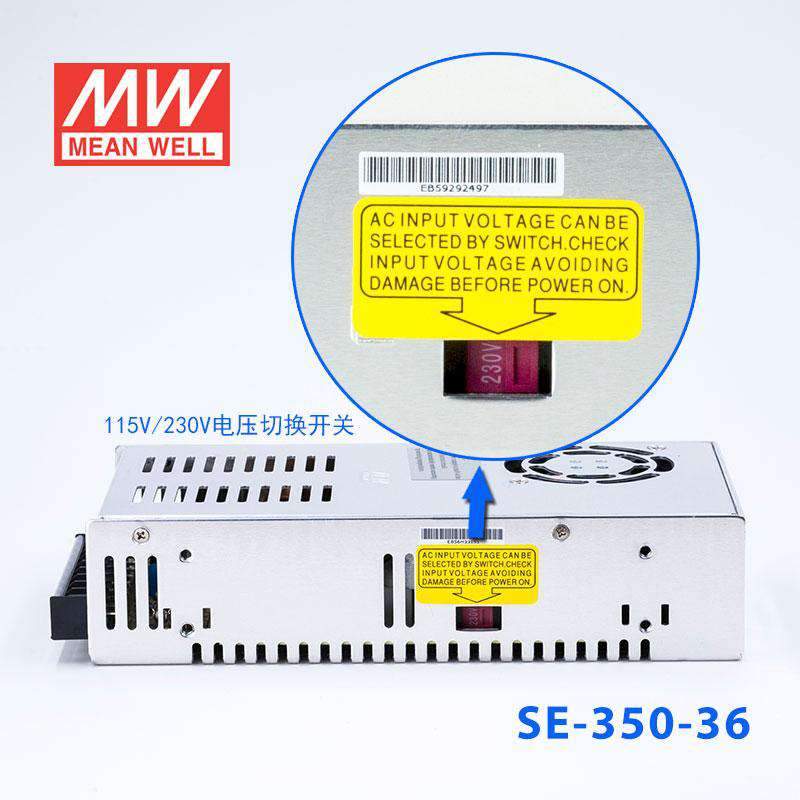

| AC input selectable by switch |
| Withstand 300VAC surge input for 5 seconds |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Built-in constant current limiting circuit |
| Withstand 5G vibration test |
| 100% full load burn-in test |
| LED indicator for power on |
| Built-in fan ON/OFF control |

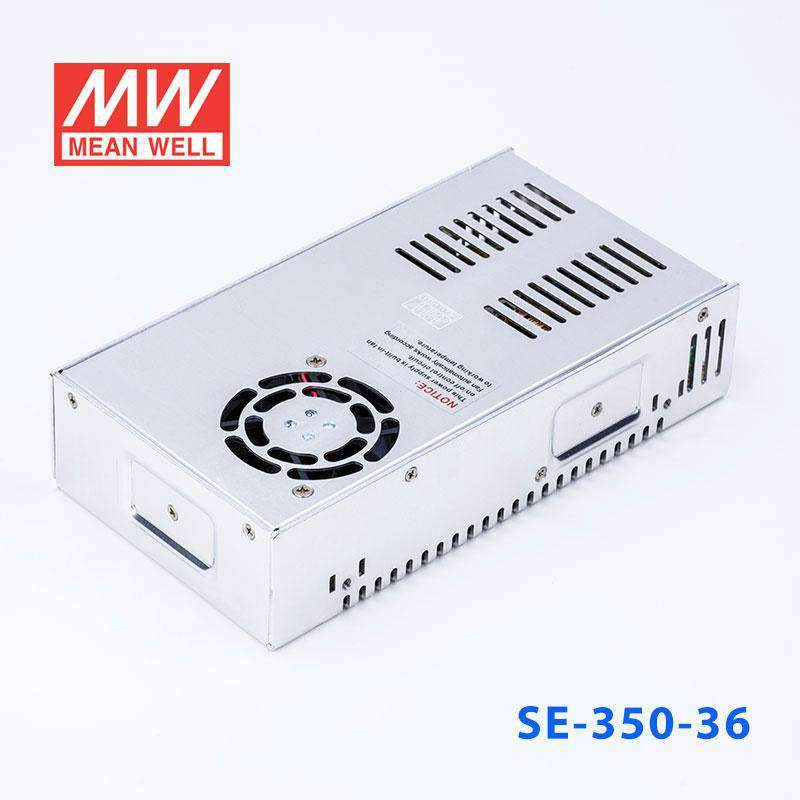

| Forced air cooling by built-in DC fan |
| 2 years warranty |
General Specification
| AC input voltage range | 115/230VAC by switch |
| AC inrush current (max.) | Cold start, 60A at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Overload protection Range | 105%~135% |
| Overload protection Type | Constant current limiting, auto-recovery |
| Over voltage protection | 115%~145% |
| Withstand voltage | I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -20~+60°C |
| Safety standards | UL60950-1 |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, |

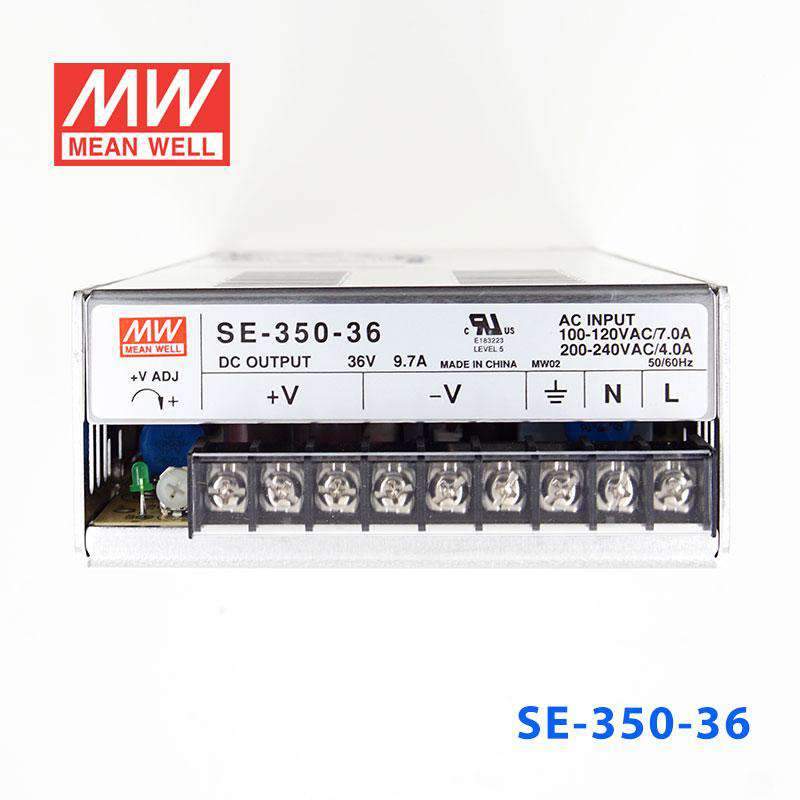

| Connection | 9P/9.5mm pitch terminal block with cover |
| Dimension (LxWxH) | 215x 115x 50 |
| Case No. | 912C |
| Packing | 12pcs / 13.5kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesSE Series
-
Power Rating349.2 Watt
-
Output Voltage36 Volt
-
Rated Current9.7 Ampere
-
Input Voltage90V~264V
-
Standards MetUL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~60°C
-
Warranty2 Year
-
Length21.5 cm
-
Width11.5 cm
-
Height5 cm
-
Weight1.07 kg
