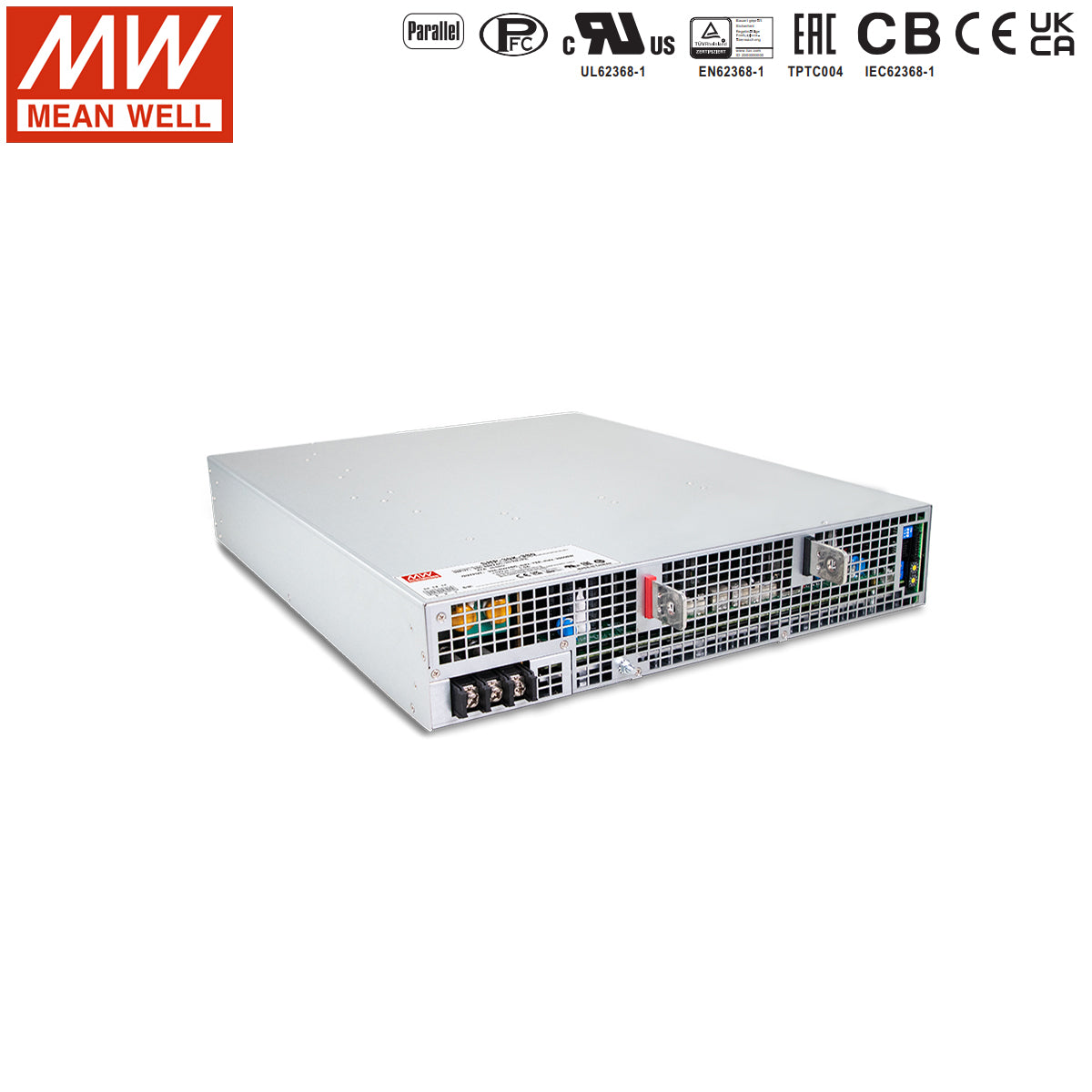

Mean Well SHP-30K-115 30KW High Efficiency Power Supply 115V Out 261A

Name: Mean Well SHP-30K-115 30KW High Efficiency Power Supply 115V Out 261A
Brand: Mean Well
SKU: SHP-30K-115
Price: 18914.13 NZD
Availability: InStock

three phase, high efficiency up to 97%, 2U rack, active current sharing up to 12 units(285KW)

SKU:

SHP-30K-115

Please for Pricing

Notify me when it's back in stock

Description

Features:

3ψ 3-wire / △ or Y 340~530VAC or 3ψ 4-wire / Y 340-530VAC

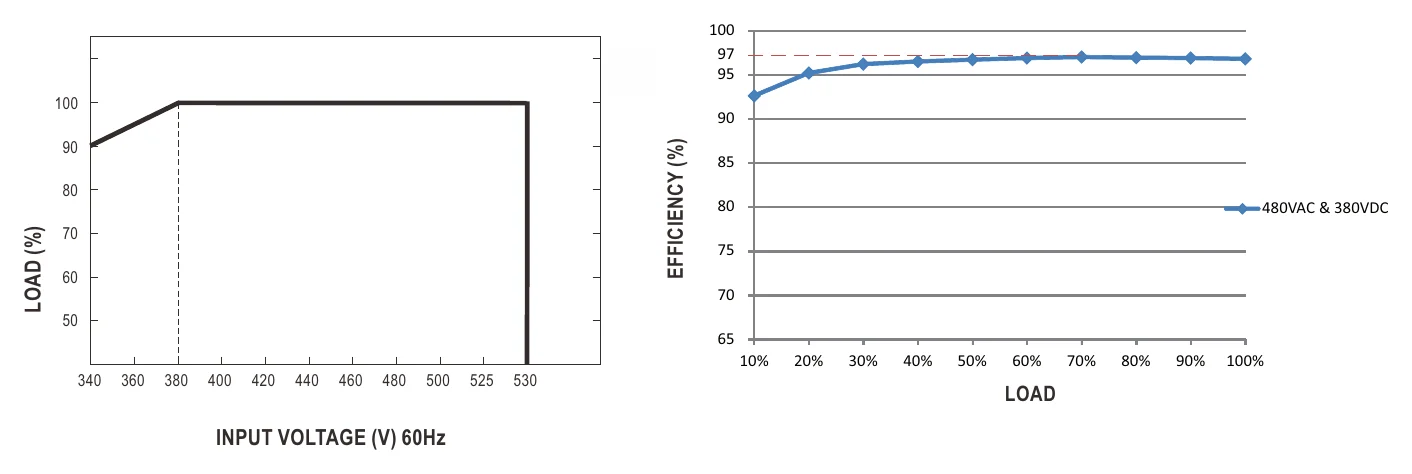

High efficiency up to 97%
2U high 19"-inch rack with forced air cooling
Built-in CANBus/Optional PMBus/MODBus-RTU/RS-485 protocol

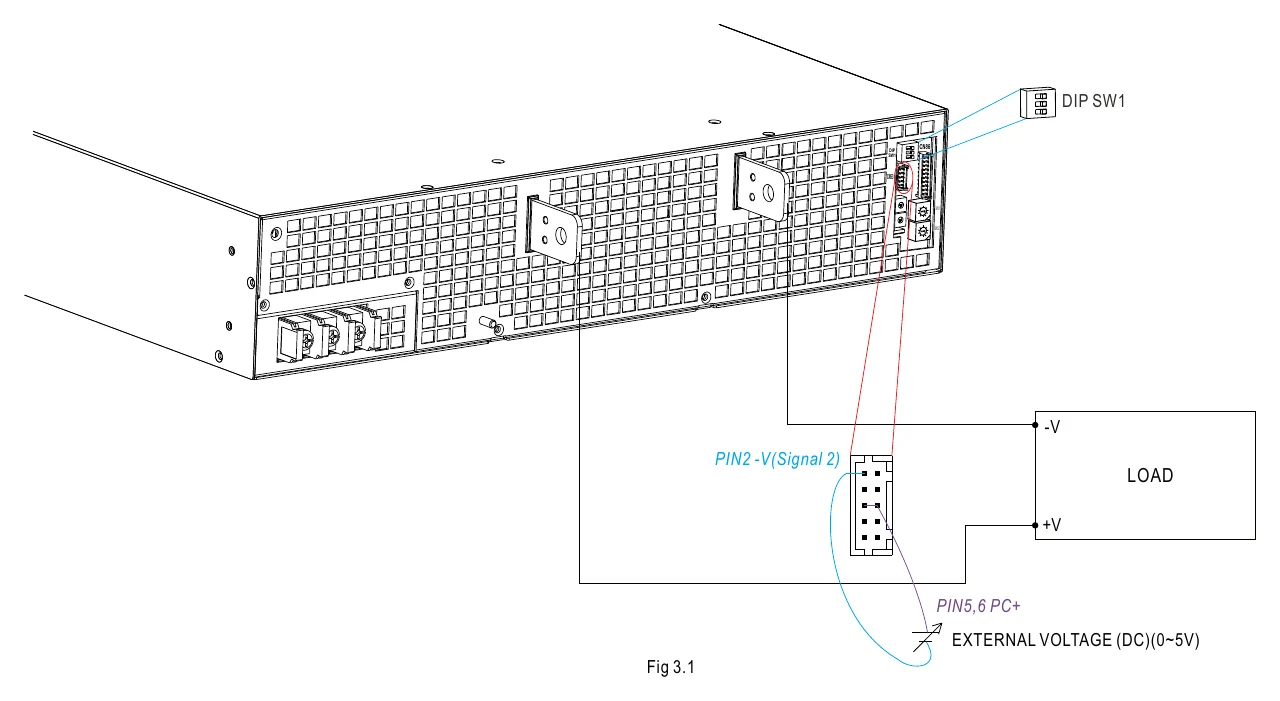

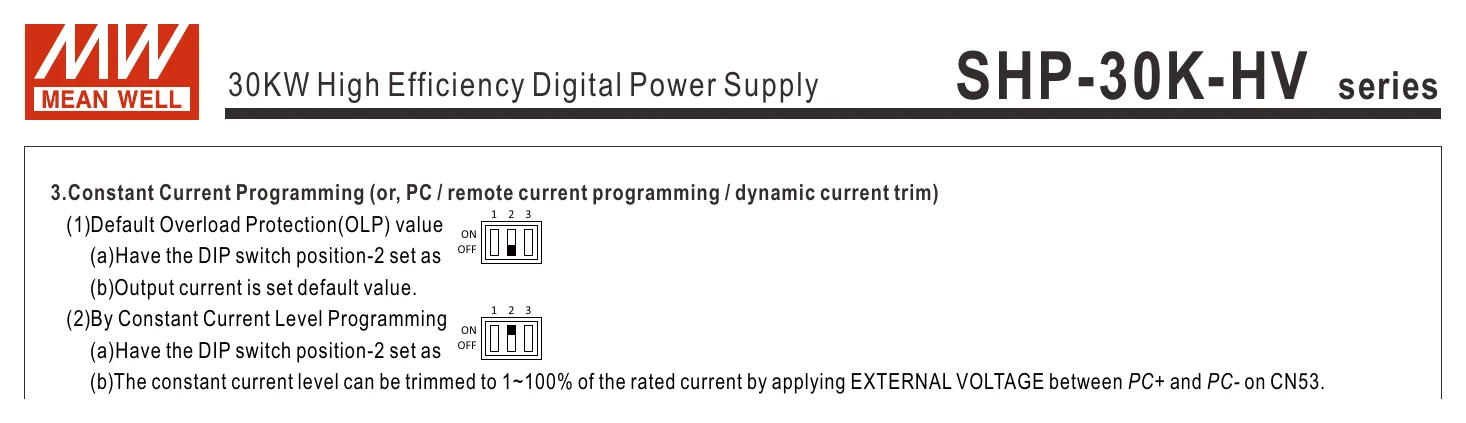

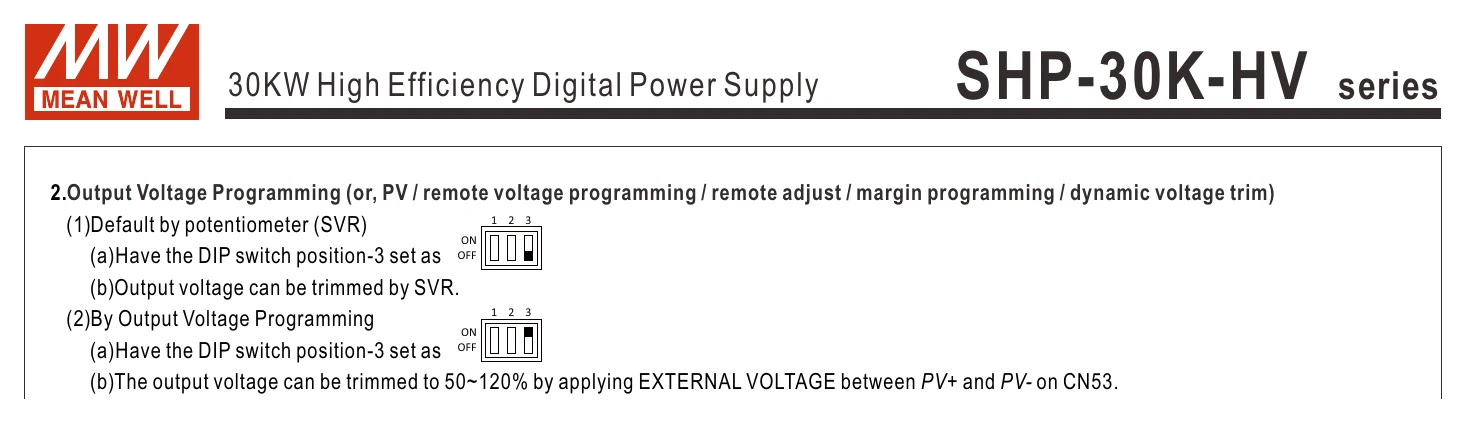

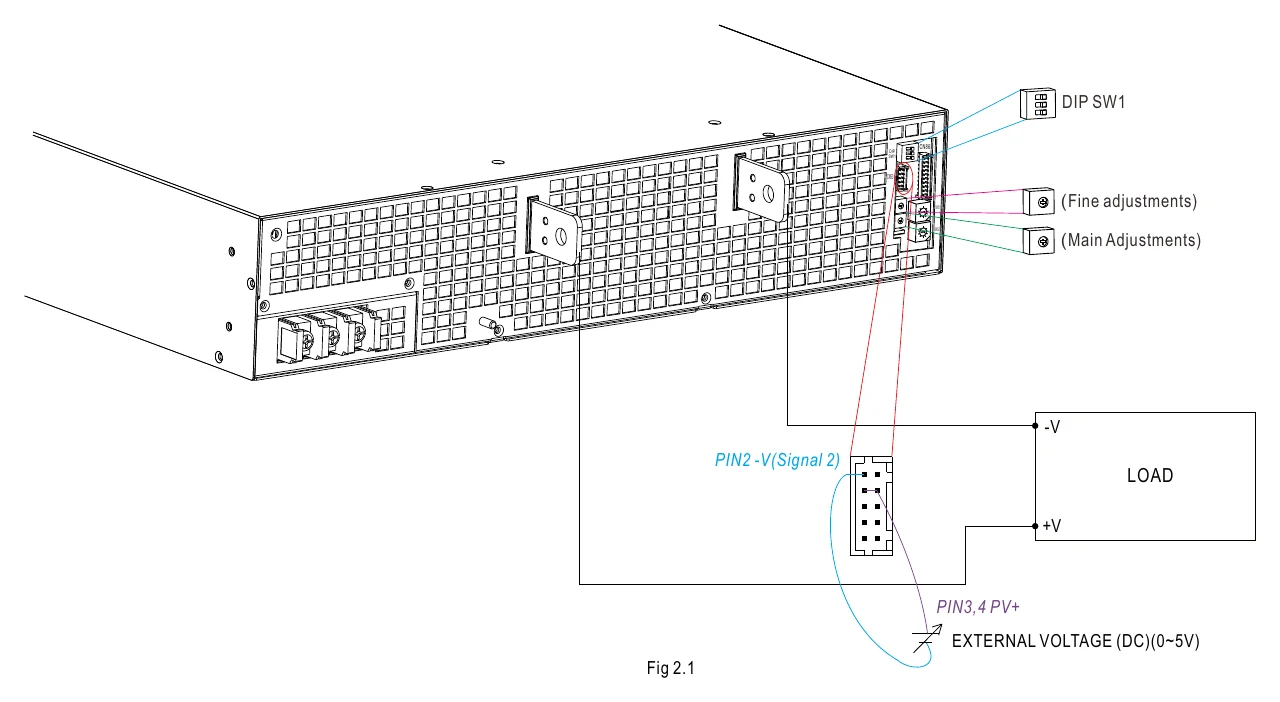

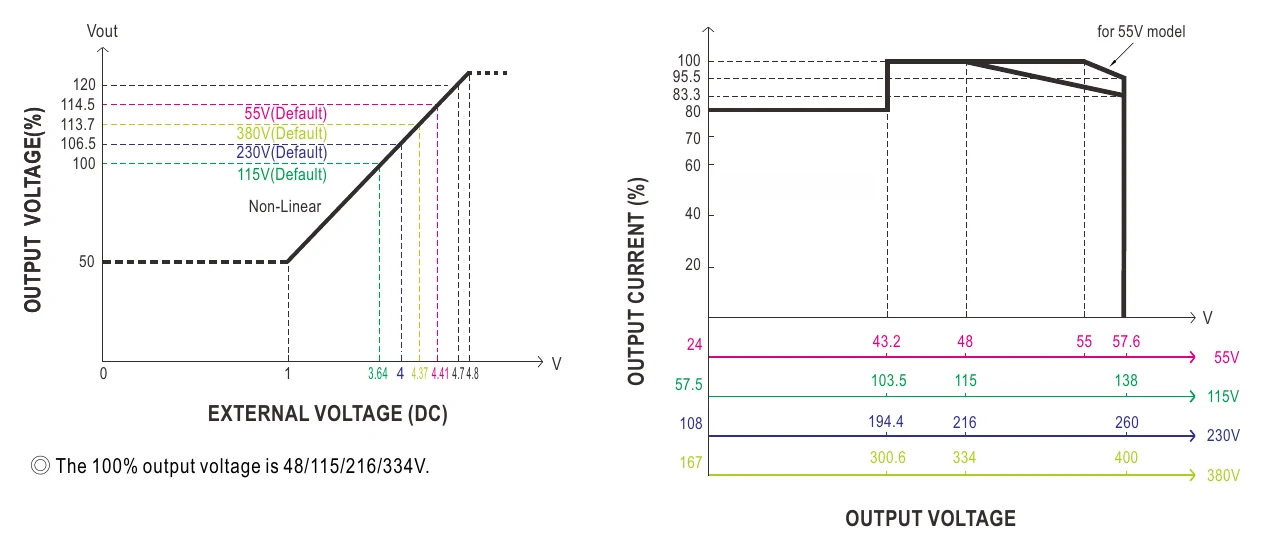

Output voltage and constant current level programmable

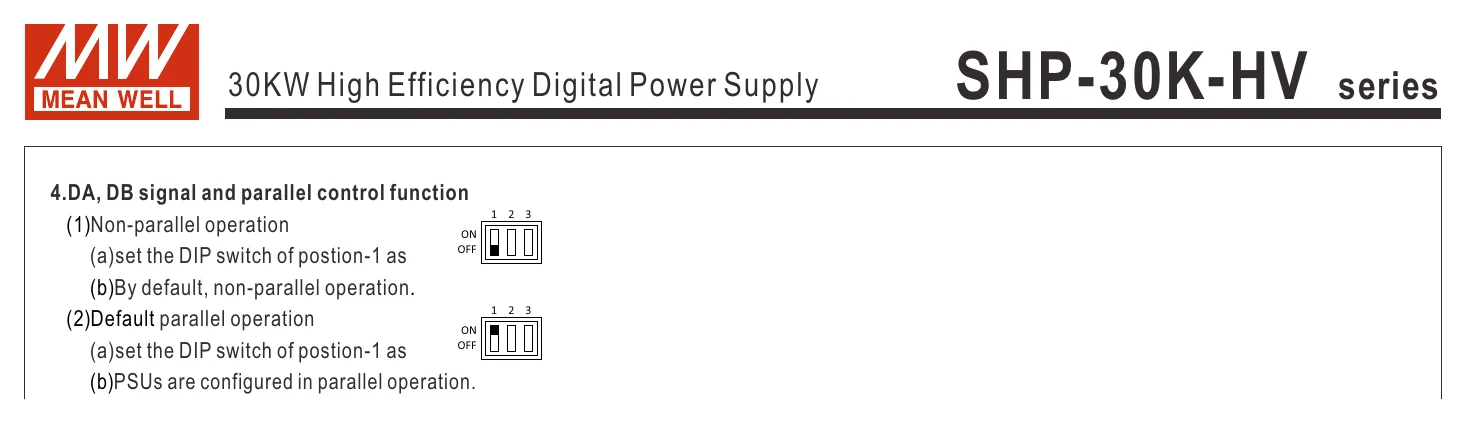

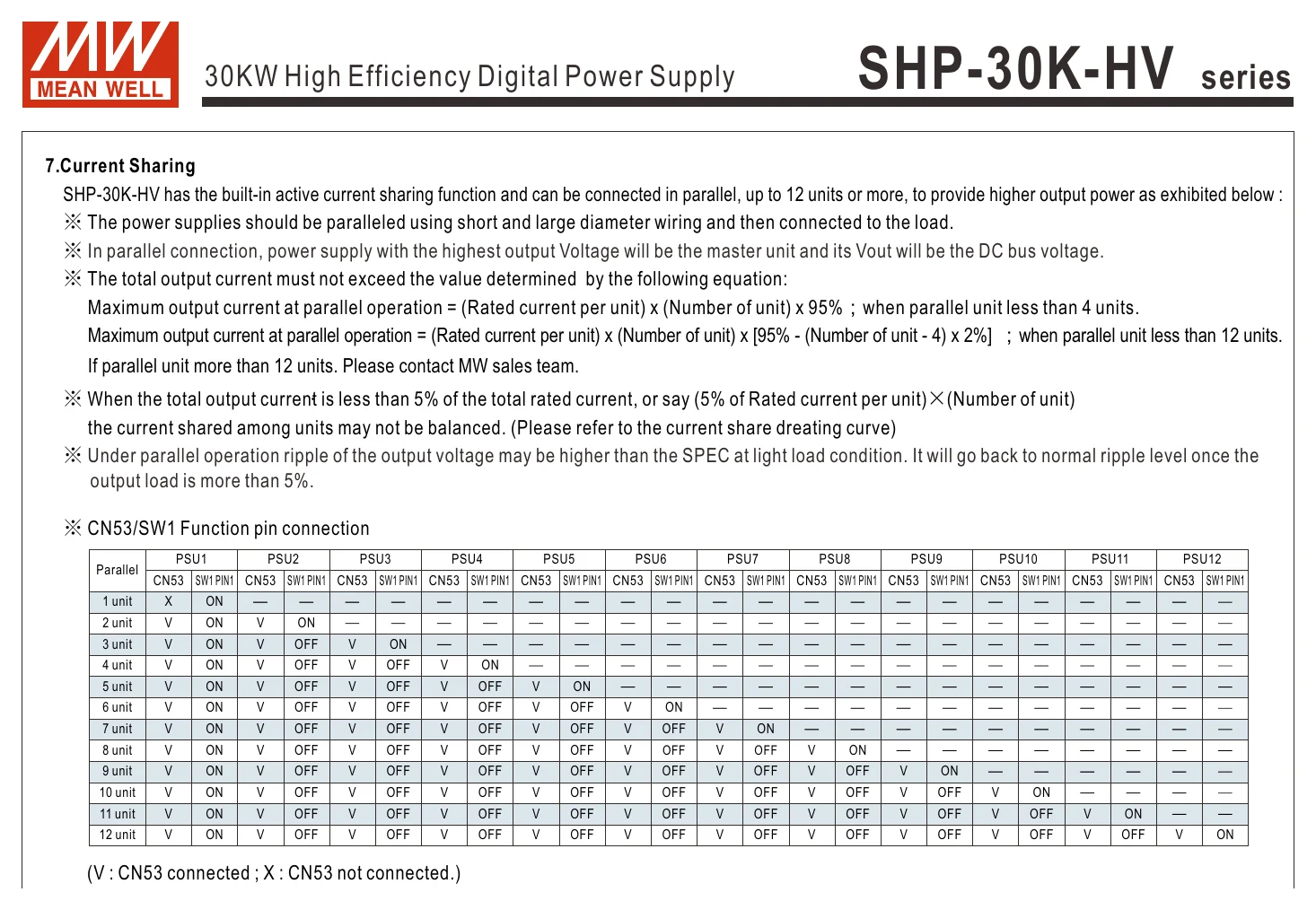

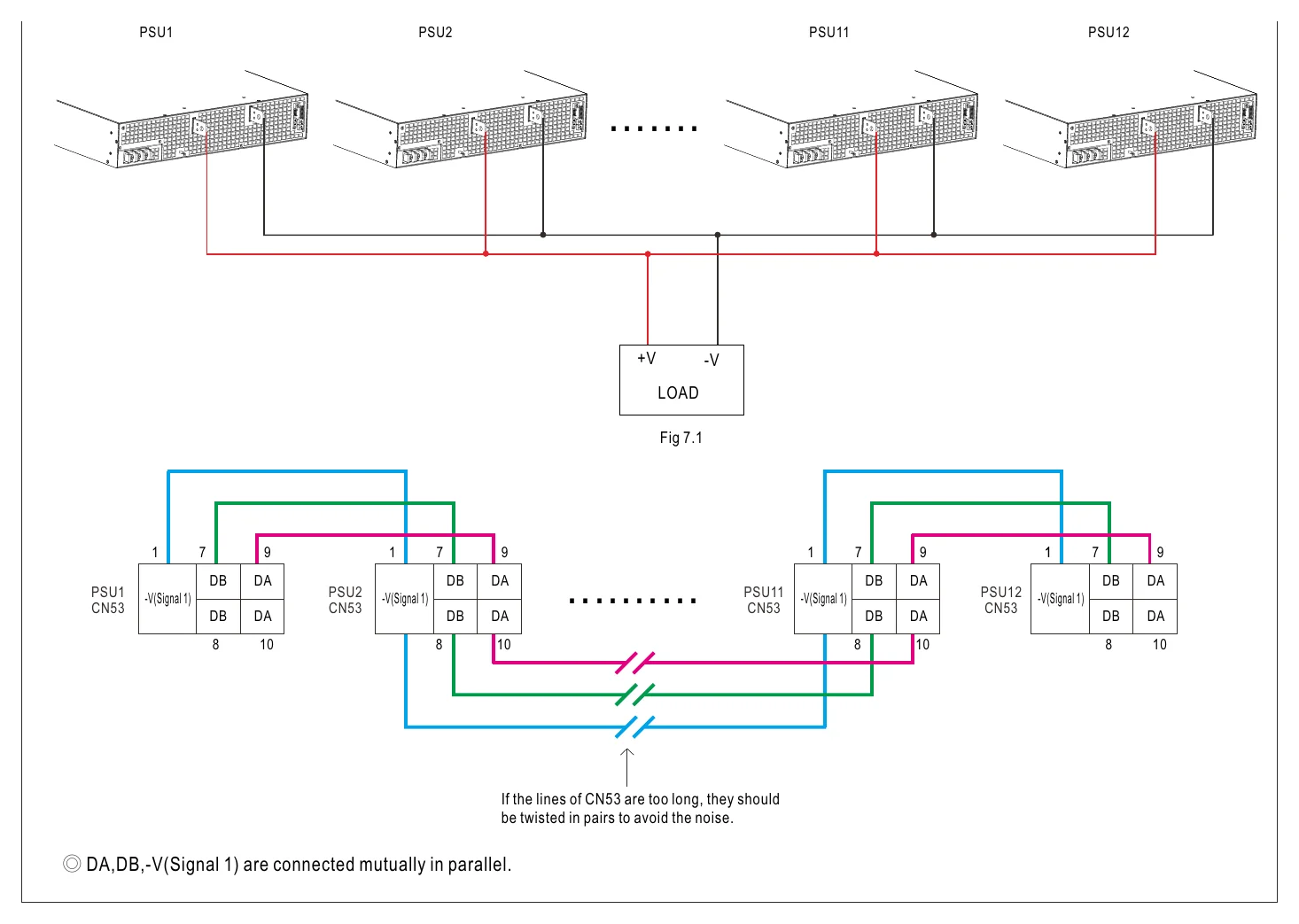

active current sharing up to 12 units(285KW) and more

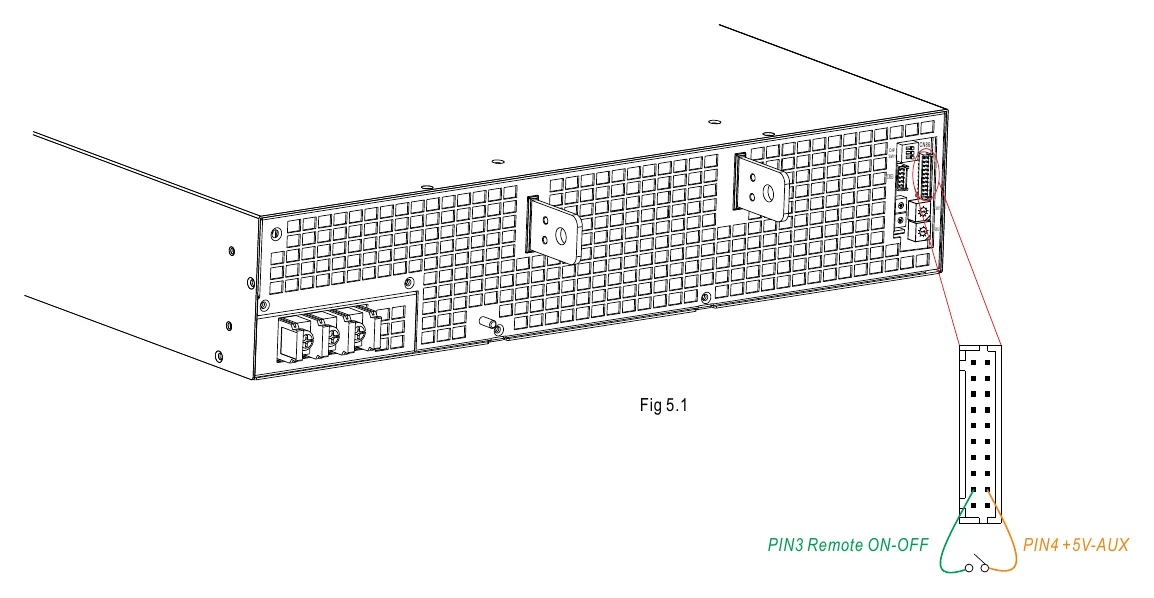

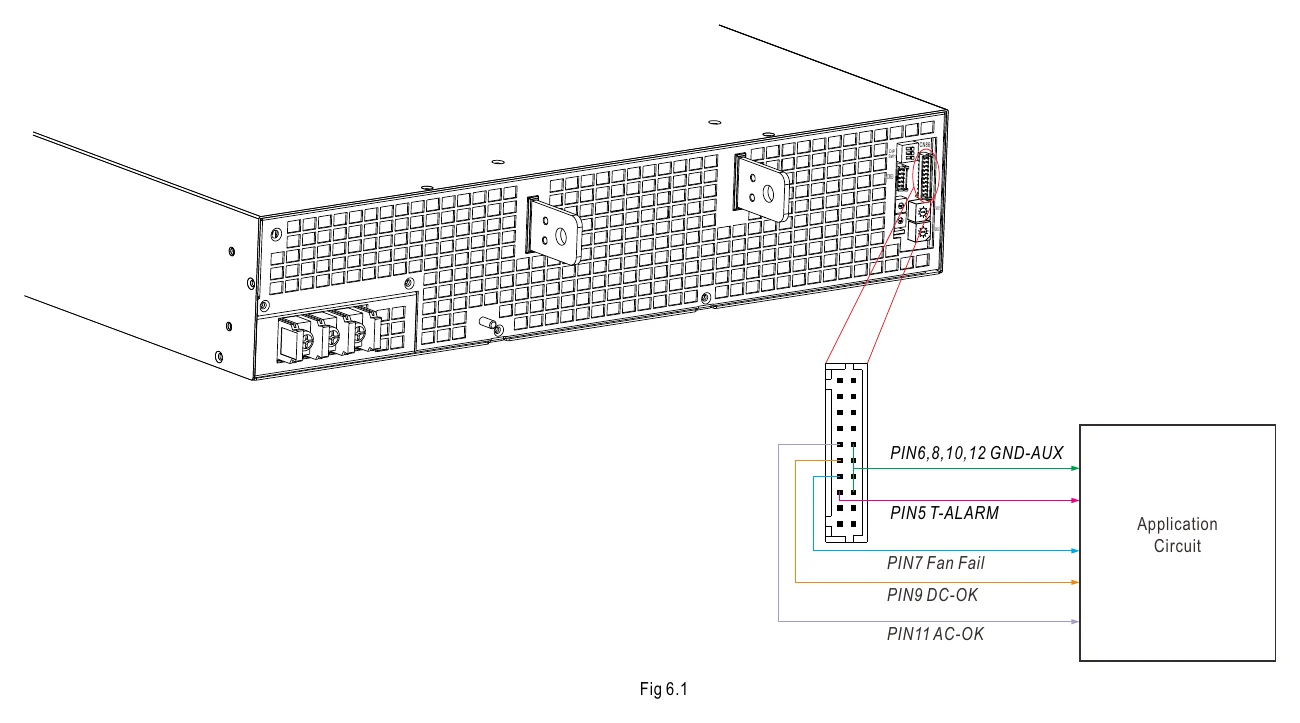

Built-in remote ON-OFF control / Auxiliary power / Alarm signal / Fan faill
Protections: Short circuit / Overload / Over voltage / Over temperature
Double insulation for 55V model
5 years warranty

General Specification

AC input voltage range

3ψ 3-wire or 3ψ 4-wire / 340 ~ 530VAC

AC inrush current (max.)

60A/400VAC 80A/480VAC

Overload protection

100 ~ 105% of rated current

Protection type: Constant current limiting, unit will shut down after 5 sec. re-power on to recover

Over-voltage protection

145-166V

Protection type: Shut down o/p voltage, re-power on to recover

Over temperature protection

Shut down o/p voltage, recovers automatically after temperature goes down

Withstand voltage

I/P-O/P:4.25KVAC I/P-FG:3KVAC O/P-FG:1.25KVAC | I/P-O/P:4.25KVAC I/P-FG:3KVAC O/P-FG:3KVAC

Working temperature

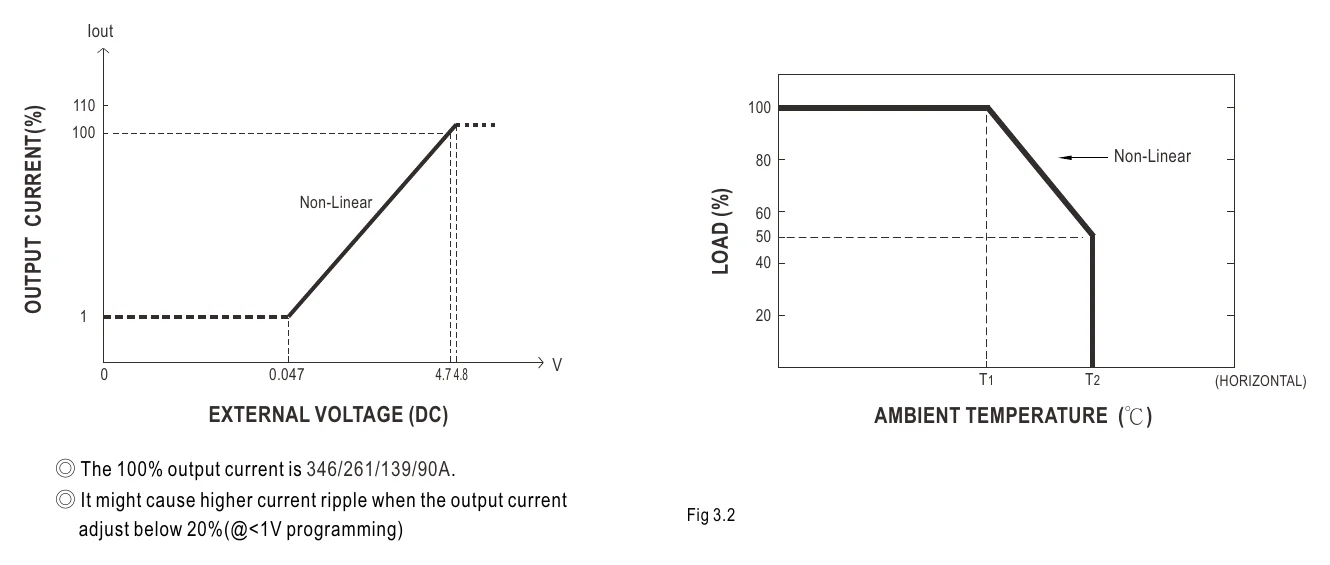

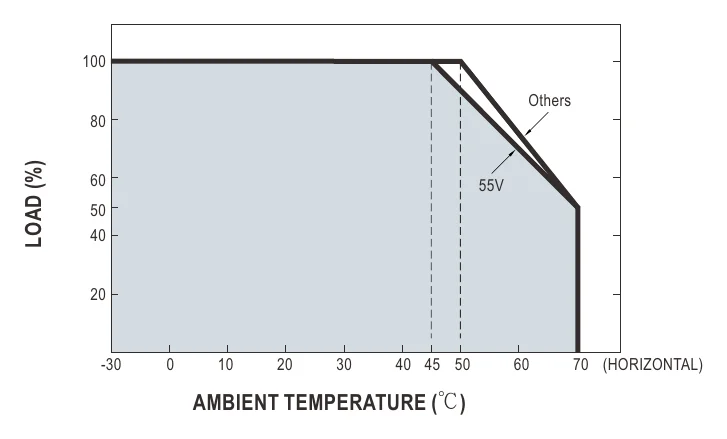

-30 ~ +70 (Refer to "Derating Curve")

Safety standards

UL62368-1, CAN/CSA C22.2 , TUV BS EN/EN62368-1, EAC TP TC 004 approved

Dimension (LxWxH)

540x424x83.5mm

Specifications

Brand

Mean Well
Series

Mean Well SHP Series
Power Rating

30000 Watt
Output Voltage

115 Volt
Rated Current

261 Ampere
Input Voltage

340V~530V
Standards Met

CB,CE,EAC,EN
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

5 Year
Length

54 cm
Width

42.4 cm
Height

8.35 cm
Weight

23.4 kg

File Downloads

::specification::
