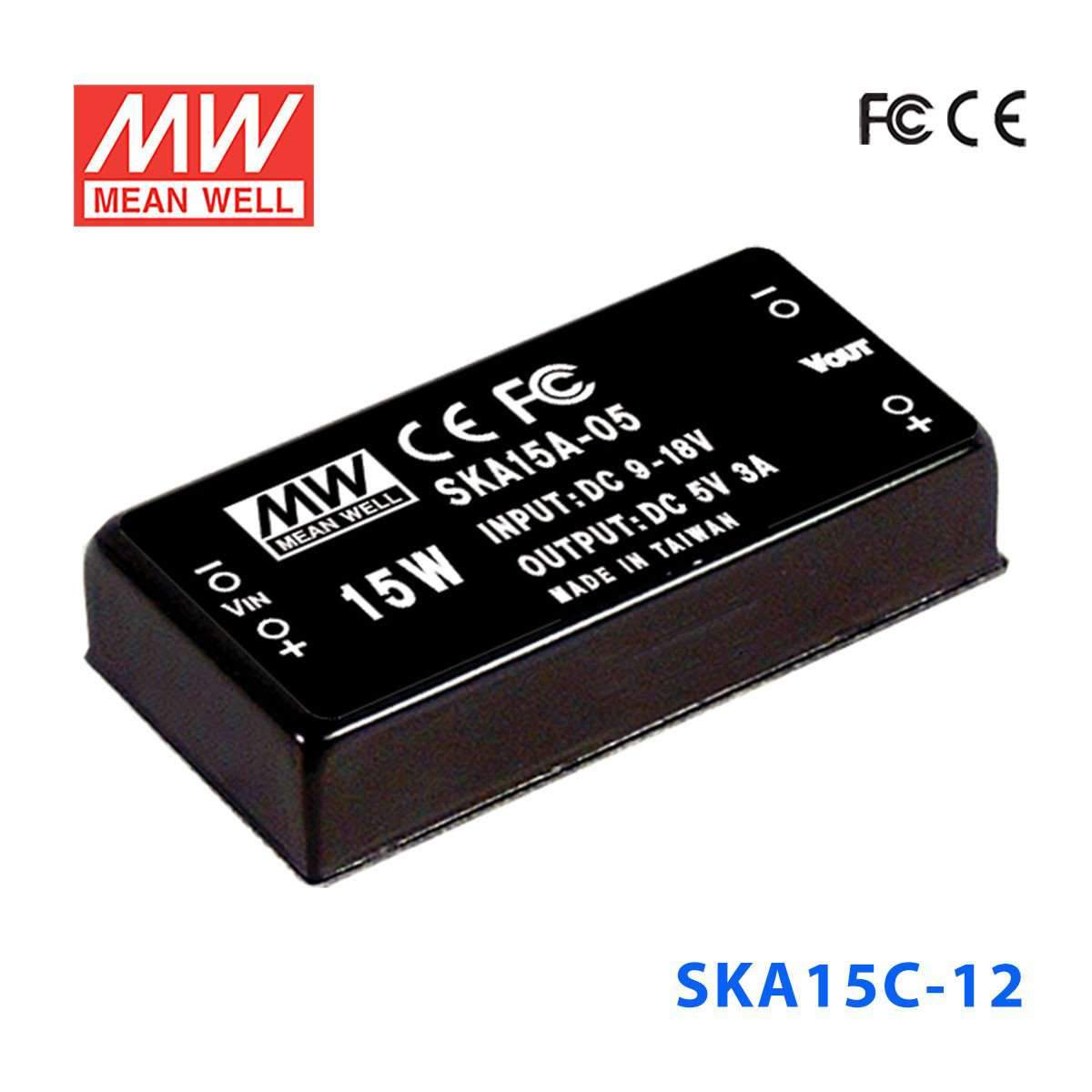

Mean Well SKA15C-12 DC-DC Converter - 15W - 36~72V in 12V out
Please Login for Pricing
Description
Description
Features
| 2:1 wide input range |
| 4:1 wide input range(option) |
| 1000VDC I/O isolation |
| 3000VDC I/O isolation (option) |
| Built-in EMI filter |
| Protection: Short circuit / Overload |
| Cooling by free air convection |
| Six-sided shield metal case |
| 100% full load burn-in test |
| Low cost, high reliability |
| 2 years warranty |
General Specification
| Voltage set point accuracy | ±2% (max.) |
| Line regulation | ±0.2% (max.) |
| Load regulation | ±0.5% (max.)@10~100% load |
| Overload protection | 110%~250%, auto-recovery |
| Efficiency | 82% (typical) |
| Short circuit protection | Continuous, auto-recovery |
| I/O isolation voltage | 1000VDC (min.) |
| I/O isolation resistance | 100MQ(min.)@500VDC |
| Working temperature | -40~+71°C (refer to output derating curve) |
| Storage temperature | -40°C to +105°C |
| EMC | Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B |
| Temp. Coefficient | ±0.03% / °C (max.) |
| Dimension (LxWxH) (mm) | 2" x 1" x 0.44" |
| Case material | Six-sided shield metal case |
Specifications
Specifications
-
BrandMean Well
-
SeriesSKA Series
-
Power Rating15 Watt
-
Output Voltage12 Volt
-
Rated Current1.25 Ampere
-
Input Voltage36V~72V
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~71°C
-
Warranty2 Year
-
Length5.08 cm
-
Width2.54 cm
-
Height1.13 cm
-
Weight0.03 kg
