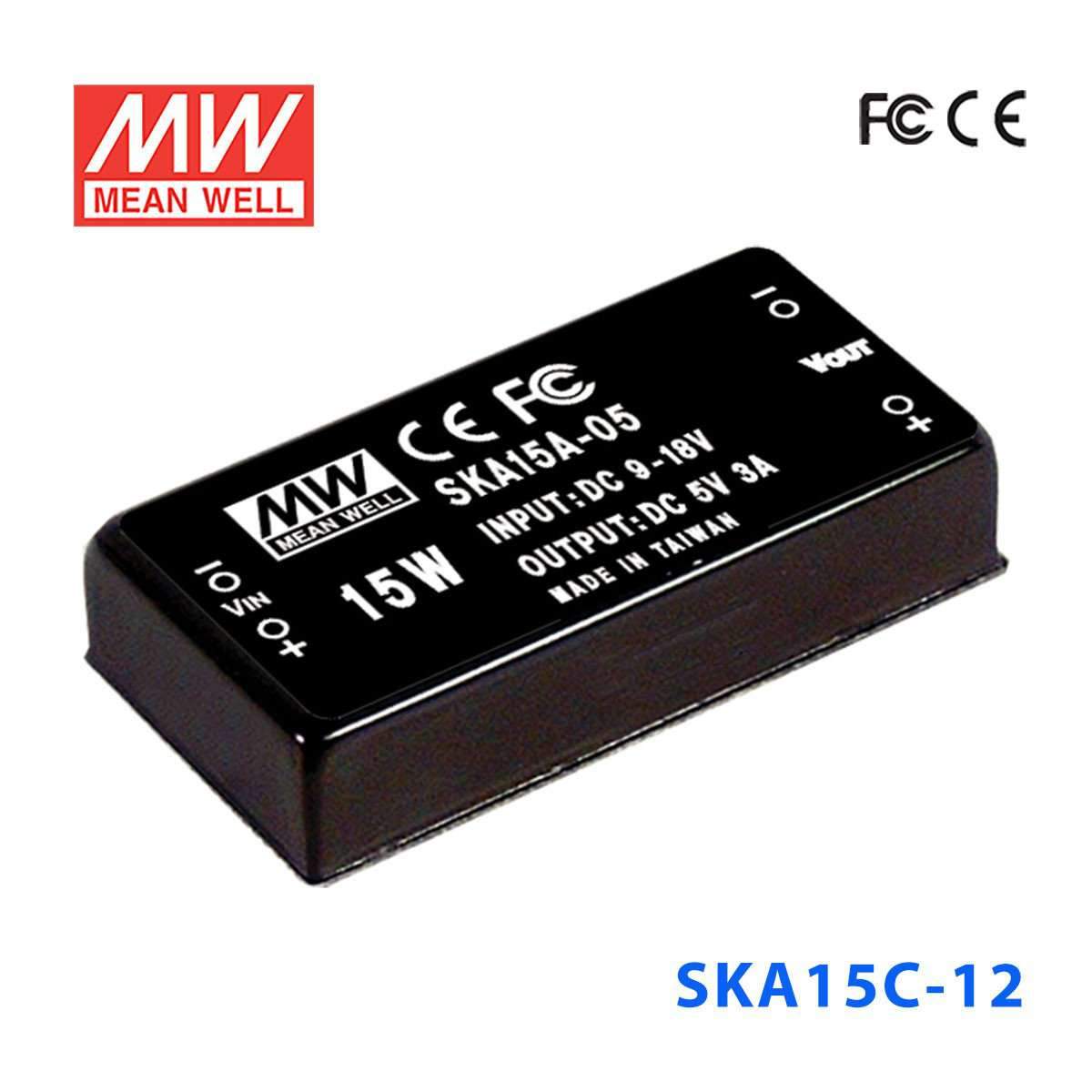

Mean Well SKA15C-12 DC-DC Converter - 15W - 36~72V in 12V out

SKU:

SKA15C-12

Please for Pricing

Notify me when it's back in stock

Description

Features

2:1 wide input range

4:1 wide input range(option)

1000VDC I/O isolation

3000VDC I/O isolation (option)

Built-in EMI filter

Protection: Short circuit / Overload

Cooling by free air convection

Six-sided shield metal case

100% full load burn-in test

Low cost, high reliability

2 years warranty

General Specification

Voltage set point accuracy	±2% (max.)
Line regulation	±0.2% (max.)
Load regulation	±0.5% (max.)@10~100% load
Overload protection	110%~250%, auto-recovery
Efficiency	82% (typical)
Short circuit protection	Continuous, auto-recovery
I/O isolation voltage	1000VDC (min.)
I/O isolation resistance	100MQ(min.)@500VDC
Working temperature	-40~+71°C (refer to output derating curve)
Storage temperature	-40°C to +105°C
EMC	Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Temp. Coefficient	±0.03% / °C (max.)
Dimension (LxWxH) (mm)	2" x 1" x 0.44"
Case material	Six-sided shield metal case

Specifications

Brand

Mean Well
Series

SKA Series
Power Rating

15 Watt
Output Voltage

12 Volt
Rated Current

1.25 Ampere
Input Voltage

36V~72V
Standards Met

CE,EMC,FCC
Operation Mode

Constant Voltage
Operating Temperature

-40°C~71°C
Warranty

2 Year
Length

5.08 cm
Width

2.54 cm
Height

1.13 cm
Weight

0.03 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SKA15C-12 to power a small 12V industrial control accessory from a 36-72VAC source?

Yes, if the source is within the listed 36-72VAC input range and the load needs 12V constant voltage. The unit is rated for 15W total output and up to 1.25A, so it fits lower-power 12V control accessories that stay within those limits.

Is this converter suitable for 12V embedded electronics inside a compact automation enclosure?

It can fit compact embedded designs because the housing is 50.8 × 25.4 × 11.27 mm and the output is regulated 12V constant voltage. The available output is 15W at 1.25A, so the connected electronics need to remain within that power budget.

Can the SKA15C-12 be used for 12V relay, sensor, or interface modules in industrial equipment?

It is appropriate for 12V constant-voltage modules when the total demand does not exceed 1.25A or 15W. That makes it a fit for smaller relay, sensor, or interface loads powered from a 36-72VAC input source.

Would this work for a low-power 12V HMI or panel accessory circuit?

It can work for a low-power 12V panel circuit if the accessory requires constant 12V and stays within 15W output. The compact 0.032 kg form factor also suits space-limited equipment where a small converter is preferred.

Is the SKA15C-12 intended for outdoor or harsh-environment use?

The listed operating temperature range is -40°C to +71°C, which supports a wide temperature span. However, no IP rating is provided in the listed specs, so the product page does not identify it as an outdoor-rated or weather-exposed model.

Model	Power	Voltage	Current	IP Rating
Mean Well SKA15C-15 DC-DC Converter - 15W - 36~72V in 15V out	15W	15V	1A	Indoor	View
Mean Well SKA15C-05 DC-DC Converter - 15W - 36~72V in 5V out	15W	5V	3A	Indoor	View
Mean Well SKA15C-033 DC-DC Converter - 15W - 36~72V in 3.3V out	15W	3.3V	3A	Indoor	View
Mean Well SKA15B-15 DC-DC Converter - 15W - 18~36V in 15V out	15W	15V	1A	Indoor	View
Mean Well SKA15B-12 DC-DC Converter - 15W - 18~36V in 12V out	15W	12V	1.25A	Indoor	View
Mean Well SKA15B-05 DC-DC Converter - 15W - 18~36V in 5V out	15W	5V	3A	Indoor	View
Mean Well SKA15B-033 DC-DC Converter - 15W - 18~36V in 3.3V out	15W	3.3V	3A	Indoor	View
Mean Well SKA15A-15 DC-DC Converter - 9.9W - 9~18V in 15V out	9.9W	15V	1A	Indoor	View
Mean Well SKA15A-12 DC-DC Converter - 9.9W - 9~18V in 12V out	9.9W	12V	1.25A	Indoor	View
Mean Well SKA15A-05 DC-DC Converter - 9.9W - 9~18V in 5V out	9.9W	5V	3A	Indoor	View
Mean Well SKA15A-033 DC-DC Converter - 9.9W - 9~18V in 3.3V out	9.9W	3.3V	3A	Indoor	View
