Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

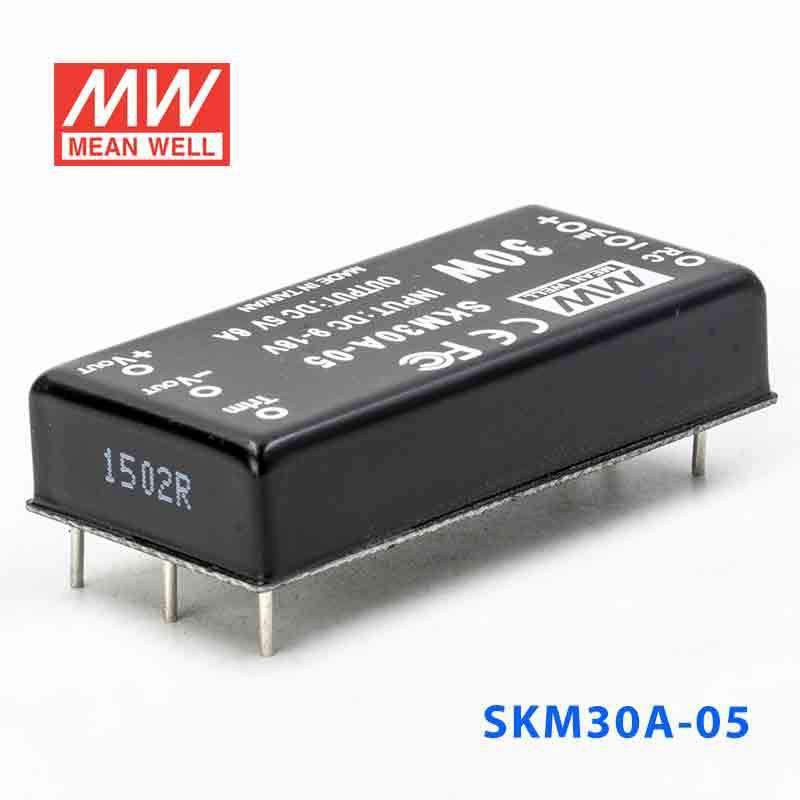

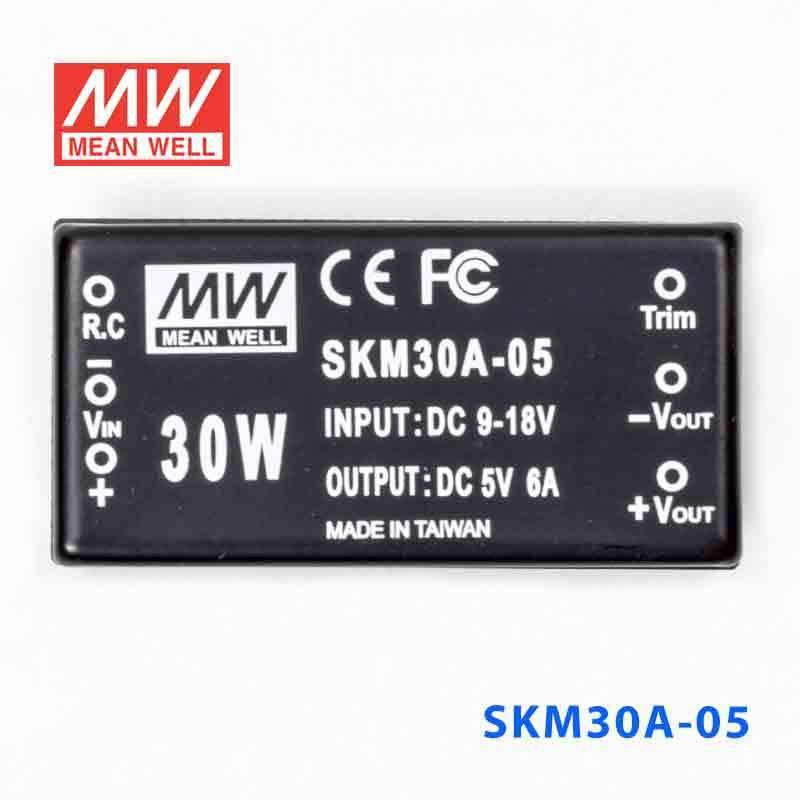

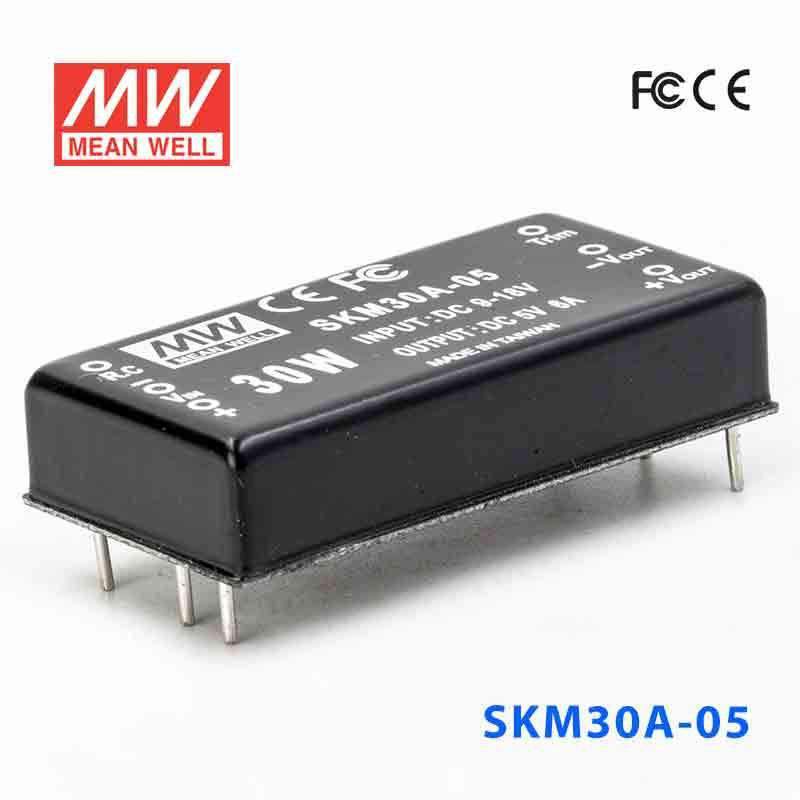

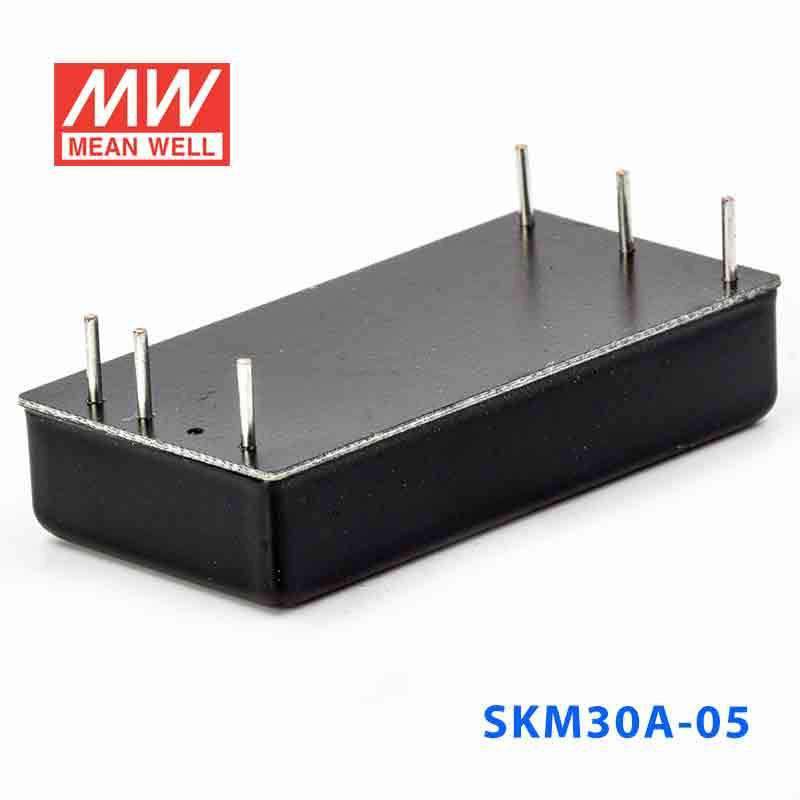

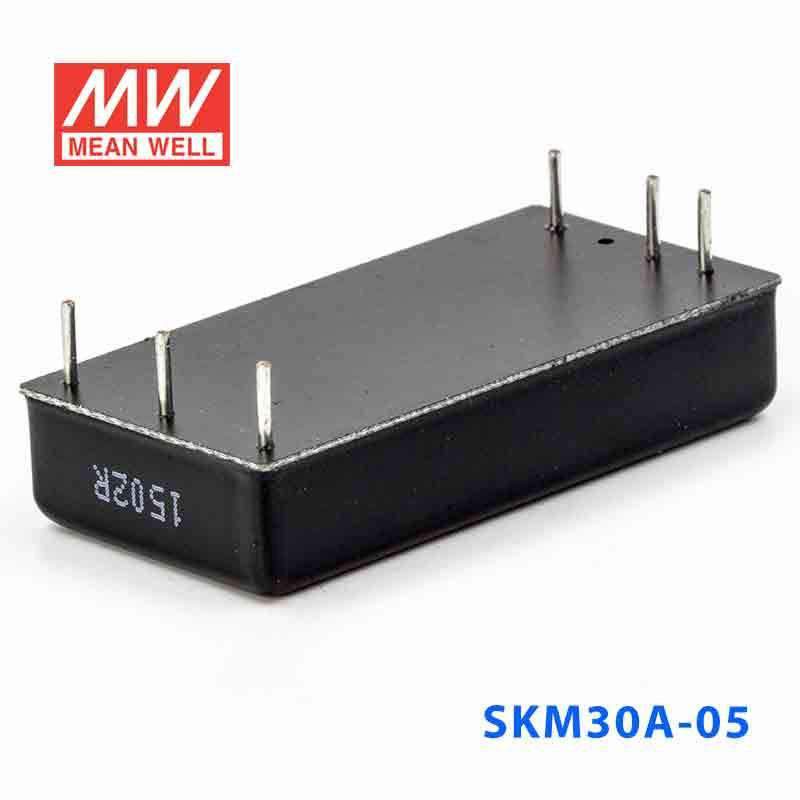

Mean Well SKM30A-05 DC-DC Converter - 30W - 9~18V in 5V out

SKU:

SKM30A-05

Please for Pricing

Notify me when it's back in stock

Description

Features

2""x 1"" compact size

2:1 wide input range

1500VDC I/O isolation

Built-in remote ON/OFF control

Built-in EMI filter

Protection: Short circuit / Overload Input and output over voltage

Cooling by free air convection

Six-sided shield metal case

100% full load burn-in test

Low cost, high reliability

Trimming output (±10%)

2 years warranty

General Specification

Voltage set point accuracy	±2% (max.)
Line regulation	±0.2% (max.)
Load regulation	±0.5% (max.)@10~100% load
Overload protection	110%~180%, auto-recovery
Efficiency	90% (typical)
Short circuit protection	Continuous, auto-recovery
I/O isolation voltage	1500VDC (min.)
I/O isolation resistance	100MQ(min.)@500VDC
Working temperature	-40~+75°C (refer to output derating curve)
EMC	Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Dimension (LxWxH) (mm)	2""x 1""x 0.44""

Specifications

Brand

Mean Well
Series

SKM Series
Power Rating

30 Watt
Output Voltage

5 Volt
Rated Current

6 Ampere
Input Voltage

9V~18V
Standards Met

CE,EMC,FCC
Operation Mode

Constant Voltage
Operating Temperature

-40°C~75°C
Warranty

2 Year
Length

5.08 cm
Width

2.54 cm
Height

1.12 cm
Weight

0.03 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SKM30A-05 for a 5V industrial controller or embedded computer with higher current demand?

This model provides constant-voltage 5V output at up to 6A, with 30W total power available. That makes it a stronger fit for 5V controllers, embedded computers, or processing boards that need more current than a 10W converter can provide.

Is the SKM30A-05 suitable for 5V automation peripherals or sensor clusters?

Yes, it is intended for 5V constant-voltage loads and can supply up to 6A. For grouped 5V automation electronics, interface devices, or sensor assemblies that stay within 30W, it aligns with that requirement.

Can this converter power a 5V control subsystem in industrial or embedded equipment?

The unit is designed for constant 5V output and a 9-18VAC input range. Its 30W rating and 6A output make it suitable for 5V control subsystems that need more headroom than lower-power compact converters.

Is the SKM30A-05 appropriate for outdoor or temperature-variable installations?

The published operating temperature range is -40°C to +75°C, so it supports wide temperature conditions. No IP rating is listed in the specs, so the product data does not confirm use in exposed outdoor, wet, or dust-intensive environments.

How does the SKM30A-05 compare with the other SKM30A outputs?

The listed SKM30A models are all 30W converters with 9-18VAC input and the same 50.8 × 25.4 × 11.2 mm dimensions. The outputs differ by version: SKM30A-05 is 5V at 6A, SKM30A-12 is 12V at 2.5A, and SKM30A-15 is 15V at 2A.

Model	Power	Voltage	Current	IP Rating
Mean Well SKM30C-15 DC-DC Converter - 30W - 36~75V in 15V out	30W	15V	2A	Indoor	View
Mean Well SKM30C-12 DC-DC Converter - 30W - 36~75V in 12V out	30W	12V	2.5A	Indoor	View
Mean Well SKM30C-05 DC-DC Converter - 30W - 36~75V in 5V out	30W	5V	6A	Indoor	View
Mean Well SKM30B-15 DC-DC Converter - 30W - 18~36V in 15V out	30W	15V	2A	Indoor	View
Mean Well SKM30B-12 DC-DC Converter - 30W - 18~36V in 12V out	30W	12V	2.5A	Indoor	View
Mean Well SKM30B-05 DC-DC Converter - 30W - 18~36V in 5V out	30W	5V	6A	Indoor	View
Mean Well SKM30A-15 DC-DC Converter - 30W - 9~18V in 15V out	30W	15V	2A	Indoor	View
Mean Well SKM30A-12 DC-DC Converter - 30W - 9~18V in 12V out	30W	12V	2.5A	Indoor	View
