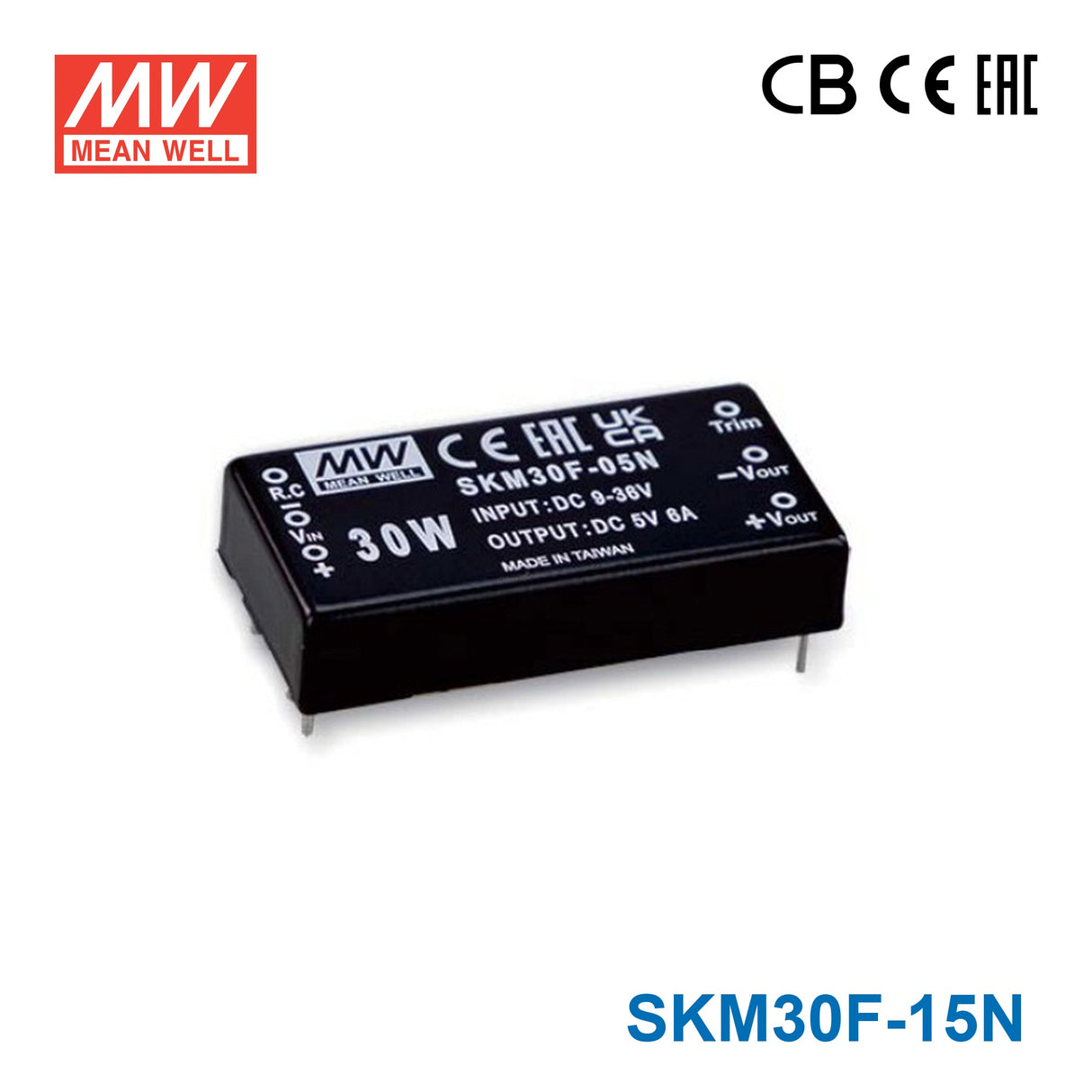

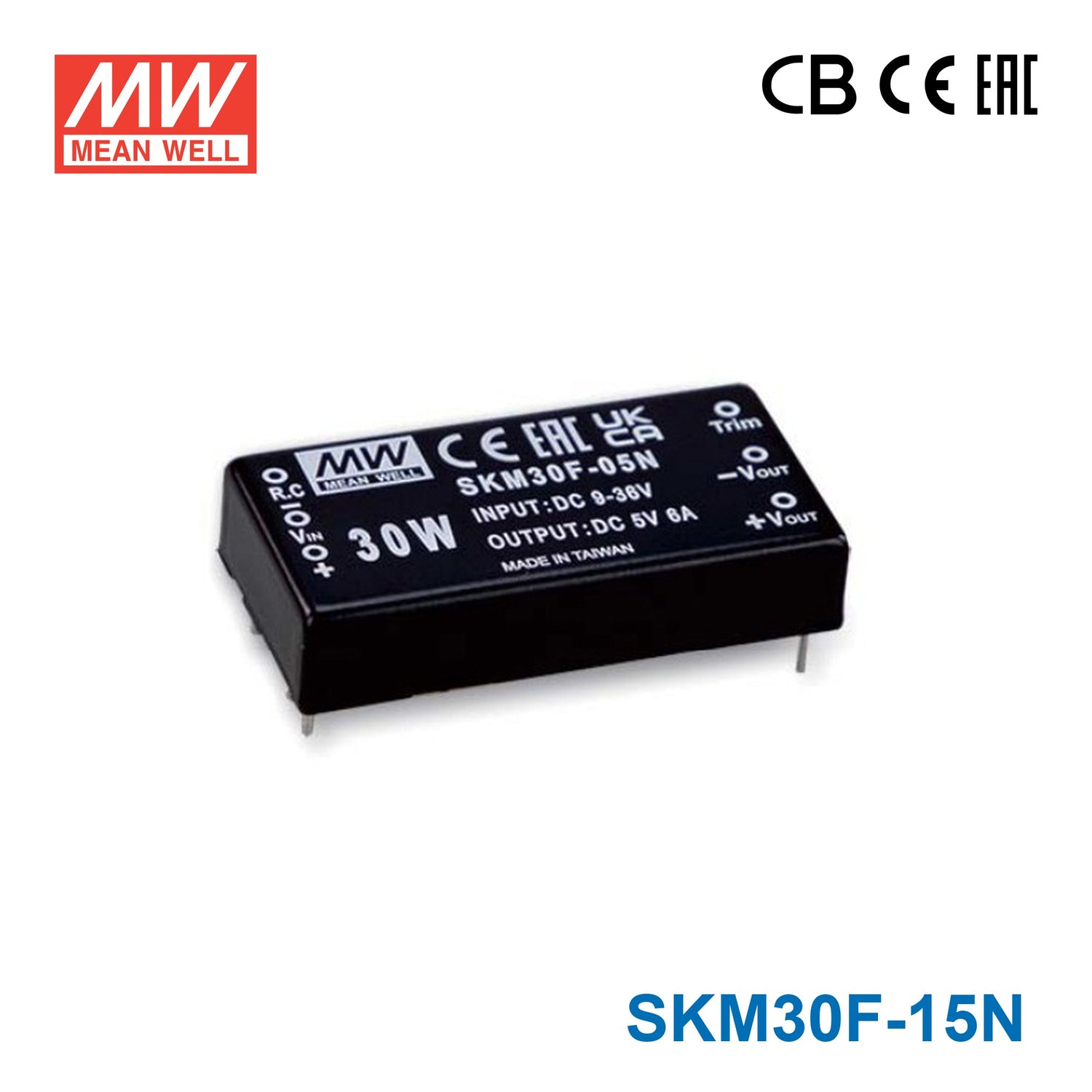

Mean Well SKM30F-15N 2"x1" Package DC-DC Converter 30W 15V, Single Output 2A

SKU SKM30F-15N

Log in to see price Trade pricing & online ordering for account holders

End of Life, Succeeded by SKM30W8

Available to order

Overview

SKM30F-15N is the 15V output model of this series: rated power 30W, typical efficiency 87.5%.

SKM30-N and DKM30-N series are 30W isolated and regulated module type DC-DC converter with DIP 2"x1" package. It features international standard pins, a high efficiency up to 89%, wide working temperature range -40~+90℃, 3KVDC I/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated Class A without additional components, continuous-mode short circuit, overload, over voltage protection, remote ON/OFF and trimmable output voltage etc. The models account for different input voltage 9~36V and 18~75V 4:1 ultrawide input range, and various output voltage, 5V/12V/15V for single output and ±12V/±15V for dual outputs, which are suitable for all kinds of systems, such as industrial control, telecommunication field, distributed power architecture, and so on.

Features

DIP 2"x1" package with industry standard pinout
4:1 ultrawide input range
Operating temperature range -40 ~ +90℃
(-40 ~ +60℃ no derating)
No minimum load required
Comply to BS EN/EN55032 radiated Class A without additional components
High efficiency up to 89%
Protections: Short circuit (Continuous) / Overload / Over voltage
3KVDC I/O isolation
Remote ON/OFF control and Trimming output (±10%)
Screw terminal type available (Optional)
24Vdc model available (Only single output optional)
3 years warranty

Specifications

SKM30F-15NSpecifications from the official datasheet (2024-11-18 edition)

MODEL SELECTION TABLE

INPUT VOLTAGE (RANGE): Nominal 12V, 24V (9 ~ 36V)
INPUT CURRENT NO LOAD: 30mA
INPUT CURRENT FULL LOAD: 2874mA
OUTPUT VOLTAGE: 15V
OUTPUT CURRENT: 0~2000mA
EFFICIENCY (TYP.): 87.5%
CAPACITOR LOAD (MAX.)^{* For each output}: 220μF

INPUT

VOLTAGE RANGE: 9~36Vdc ,
FILTER: Pi network
PROTECTION: Fuse recommended (24Vin : 6A Slow-Blow type, 48Vin: 4A Slow-Blow)

OUTPUT

VOLTAGE ACCURACY: ±2% max.
RATED POWER: 30W
RIPPLE & NOISE^Note.2: 150mVp-p max.
LINE REGULATION^Note.3: ±0.2%
LOAD REGULATION^Note.4: ±0.5%
SWITCHING FREQUENCY (Typ.): 380KHz
EXTERNAL TRIM ADJ. RANGE (Typ.): ±10% (Single output model only)

PROTECTION

SHORT CIRCUIT: Protection type : Continuous, automatic recovery
OVERLOAD: 110 ~ 230% Protection type : Recovers automatically after fault condition is removed
OVER VOLTAGE INPUT: Protection type : Shutdown output voltage (F type : 40Vdc typ. , G type: 86Vdc typ.)
OVER VOLTAGE OUTPUT: Clamp by TVS diodes

FUNCTION

REMOTE CONTROL: Power ON: R.C. ~ -Vin >2.5~5Vdc or open circuit ; Power OFF: R.C. ~ -Vin <1Vdc or short

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.: -40 ~ +90℃ (Refer to "Derating Curve")
CASE TEMPERATURE: +110℃ max.
WORKING HUMIDITY: 5% ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -55 ~ +125℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.05% / ℃
SOLDERING TEMPERATURE: 1.5mm from case of 3 ~ 5 sec./265℃ max.
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION CAPACITANCE (Typ.): 1000pF
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32) N/A
Radiated BS EN/EN55032(CISPR32) Class A
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 ±4KV contact
Radiated Susceptibility BS EN/EN61000-4-3 3V/m
EFT/Bursts BS EN/EN61000-4-4 Level 1, 0.5KV
Surge BS EN/EN61000-4-5 ±0.5KV Line-Line
Conducted BS EN/EN61000-4-6 3V(e.m.f.)

OTHERS

MTBF: >250Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): 50.8*25.4*11.2mm (2*1*0.44 inch)
CASE MATERIAL: Six-side shielded case
PACKING: Blank Type: 31g ; 10pcs/per tube, 400pcs/40 tube/per carton ST Type: 50g ; 10pcs/Box, 120pcs/12 Box/per carton

Test conditions and notes5

1.All parameters are specified at normal input(F:12Vdc, G:24Vdc), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 0% to 100% rated load.
5.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)

Technical drawings

SKM30F-15N SKM30-N & DKM30-N series — SKM30-N & DKM30-N series

SKM30F-15N SKM30-N & DKM30-N series (2) — SKM30-N & DKM30-N series (2)

SKM30F-15N SKM30-N & DKM30-N series (3) — SKM30-N & DKM30-N series (3)

SKM30F-15N Mechanical Specification — Mechanical Specification

SKM30F-15N Standard Packing — Standard Packing
