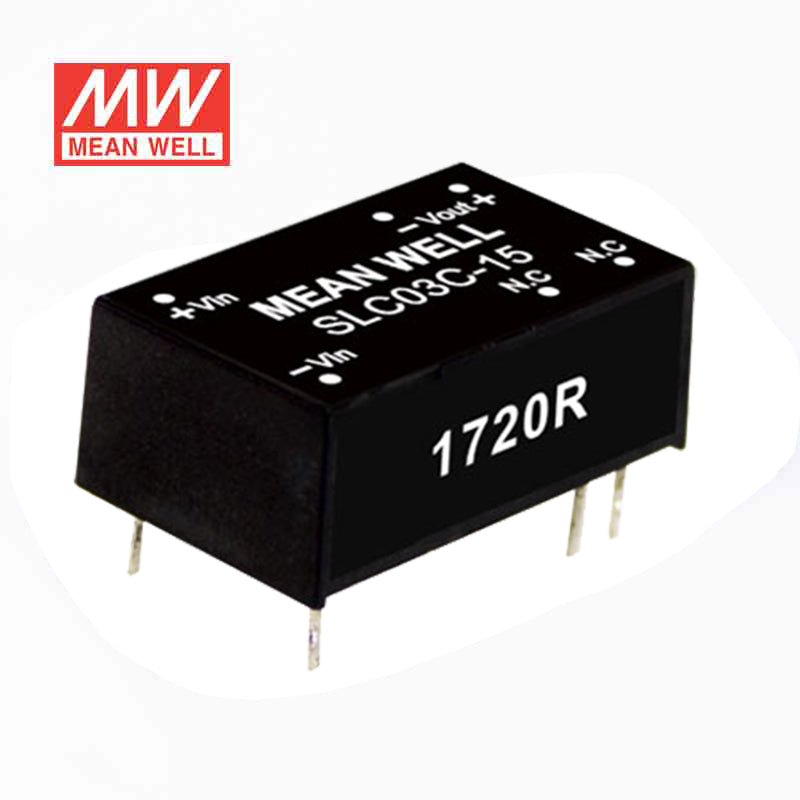

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well SLC03B-15 DC-DC Converter - 3W - 18~36V in 15V out 200mA

SKU SLC03B-15

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

SLC03B-15 is the 15V output model of this series: rated power 3W, typical efficiency 82%.

SLC03 and DLC03 series are 3W isolated and regulated module type DC-DC converter with DIP16 package. It features international standard pins, a high efficiency up to 8 2 %, wide working temperature range -40~+ 85℃, 1 . 5 KVDC I/P-O/P isolation voltage, the compliance to BS EN/EN55032 radiated Class B without additional components, continuous-mode short circuit protection, etc. The models account for different input voltage , 9~18V, 18~36V and 36~75V 2:1 wide input range, and various output voltage, 5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for all kinds of systems, s uch as industrial control, telecommunication field, distributed power architecture, and so on.

Features

DIP16 package with industry standard pinout
2:1 wide input range
Operating temperature range -40 ~ +85℃
No minimum load required
Comply to BS EN/EN55032 radiated Class B without additional components
High efficiency up to 82%
Protections: Short circuit (Continuous) / Overload / Input under voltage
1.5KVDC I/O isolation
3 years warranty

Specifications

SLC03B-15Specifications from the official datasheet (2024-08-02 edition)

INPUT

INPUT VOLTAGE (RANGE): 24V (18 ~ 36V)
INPUT CURRENT NO LOAD: 10mA
INPUT CURRENT FULL LOAD: 153mA
VOLTAGE RANGE: 18~36Vdc ,
SURGE VOLTAGE (100ms max.): 12Vin models : 25Vdc ; 24Vin models : 50V ; 48Vin models : 100Vdc
FILTER: Internal capacitor
PROTECTION: Fuse recommended. 12Vin models: 1A Slow-Blow Type, 24Vin models: 0.5A Slow-Blow Type, 48Vin models: 200mA Slow-Blow Type
INTERNAL POWER DISSIPATION: 1000mW

OUTPUT

OUTPUT VOLTAGE: 15V
OUTPUT CURRENT: 200mA
EFFICIENCY (TYP.): 82%
CAPACITOR LOAD (MAX.): 330μF
VOLTAGE ACCURACY: ±2%
RATED POWER: 3W
RIPPLE & NOISE^Note.2: 50mVp-p
LINE REGULATION^Note.3: ±0.2%
LOAD REGULATION^Note.4: ±0.5%
SWITCHING FREQUENCY (Typ.): 100KHz

PROTECTION

SHORT CIRCUIT: Protection type : Continuous, automatic recovery
OVERLOAD: 150 ~ 250% rated output power Protection type : Recovers automatically after fault condition is removed
UNDER VOLTAGE LOCKOUT Start-up voltage: 12Vin: 8.8Vdc, 24Vin: 17Vdc, 48Vin: 34Vdc
UNDER VOLTAGE LOCKOUT Shutdown voltage: 12Vin: 7Vdc, 24Vin: 14Vdc, 48Vin: 30Vdc

ENVIRONMENT

COOLING: Free-air convection
WORKING TEMP.: -40 ~ +85℃ (Refer to "Derating Curve")
CASE TEMPERATURE: +100℃ max.
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +105℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: 0.03% / ℃ (0 ~ 80℃)
SOLDERING TEMPERATURE: 1.5mm from case of 3 ~ 5sec./265℃ max.
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved
WITHSTAND VOLTAGE: I/P-O/P:1.5KVDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION CAPACITANCE (Typ.): 80pF
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32) N/A
Radiated BS EN/EN55032(CISPR32) Class B
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, ±8KV air
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Bursts BS EN/EN61000-4-4 Level 1, 0.5KV
Surge BS EN/EN61000-4-5 Level 2, 0.5KV Line-Line
Conducted BS EN/EN61000-4-6 Level 2, 3V
Magnetic Field BS EN/EN61000-4-8 Level 1, 1A/m

Parameter	Standard	Test Level
Conducted	BS EN/EN55032(CISPR32)	N/A
Radiated	BS EN/EN55032(CISPR32)	Class B

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, ±8KV air
Radiated Susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT/Bursts	BS EN/EN61000-4-4	Level 1, 0.5KV
Surge	BS EN/EN61000-4-5	Level 2, 0.5KV Line-Line
Conducted	BS EN/EN61000-4-6	Level 2, 3V
Magnetic Field	BS EN/EN61000-4-8	Level 1, 1A/m

OTHERS

MTBF: 300Khrs min. MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): 22.1*13.8*8.55mm (0.87*0.54*0.34 inch)
CASE MATERIAL: Non-Conductive black plastic (UL 94V-0 rated)
PACKING: 4.5g ; 36pcs/per tube, 1800pcs/50 tube/per carton

Test conditions and notes6

1.All parameters are specified at normal input(A:12Vdc, B:24Vdc, C:48Vdc), rated load, 25℃ 70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 10% to 100% rated load.
5.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)
6.An external input filter capacitor is required if the module has to meet BS EN/EN61000-4-4, BS EN/EN61000-4-5. The filter capacitor Power Mate suggest: 220uF/100V.

Technical drawings

SLC03B-15 Plug Assignment — Plug Assignment

Typical applications

Downloads

Certificates3

Certificate (SLC-DLC03-EMC)(EN) PDF Download

Certificate (SLC-DLC03-UK-dec)(EN) PDF Download

Certificate (SLC-DLC03-CE-dec)(EN) PDF Download

Test reports1

Test Report (SLC03B-15)(EN) PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the SLC03B-15 to power a 15V control circuit in industrial equipment?

Yes, this converter is intended for constant-voltage 15V output applications up to 3W. It accepts 18-36VDC input and provides 15V output with a listed 200mA output current, which makes it suitable for low-power 15V control or signal circuits within that input range.

Is the SLC03B-15 suitable for embedded 15V electronics inside a compact system?

It can fit space-constrained embedded designs because the body is 22.1 × 13.8 × 8.55 mm and weighs 0.0045 kg. The unit is a 3W constant-voltage converter, so it is best matched to low-power 15V electronics rather than higher-load subsystems.

Can this DC-DC converter be used in automation panels that have 18-36VDC available?

Yes, if the panel provides 18-36VDC and the load needs a regulated 15V constant-voltage output within the converter's 3W rating. Its compact size also helps where board or enclosure space is limited.

Is the SLC03B-15 appropriate for harsh temperature environments?

It is rated for operation from -40°C to +85°C, with load derating at the upper end per the derating curve, so it covers a wide temperature range for industrial and embedded environments. No IP rating is listed, so outdoor or washdown use should not be assumed from the provided specs alone.

How does the SLC03B-15 compare with the other SLC03B models?

All three SLC03B models are 3W DC-DC converters in the same series. The SLC03B-05 provides 5V output with a listed 600mA output current, the SLC03B-12 provides 12V with 250mA, and the SLC03B-15 provides 15V with 200mA.
