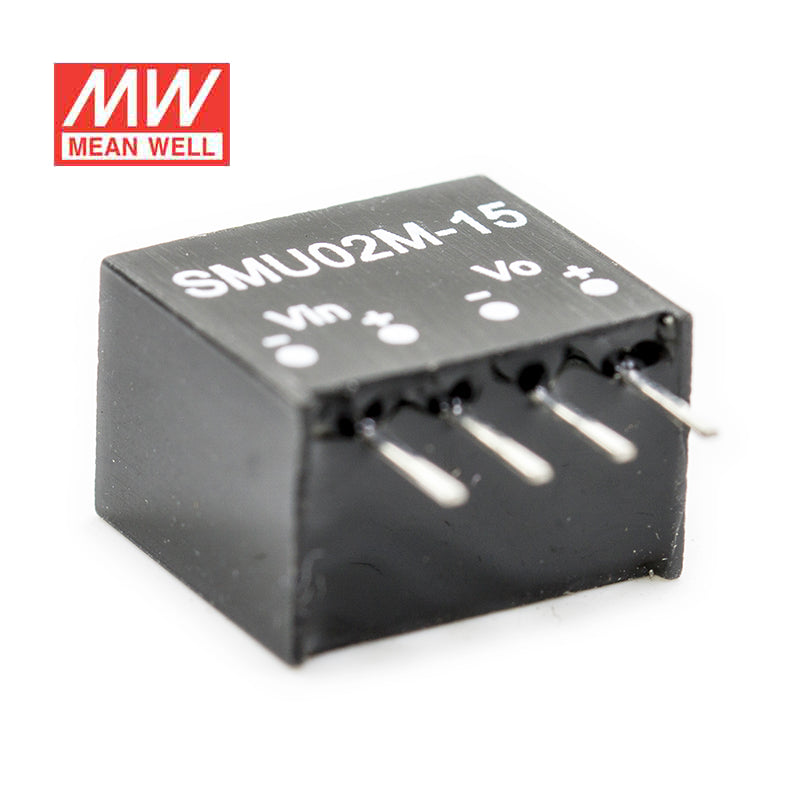

Mean Well SMU02M-15 DC-DC Converter - 2W - 10.8~13.2V in 15V out 133mA

SKU SMU02M-15
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

SMU02M-15 is the 15V output model of this series: rated power 2W, typical efficiency 85%.

Features

  • SIP packge
  • Industry standard pinout
  • 1500VDC I/O isolation
  • Built-in EMI filter without external components
  • Cooling by free air convection
  • Non-conductive plastic case
  • 100% burn-in test
  • Low cost / High reliability
  • 2 years warranty

Specifications

SMU02M-15Specifications from the official datasheet (2024-08-02 edition)

OUTPUT

DC VOLTAGE
15V
CURRENT RANGE
27 ~ 133mA
RATED POWER
2W
RIPPLE & NOISE (max.)Note.2
80mVp-p
LINE REGULATIONNote.3
±1.2% for 1% input variation
LOAD REGULATIONNote.4
±8.0%
VOLTAGE ACCURACY
±2.0%
SWITCHING FREQUENCY(Typ.)
100KHz

INPUT

VOLTAGE RANGE
10.8 ~ 13.2V
EFFICIENCY(Typ.)
85%
NORMAL VOLTAGE
12V
INPUT CURRENT Full load
210mA
INPUT CURRENT No load
25mA
PROTECTION (FUSE RECOMMENDED)
250mA
FILTER
Capacitor type

PROTECTION

OVERLOAD
Momentary Protection type : Broken
SHORT CIRCUIT
Momentary Protection type : Broken

ENVIRONMENT

WORKING TEMP.
-40 ~ +85℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-55 ~ +125℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.05% / ℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE
I/P-O/P:1.5KVDC
ISOLATION RESISTANCE
I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION CAPACITANCE
80pF max.
EMI RADIATION
Compliance to BS EN/EN55032 Class B, FCC part 15 Class B, EAC TP TC 020
EMS IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8 light industry level, criteria A, EAC TP TC 020

OTHERS

MTBF
100Khrs min. MIL-HDBK-217F(25℃)
DIMENSION (L*W*H)
11.6*7.5*10.14mm or 0.46"*0.30"*0.40" inch
PACKING
1.3g ; 42 pcs/per tube, 6720 pcs/ 160 tube/per carton
Test conditions and notes4
  1. 1.All parameters are specified at normal input, rated load, 25℃ 70% RH ambient.
  2. 2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
  3. 3.Line regulation is measured from low line to high line at rated load.
  4. 4.Load regulation is measured from 20% to 100% rated load.

Technical drawings

SMU02M-15 Mechanical Specification Unit: mm
Mechanical Specification Unit: mm
SMU02M-15 Packing
Packing

Downloads

FAQ

Can I use the SMU02M-15 for a 15V rail in low-power industrial or embedded equipment?

This converter is intended for low-power electronics that need a 15V constant-voltage output from a 10.8~13.2VDC input range. With a 2W rating, it is a better fit for embedded, control, and interface circuitry than for higher-power industrial loads.

Is the SMU02M-15 suitable for compact analog or measurement circuitry that needs 15V?

It can fit board-level analog, instrumentation, or signal-path electronics where a 15V output is required and the design stays within 2W. The 11.6 × 10.14 × 7.5 mm dimensions support use in dense, space-limited assemblies.

Can the SMU02M-15 be used in small automation control modules with limited space?

Yes, the very small package and 0.0013 kg weight make it practical for compact control modules and embedded electronics. The key limit is that it is a 2W converter, so it is intended for low-power 15V sections only.

Is the SMU02M-15 rated for harsh temperatures or outdoor environments?

The specified operating temperature range is -40°C to +85°C, which supports use across a broad thermal span. No IP rating is listed in the product specs, so exposed outdoor use or sealed-enclosure performance is not confirmed here.

How does the SMU02M-15 compare to the other SMU02M versions?

The SMU02M-05 is specified at 2W, 5V output, and 400mA output current, and the SMU02M-12 is 2W, 12V output, and 167mA output current. The SMU02M-15 version is 2W, 15V output, and 133mA output current, so the sibling models mainly vary by output voltage and output current.
