Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

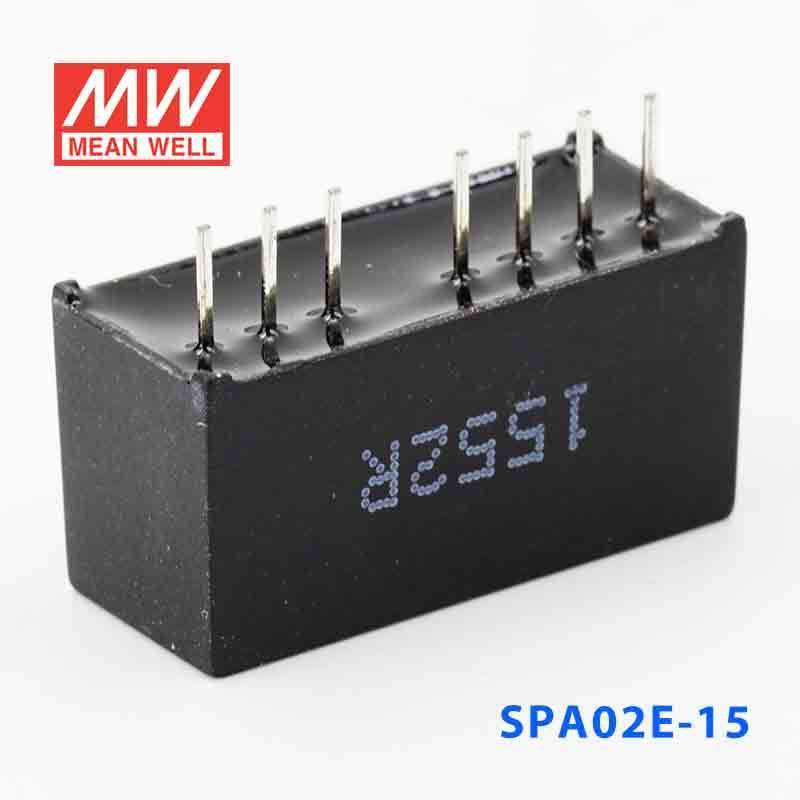

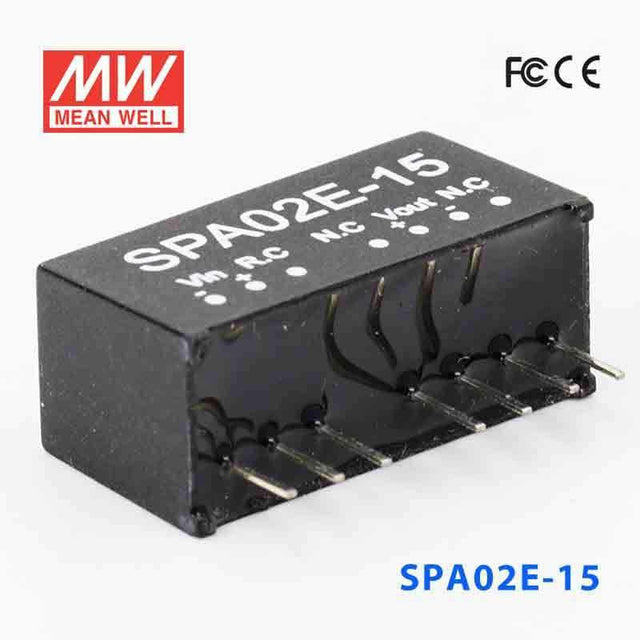

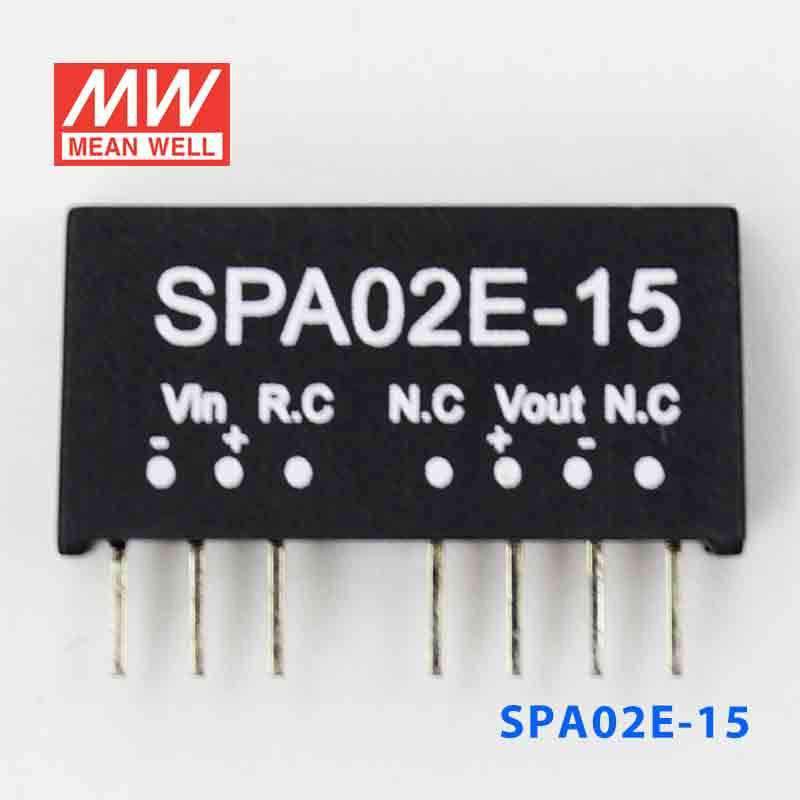

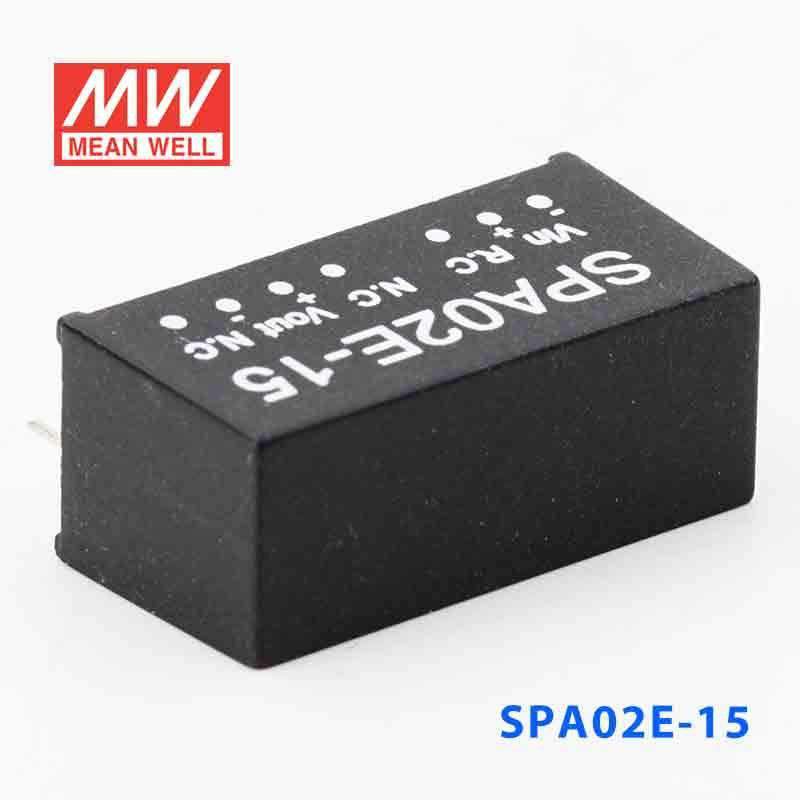

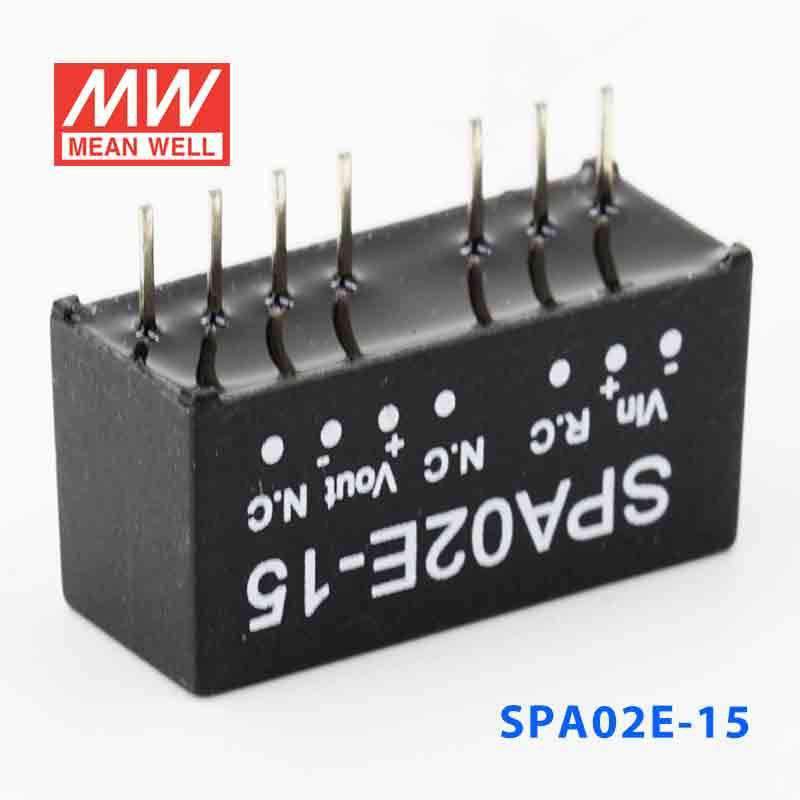

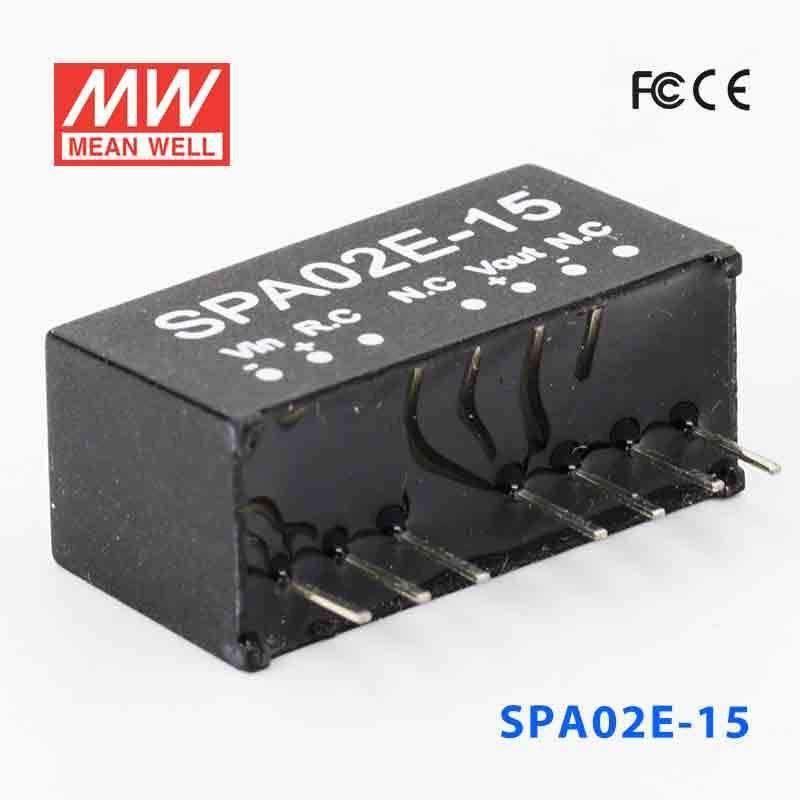

Mean Well SPA02E-15 DC-DC Converter - 1.8W - 4.5~9V in 15V out
Log in to see price"
Features
- 2:1 wide input range
- 4:1 wide input range (A / B Type Only)
- 1000VDC I/O isolation
- 3000VDC I/O isolation (Option)
- Built-in remote ON/OFF control
- Built-in EMI filter
- Protections: Short circuit / Overload
- Cooling by free air convection
- Single in line package
- 100% full load burn-in test
- Low cost / High reliability
- Modified models available: output 3.3V/9V
- 2 years warranty
-
BrandMean Well
-
SeriesSPA Series
-
Power Rating1.8 Watt
-
Output Voltage15 Volt
-
Rated Current0.12 Ampere
-
Input Voltage4.5V~9V
-
Standards MetCE,EAC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty2 Year
-
Length2.18 cm
-
Width0.92 cm
-
Height1.11 cm
-
Weight0 kg
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other SPA02 Models
11 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well SPA02E-12 DC-DC Converter - 1.8W - 4.5~9V in 12V out | 1.8W | 12V | 0.15A | — | View |
| Mean Well SPA02E-05 DC-DC Converter - 2W - 4.5~9V in 5V out | 2W | 5V | 0.4A | — | View |
| Mean Well SPA02C-15 DC-DC Converter - 2W - 36~72V in 15V out | 2W | 15V | 0.13A | — | View |
| Mean Well SPA02C-12 DC-DC Converter - 2W - 36~72V in 12V out | 2W | 12V | 0.16A | — | View |
| Mean Well SPA02C-05 DC-DC Converter - 2W - 36~72V in 5V out | 2W | 5V | 0.4A | — | View |
| Mean Well SPA02B-15 DC-DC Converter - 2W - 18~36V in 15V out | 2W | 15V | 0.13A | — | View |
| Mean Well SPA02B-12 DC-DC Converter - 2W - 18~36V in 12V out | 2W | 12V | 0.16A | — | View |
| Mean Well SPA02B-05 DC-DC Converter - 2W - 18~36V in 5V out 400mA | 2W | 5V | 0.4A | Indoor | View |
| Mean Well SPA02A-15 DC-DC Converter - 2W - 9~18V in 15V out | 2W | 15V | 0.13A | — | View |
| Mean Well SPA02A-12 DC-DC Converter - 2W - 9~18V in 12V out | 2W | 12V | 0.16A | — | View |
| Mean Well SPA02A-05 DC-DC Converter - 2W - 9~18V in 5V out | 2W | 5V | 0.4A | — | View |
