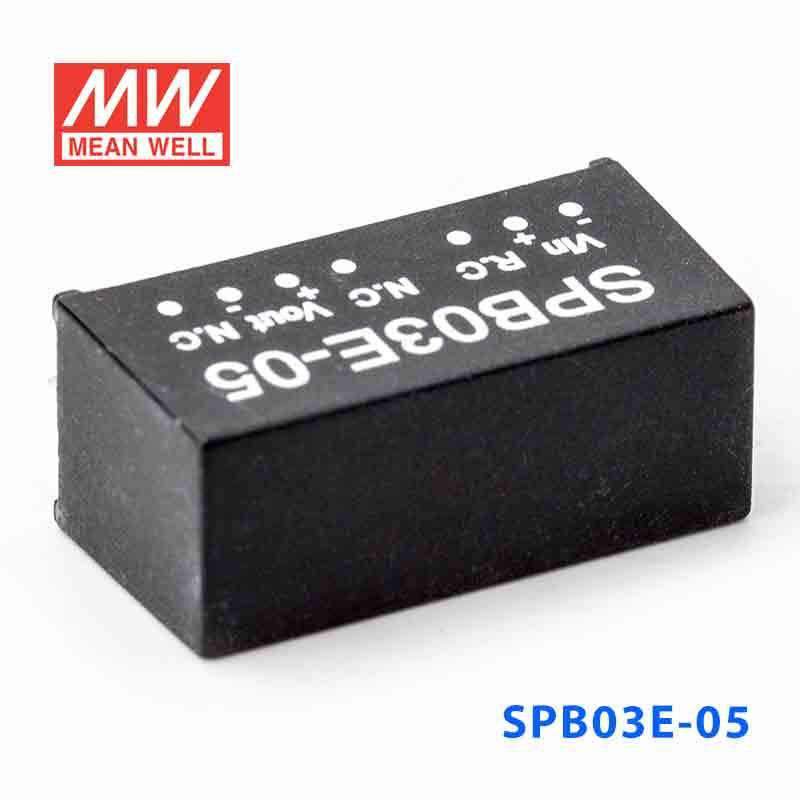

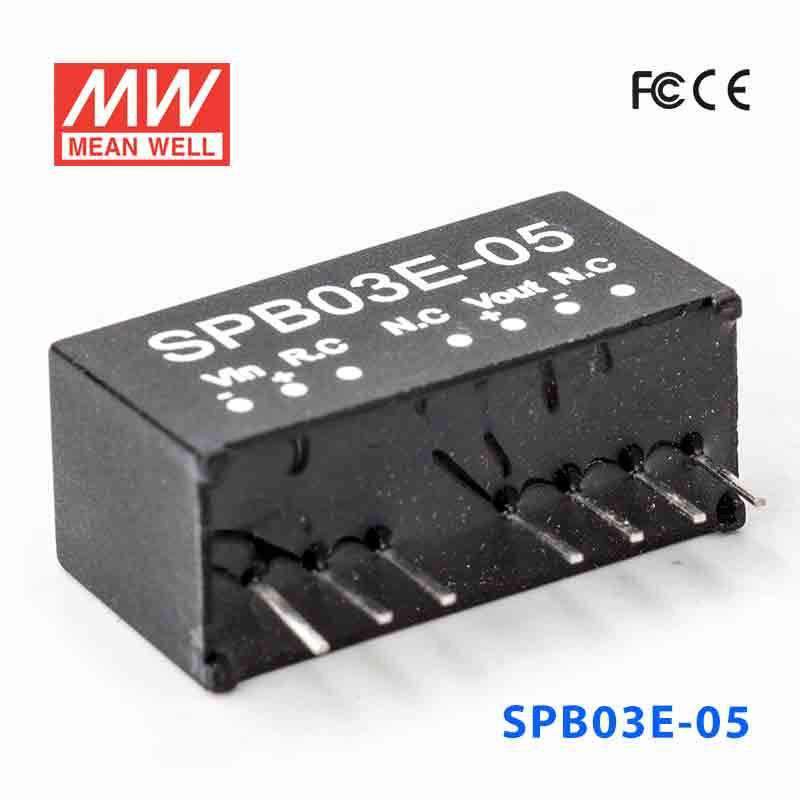

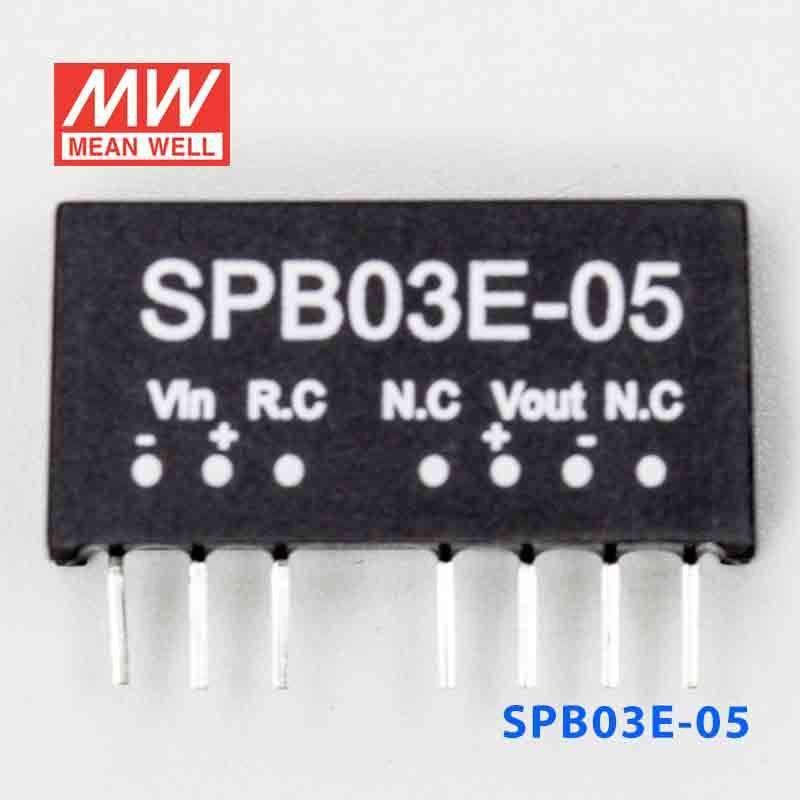

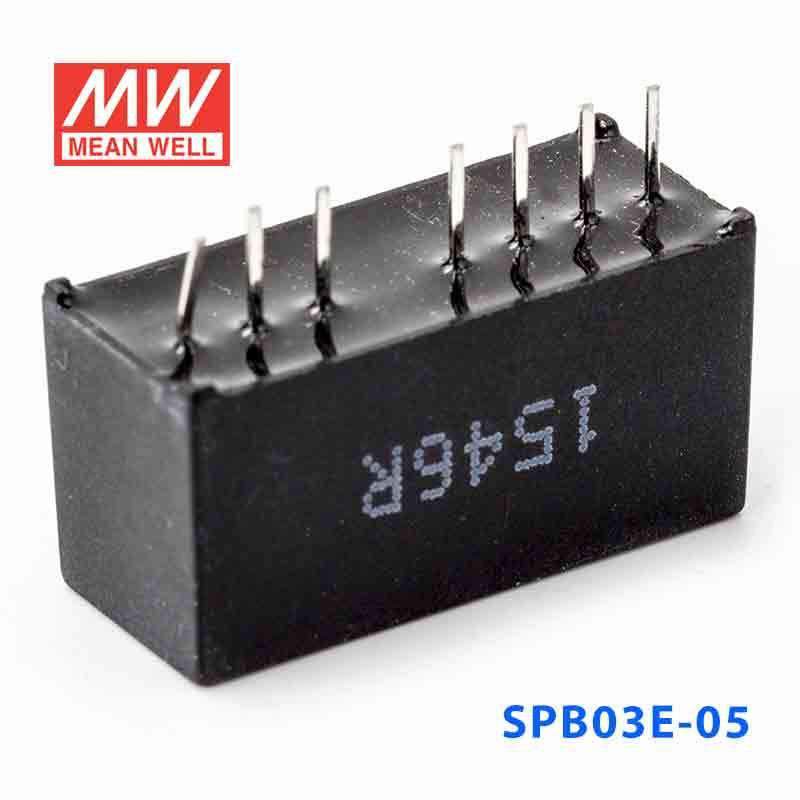

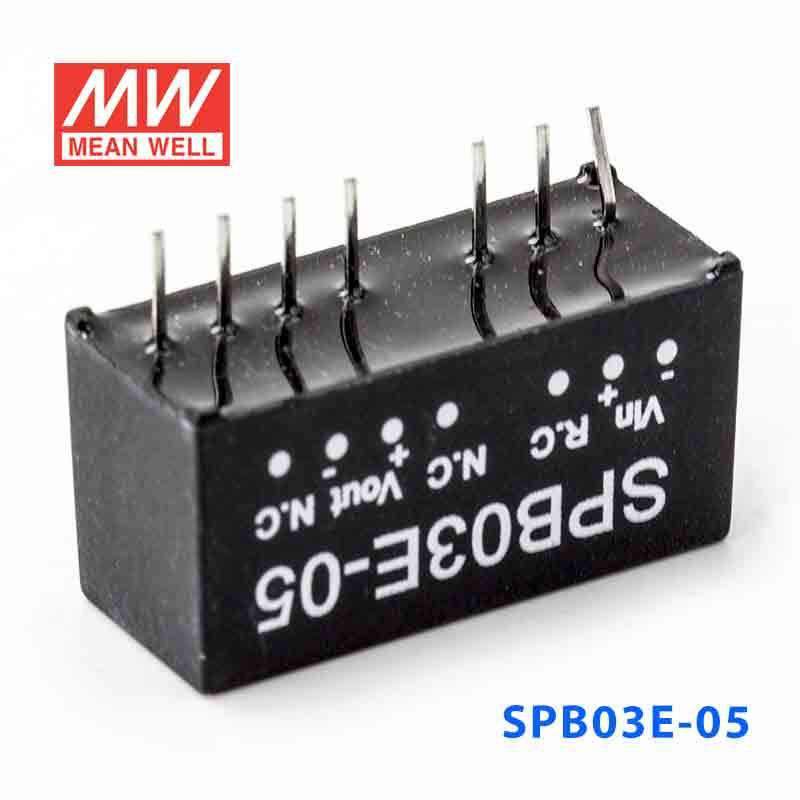

Mean Well SPB03E-05 DC-DC Converter - 3W - 4.5~9V in 5V out
Please Login for Pricing
Description
Description
Features
| 2:1 wide input range |
| 1000VDC I/O isolation |
| Built-in remote ON/OFF control |
| Cooling by free air convection |
| Non-conductive plastic case |
| 100% full load burn-in test |
| Built-in EMI filter |
| Protection: Short circuit / Overload |
| Single in line package |
| Modified models available: output 3.3V / 9V |
| 2 years warranty |
General Specification
| Voltage set point accuracy | ±2% (max.) |
| Line regulation | ±0.5% (max.) |
| Load regulation | ±0.5% (max.)@10~100% load |
| Overload protection | 150%~250%, auto-recovery |
| Efficiency | 82% (typical) |
| Short circuit protection | Continuous, auto-recovery |
| Switching frequency | 100KHz (min.) |
| I/O isolation voltage | 1000VDC (min.) |
| I/O isolation resistance | 100MQ(min.) |
| Working temperature | -40~+85°C (refer to output derating curve) |
| Storage temperature | -40°C to +105°C |
| EMC | Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B |
| Temp. Coefficient | ±0.03% / °C (max.) |
| Dimension (LxWxH) (mm) | 0.86""x 0.36""x 0.44"" |
| Case material | non-conductive plastic |
| Isolation capacitance | 80pF (max.) |
Specifications
Specifications
-
BrandMean Well
-
SeriesSPB Series
-
Power Rating3 Watt
-
Output Voltage5 Volt
-
Rated Current0.6 Ampere
-
Input Voltage4.5V~9V
-
Standards MetCE,EAC,FC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty2 Year
-
Length2.18 cm
-
Width1.11 cm
-
Height0.92 cm
-
Weight0 kg
