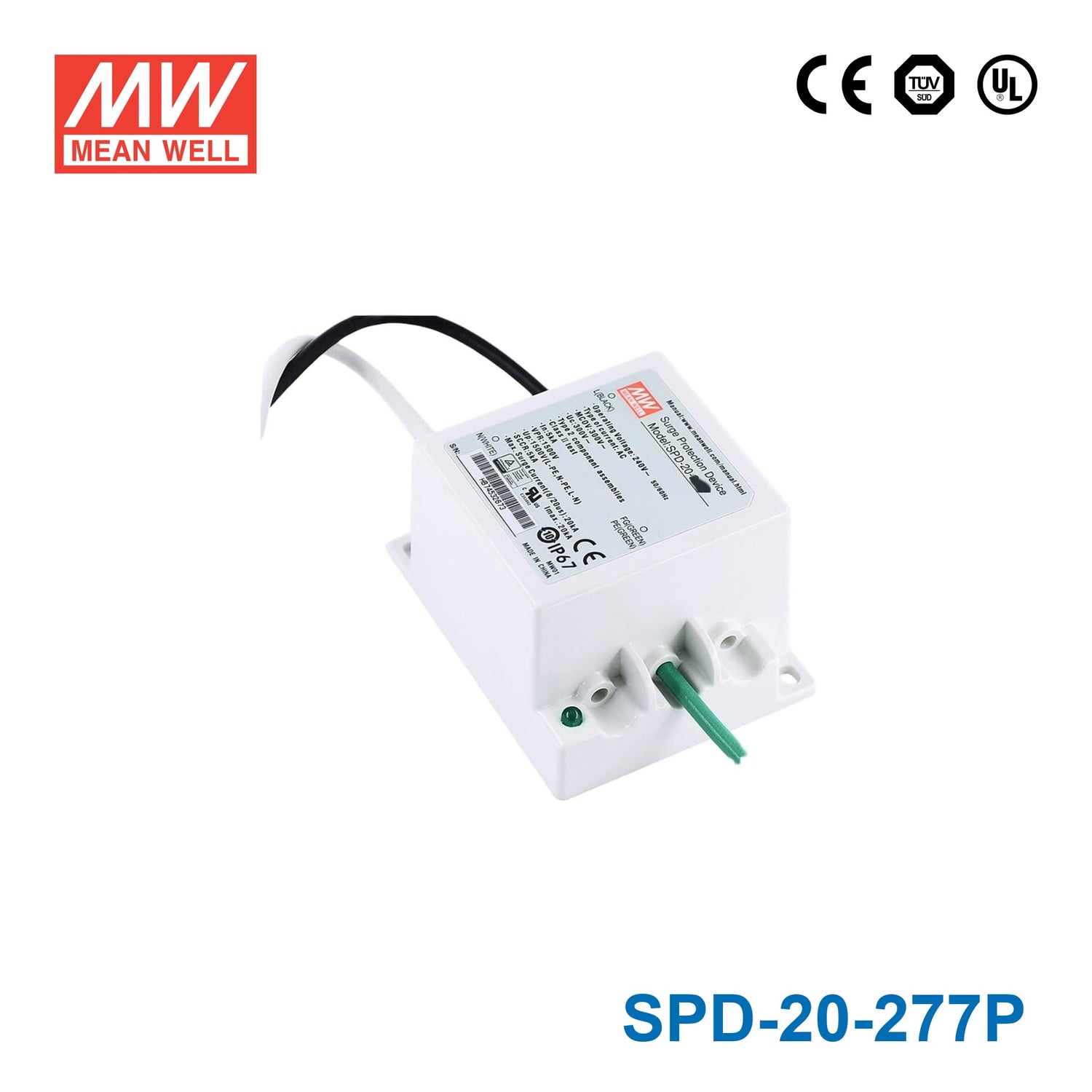

Mean Well SPD-20-240P Surge Protection Device 277VAC 10KV

10/20kA surge protection device, line to ground and line to line protected, IP66/67 design for indoor and outdoor installations

SKU:

SPD-20-277P

Please for Pricing

Notify me when it's back in stock

Description

The SPD-20 is a Mean Well power converter.

Key Features

✓ Protections: Short circuit
✓ Safety approvals: DIMENSION PACKING NOTE 1600VAC 1minutes -40 ~ +70℃ UL1449(Third Edition),CS22.2 NO.8,EN61643-11(only SPD-20-240P)
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

SPD
Input Voltage

277V~320V
Standards Met

CE,TUV,UL
Operating Temperature

-40°C~70°C
Warranty

1 Year
Length

9 cm
Width

7 cm
Height

5 cm
Weight

0.39 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the Mean Well SPD-20-240P used for?

The SPD-20-240P is a surge protection device intended to protect LED drivers from voltage surge events. It is positioned as a Type 2 component assembly and is suited to commercial and industrial lighting applications where surge exposure is a concern.

Is this surge protector suitable for 277VAC lighting systems?

Yes. This model is described as a 277VAC surge protection device, and its general specification lists an MCOV of 300VAC. That makes it appropriate for buyers looking for surge protection in 277VAC LED lighting environments.

What level of surge protection does the SPD-20-240P provide?

This model is rated for 10kV surge protection capability, with an Imax of 20kA. It is designed to protect both line-to-ground and line-to-line paths, which is important in exposed or surge-prone power environments.

Can the SPD-20-240P be used outdoors or in harsh environments?

Yes. The SPD-20-240P has an IP67 design, so it is suitable for indoor or outdoor installations where dust and water resistance matter. Its operating temperature range is -40°C to 70°C, which supports use in demanding site conditions.

How can I tell if the SPD-20-240P needs servicing?

This model includes an LED status indicator. The indicator illuminates during normal operation and turns off when servicing is needed, giving maintenance teams a quick visual check without additional test equipment.

Why choose the SPD-20-240P for LED driver protection instead of a general-purpose protector?

The SPD-20-240P is specifically described as suitable for LED driver surge protection, rather than being presented as a generic accessory. For buyers standardizing parts for lighting projects, that product positioning is useful because it aligns the device with LED driver protection requirements.

Model	Current	Connection
Mean Well SPD-20-240P Surge Protection Device 240VAC 10KV	—	Parallel	View
