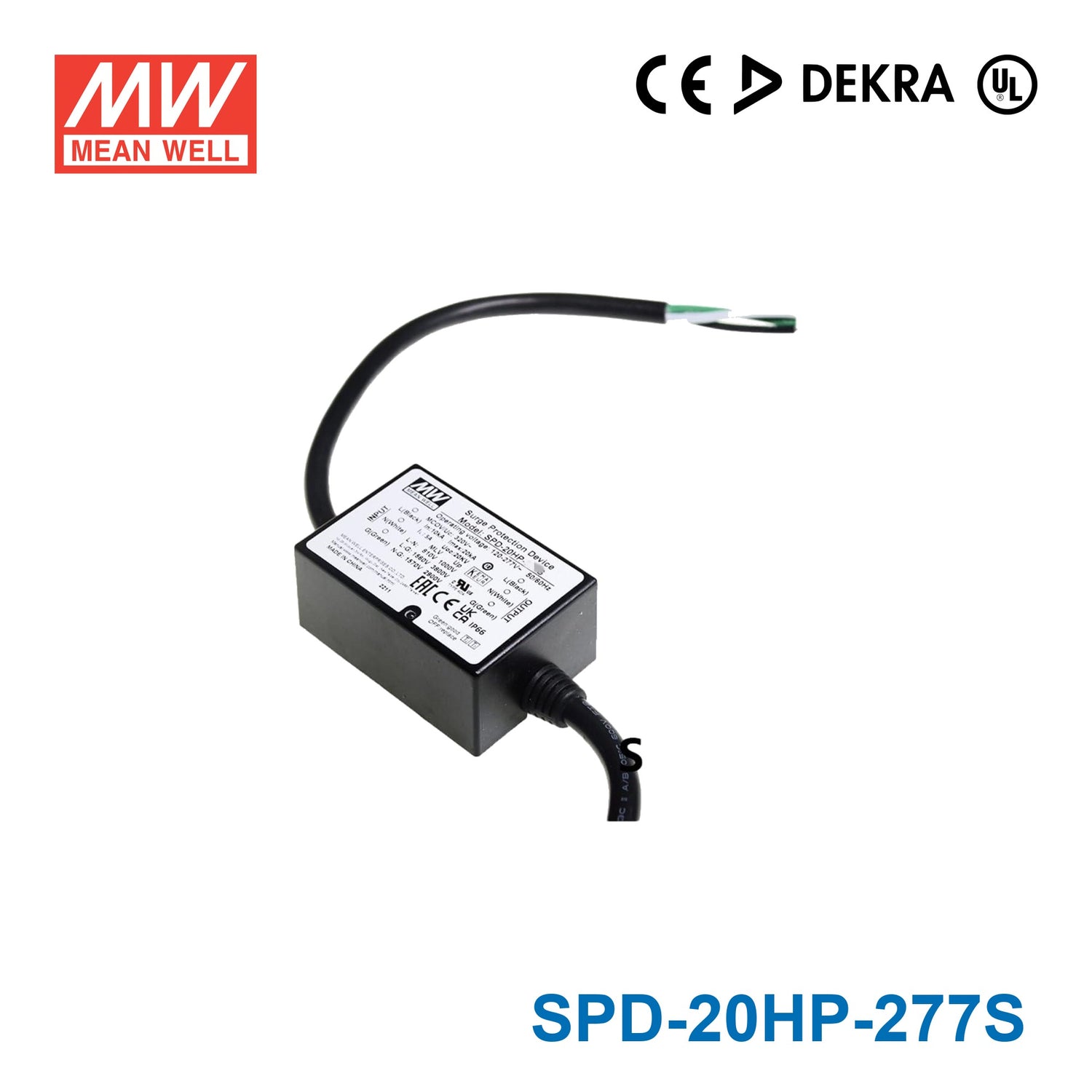

Mean Well SPD-20HP-277S Surge Protection Device 120~277VAC 20KV
Please Login for Pricing
Description
Description
Features
| Series connection style |
| UL1449 type 4 component assemblies |
| 20kA maximum discharge current(Imax), 8/20μs |
| Low MLV/U |
| Thermally protected |
| Double insulation able wire |
| LED status indicator |
| IP66 design for indoor or outdoor installations |
| Suitable for LED driver surge protection with Class I insulation |
| 20KV surge protection capability |
General Specification
| MCOV | 320VAC |
| UC | 320VAC |
| LED indicator | Illuminate when on, off when need servicing |
| Imax | 20kA, 8/20μs |
| Working temperature | -40~+75ºC |
| Compliance to IEC61643-11: 2011, IEC61000-4-5: 2005 | UL1449 |
| Response time | <25ns |
| Case No | SPD-20A |
| Dimension (LxWxH) (mm) | 71.6 x 67.7 x 32 |
| Packing | 0.233Kg/Unit ; 1.67Kg/one box(6pcs); 9Kg/carton(including 5 boxs); 0.243Kg/Unit ; 1.73Kg/one box(6pcs); 9.3Kg/carton(including 5 boxs) |
Specifications
Specifications
-
BrandMean Well
-
SeriesSPD
-
Input Voltage120V~320V
-
Standards MetCE,DEKRA,UL
-
Operating Temperature-40°C~75°C
-
Warranty1 Year
-
Length7.16 cm
-
Width6.77 cm
-
Height3.2 cm
-
Weight0.24 kg
