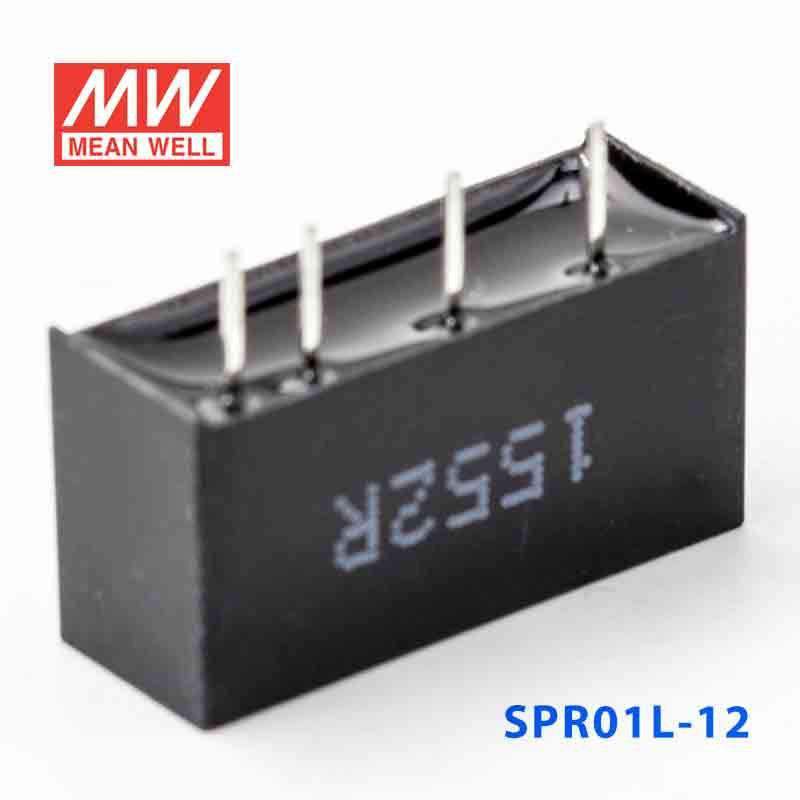

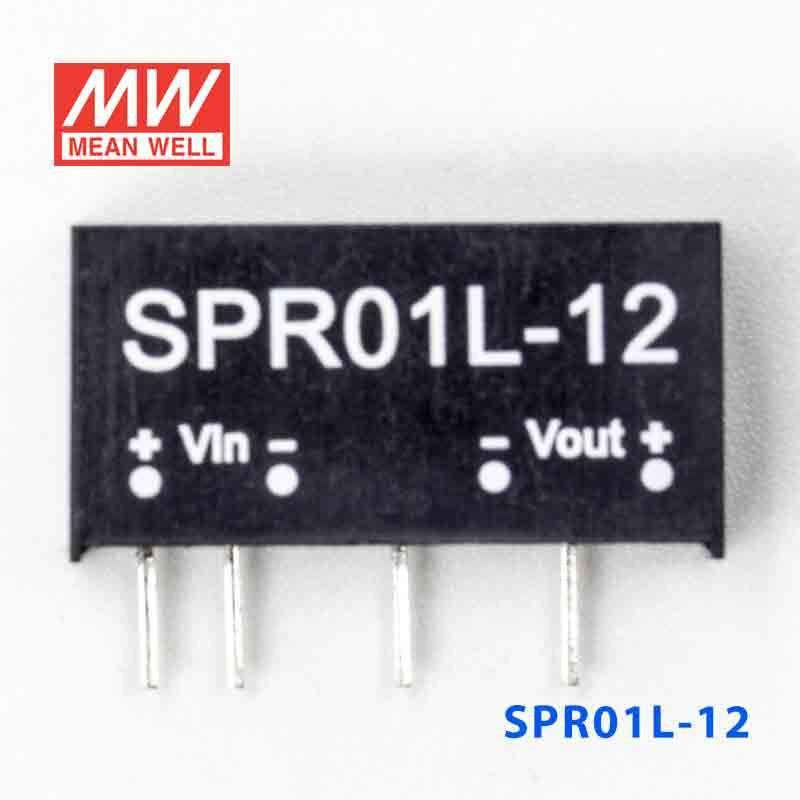

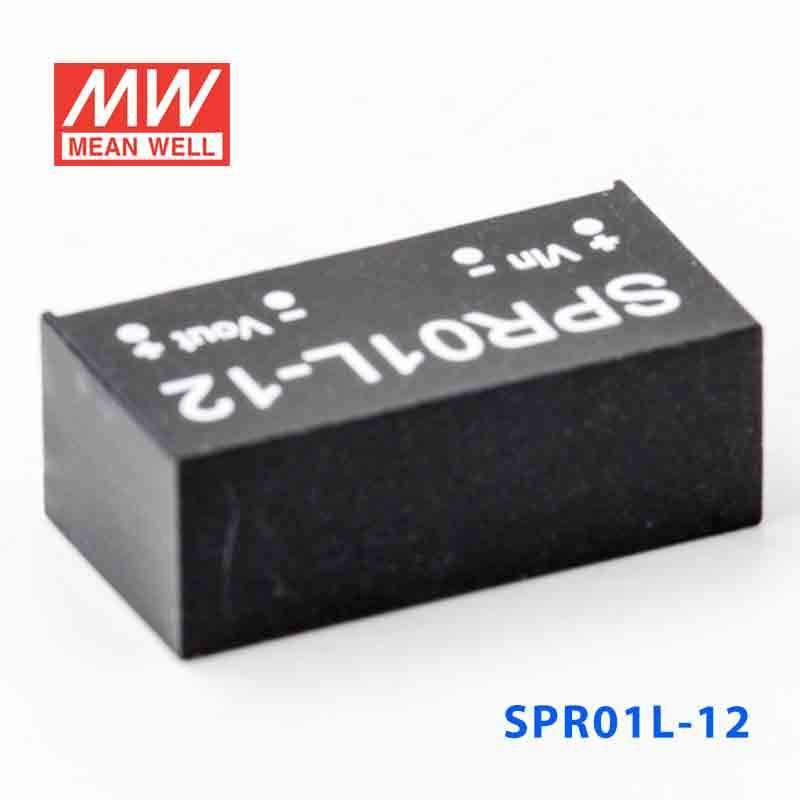

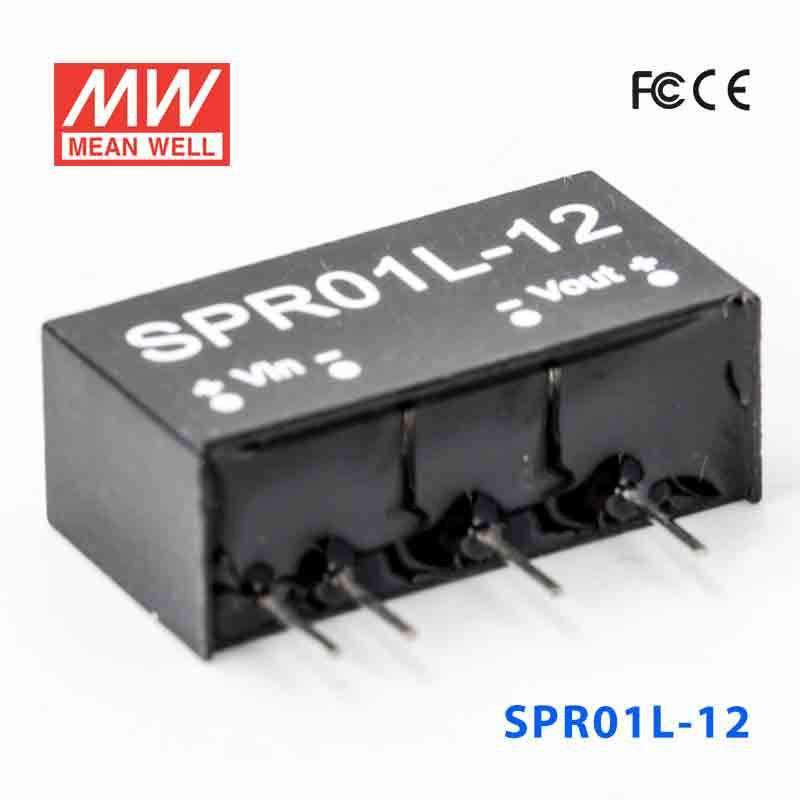

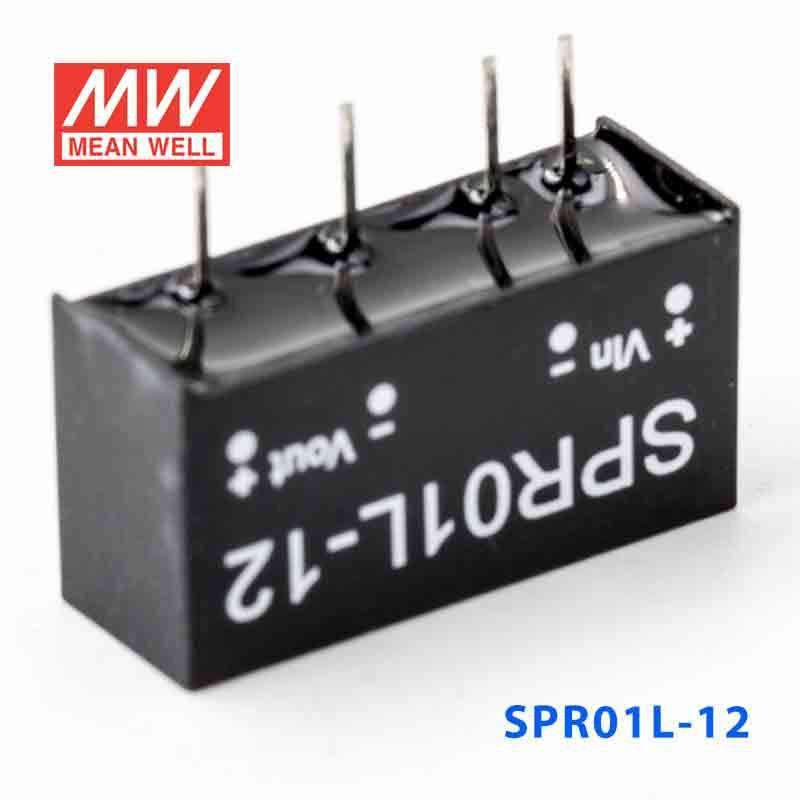

Mean Well SPR01L-12 DC-DC Converter - 1W - 4.5~5.5V in 12V out
Log in to see priceOverview
SPR01L-12 is the model of this series: rated power 1W, typical efficiency 58%.
Features
- 1000VDC I/O isolation
- Internal SMD technology
- Built-in EMI filter
- Cooling by free air convection
- Non-conductive plastic case
- Single in line package
- 100% burn-in test
- Low cost / High reliability
- Approvals: FCC / CE
- 2 years warranty
Specifications
SPR01L-12Specifications from the official datasheet (2018-01-15 edition)Download datasheet PDF
SELECTION GUIDE
- DC OUTPUT VOLTAGE
- 12V
- OUTPUT CURRENT RANGE
- 0 ~ 84mA
- EFFICIENCY
- 58%
OUTPUT
- RATED POWER
- 1W
- RIPPLE & NOISE (max.)Note.2
- 100mVp-p
- LINE REGULATION
- ±1.0%
- LOAD REGULATIONNote.3
- ±1.0%
- VOLTAGE ACCURACY
- ±2.0%(Typ.) ±3.0%(max.)
- SWITCHING FREQUENCY
- 50KHz min.
INPUT
- VOLTAGE RANGE
- 4.5 ~ 5.5V
- NORMAL VOLTAGE
- 5V
- INPUT CURRENT Full load
- 350mA
- INPUT CURRENT No load
- 32mA
- FILTER
- Capacitor type
- PROTECTION
- Fuse recommended
PROTECTION (Note. 4)
- OVERLOAD
- >110% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- SHORT CIRCUIT
- All output equipped with short circuit Protection type : Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT
- WORKING TEMP.
- -25 ~ +71℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -25 ~ +105℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03% / ℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:1KVDC
- ISOLATION RESISTANCE
- I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH
- ISOLATION CAPACITANCE
- 80pF max.
- EMC EMISSION
- Compliance to EN55032 Class B, FCC part 15 Class B, EAC TP TC 020
- EMC IMMUNITY
- Compliance to EN61000-4-2,3,4,5,6,8, light industry level, criteria A, EAC TP TC 020
OTHERS
- MTBF
- 700khrs min. MIL-HDBK-217F(25℃)
- DIMENSION
- 19.6*7.1*10.2mm or 0.77"*0.28"*0.40" inch (L*W*H)
- WEIGHT
- 2.3g
Test conditions and notes4
- 1.All parameters are specified at normal input, rated load, 25℃ 70% RH ambient.
- 2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
- 3.Load regulation is measured from 10% to 100% rated load.
- 4.Please prevent the converter from operating in overload or short circuit condition for more than 30 seconds.
Technical drawings
Downloads
Datasheet1
Test reports1
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other SPR01 Models
3 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well SPR01N-05 DC-DC Converter - 1W - 21.6~26.4V in 5V out | 1W | 5V | 200 Milliampere | IP20 | View |
| Mean Well SPR01M-12 DC-DC Converter - 1W - 10.8~13.2V in 12V out | 1W | 12V | 84 Milliampere | IP20 | View |
| Mean Well SPR01L-05 DC-DC Converter - 1W - 4.5~5.5V in 5V out | 1W | 5V | 200 Milliampere | IP20 | View |
