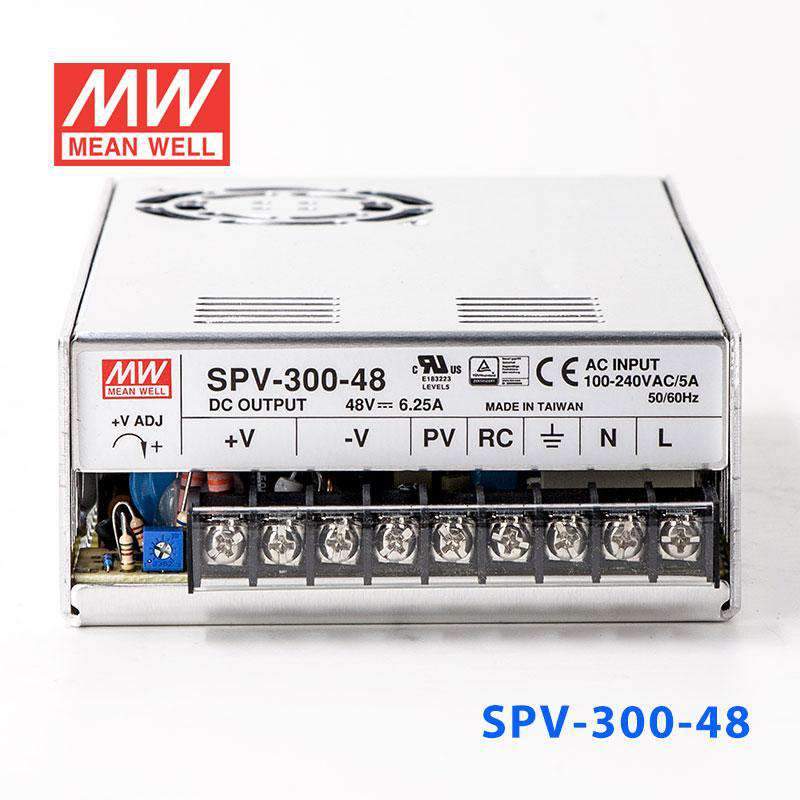

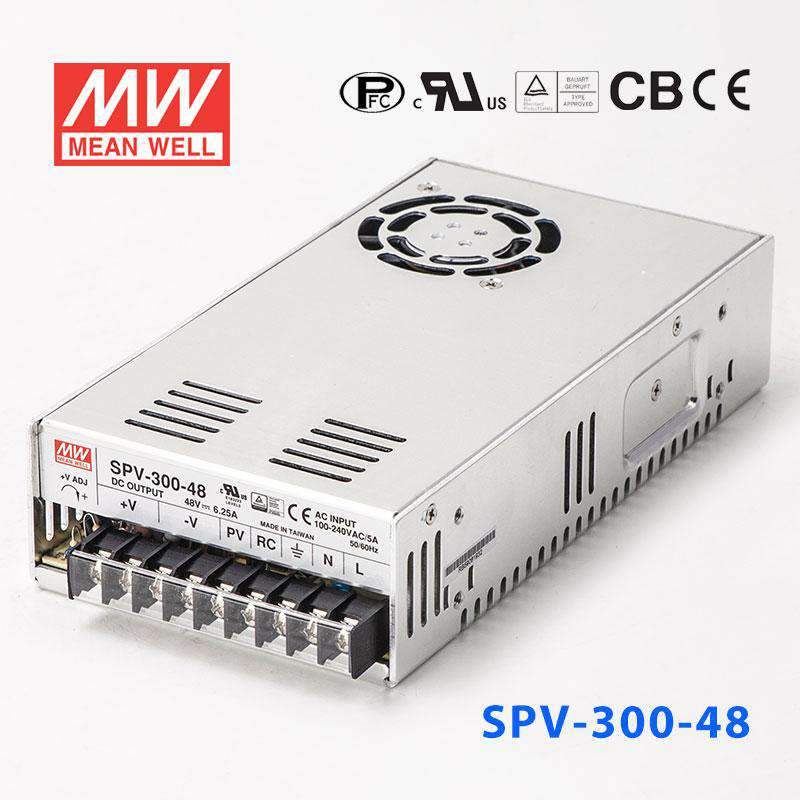

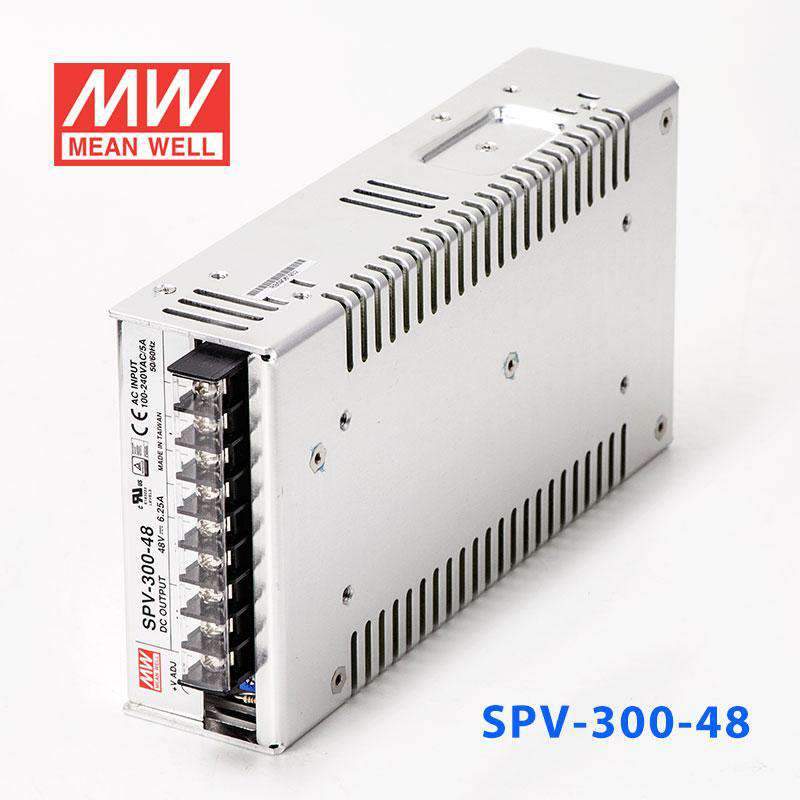

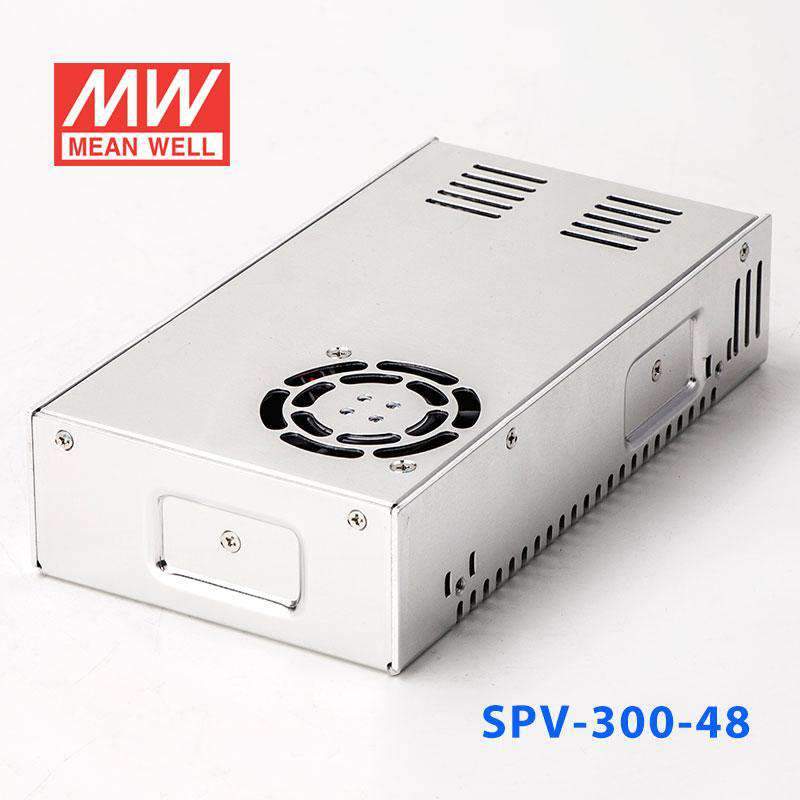

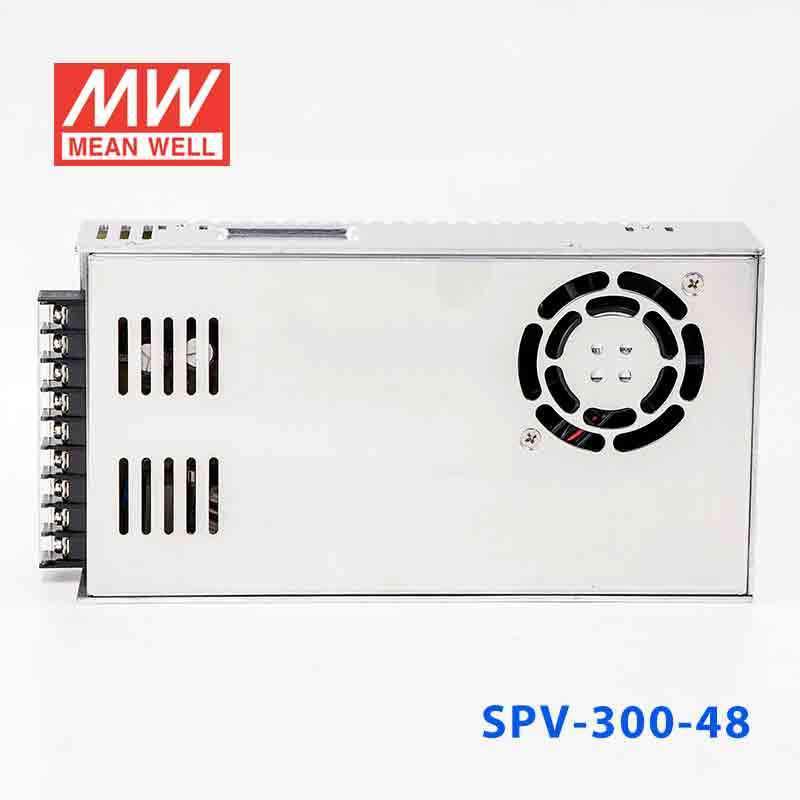

Mean Well SPV-300-48 power supply 300W 48V 6.25A

built-in active PFC function, PF>0.95, output voltage programmable from 20%~110% by 1~5.5VDC external control signal

|

Description

MEAN WELL SPV-300 Series Power Supplies are 300W switching power supplies with high efficiency, long life, and high reliability.

Features

  • Universal AC input / Full range
  • Built-in active PFC function
  • PF>0.95
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Forced air cooling by built-in DC Fan
  • Output voltage programmable from 20-110% by 1-5.5VDC external control signal
  • Built-in remote ON-OFF control
  • Built-in fan speed control
  • Fixed switching frequency at 100KHz
  • 3 years warranty

Specifications

  • Brand
    Mean Well
  • Series
    SPV Series
  • Power Rating
    300 Watt
  • Output Voltage
    48 Volt
  • Rated Current
    6.25 Ampere
  • Input Voltage
    88V~264V
  • Standards Met
    CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -20°C~65°C
  • Warranty
    3 Year
  • Length
    21.5 cm
  • Width
    11.5 cm
  • Height
    5 cm
  • Weight
    1.1 kg
