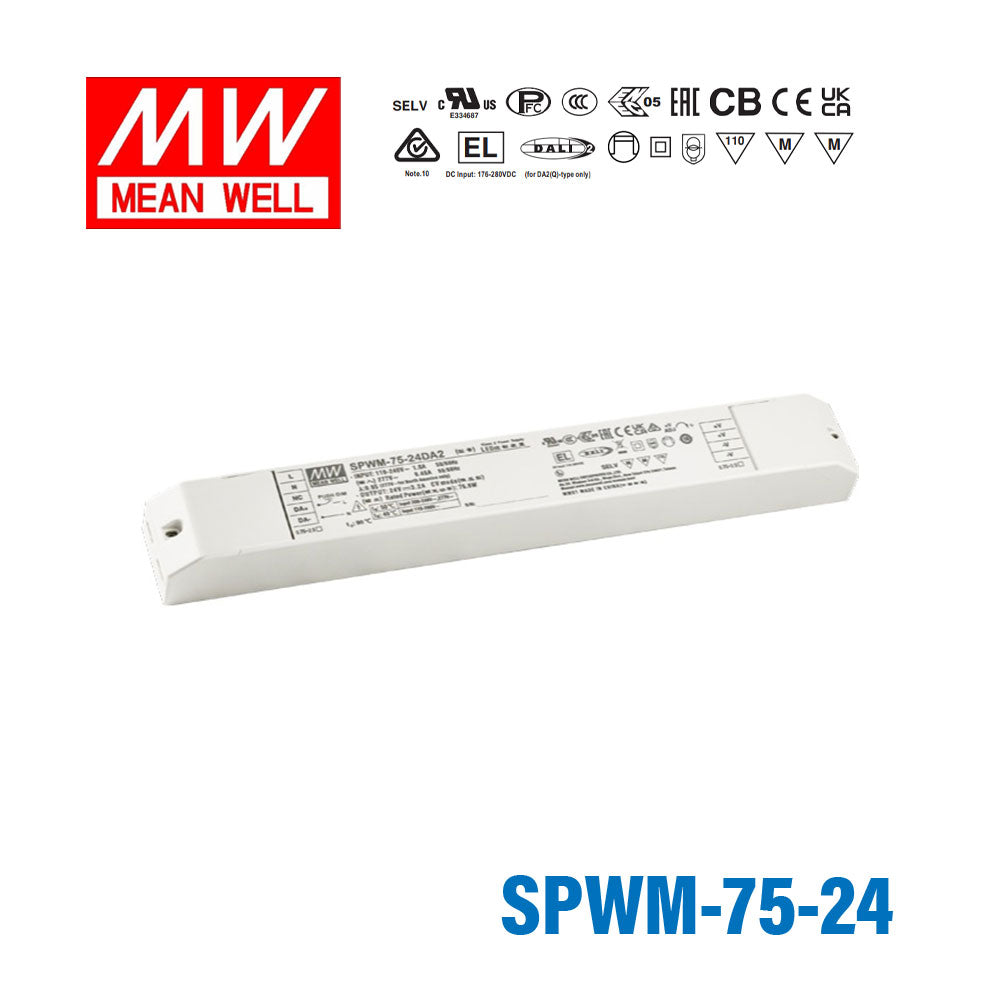

MEAN WELL SPWM-75-24 76.8W 24V CV LED Driver 3.2A

3-in-1 dimmablePWM style outputflicker freevoltage adjustable 23-26V

SKU SPWM-75-24

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

SPWM-75-24 is the 24V output model of this series: typical efficiency 90%.

SPWM-75 series is a 75W AC/DC LED driver featuring the constant voltage mode with PWM style output, which is able to maintain the color temperature and the brightness homogeneity when driving all kinds of LED strips. SPWM-75 operates from 100~305VAC and offers models with different rated voltage ranging include 12V and 24V. Thanks to the high efficiency up to 90%,with the fanless design,the entire series is able to operate for -20~+90℃case temperature under free air convection.SPWM-75 is equipped with various function options, such as dimming methodologies with DALI-2, so as to provide the optimal design flexibility for LED lighting system.

Features

DALI-2 DT6(Dimming) or DT8 (Tunable white/RGBW) control available
Constant voltage PWM style output with 1 to 4 channels
Standby power consumption <0.5W
Flicker free, complying with CE ErP directive
Plastic housing with class ll and PFC design
Function options: 3 in 1dimming/DALI-2+PUSH Dimming
Minimum dimming level 0.1%(DALI-2)
Cooled by free air convection
5 years warranty

Specifications

SPWM-75-24Specifications from the official datasheet (2026-01-12 edition)

OUTPUT

DC VOLTAGE: 24V
RATED CURRENT(Max.): 3.2A
RATED POWER(Max.): 76.8W
VOLTAGE ADJ. RANGE: 23~26V
PWM FREQUENCY (Typ.): 3.2kHz
SETUP, RISE TIME^Note.3: 500ms,80ms/ 230VAC ,1200ms,80ms/115VAC
HOLD UP TIME (Typ.): 10ms/230VAC or 115VAC

INPUT

VOLTAGE RANGE^Note.2: 100 ~ 305VAC 156 ~ 410VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.97/115VAC, PF>0.95/230VAC, PF>0.92/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD<10%@load≧50%/115VAC, 230VAC; @load≧75%/277VAC (Please refer to “TOTAL HARMONIC DISTORTION” section)
EFFICIENCY (Typ.): 90%
AC CURRENT (Typ.): 0.9A / 115VAC 0.45A / 230VAC 0.38A / 277VAC
INRUSH CURRENT (Typ.): COLD START 50A(twidth=500μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. NO. of PSUs on 16A CIRCUIT BREAKER: 5 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.25mA / 277VAC
STANDBY POWER CONSUMPTION: standby power consumption<0.5W (Dimming off)

PROTECTION

OVERLOAD: 105~135%, hiccup mode, recovers automatically after fault condition is removed
SHORT CIRCUIT: Blank type: Shut down O/P voltage, re-power on to recover after fault condition is removed DA2/DA2Q type:Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 27~ 36V Shut down O/P voltage, re-power on to recover after fault condition is removed
OVER TEMPERATURE: Shut down O/P voltage, re-power on to recover after fault condition is removed

ENVIRONMENT

WORKING TEMP.: Tcase=-20~+90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 5 ~ 100Hz, 2G 12min./1cycle, period for 72min. each along X,Y,Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(Class P),CSA C22.2 No.250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13(EL) appendix J suitable for emergency installations(DC input 176-280VDC), BS EN/EN62384; GB/T19510.1,GB/T19510.213; EAC TP TC 004; Design refer to AS/NZS 61347-1, AS/NZS 61347-2-13
DALI STANDARDS: Comply with IEC62386-101, 102, 207(DT6),209(DT8),DALI Part 251
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.4: Parameter Standard

BS EN/EN61000-3-2 ,GB 17625.1 Class C @load≥50%
EMC IMMUNITY: BS EN/EN61547

Parameter Standard

BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
BS EN/EN61000-4-3 Level 2
BS EN/EN61000-4-4 Level 2
BS EN/EN61000-4-5 Level 4, 2KV/Line-Line
BS EN/EN61000-4-6 Level 2
BS EN/EN61000-4-8 Level 2
BS EN/EN61000-4-11:2020 30% dip 10 periods 100% interrruption 0.5 periods

Parameter	Standard
BS EN/EN61000-3-2 ,GB 17625.1	Class C @load≥50%

Parameter	Standard
BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
BS EN/EN61000-4-3	Level 2
BS EN/EN61000-4-4	Level 2
BS EN/EN61000-4-5	Level 4, 2KV/Line-Line
BS EN/EN61000-4-6	Level 2
BS EN/EN61000-4-8	Level 2
BS EN/EN61000-4-11:2020	30% dip 10 periods 100% interrruption 0.5 periods

OTHERS

FLICKER^Note.9: PstLM ≤ 1, SVM ≤ 0.4
MTBF: 2396.9 K hrs min. Telcordia SR-332 (Bellcore) ; 205.7 K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 290*38*28.5mm (L*W*H)
PACKING: 0.31Kg; 42 pcs/ 13.8 Kg/ 0.67 CUFT

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
3. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
4. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
5. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
6. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
8. It is not recommended to connect to capacitive loads.
9. Flicker is measured at full load with the light source provided by MEAN WELL.
10. RCM is on a voluntary basis. Non IC classification Independent LED control gear is not suitable for residential installations.
11. Based on IEC 62368-101/102 DALI power on timing and interruption regulations, the set up time needs to test with a DALI controller which can support for DALI power on function, otherwise the set up time will be higher than 0.5 second for DA2 type

Technical drawings

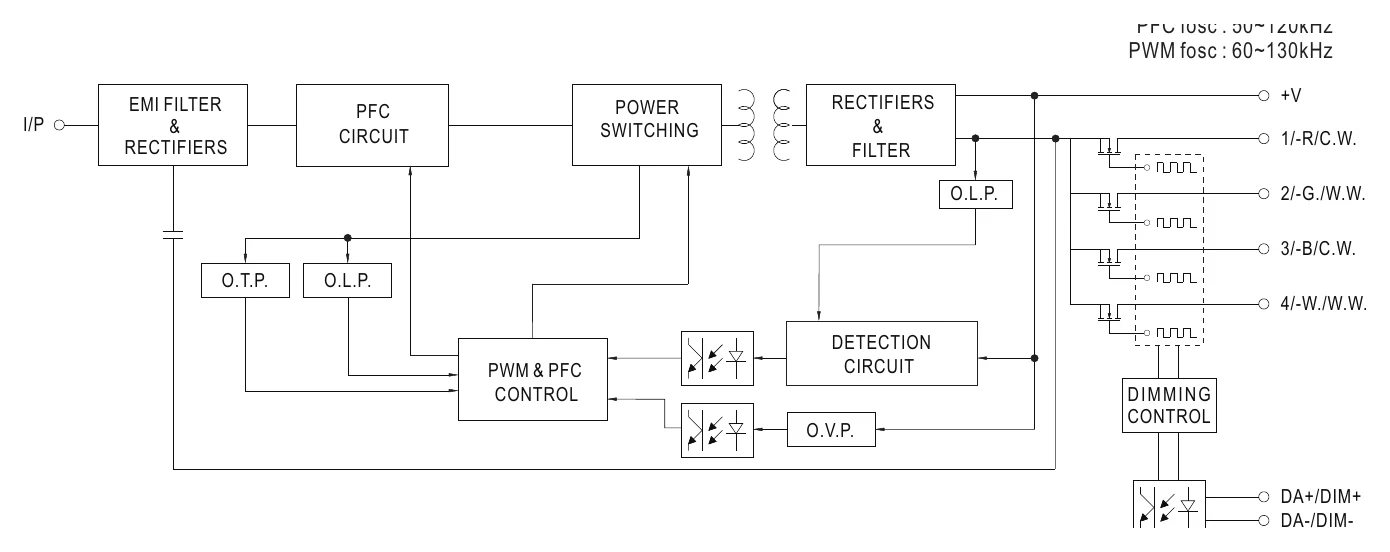

SPWM-75-24 Block Diagram — Block Diagram

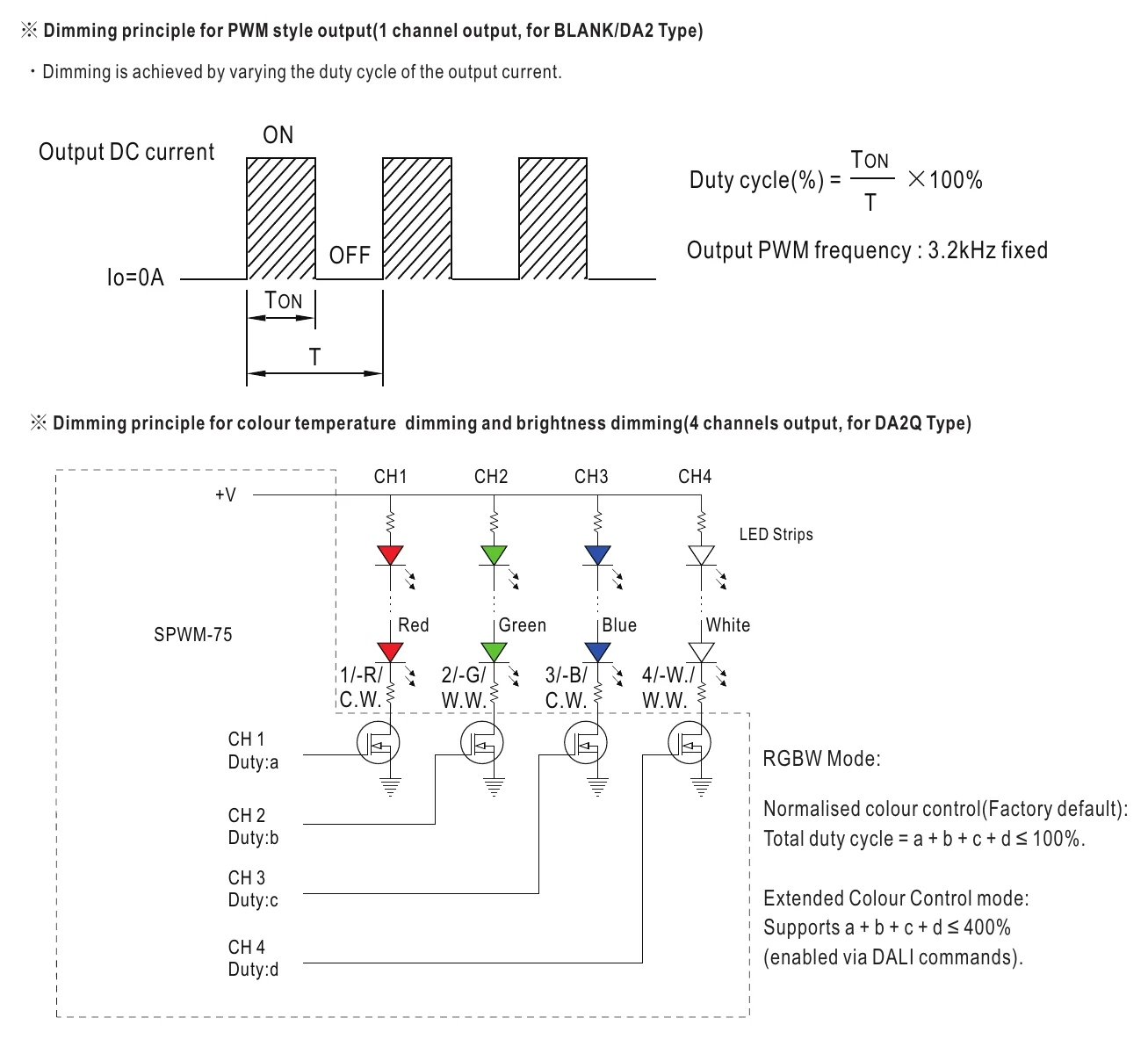

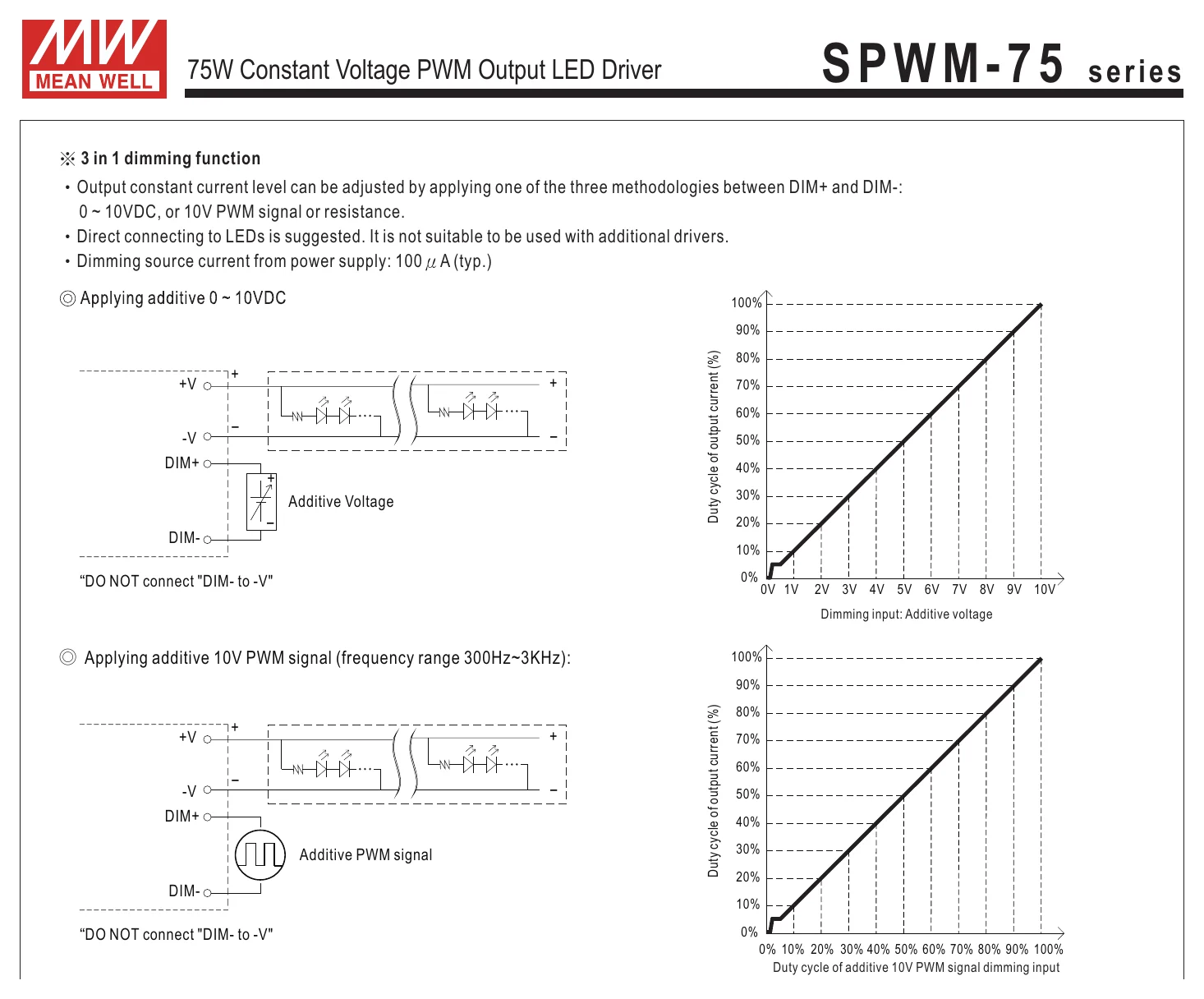

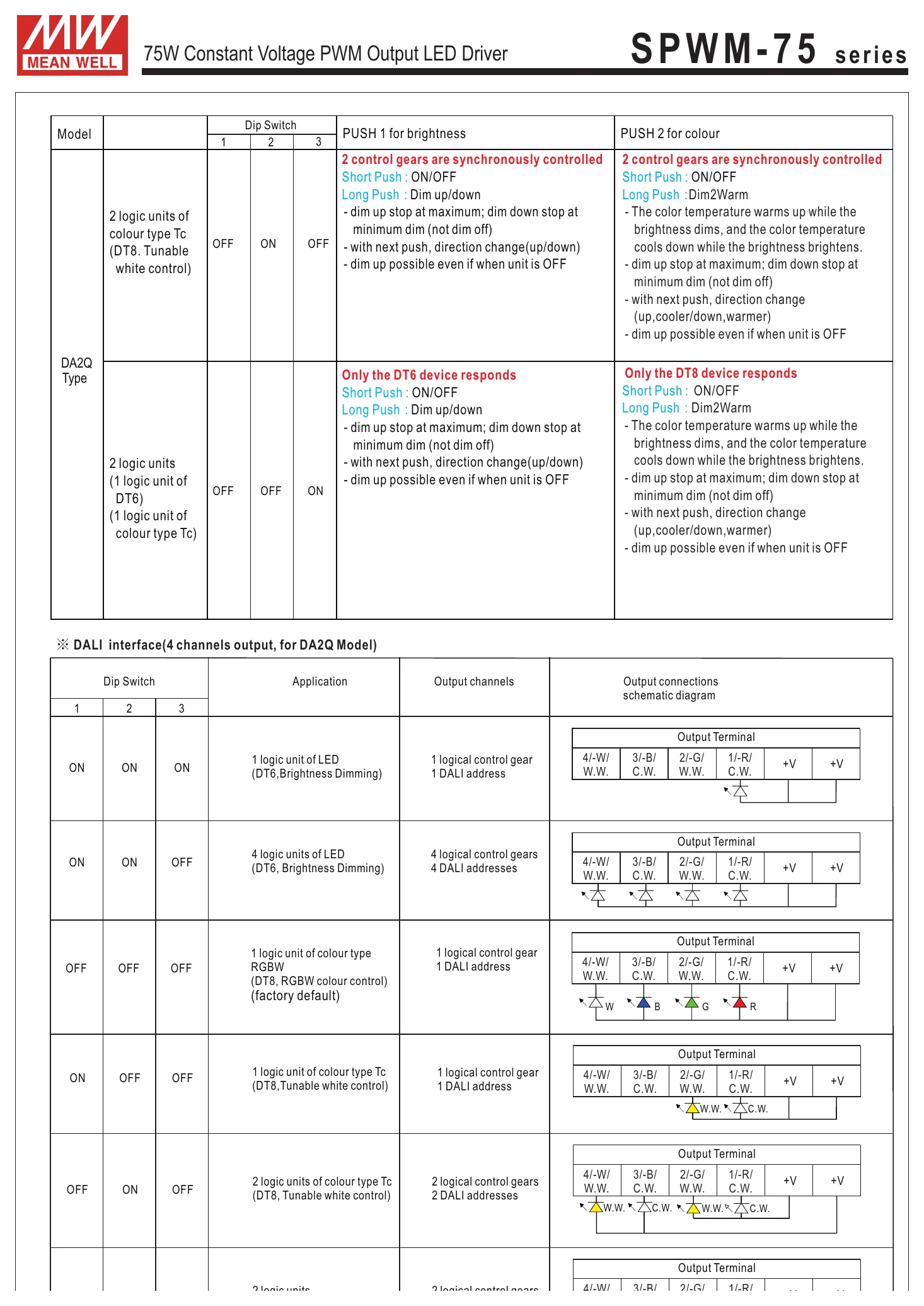

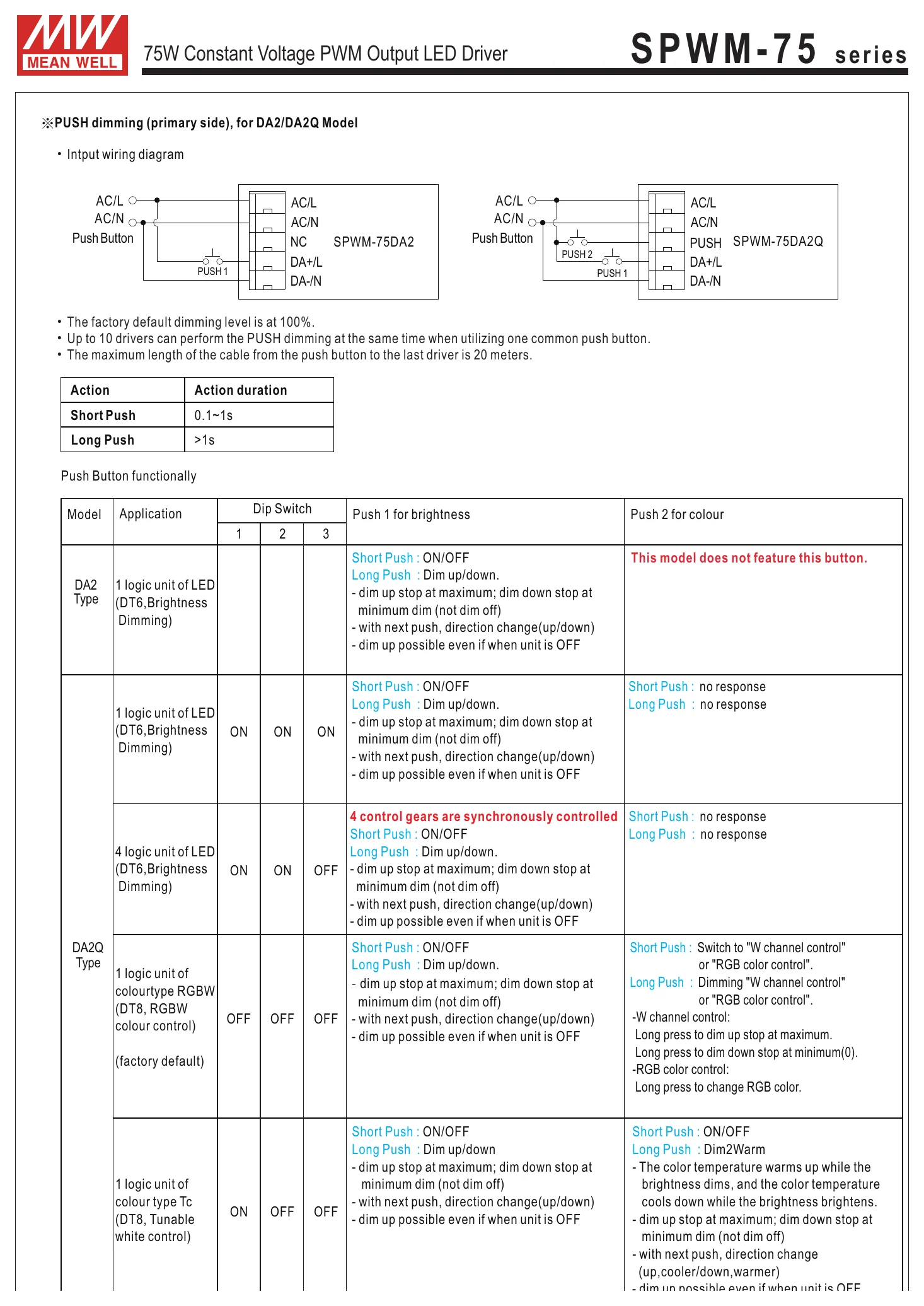

SPWM-75-24 DIMMING OPERATION — DIMMING OPERATION

SPWM-75-24 S P W M - 7 5 series — S P W M - 7 5 series

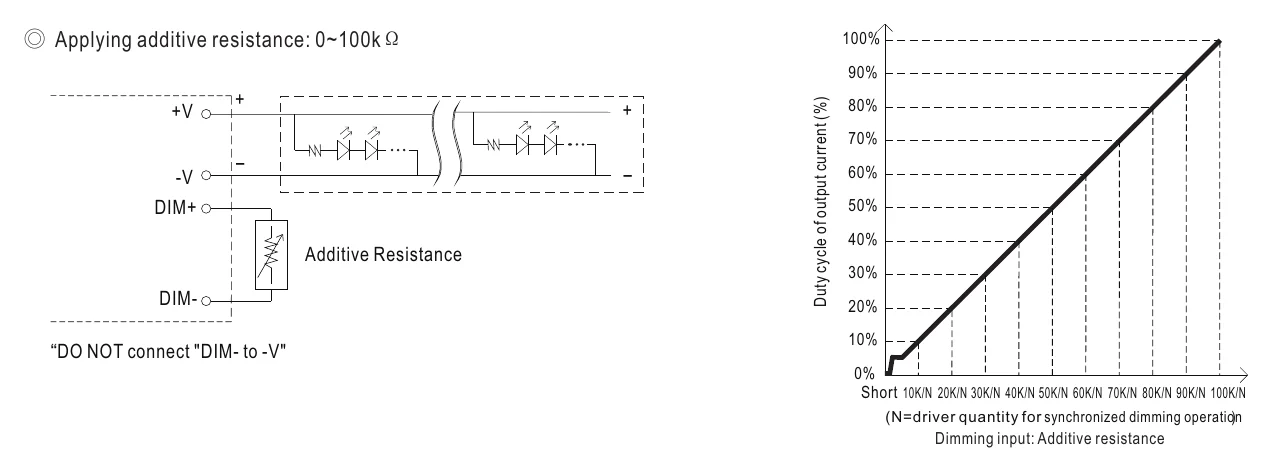

SPWM-75-24 ◎ Applying additive resistance: 0~100kΩ — ◎ Applying additive resistance: 0~100kΩ

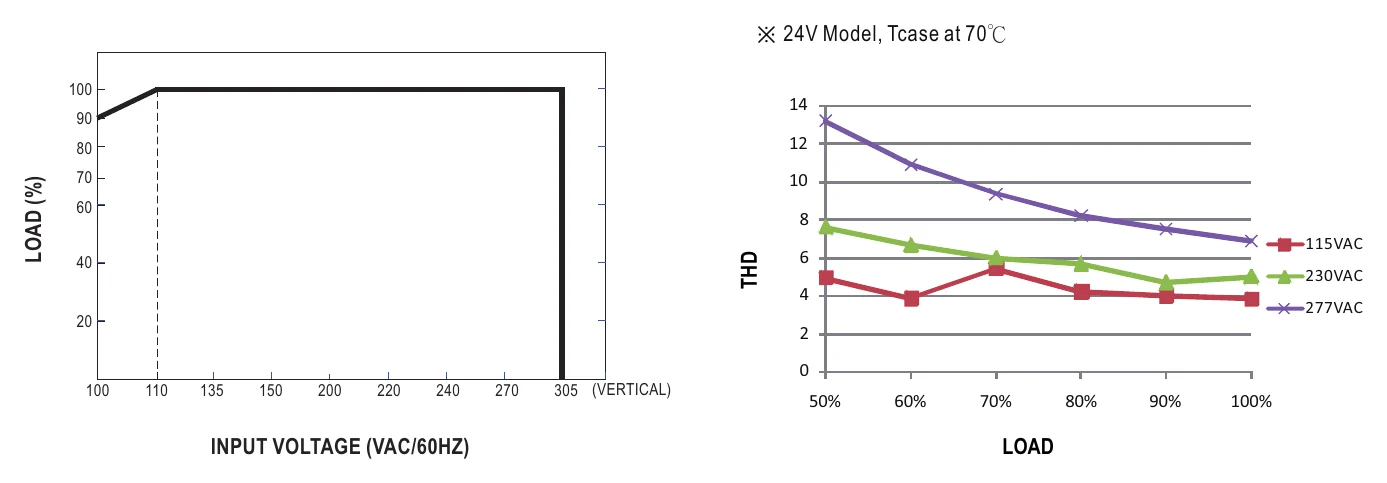

SPWM-75-24 STATIC CHARACTERISTICS — STATIC CHARACTERISTICS

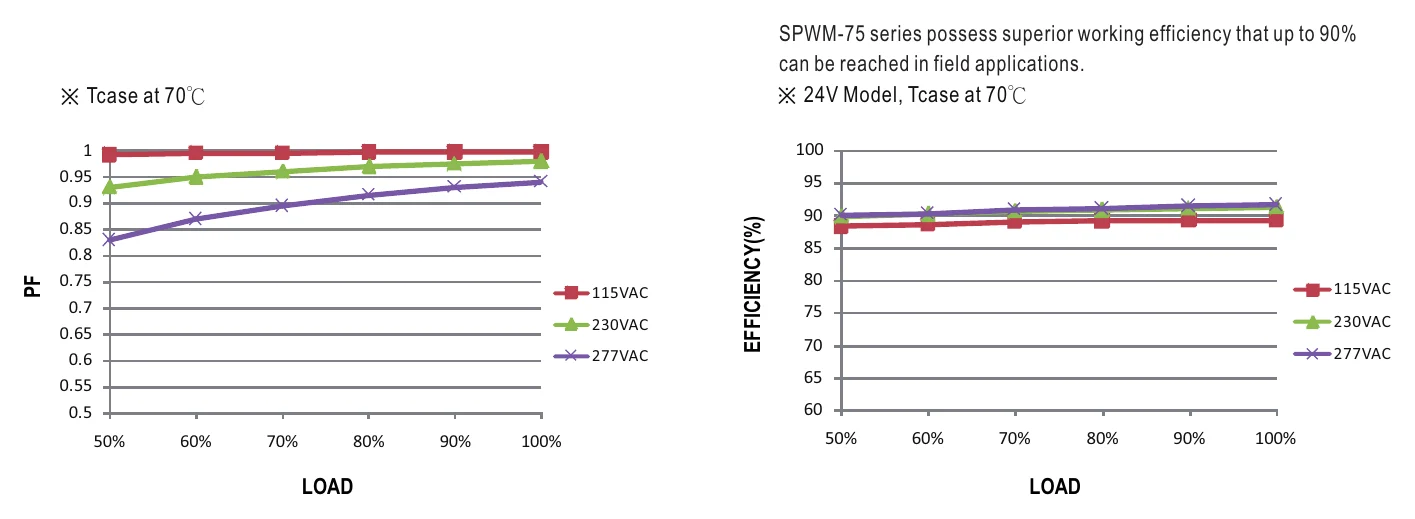

SPWM-75-24 POWER FACTOR (PF) CHARACTERISTIC — POWER FACTOR (PF) CHARACTERISTIC

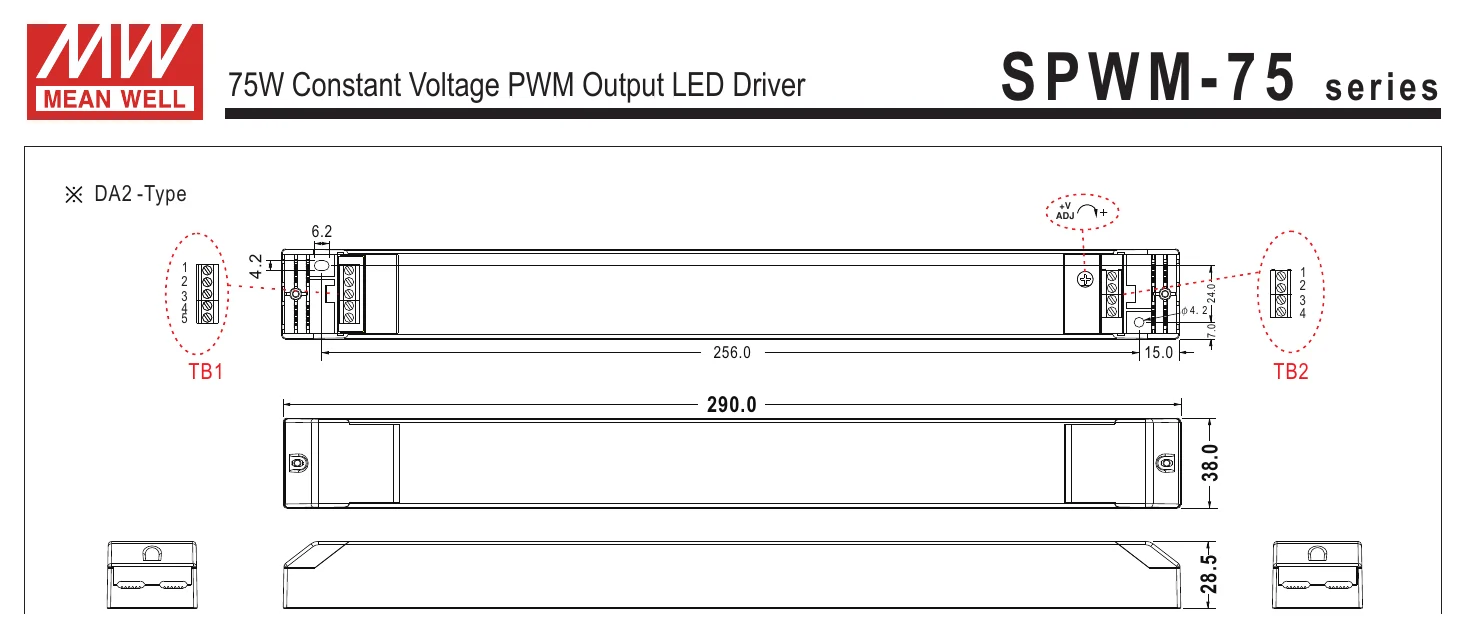

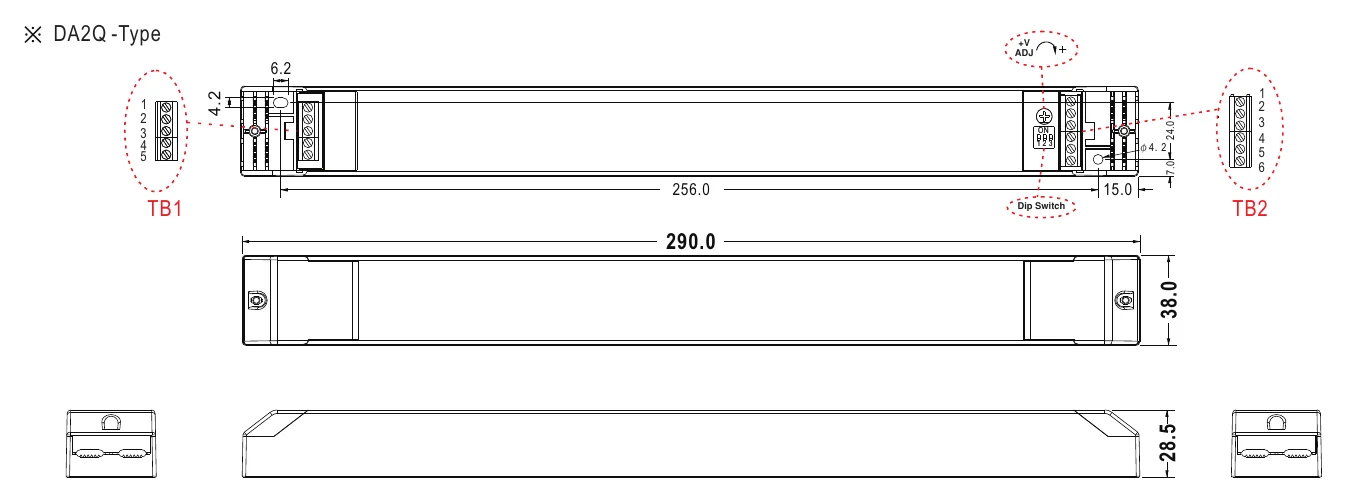

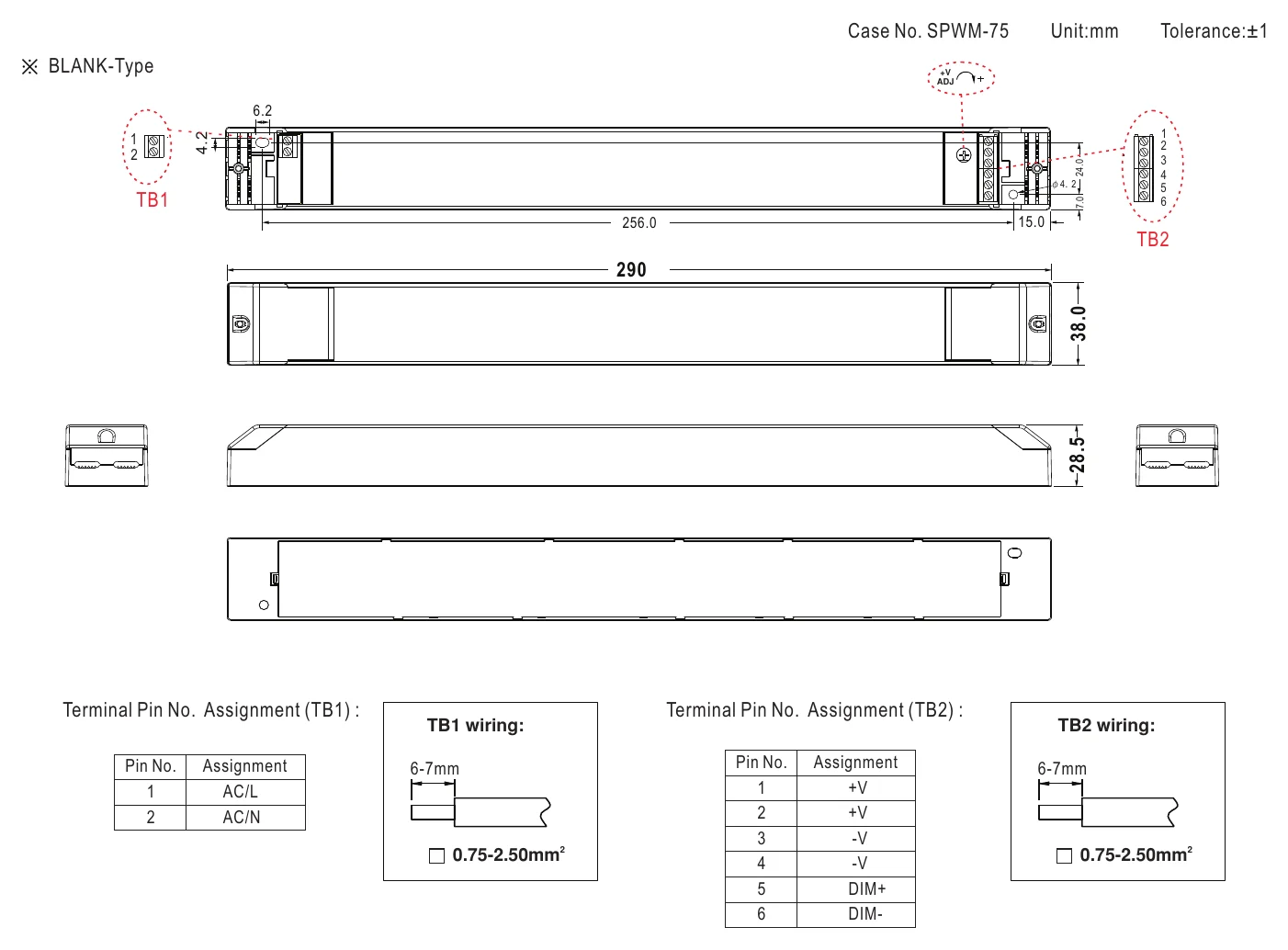

SPWM-75-24 Mechanical Specification — Mechanical Specification

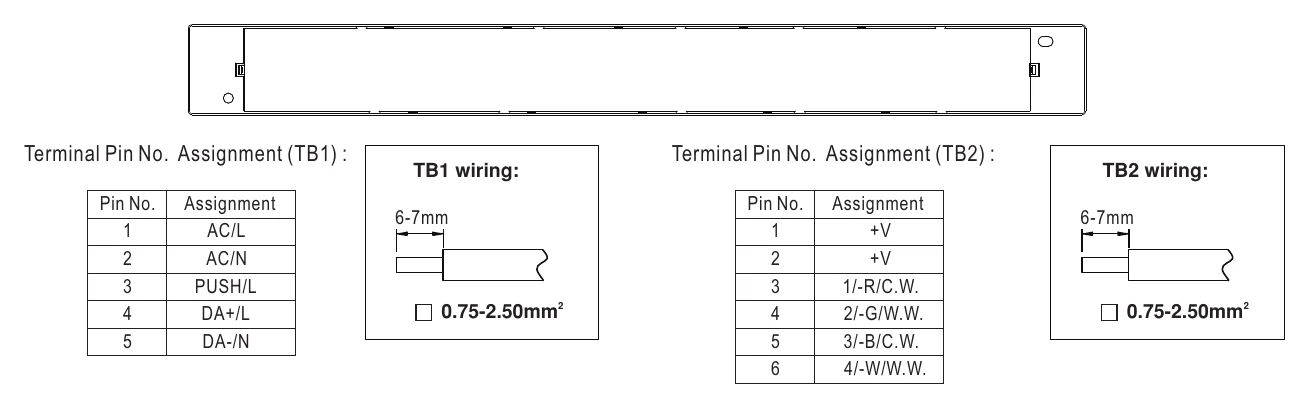

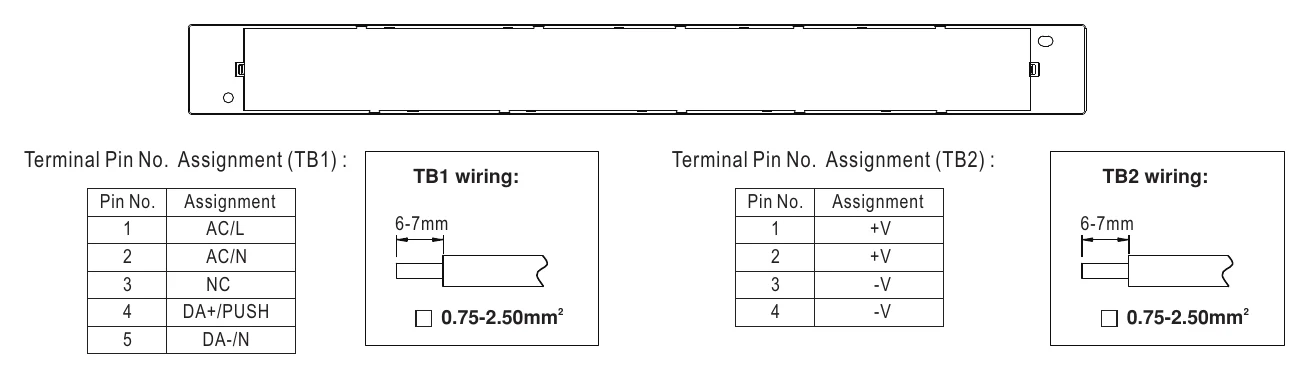

SPWM-75-24 Terminal Pin No. Assignment (TB1) — Terminal Pin No. Assignment (TB1)

Typical applications

LED strip lighting(CW/WW/Tunable/RGBW)
LED decorative lighting
LED architecture lighting
Household lighting control system
DALI Building automation

Downloads

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

What type of LED lighting is the MEAN WELL SPWM-75-24 designed for?

The SPWM-75-24 is a constant voltage LED driver built for 24V LED strip lighting applications. Its PWM-style output is intended to support stable brightness and consistent colour performance in those systems. This model is not a constant current driver.

What are the main electrical ratings of the SPWM-75-24?

This model provides a 24V DC output and is rated for 3.2A, with a total power rating of 76.8W. It operates from a wide 100-305VAC input range and includes active power factor correction. These specifications make it suitable for constant-voltage LED loads that match its output rating.

What dimming methods does the MEAN WELL SPWM-75-24 support?

The SPWM-75-24 supports 0-10V dimming, 10V PWM dimming, and resistance-based dimming control. That gives buyers flexibility when selecting a compatible dimming method for a commercial or architectural lighting project. The supported dimming types are specific to this model's listed control options.

Can the SPWM-75-24 be used in demanding temperature conditions?

The SPWM-75-24 is specified for operation from -20°C to +90°C case temperature. It uses a fanless, free-air convection design, which can be useful where low maintenance and silent operation are preferred. Buyers should still confirm that the full operating environment stays within the product's rated temperature range.

Why would a buyer choose the SPWM-75-24 instead of a 12V version in the same series?

The SPWM-75-24 is the 24V version, so it is intended for lighting systems that require a 24V constant-voltage output. Compared with a 12V variant, the key difference is the output voltage, which needs to match the voltage requirement of the LED load. This model's rated output is 24V at 3.2A.

What product features make the SPWM-75-24 suitable for professional LED projects?

The SPWM-75-24 combines active PFC, up to 90% efficiency, flicker-free operation, and a slim plastic housing in a 75W-class LED driver. It is backed by a 5-year warranty and weighs 0.31 kg, which can help when evaluating specification-driven projects. These details make it a practical option for buyers looking for a branded constant-voltage LED driver with dimming support.
