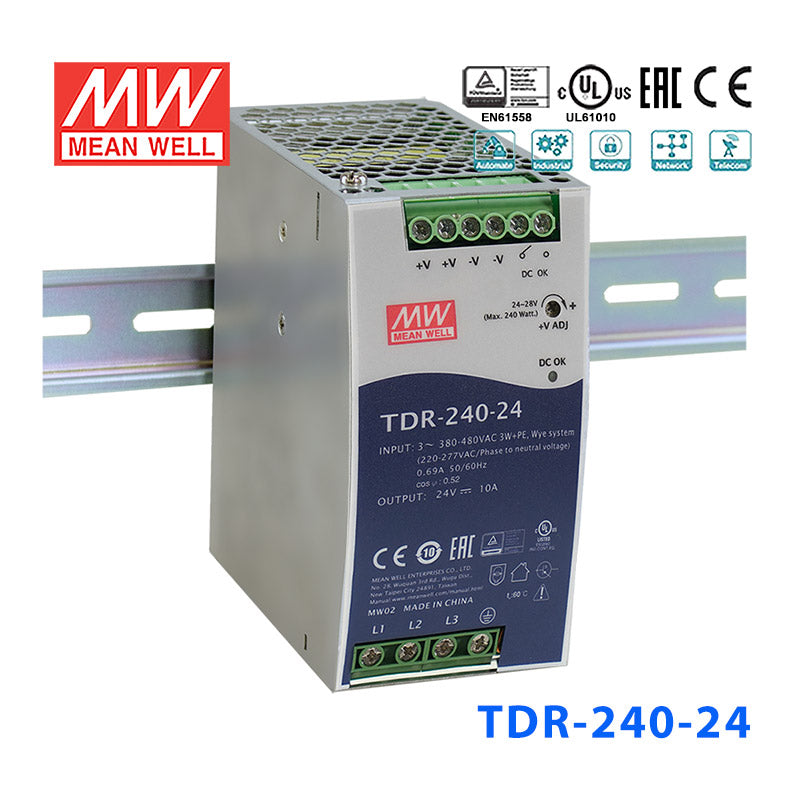

Mean Well TDR-240-24 Single Output Industrial Power Supply 240W 24V...
Please Login for Pricing
Description
Description
The TDR-240 is a 240W Mean Well power converter (input range: 340~550VAC).
Key Features
- ✓ Input voltage range: 340~550VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4.87KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Safety approvals: UL61010-1, UL61010-2-201, EN61558-1, EN61558-2-16, EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesTDR Series
-
Power Rating240 Watt
-
Output Voltage24 Volt
-
Rated Current10 Ampere
-
Input Voltage340V~550V
-
Standards MetCE,cUL,EAC,TUV
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length12.52 cm
-
Width11.35 cm
-
Height6.3 cm
-
Weight1 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the TDR-240-24 for a 24V PLC and I/O control panel?
Yes, this model is suited to 24V control panels that need up to 10A or 240W. Its DIN rail format, slim 125.2 × 113.5 × 63.0 mm housing, and 340-550VAC 3 phase input fit industrial control cabinets where space and three-phase distribution matter.
Is the TDR-240-24 a good fit for 24V industrial automation cabinets with relays, HMIs, and control electronics?
It can be a fit when the cabinet uses a 24VDC bus and the combined load stays within 240W and 10A. The slim metal case and DIN rail design make it practical for enclosure-mounted automation systems, and the stated efficiency is up to 94.5%.
Can this power supply be used in a building management or HVAC control enclosure?
Yes, for building management panels that use 24VDC controls and have a 340-550VAC input source, this model aligns well with that application. The DIN rail form factor and 125.2 × 113.5 × 63.0 mm size are useful in panel layouts where multiple devices share limited cabinet space.
Is the TDR-240-24 suitable for a slim DIN rail cabinet where depth is limited?
This model is designed for DIN rail mounting and has a slim profile relative to its 240W output. Its dimensions are 125.2 × 113.5 × 63.0 mm, so it is generally easier to place in narrow control cabinets than larger higher-power units in the same series.
What is the difference between the TDR-240-24 and the other TDR series models?
The TDR-240-24 is 240W at 24V and 10A. Other siblings are TDR-240-48 at 240W, 48V, 5A; TDR-480-24 at 480W, 24V, 20A; TDR-480-48 at 480W, 48V, 10A; TDR-960-24 at 960W, 24V, 40A; and TDR-960-48 at 960W, 48V, 20A.
Can the TDR-240-24 be used inside a control cabinet or enclosure in harsh indoor conditions?
It is intended for enclosure-based industrial use, with a metal case and an operating temperature range of -30°C to +70°C. For exposed or washdown locations, the provided specs do not list a separate enclosure rating, so it is better evaluated for use inside a control cabinet or protected enclosure.
Other TDR-240 Models
1 other model| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well TDR-240-48 Single Output Industrial Power Supply 240W 48V - DIN Rail | 240W | 48V | 5A | Indoor | View |
