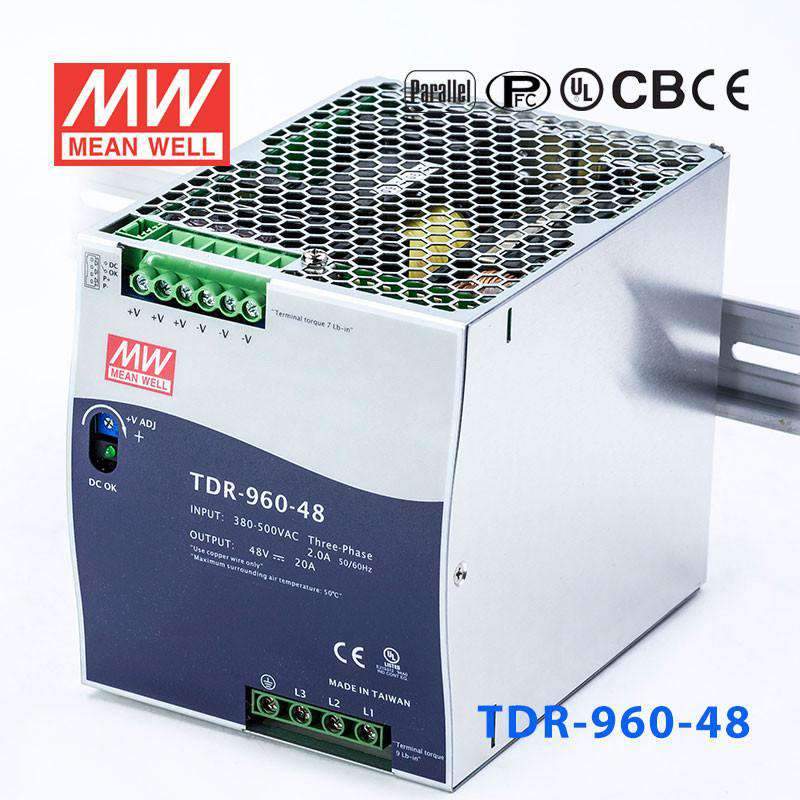

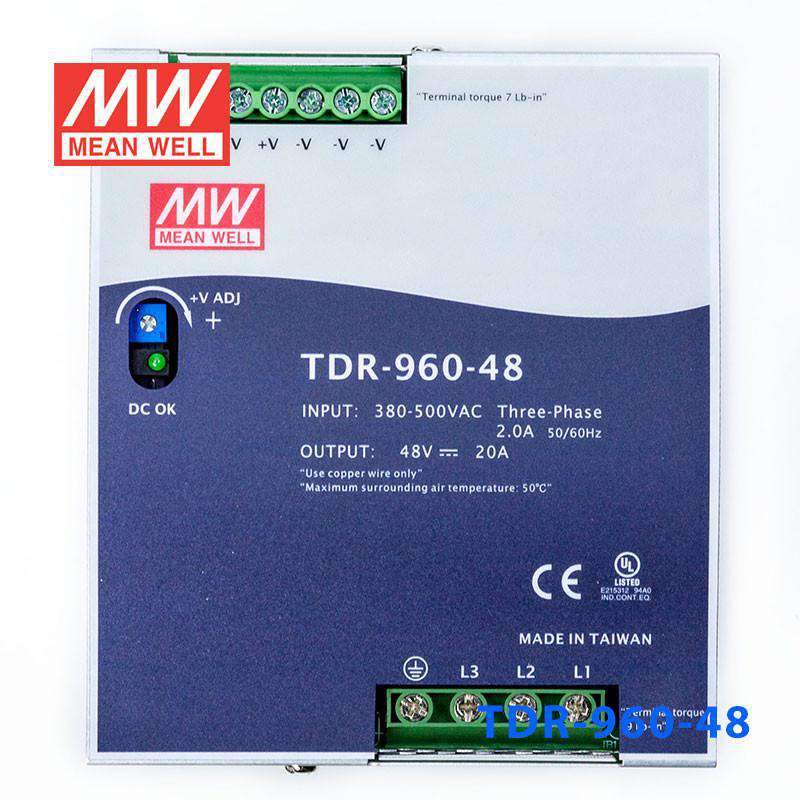

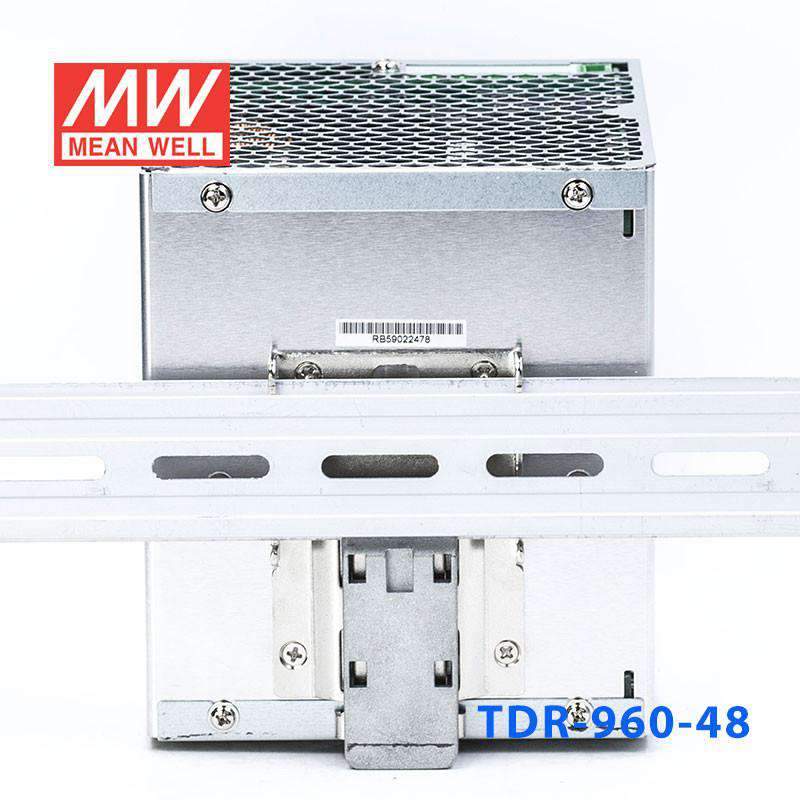

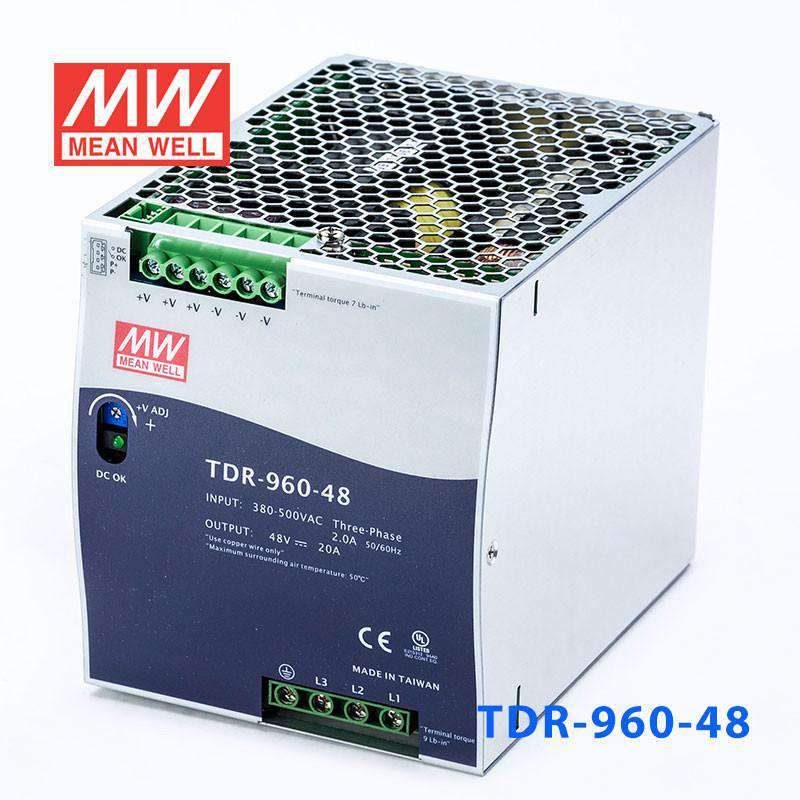

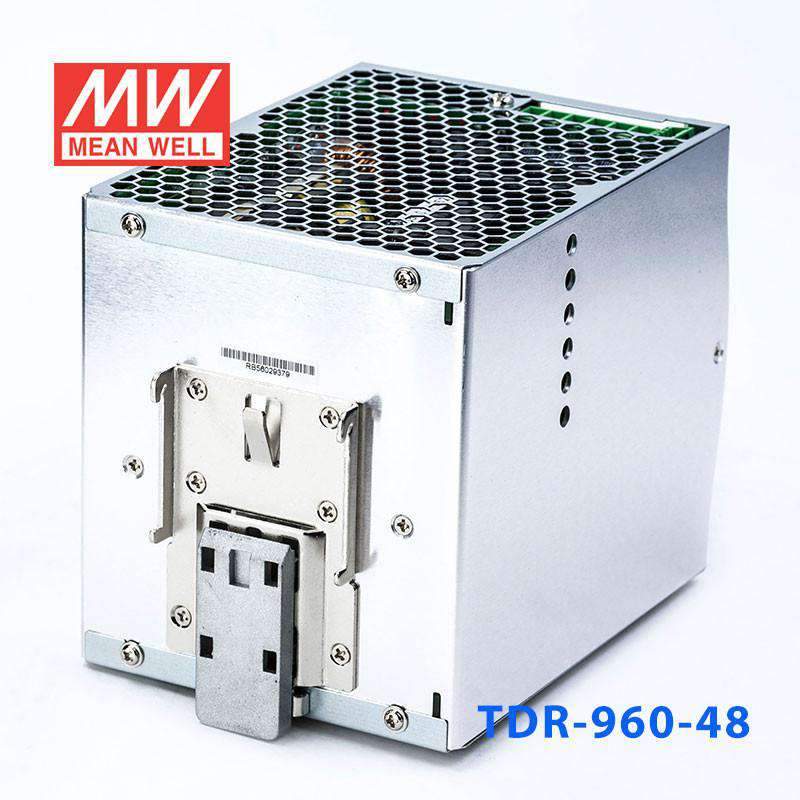

Mean Well TDR-960-48 Single Output Industrial Power Supply 960W 48V...
Please Login for Pricing
Description
Description
The TDR-960 is a 960W Mean Well power converter (input range: 340~550VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 340~550VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Current sharing up to 3840W (parallel units)
- ✓ Safety approvals: UL508 approved, IEC60950-1 CB
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesTDR Series
-
Power Rating960 Watt
-
Output Voltage48 Volt
-
Rated Current20 Ampere
-
Input Voltage340V~550V
-
Standards MetCE,cUL,EAC,TUV
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length15 cm
-
Width12.52 cm
-
Height11 cm
-
Weight2.47 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the Mean Well TDR-960-48 to power a 48V PLC or industrial automation control panel?
Yes. The TDR-960-48 provides a 48V DC output at up to 20A with 960W capacity, which fits 48V PLC, controller, and industrial automation panel loads within that power budget. Its DIN rail form factor and slim metal case are suited to control cabinet installations where space is limited.
Is the TDR-960-48 a good fit for 48V building management and control cabinet systems?
It can be a good fit for 48V building management equipment installed in a control cabinet or enclosure. This model delivers 48V, 20A, and 960W, uses a DIN rail mounting format, and supports a 340-550VAC input range for three phase industrial power environments.
Can this 48V DIN rail power supply be used in large industrial control panels with multiple 48V loads?
Yes, if the combined load stays within 48V, 20A, and 960W. The TDR-960-48 is designed as a DIN rail power supply with a slim 150.0 × 125.2 × 110.0 mm housing, which helps when cabinet space is tight. Its efficiency is rated up to 94.5%, which is relevant in higher-power enclosed panel builds.
Is the Mean Well TDR-960-48 suitable for 48V industrial automation systems that need a three phase input power supply?
Yes. This model is built for three phase input and accepts 340-550VAC, making it suitable for industrial automation systems that are powered from that input range. On the output side, it supplies 48V DC up to 20A with 960W total power.
Can the TDR-960-48 be used inside an enclosure or control cabinet in demanding temperatures?
It is intended for industrial use in a control cabinet or enclosure, not exposed outdoor use. The operating temperature range is -30°C to +70°C, and the metal case, DIN rail format, and 2.47 kg build are aligned with enclosed industrial panel environments.
What is the difference between the TDR-960-48 and other Mean Well TDR series DIN rail power supplies?
Within the same series, the TDR-240-24 is 240W, 24V, 10A; the TDR-240-48 is 240W, 48V, 5A; the TDR-480-24 is 480W, 24V, 20A; the TDR-480-48 is 480W, 48V, 10A; and the TDR-960-24 is 960W, 24V, 40A. The TDR-960-48 is the 960W, 48V, 20A model in that group.
Other TDR-960 Models
1 other model| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well TDR-960-24 Single Output Industrial Power Supply 960W 24V - DIN Rail | 960W | 24V | 40A | Indoor | View |
