Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

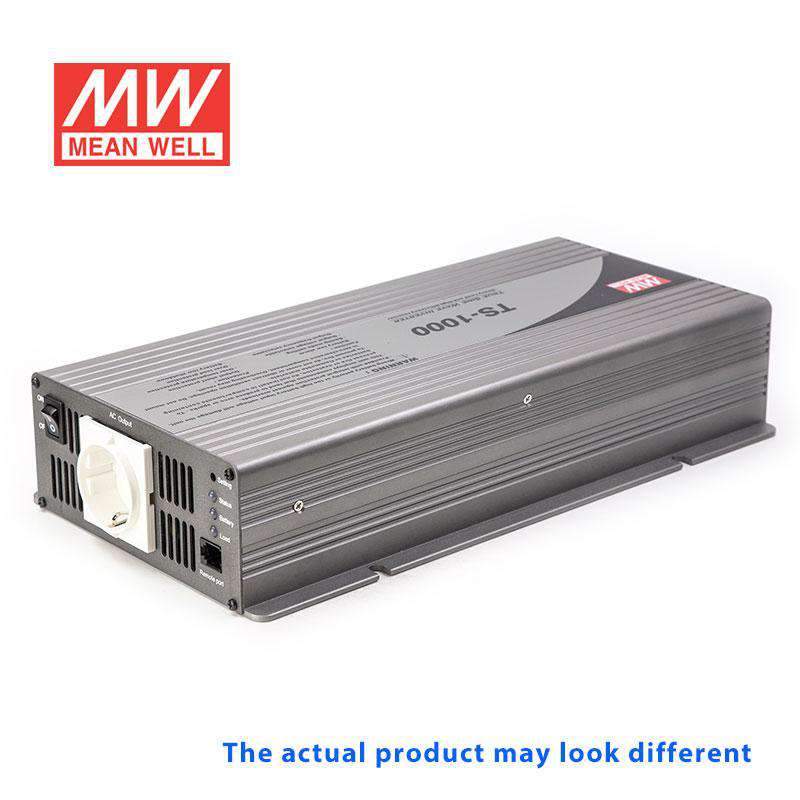

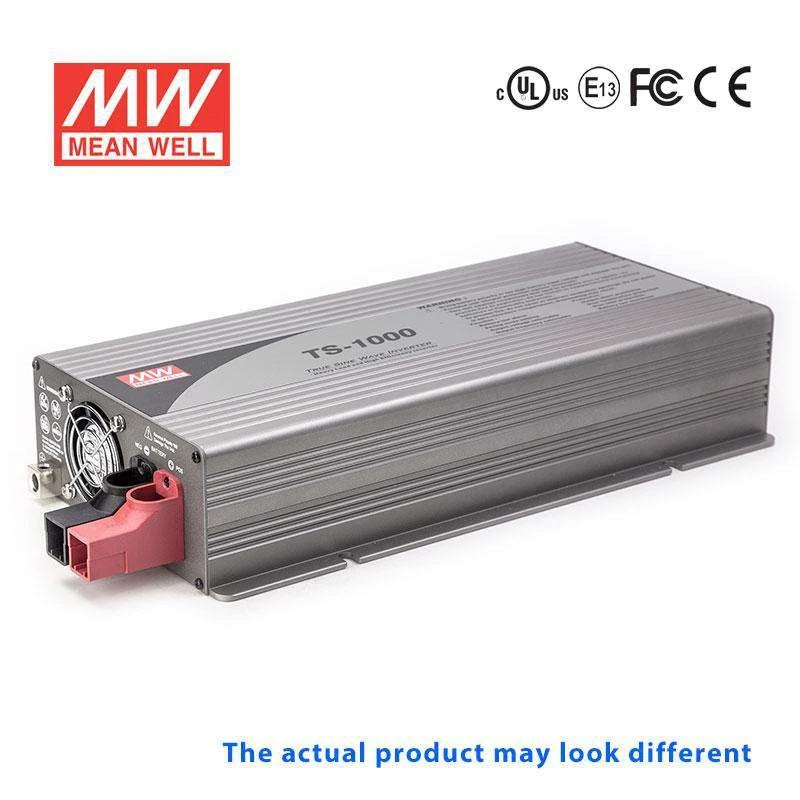

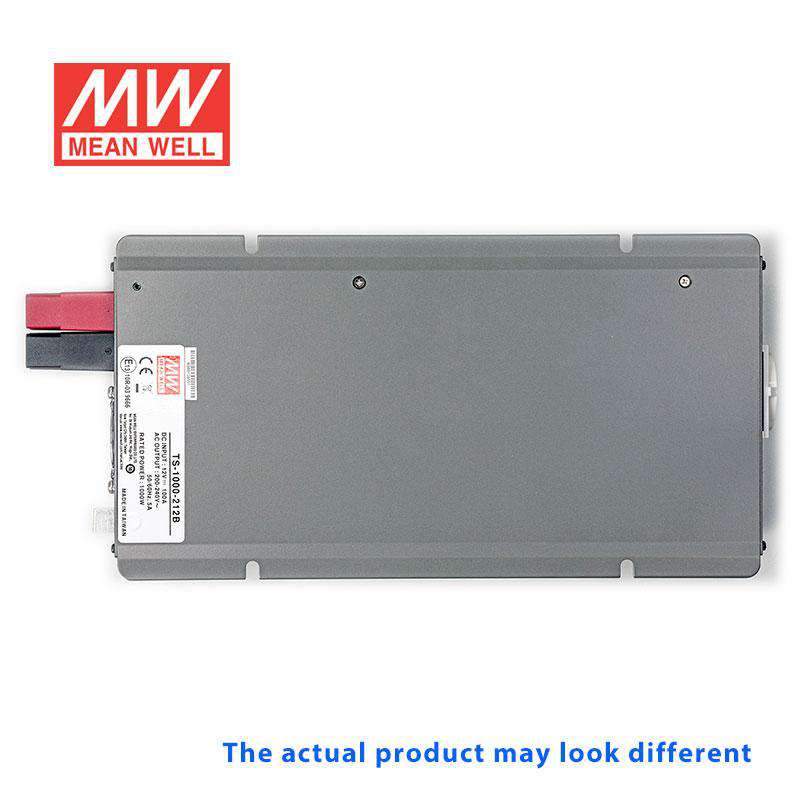

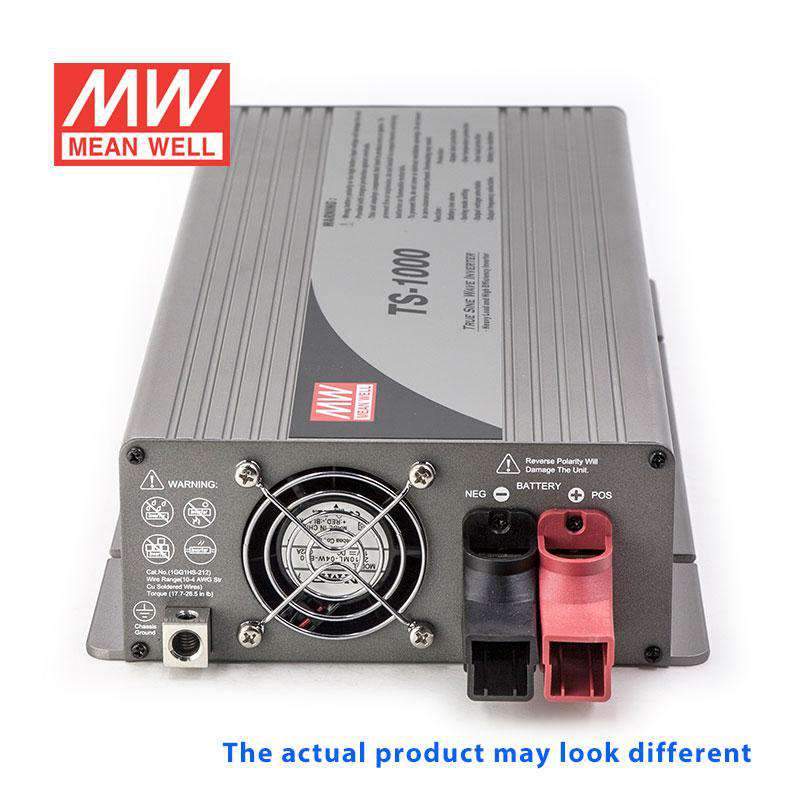

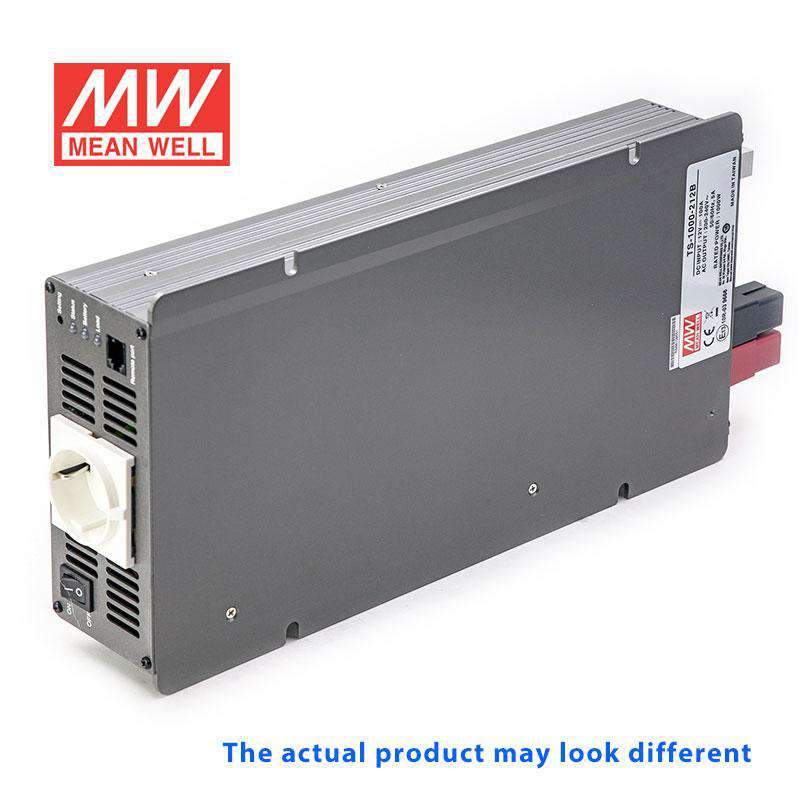

Mean Well TS-1000-212C True Sine Wave 1000W 12VDC to 230VAC 4.3A - ...
Log in to see priceOverview
TS-1000-212C is the model of this series: typical efficiency 90%.
Features
- True sine wave output (THD<3%)
- High surge power up to 2000W
- High efficiency up to 92%
- Power ON-OFF switch
- Standby saving mode can be selected
- Front panel indicator for operation status
- Built-in fan ON-OFF control function
- Protections: Bat. low alarm / Bat. low shutdown / Over voltage / Over temp. / Output short / Input reverse polarity / Overload
- 3 years warranty
Specifications
TS-1000-212CSpecifications from the official datasheet (2022-08-08 edition)
OUTPUT
- RATED POWER (Typ.)
- 1000W
- MAXIMUM OUTPUT POWER (Typ.)
- 1150W for 180 sec. / 1500W for 10 sec. / surge power 2000W for 30 cycles
- AC VOLTAGE
- Factory setting set at 230VAC 200 / 220 / 230 / 240VAC selectable by setting button S.W
- FREQUENCYNote.8
- 50±0.1Hz 50/60Hz selectable by setting button S.W
- WAVEFORMNote.6
- True sine wave (THD<3%)
- AC REGULATION (Typ.)
- ±3.0%
- SAVING MODE (Typ.)
- Default disabled. Load≦5W will be changed to standby mode
- FRONT PANEL INDICATOR
- Battery voltage level, output load level, saving mode, fault and operation status
INPUT
- BAT. VOLTAGE
- 12V
- VOLTAGE RANGE (Typ.)Note.4,6
- 10.5 ~ 15VDC
- DC CURRENT (Typ.)
- 100A
- NO LOAD DISSIPATION (Typ.)
- ≦6W @ standby saving mode
- OFF MODE CURRENT DRAW
- ≦1mA
- EFFICIENCY (Typ.)Note.1
- 90%
- BATTERY TYPES
- Open & sealed lead acid
BATTERY INPUT PROTECTION
- FUSE
- 40A*4
- BAT. LOW ALARM
- 11.3±4%
- BAT. LOW SHUTDOWN
- 10.5±4%
- REVERSE POLARITY
- By internal fuse open
OUTPUT PROTECTION
- OVER TEMPERATURE
- 70℃± 5℃ Protection type : Shut down o/p voltage, re-power on to recover; by internal RTH3 detect on heatsink of power diode
- OUTPUT SHORT
- Protection type : Shut down o/p voltage, re-power on to recover
- OVER LOAD (Typ.)
- 105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec. Protection type : Shut down o/p voltage, re-power on to recover
- GFCI PROCTECTION
- None
ENVIRONMENT
- WORKING TEMP.Note.3
- 0 ~ +40℃ @ 100% load ; +60℃ @ 50% load
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -30 ~ +70℃ / -22 ~ +158℉, 10 ~ 95% RH non-condensing
- VIBRATION
- 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- IEC62368-1 CB, EAC TP TC 004 approved; Design refer to BS EN/EN62368-1
- WITHSTAND VOLTAGE
- Bat I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC
- ISOLATION RESISTANCE
- Bat I/P - AC O/P, Bat I/P - FG, AC O/P - FG: 100M ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 class A, 72/ 245/ CEE, 95/ 54/ CE, E-Mark, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,8, BS EN/EN55035, EAC TP TC 020
OTHERS
- MTBF
- 528.8K hrs min. Telcordia SR-332 (Bellcore) ; 80.7K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 345*184*70mm (L*W*H)
- PACKING
- 4.3Kg; 2pcs/9.6Kg/1.16CUFT
- COOLING
- Loading controlled cooling fan for GFCI receptacle-type F ; Thermostatically controlled cooling fan for others.
Test conditions and notes8
- 1.Efficiency is tested by 750W, linear load at 13V, 26V, 52V input voltage.
- 2.All parameters not specified above are measured at rated load, 25℃ of ambient temperature and set to factory setting.
- 3.Output derating capacity referenced by curve 1.
- 4.Input derating capacity referenced by curve 2.
- 5.The tolerance of each voltage value by models is:112/212→±0.5V;124/224→±1V;148/248→±2V
- 6.THD is tested by 1000W, linear load at 13,26,52V input voltage.
- 7.The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 8.Type F for 60Hz only.
Technical drawings
Typical applications
- Home appliance, power tools, office and portable equipment, vehicle and yacht ...etc.
