Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

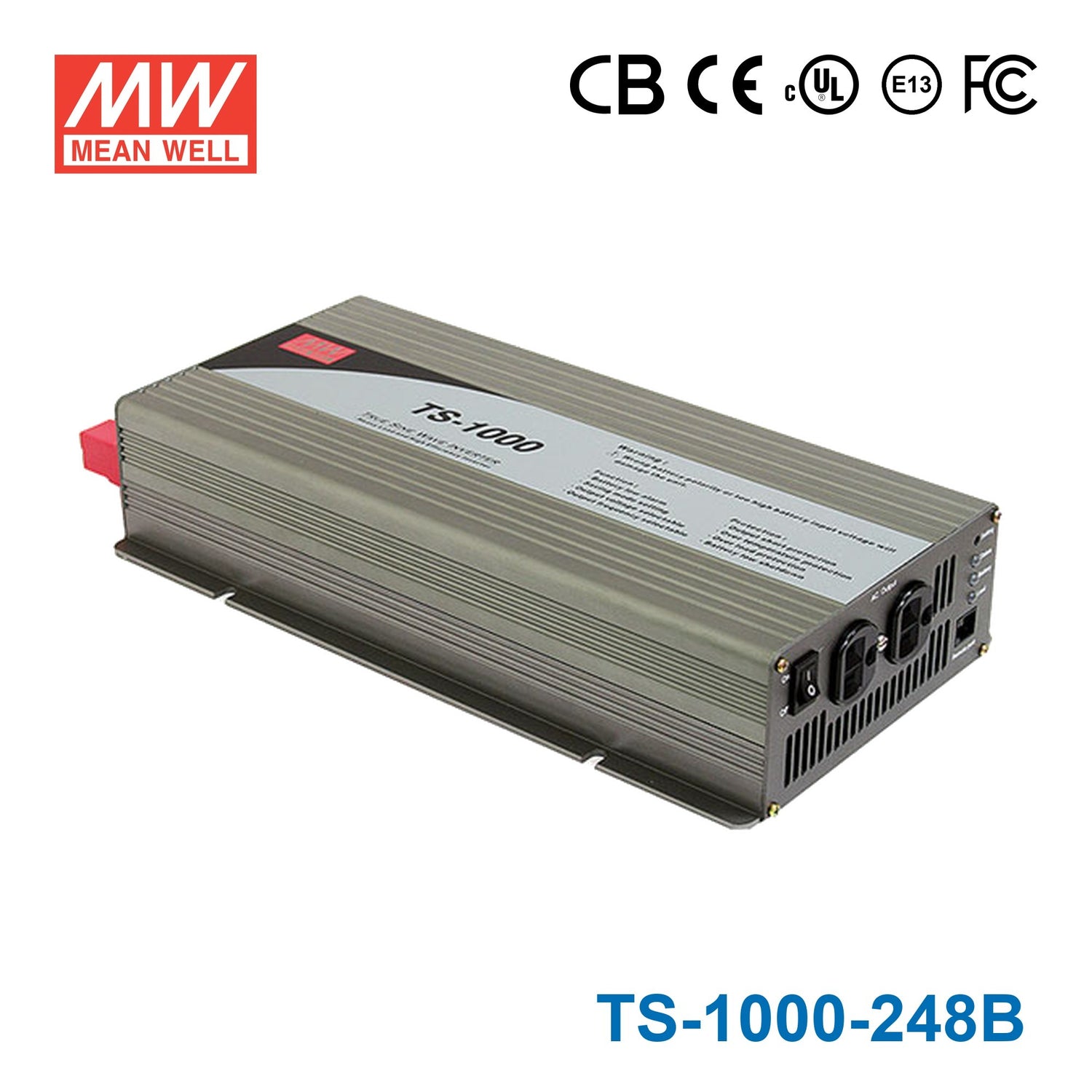

Mean Well TS-1000-248B True Sine Wave 1000W 48VDC to 230VAC 4.3A - DC-AC Power Inverter

SKU TS-1000-248B

Log in to see price Trade pricing & online ordering for account holders

End of Life, Succeeded by NTS-1200-248EU

In stock

Overview

TS-1000-248B is the model of this series: typical efficiency 92%.

Features

True sine wave output (THD<3%)
High surge power up to 2000W
High efficiency up to 92%
Power ON-OFF switch
Standby saving mode can be selected
Front panel indicator for operation status
Built-in fan ON-OFF control function
Protections: Bat. low alarm / Bat. low shutdown / Over voltage / Over temp. / Output short / Input reverse polarity / Overload
3 years warranty

Specifications

TS-1000-248BSpecifications from the official datasheet (2022-08-08 edition)

OUTPUT

RATED POWER (Typ.): 1000W
MAXIMUM OUTPUT POWER (Typ.): 1150W for 180 sec. / 1500W for 10 sec. / surge power 2000W for 30 cycles
AC VOLTAGE: Factory setting set at 230VAC 200 / 220 / 230 / 240VAC selectable by setting button S.W
FREQUENCY^Note.8: 50±0.1Hz 50/60Hz selectable by setting button S.W
WAVEFORM^Note.6: True sine wave (THD<3%)
AC REGULATION (Typ.): ±3.0%
SAVING MODE (Typ.): Default disabled. Load≦5W will be changed to standby mode
FRONT PANEL INDICATOR: Battery voltage level, output load level, saving mode, fault and operation status

INPUT

BAT. VOLTAGE: 48V
VOLTAGE RANGE (Typ.)^Note.4,6: 42 ~ 60VDC
DC CURRENT (Typ.): 25A
NO LOAD DISSIPATION (Typ.): ≦6W @ standby saving mode
OFF MODE CURRENT DRAW: ≦1mA
EFFICIENCY (Typ.)^Note.1: 92%
BATTERY TYPES: Open & sealed lead acid

BATTERY INPUT PROTECTION

FUSE: 20A*2
BAT. LOW ALARM: 45±4%
BAT. LOW SHUTDOWN: 42±4%
REVERSE POLARITY: By internal fuse open

OUTPUT PROTECTION

OVER TEMPERATURE: 70℃± 5℃ Protection type : Shut down o/p voltage, re-power on to recover; by internal RTH3 detect on heatsink of power diode
OUTPUT SHORT: Protection type : Shut down o/p voltage, re-power on to recover
OVER LOAD (Typ.): 105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec. Protection type : Shut down o/p voltage, re-power on to recover
GFCI PROCTECTION: None

ENVIRONMENT

WORKING TEMP.^Note.3: 0 ~ +40℃ @ 100% load ; +60℃ @ 50% load
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -30 ~ +70℃ / -22 ~ +158℉, 10 ~ 95% RH non-condensing
VIBRATION: 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: IEC62368-1 CB, EAC TP TC 004 approved; Design refer to BS EN/EN62368-1
WITHSTAND VOLTAGE: Bat I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC
ISOLATION RESISTANCE: Bat I/P - AC O/P, Bat I/P - FG, AC O/P - FG: 100M ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 class A, 72/ 245/ CEE, 95/ 54/ CE, E-Mark, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,8, BS EN/EN55035, EAC TP TC 020

OTHERS

MTBF: 528.8K hrs min. Telcordia SR-332 (Bellcore) ; 80.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 345*184*70mm (L*W*H)
PACKING: 4.3Kg; 2pcs/9.6Kg/1.16CUFT
COOLING: Loading controlled cooling fan for GFCI receptacle-type F ; Thermostatically controlled cooling fan for others.

Test conditions and notes8

1.Efficiency is tested by 750W, linear load at 13V, 26V, 52V input voltage.
2.All parameters not specified above are measured at rated load, 25℃ of ambient temperature and set to factory setting.
3.Output derating capacity referenced by curve 1.
4.Input derating capacity referenced by curve 2.
5.The tolerance of each voltage value by models is:112/212→±0.5V;124/224→±1V;148/248→±2V
6.THD is tested by 1000W, linear load at 13,26,52V input voltage.
7.The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
8.Type F for 60Hz only.

Technical drawings

TS-1000-248B AC Output Socket (optional) — AC Output Socket (optional)

TS-1000-248B Mechanical Specification — Mechanical Specification

Typical applications

Home appliance, power tools, office and portable equipment, vehicle and yacht ...etc.

Downloads

Certificates8

Mean Well TS-1000-CB Certificate PDF Download

Mean Well E310243-UL Certificate PDF Download

Mean Well TS-1000-FCC Certificate PDF Download

Mean Well TS-1000-E13 Certificate PDF Download

Mean Well 0147419-EAC Certificate PDF Download

Mean Well TS-1000-EMC Certificate PDF Download

Mean Well TS-1000-CE-DEC Certificate PDF Download

Mean Well TS-1000-UK-dec Certificate PDF Download

Test reports1

Mean Well TS-1000-248 Test Report PDF Download

Catalogues2

Mean Well Catalog (Industrial) PDF Download

Mean Well Inverter Catalog PDF Download

FAQ

What is the Mean Well TS-1000-248B used for?

The TS-1000-248B is a 1000W DC-AC power inverter designed for converting DC power into 230V AC true sine wave output. It is intended for applications such as home appliances, power tools, office equipment, portable equipment, vehicles, and yachts where clean AC power is required.

Does the TS-1000-248B provide true sine wave output?

Yes, this model provides true sine wave output with total harmonic distortion below 3%. That makes it suitable for equipment that benefits from clean, stable AC power compared with less refined waveforms.

What output power can this inverter deliver?

The TS-1000-248B is rated for 1000W continuous output power. It also features high surge power up to 2000W for 30 cycles, which can help support equipment with higher startup demand.

What output voltage does the TS-1000-248B provide?

This inverter provides 230V AC output. It is intended for applications and equipment that require 230V AC power rather than lower-voltage AC output models.

What protection features are included in the TS-1000-248B?

The TS-1000-248B includes built-in protection for short circuit, overload, and over temperature conditions. These protections help safeguard both the inverter and connected equipment during abnormal operating conditions.

Can this inverter be used in mobile or marine environments?

Yes, Mean Well lists vehicle and yacht applications among the intended uses for the TS-1000-248B. Its true sine wave output also makes it a practical choice for portable and mobile equipment that needs cleaner AC power.

What operating temperature range is specified for the TS-1000-248B?

The specified operating temperature range for this model is 0°C to 40°C. Buyers should make sure the installation environment stays within that range for normal operation.

Does the TS-1000-248B support remote control or communication?

The TS-1000-248B features a front panel indicator for battery voltage, output load, saving mode, fault, and operation status. It also includes a built-in fan ON-OFF control function.

What warranty is offered for the TS-1000-248B?

The TS-1000-248B comes with a 3-year warranty. This provides longer-term coverage for buyers using the inverter in commercial, industrial, or mobile power applications.
