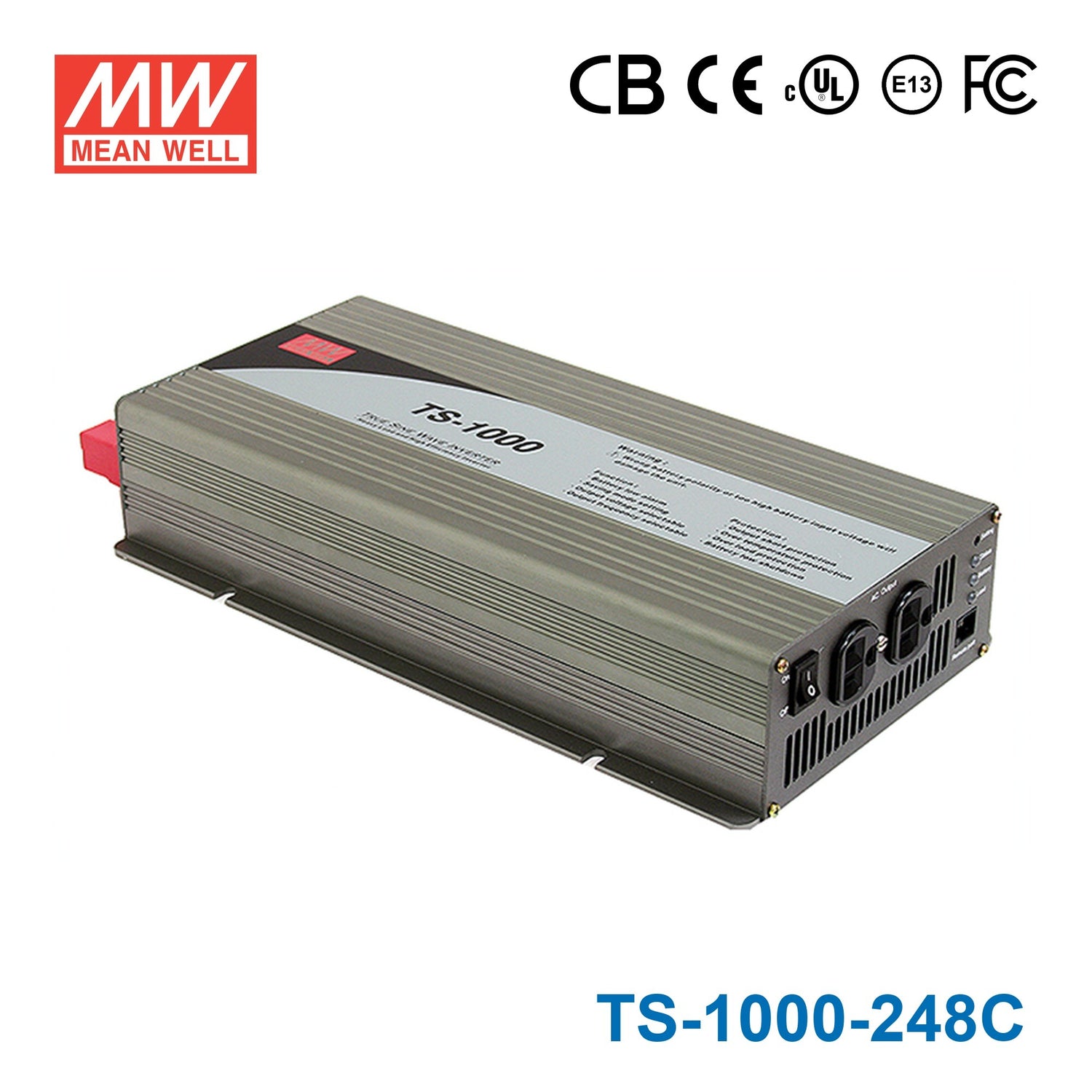

Mean Well TS-1000-248C True Sine Wave 1000W 48VDC to 230VAC 4.3A - DC-AC Power Inverter

SKU TS-1000-248C

Log in to see price Trade pricing & online ordering for account holders

End of Life, Succeeded by NTS-1200-248AU

In stock

Overview

TS-1000-248C is the model of this series: typical efficiency 92%.

Features

True sine wave output (THD<3%)
High surge power up to 2000W
High efficiency up to 92%
Power ON-OFF switch
Standby saving mode can be selected
Front panel indicator for operation status
Built-in fan ON-OFF control function
Protections: Bat. low alarm / Bat. low shutdown / Over voltage / Over temp. / Output short / Input reverse polarity / Overload
3 years warranty

Specifications

TS-1000-248CSpecifications from the official datasheet (2022-08-08 edition)

OUTPUT

RATED POWER (Typ.): 1000W
MAXIMUM OUTPUT POWER (Typ.): 1150W for 180 sec. / 1500W for 10 sec. / surge power 2000W for 30 cycles
AC VOLTAGE: Factory setting set at 230VAC 200 / 220 / 230 / 240VAC selectable by setting button S.W
FREQUENCY^Note.8: 50±0.1Hz 50/60Hz selectable by setting button S.W
WAVEFORM^Note.6: True sine wave (THD<3%)
AC REGULATION (Typ.): ±3.0%
SAVING MODE (Typ.): Default disabled. Load≦5W will be changed to standby mode
FRONT PANEL INDICATOR: Battery voltage level, output load level, saving mode, fault and operation status

INPUT

BAT. VOLTAGE: 48V
VOLTAGE RANGE (Typ.)^Note.4,6: 42 ~ 60VDC
DC CURRENT (Typ.): 25A
NO LOAD DISSIPATION (Typ.): ≦6W @ standby saving mode
OFF MODE CURRENT DRAW: ≦1mA
EFFICIENCY (Typ.)^Note.1: 92%
BATTERY TYPES: Open & sealed lead acid

BATTERY INPUT PROTECTION

FUSE: 20A*2
BAT. LOW ALARM: 45±4%
BAT. LOW SHUTDOWN: 42±4%
REVERSE POLARITY: By internal fuse open

OUTPUT PROTECTION

OVER TEMPERATURE: 70℃± 5℃ Protection type : Shut down o/p voltage, re-power on to recover; by internal RTH3 detect on heatsink of power diode
OUTPUT SHORT: Protection type : Shut down o/p voltage, re-power on to recover
OVER LOAD (Typ.): 105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec. Protection type : Shut down o/p voltage, re-power on to recover
GFCI PROCTECTION: None

ENVIRONMENT

WORKING TEMP.^Note.3: 0 ~ +40℃ @ 100% load ; +60℃ @ 50% load
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -30 ~ +70℃ / -22 ~ +158℉, 10 ~ 95% RH non-condensing
VIBRATION: 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: IEC62368-1 CB, EAC TP TC 004 approved; Design refer to BS EN/EN62368-1
WITHSTAND VOLTAGE: Bat I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC
ISOLATION RESISTANCE: Bat I/P - AC O/P, Bat I/P - FG, AC O/P - FG: 100M ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 class A, 72/ 245/ CEE, 95/ 54/ CE, E-Mark, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,8, BS EN/EN55035, EAC TP TC 020

OTHERS

MTBF: 528.8K hrs min. Telcordia SR-332 (Bellcore) ; 80.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 345*184*70mm (L*W*H)
PACKING: 4.3Kg; 2pcs/9.6Kg/1.16CUFT
COOLING: Loading controlled cooling fan for GFCI receptacle-type F ; Thermostatically controlled cooling fan for others.

Test conditions and notes8

1.Efficiency is tested by 750W, linear load at 13V, 26V, 52V input voltage.
2.All parameters not specified above are measured at rated load, 25℃ of ambient temperature and set to factory setting.
3.Output derating capacity referenced by curve 1.
4.Input derating capacity referenced by curve 2.
5.The tolerance of each voltage value by models is:112/212→±0.5V;124/224→±1V;148/248→±2V
6.THD is tested by 1000W, linear load at 13,26,52V input voltage.
7.The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
8.Type F for 60Hz only.

Technical drawings

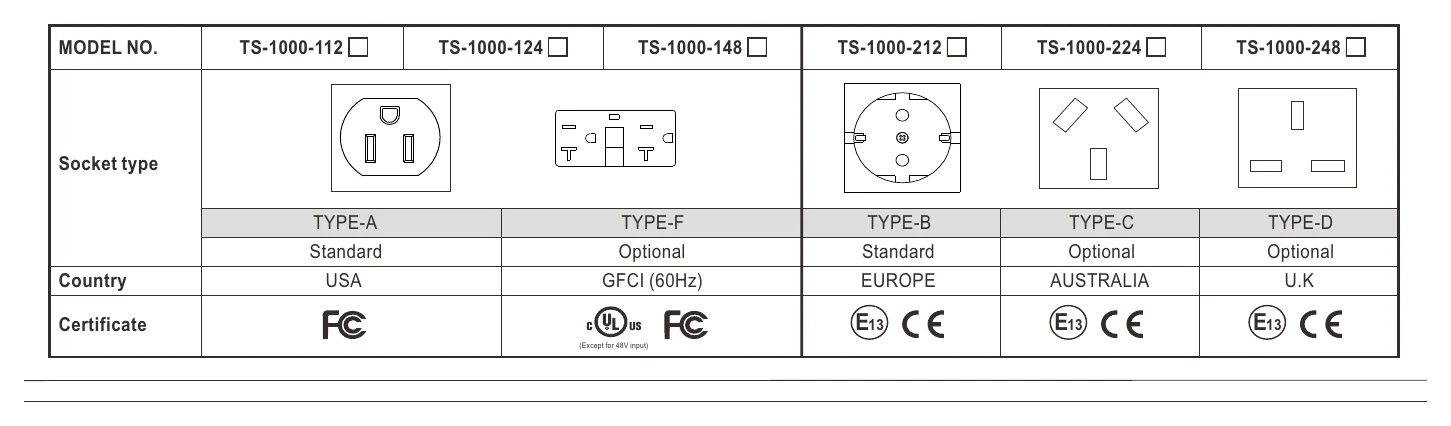

TS-1000-248C AC Output Socket (optional) — AC Output Socket (optional)

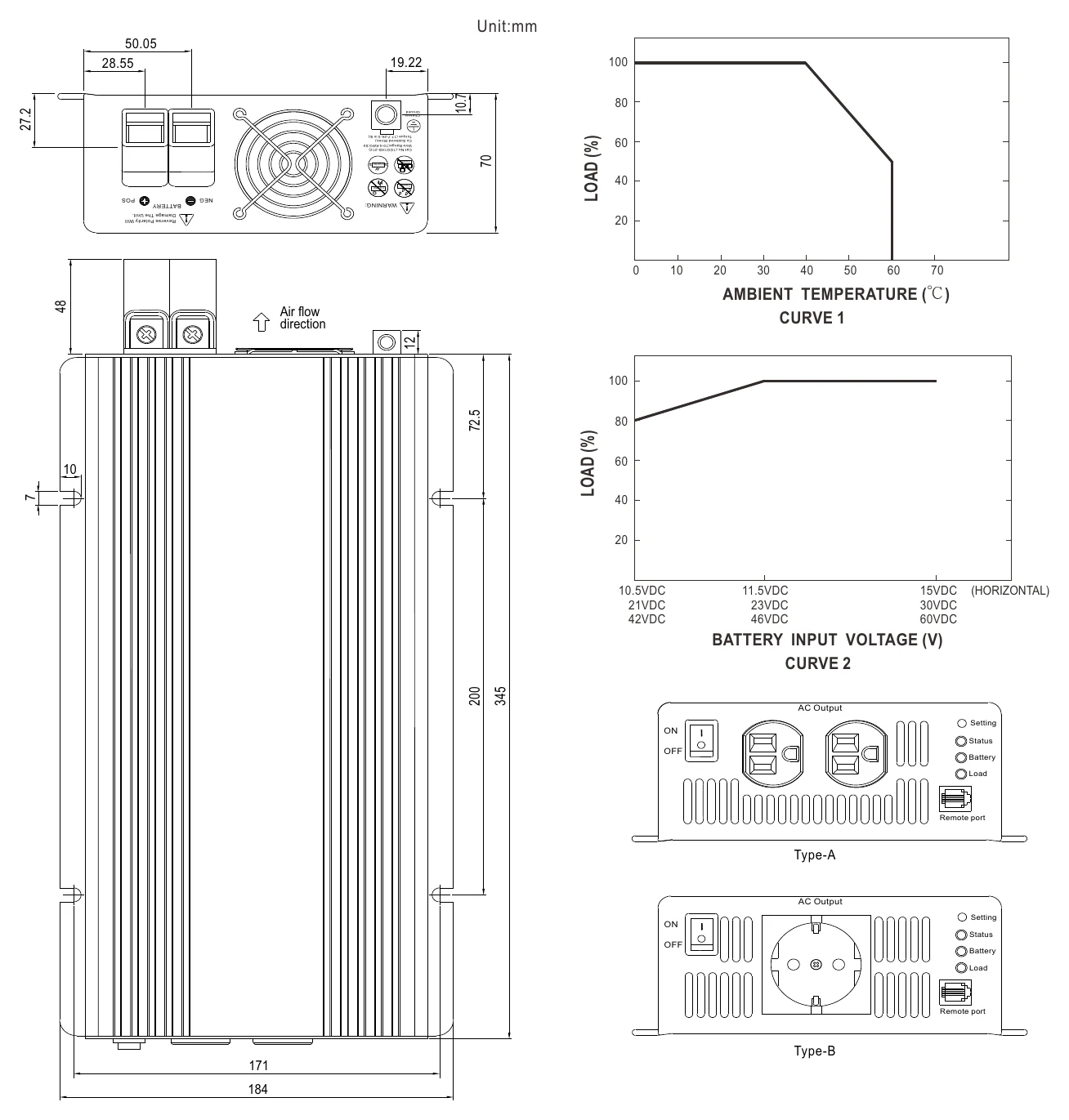

TS-1000-248C Mechanical Specification — Mechanical Specification

Typical applications

Home appliance, power tools, office and portable equipment, vehicle and yacht ...etc.

Downloads

Certificates4

FCC Certificate (TS-1000)(EN) PDF Download

EMC Certificate (TS-1000)(EN) PDF Download

UL Certificate(TS-1000)(EN) PDF Download

E13 Certificate(TS-1000)(EN) PDF Download

Test reports1

Test Report(TS-1000-248)(EN) PDF Download

Catalogues2

Mean Well Catalog (Industrial) PDF Download

Mean Well Inverter Catalog PDF Download

FAQ

What is the Mean Well TS-1000-248C designed for?

The TS-1000-248C is a 1000W DC-AC power inverter designed for running 230V AC equipment from a DC power source. Mean Well lists applications including home appliances, power tools, office equipment, portable equipment, vehicles, and yachts.

What type of AC output does the TS-1000-248C provide?

This model provides a true sine wave 230V AC output. Its total harmonic distortion is specified as less than 3%, which makes it suitable for equipment that benefits from cleaner AC power.

How much power can the TS-1000-248C deliver?

The TS-1000-248C has a rated output power of 1000W. It also supports high surge power up to 2000W for 30 cycles, which can help with loads that briefly demand more power at startup.

What protection features are included in this inverter?

Mean Well specifies built-in protection for battery low alarm, battery low shutdown, over voltage, over temperature, output short, input reverse polarity, and overload. These protection functions help safeguard the inverter during abnormal operating conditions.

Can the TS-1000-248C be used in warmer environments?

The listed operating temperature range for this model is 0°C to 40°C. It also includes a thermostatically controlled cooling fan to support thermal management during use.

Does the TS-1000-248C support remote control or communication features?

The TS-1000-248C includes a front panel indicator for battery voltage level, output load level, saving mode, fault and operation status. It also features a built-in fan ON-OFF control function.

What are the warranty and physical considerations for this model?

The TS-1000-248C comes with a 3-year warranty from Mean Well. Its listed weight is 4.3 kg, which may be useful when comparing inverter options for portable or space-constrained applications.
