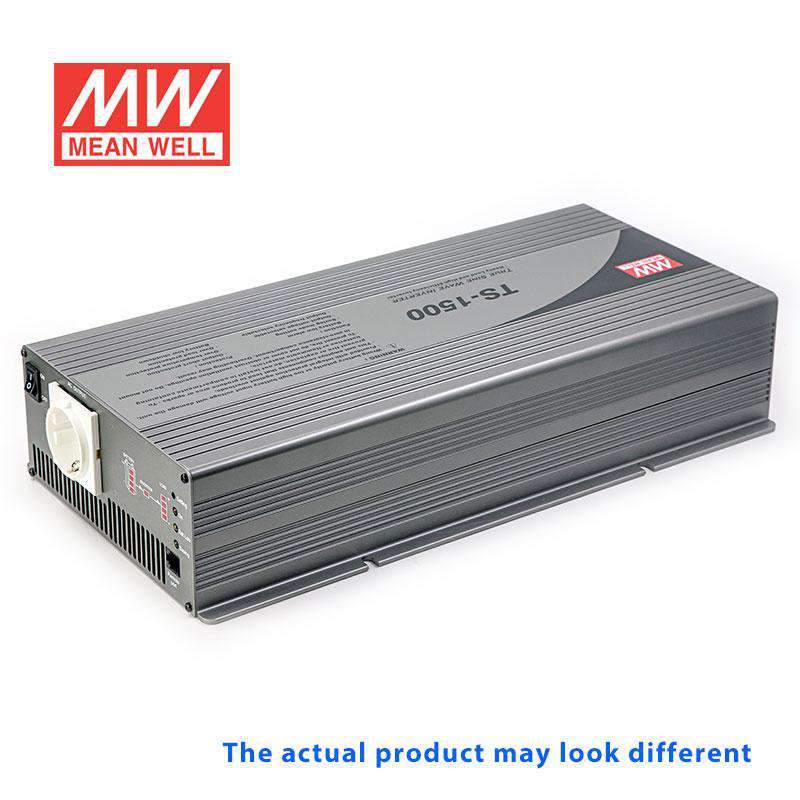

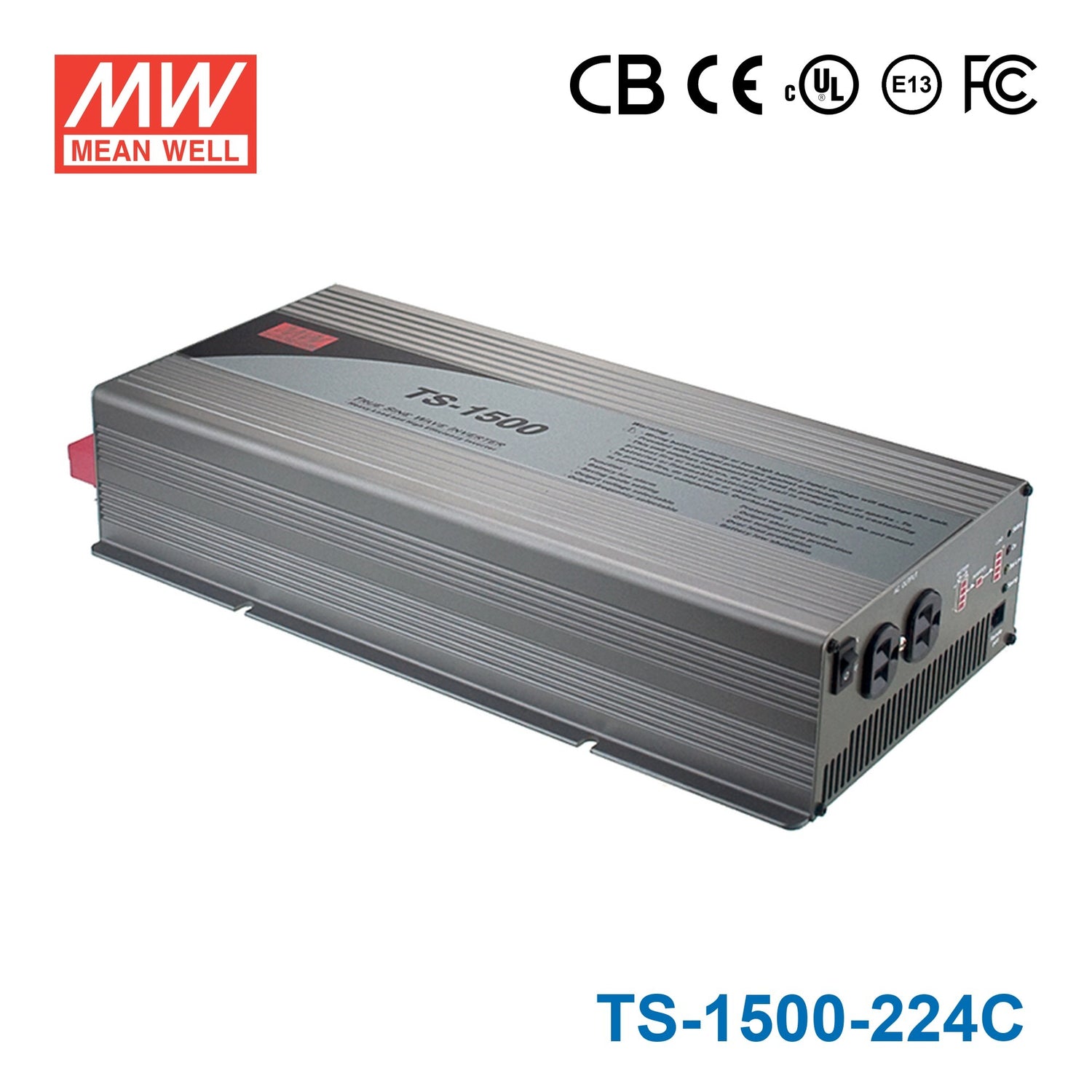

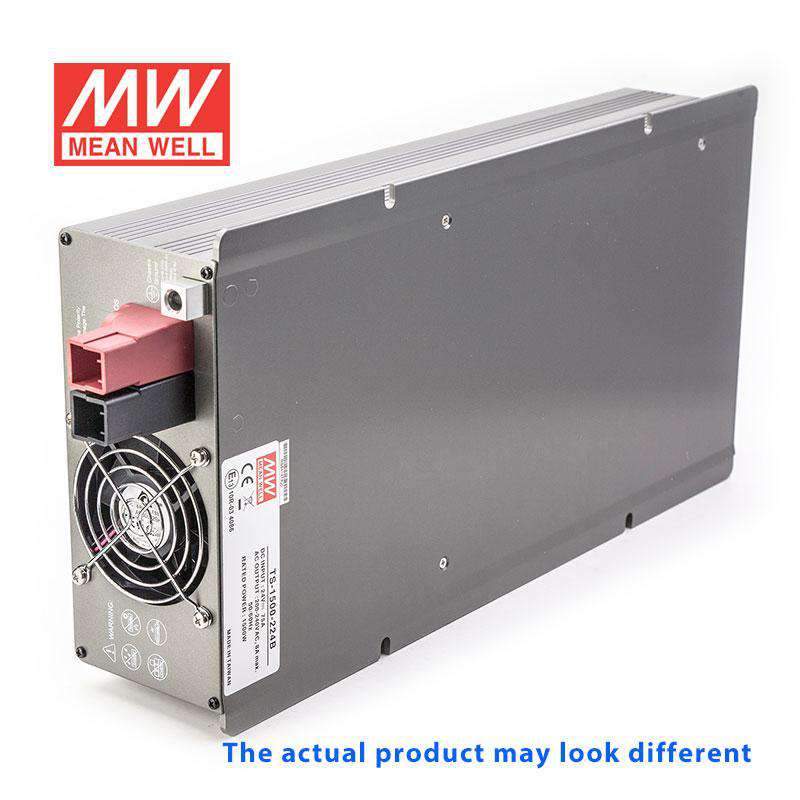

Mean Well TS-1500-224C True Sine Wave 1500W 24VDC to 230VAC 6.5A - DC-AC Power Inverter

high surge power up to 200%suitable for motor related applications

SKU TS-1500-224C

Log in to see price Trade pricing & online ordering for account holders

End of Life, Succeeded by NTS-1700-224AU

In stock

Overview

TS-1500-224C is the model of this series: typical efficiency 90%.

Features

True sine wave output (THD<3%)
High surge power up to 3000W
High efficiency up to 91%
Power ON-OFF switch
Standby saving mode can be selectable

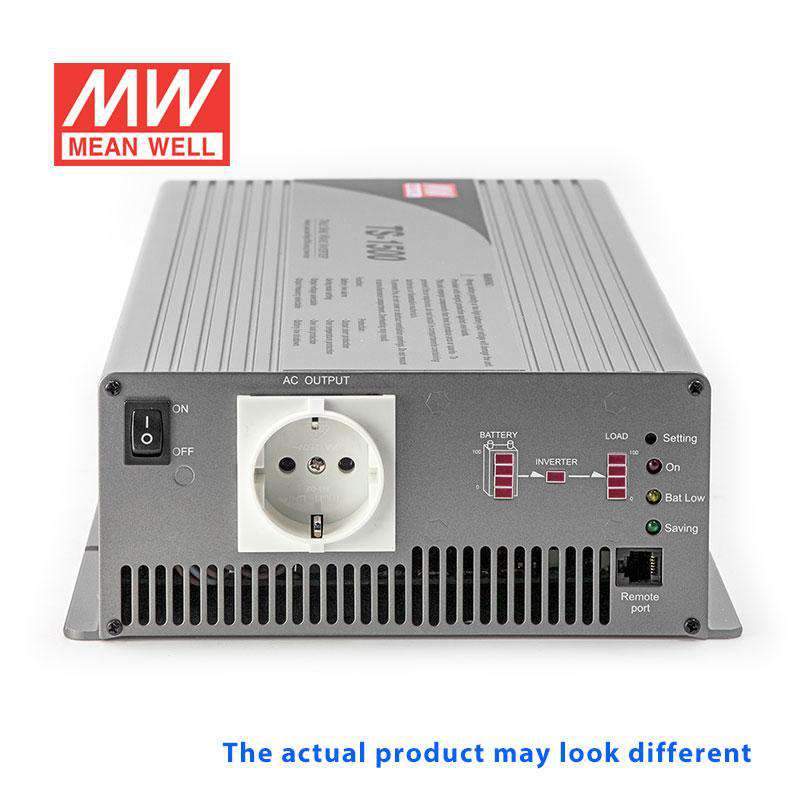

Front panel indicator for operation status
Thermostatically controlled cooling fan
Protections: Bat. low alarm / Bat. low shutdown / Over voltage / Over temp. / Output short / Input polarity reverse / Overload
Application : Home appliance, power tools, office and portable equipment, vehicle and yacht ...etc.
Support RS-232 communication (communication cable order No.: RJ11-RS232, sold sperately) Note.10
3 years warranty

Specifications

TS-1500-224CSpecifications from the official datasheet (2022-08-08 edition)

OUTPUT

RATED POWER (Typ.): 1500W
MAXIMUM OUTPUT POWER (Typ.): 1725W for 180 sec. / 1875W for 10 sec. / surge power 3000W for 30 cycles
AC VOLTAGE: 200 / 220 / 230 / 240VAC selectable by setting button
FREQUENCY^Note.9: 50±0.1Hz 50/60Hz selectable by setting button S.W
WAVEFORM^Note.2: True sine wave (THD<3%)
AC REGULATION (Typ.): ±3.0%
SAVING MODE (Typ.): Default disabled. Load≦5W will be changed to standby mode
FRONT PANEL INDICATOR: Battery voltage level, output load level, saving mode, fault and operation status

INPUT

BAT. VOLTAGE: 24V
VOLTAGE RANGE (Typ.)^Note.3,6: 21 ~ 30VDC
DC CURRENT (Typ.)^Note.5: 75A
NO LOAD DISSIPATION (Typ.): ≦18W @ standby saving mode
OFF MODE CURRENT DRAW: ≦1mA
EFFICIENCY (Typ.)^Note.2: 90%
BATTERY TYPES: Open & sealed Lead Acid

BATTERY INPUT PROTECTION

FUSE: 30A*3
BAT. LOW ALARM: 22.5±4%
BAT. LOW SHUTDOWN: 21±4%
REVERSE POLARITY: By internal fuse open

OUTPUT PROTECTION

OVER TEMPERATURE: 68℃± 5℃
OUTPUT SHORT: Protection type : Shut down o/p voltage, re-power on to recover
OVER LOAD (Typ.): 105 ~ 115% load for 180 sec., 115% ~ 125% load for 10 sec. Protection type : Shut down o/p voltage, re-power on to recover
GFCI PROCTECTION: None

ENVIRONMENT

WORKING TEMP.^Note.1: 0 ~ +40℃ @ 100% load ; 60℃ @ 50% load
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -30 ~ +70℃ / -22 ~ +158℉, 10 ~ 95% RH non-condensing
VIBRATION: 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: IEC62368-1 CB, EAC TP TC 004 approved; Design refer to BS EN/EN62368-1
WITHSTAND VOLTAGE: Bat I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC
ISOLATION RESISTANCE: Bat I/P - AC O/P, Bat I/P - FG, AC O/P - FG: 100M ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 class B, 72/ 245/ CEE, 95/ 54/ CE, E-Mark, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,8, BS EN/EN55035, EAC TP TC 020

OTHERS

CONTROL WIRING^Note.10: RJ11 -RS232 (Option)
MTBF: 311.6K hrs min. Telcordia SR-332 (Bellcore) ; 47.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 420*220*88mm (L*W*H)
PACKING: 6.81Kg; 2pcs/14.6Kg/1.61CUFT

Test conditions and notes10

1.Output derating capacity referenced by curve 1.
2.THD and Efficiency is tested by 1000W, linear load at 13V, 26V, 52V input voltage.
3.Input derating capacity referenced by curve 2.
4.All parameters not specified above are measured at rated load, 25℃ of ambient temperature and set to factory setting.
5.DC current is tested by 1500W, linear load at 13V, 26V, 52V input voltage.
6.The tolerance of each voltage value by models is:112/212→±0.5V;124/224→±1V;148/248→±2V.
7.Please do not turn on the inverter before start the engine if inverter connect to vehicle’s battery directly.
8.The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9.Type F for 60Hz only.
10.The cable is used for the connection between TS-1500 and computer for software monitoring.

Technical drawings

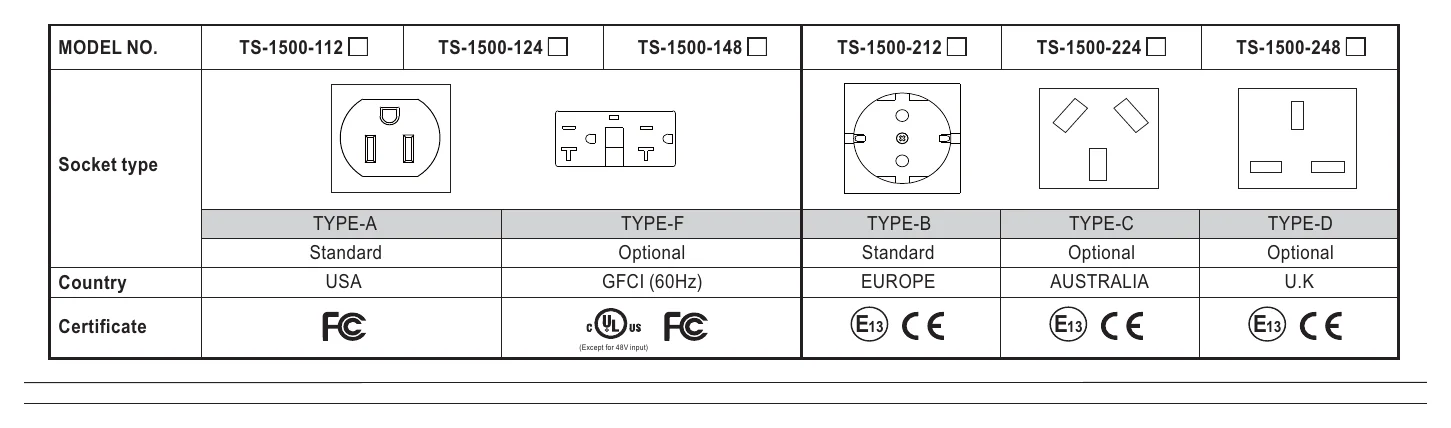

TS-1500-224C AC Output Socket (optional) — AC Output Socket (optional)

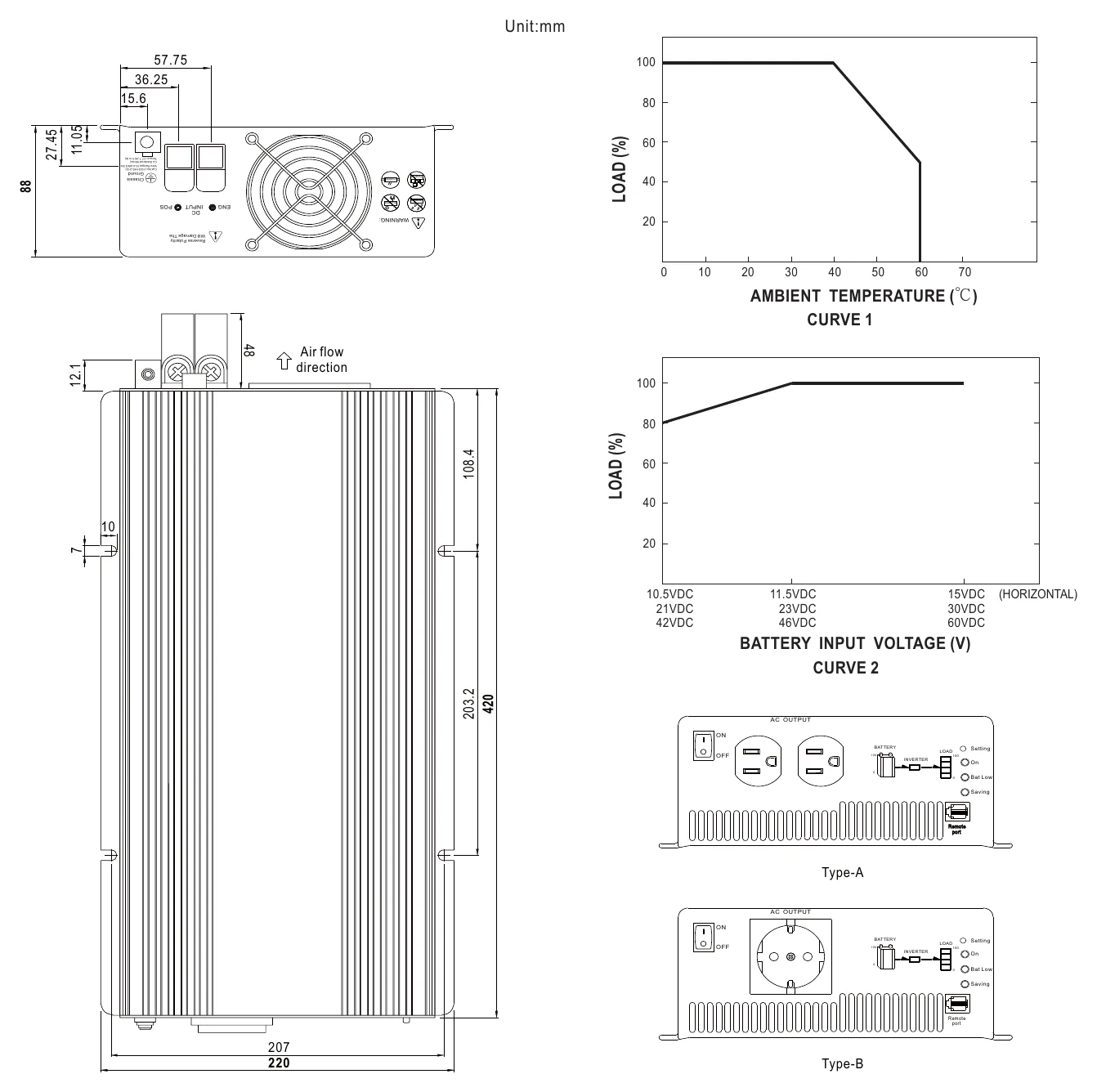

TS-1500-224C Mechanical Specification — Mechanical Specification

Downloads

Certificates2

UL Certificate(TS-1500)(EN) PDF Download

EMC Certificate (TS-1500)(EN) PDF Download

Test reports1

Test Report(TS-1500-224)(EN) PDF Download

Catalogues2

Mean Well Catalog (Industrial) PDF Download

Mean Well Inverter Catalog PDF Download

FAQ

What is the Mean Well TS-1500-224C designed for?

The TS-1500-224C is a DC-AC power inverter designed to provide 230V AC output with a true sine wave. It is intended for applications such as home appliances, power tools, office equipment, portable equipment, vehicles, and yachts where clean AC power is needed.

What are the main output specifications of the TS-1500-224C?

This model is rated at 1500W output power and provides 230V AC output. It is a true sine wave inverter with total harmonic distortion listed as less than 3%, which makes it suitable for equipment that benefits from cleaner AC output.

Does the TS-1500-224C support surge loads?

Yes. The product description states high surge power up to 3000W, which is useful for loads that draw more power momentarily at startup than during normal operation. Buyers should still confirm that their equipment's surge demand stays within the inverter's stated capability.

Is the TS-1500-224C a true sine wave inverter?

Yes, this model is a true sine wave inverter. Mean Well specifies THD below 3%, which is an important distinction for users comparing it with modified sine wave alternatives for sensitive or performance-dependent equipment.

What protection features are included in the TS-1500-224C?

The TS-1500-224C includes protection for short circuit, overload, and over temperature. These built-in protections help safeguard the inverter during abnormal operating conditions and are relevant for buyers evaluating reliability and equipment protection.

What operating environment is specified for this inverter?

The listed operating temperature range for this model is 0°C to 40°C. It also includes a thermostatically controlled cooling fan, which supports thermal management during operation within that stated range.

Does the TS-1500-224C support remote control or communication features?

Yes. It supports RS-232 communication. The communication cable is referenced as RJ11-RS232 and is sold separately.

What warranty is offered with the Mean Well TS-1500-224C?

This model is listed with a 3-year warranty. That gives buyers a clear manufacturer-backed coverage period for this specific inverter model.
